◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#36409) — 11 parça

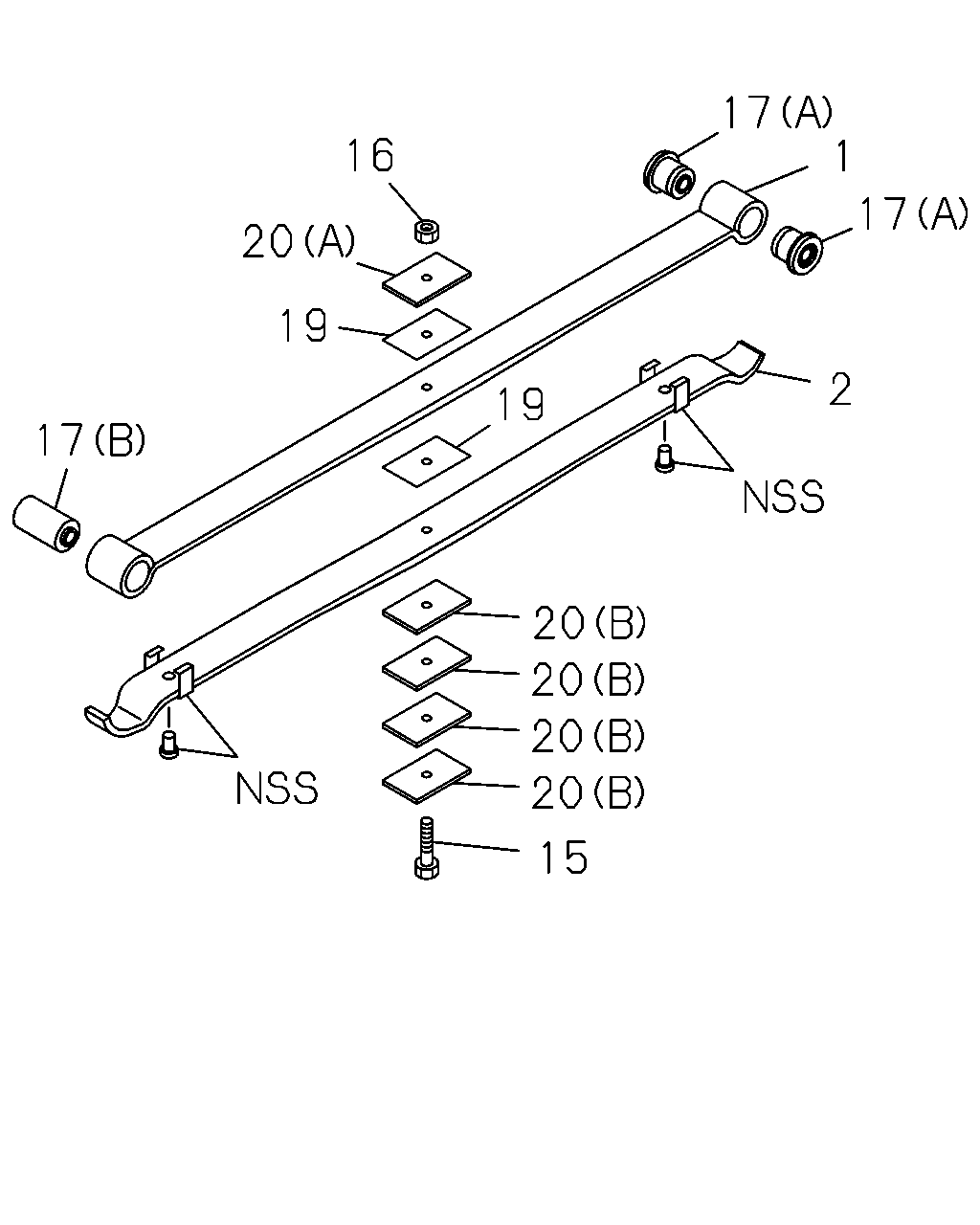

çizim 103273
17 1 16 17 20 19 2 19 17 20 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98025-016-0, 98025016 		8-98077-689-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98025-017-0, 98025017 		8-98077-691-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98025-016-0, 98025016 		8-98077-690-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98025-017-0, 98025017 		8-98077-692-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-98040-305-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-97084-845-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-98034-521-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-98034-522-0 04 1 -
