◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#36405) — 53 parça

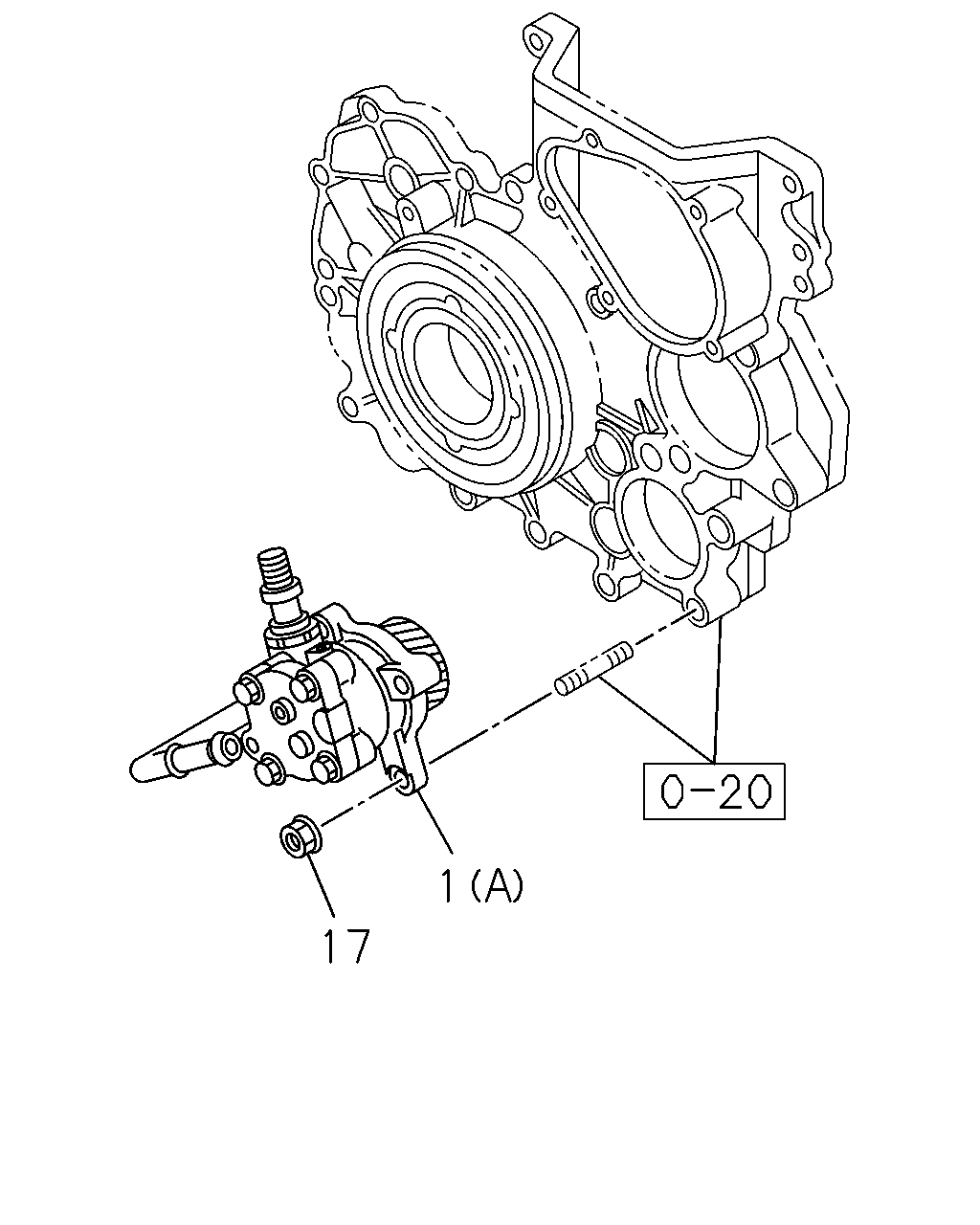

çizim 76631
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97258-461-3 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98138-131-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (A) 		8-98043-204-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (D) 		8-98055-007-2 01 1 1012- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ●
çizim 103152
29 1 36 7 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97258-461-3 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98138-131-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (A) 		8-98043-204-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (D) 		8-98055-007-2 01 1 1012- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1012- ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97112-866-0 01 1 1012- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
çizim 103154
23 24 42 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97258-461-3 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98138-131-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (A) 		8-98043-204-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (D) 		8-98055-007-2 01 1 1012- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ● ● ●
23 06.660 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 1012- ● ●
24 06.673 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
çizim 103208
42 7 1 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97258-461-3 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98138-131-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (A) 		8-98043-204-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (D) 		8-98055-007-2 01 1 1012- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1012- ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97112-866-0 01 1 1012- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
