Sayfa 4-35 - Isuzu EPC

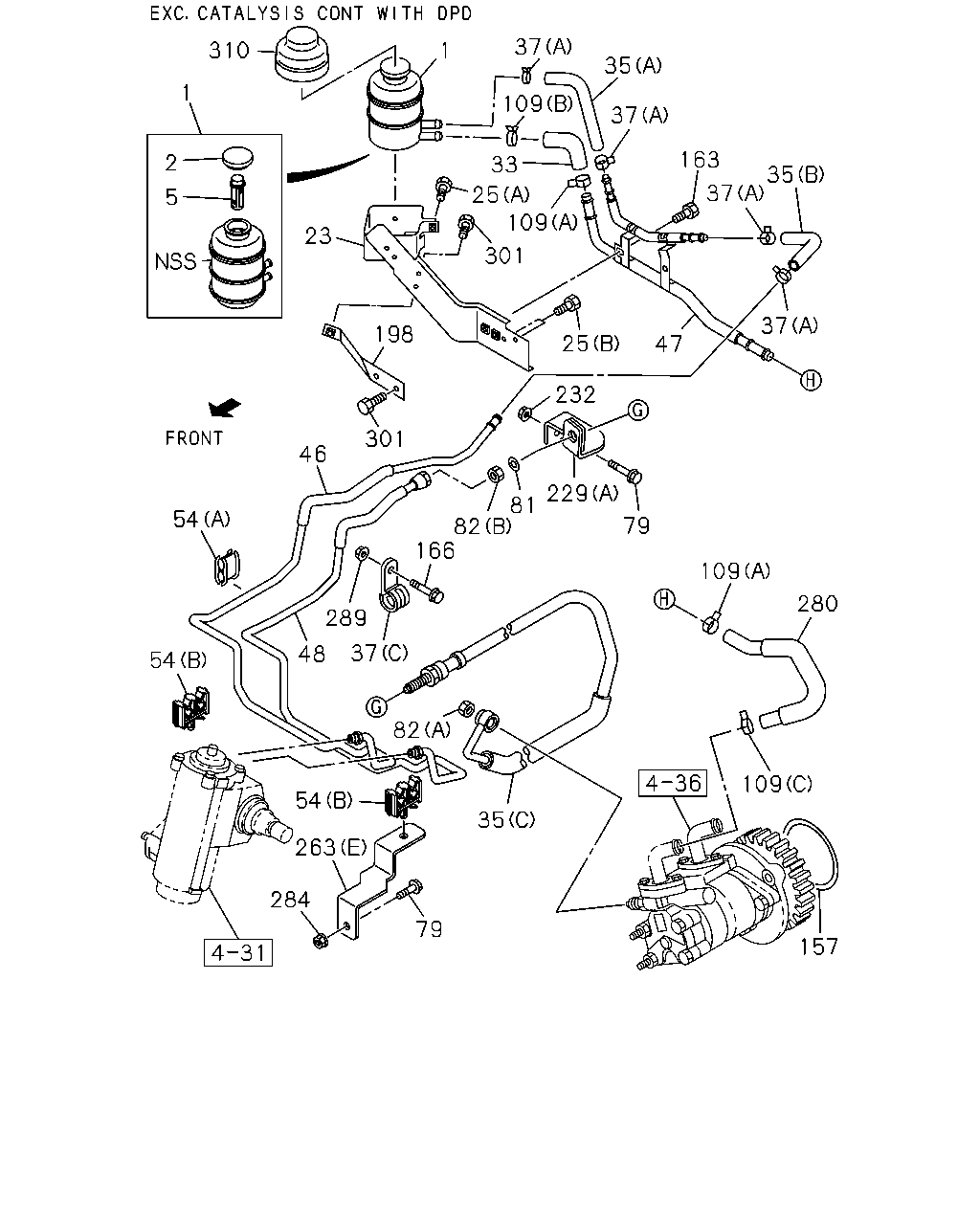

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#36404) — 258 parça

37 310 1 35 1 109 37 163 2 33 35 37 25 109 5 23 301 37 198 25 47 232 301 46 229 81 82 166 54 79 109 280 289 37 48 54 82 109 54 35 263 284 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1012-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1012-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	1012-		●		●
37	01.762 CLIP; HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1012-		●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=32 L=35	1-09701-244-0	01	1	1012-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2610	8-98135-831-0	01	1	1012-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1012-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> L=2651	8-98131-674-0	01	1	1012-				●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1012-		●		●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	1012-		●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-			●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-				●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98068-080-2	01	1	1012-1012	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-080-2	01	1	1012-1012		●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1101-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1101-		●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2809	8-98135-829-0	01	1	1012-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	1012-		●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-		●	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-		●	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-		●		●
79	06.672 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1012-		●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1012-		●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	01	1	1012-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (D) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●		●
109	06.672 CLIP; RUBBER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	1012-		●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS)	8-97101-875-2	01	1	1012-		●	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-		●		●
163	06.671 BOLT; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●	●	●
166	06.672 BOLT; CLIP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1012-	●	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	1012-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	1012-1106		●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1107-		●
232	06.672 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (D)	8-98006-233-1	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98047-047-1	02	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (B)	8-98047-048-3	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. EURO4 SPECIFICATION(NT4) (E)	8-98034-113-0	01	1	1012-		●
263	06.672 BRACKET; P/S PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	1012-				●
263	06.672 BRACKET; P/S PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-845-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1012-		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1012-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1012-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-972-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSISCONTROL WITH DPD(8JM)	8-98082-973-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1012-				●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98052-247-1	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1012-		●
284	06.670 NUT; PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●	●	●
289	06.673 NUT; BRKT,POWER STRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●	●

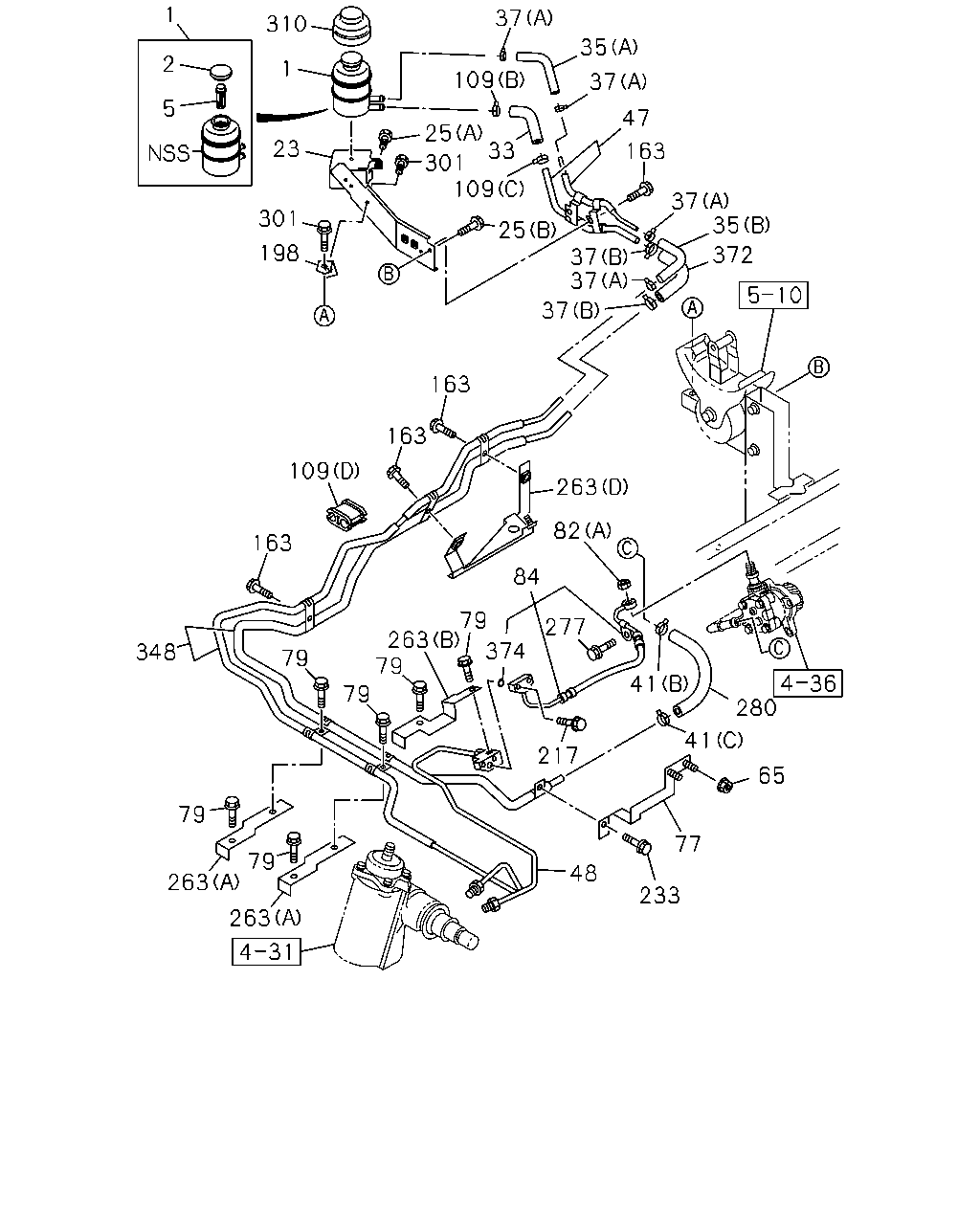

1 37 310 35 2 1 109 37 5 47 25 33 23 163 301 109 37 35 25 301 198 372 37 37 37 163 163 109 263 82 163 84 79 263 79 277 374 348 79 280 41 79 41 217 65 79 77 79 48 263 233 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1012-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1012-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	1012-		●		●
37	01.762 CLIP; HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1012-		●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=32 L=35	1-09701-244-0	01	1	1012-		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1012-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	1012-		●		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1012-		●		●
41	06.672 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98074-004-0	01	1	1012-		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1012-		●		●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	1012-		●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-			●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-				●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98068-080-2	01	1	1012-1012	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-080-2	01	1	1012-1012		●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1101-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1101-		●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2809	8-98135-829-0	01	1	1012-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	1012-		●	●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1411	●
65	06.672 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1411		●		●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-	●
65	06.672 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-		●
65	06.672 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-				●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1012-1411	●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1012-1411		●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1412-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1412-		●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1412-				●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-		●		●
79	06.672 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1012-		●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98046-698-3	01	1	1012-	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-698-3	01	1	1012-		●		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	01	1	1012-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (D) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●		●
109	06.672 CLIP; RUBBER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	1012-		●	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-		●		●
163	06.671 BOLT; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1012-	●	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-		●		●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (D)	8-98006-233-1	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98047-047-1	02	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (B)	8-98047-048-3	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. EURO4 SPECIFICATION(NT4) (E)	8-98034-113-0	01	1	1012-		●
263	06.672 BRACKET; P/S PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	1012-				●
263	06.672 BRACKET; P/S PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-845-0	01	1	1012-		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1012-		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1012-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1012-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-972-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSISCONTROL WITH DPD(8JM)	8-98082-973-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1012-				●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98052-247-1	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1012-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98101-609-1	01	1	1012-	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-1	01	1	1012-		●		●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB) 06.672	8-98171-278-0	01	1	1012-	●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-98171-278-0	01	1	1012-		●		●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	1012-	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	1012-		●		●

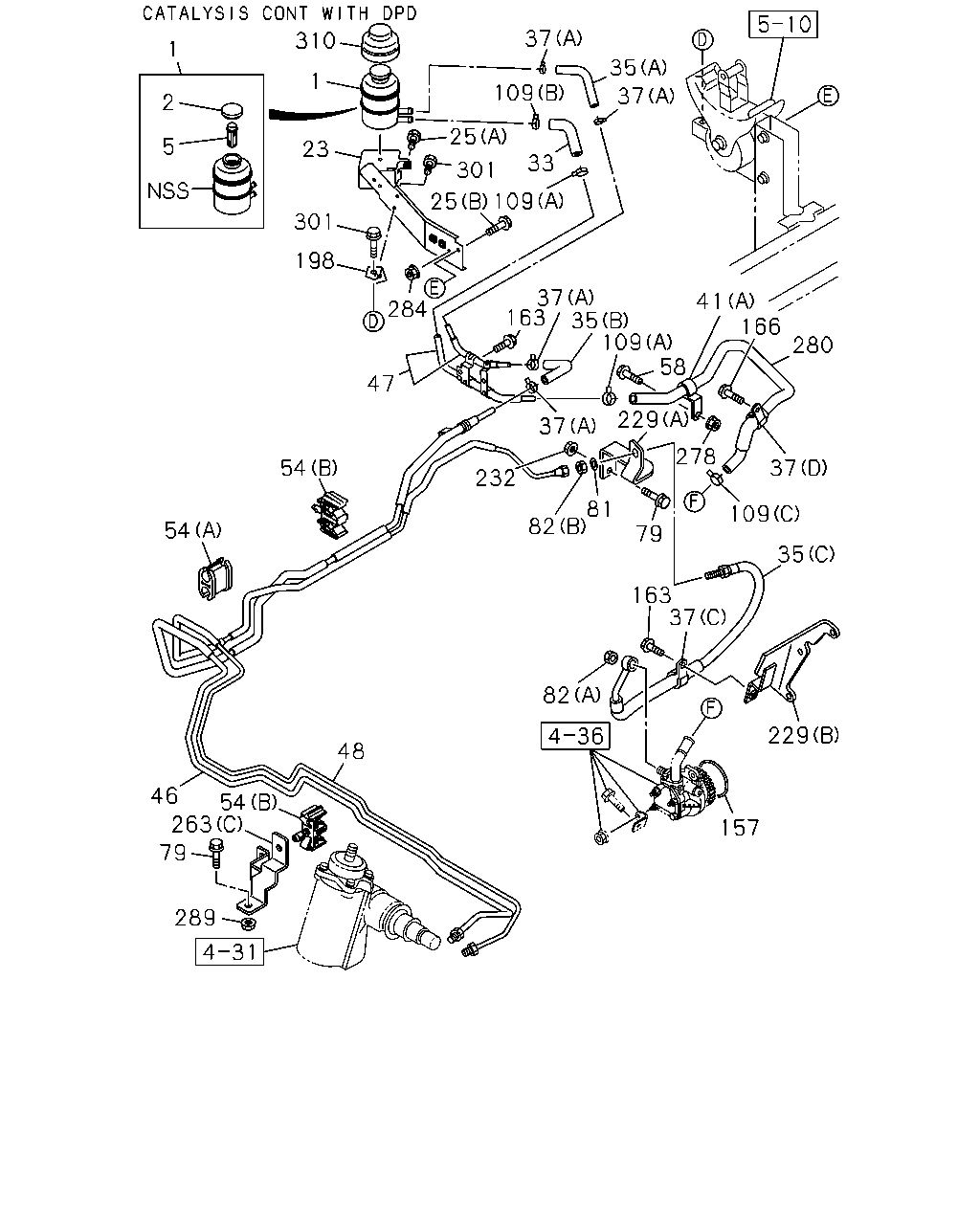

37 310 1 35 1 109 37 2 25 5 23 33 301 301 198 284 37 163 35 109 58 41 166 280 47 229 37 278 54 37 232 81 82 109 54 79 35 163 37 82 229 48 46 54 263 157 79 289 25 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1012-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1012-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1012-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	1012-		●		●
37	01.762 CLIP; HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1012-		●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=32 L=35	1-09701-244-0	01	1	1012-		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1012-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	1012-		●		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	1012-		●		●
41	06.672 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98074-004-0	01	1	1012-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2610	8-98135-831-0	01	1	1012-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1012-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> L=2651	8-98131-674-0	01	1	1012-				●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1012-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1012-		●		●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	1012-		●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-			●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-				●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98068-080-2	01	1	1012-1012	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-080-2	01	1	1012-1012		●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1101-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-809-0	01	1	1101-		●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2809	8-98135-829-0	01	1	1012-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	1012-		●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-		●	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1012-		●	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●	●	●
58	06.672 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-		●		●
79	06.672 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1012-		●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1012-		●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	01	1	1012-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (D) ID=10X2 H=22	8-94252-455-2	01	1	1012-	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22	8-94252-455-2	01	1	1012-		●		●
109	06.672 CLIP; RUBBER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	1012-		●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS)	8-97101-875-2	01	1	1012-		●	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1012-		●		●
163	06.671 BOLT; OIL PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●	●	●
166	06.672 BOLT; CLIP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1012-	●	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	1012-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	1012-1106		●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1107-		●
232	06.672 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (D)	8-98006-233-1	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98047-047-1	02	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (B)	8-98047-048-3	01	1	1012-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1012-		●		●
263	06.672 BRACKET; P/S PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. EURO4 SPECIFICATION(NT4) (E)	8-98034-113-0	01	1	1012-		●
263	06.672 BRACKET; P/S PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	1012-			●
263	06.672 BRACKET; P/S PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	1012-				●
263	06.672 BRACKET; P/S PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-845-0	01	1	1012-		●
278	06.670 NUT; HOSE CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1012-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1012-		●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98167-142-0	01	1	1012-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98167-143-0	01	1	1012-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-972-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ), CATALYSISCONTROL WITH DPD(8JM)	8-98082-973-0	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1012-			●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1012-				●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98052-247-1	01	1	1012-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1012-		●
284	06.670 NUT; PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●	●	●
289	06.673 NUT; BRKT,POWER STRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
