3-55 — BRAKE PIPING; OIL,REAR (#36393) — 214 parça

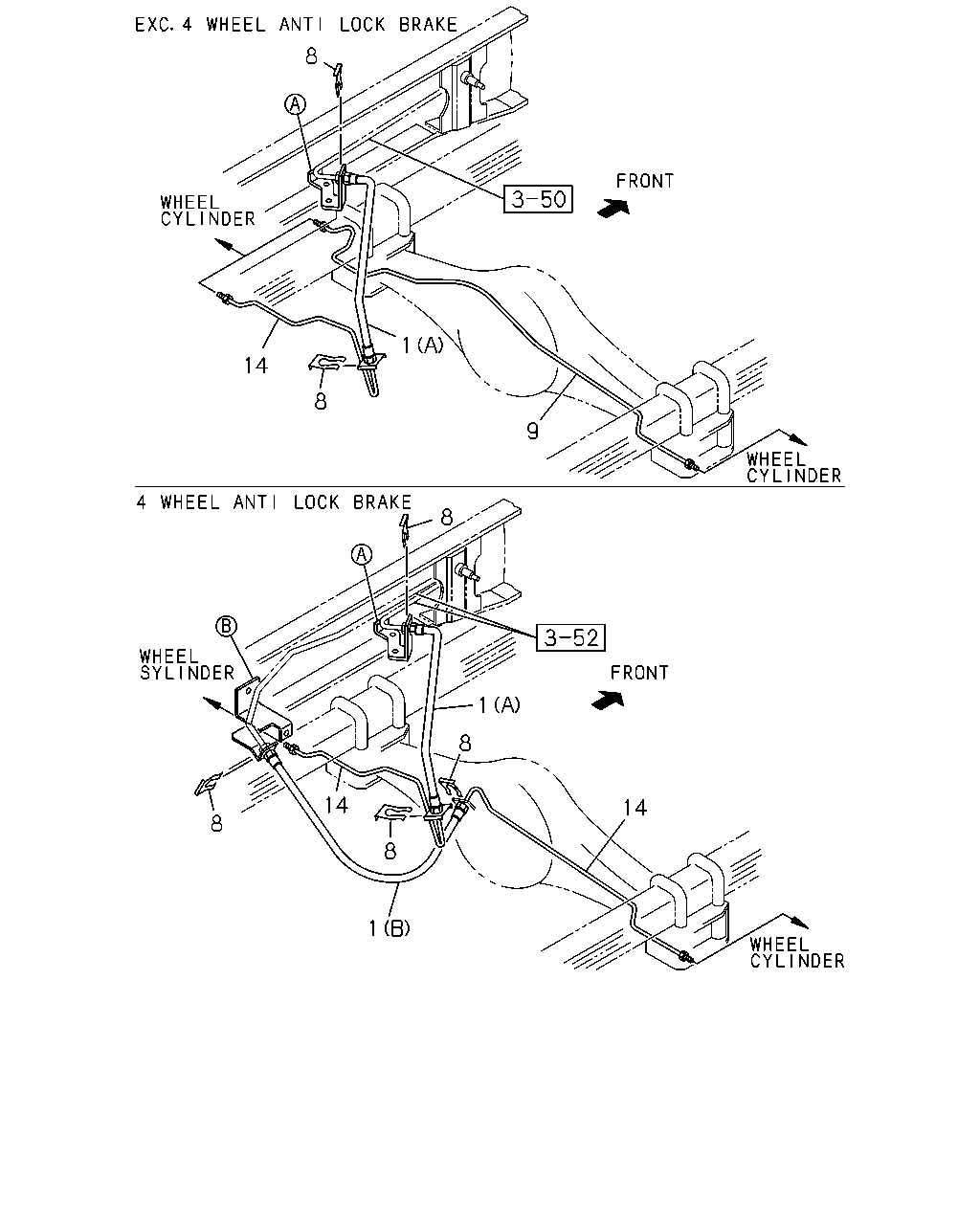

çizim 75383
8 1 14 8 9 8 1 8 14 14 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1012- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) L=405 		8-97089-061-0 01 1 1012-1406 ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) L=405 		8-97089-061-0 01 1 1407- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012-1406 ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1012-1406 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1407- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1407- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1012-1406 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1407- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98251-227-0 01 1 1309-1407 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-98251-227-0 01 1 1408- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-056-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98026-056-0 01 1 1012- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98106-714-0 01 1 1012-1407 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98106-714-0 01 1 1012-1407 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-98106-714-0 01 1 1408- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98106-714-0 01 1 1408- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98039-603-0 01 1 1012-1407 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98039-603-0 01 1 1012-1407 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> 		8-98039-603-0 01 1 1408- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98039-603-0 01 1 1408- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98118-216-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-98118-216-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98026-052-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1012-1406 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1012-1406 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1407- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-038-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98089-413-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-041-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98026-041-0 01 1 1012- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1012-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1012-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) ALGERIA EQUIPMENT(WN1) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1501- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1501- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 1012-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-749-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5> 		8-97359-748-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1307-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1307-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1307-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98026-051-0 01 1 1012- ●

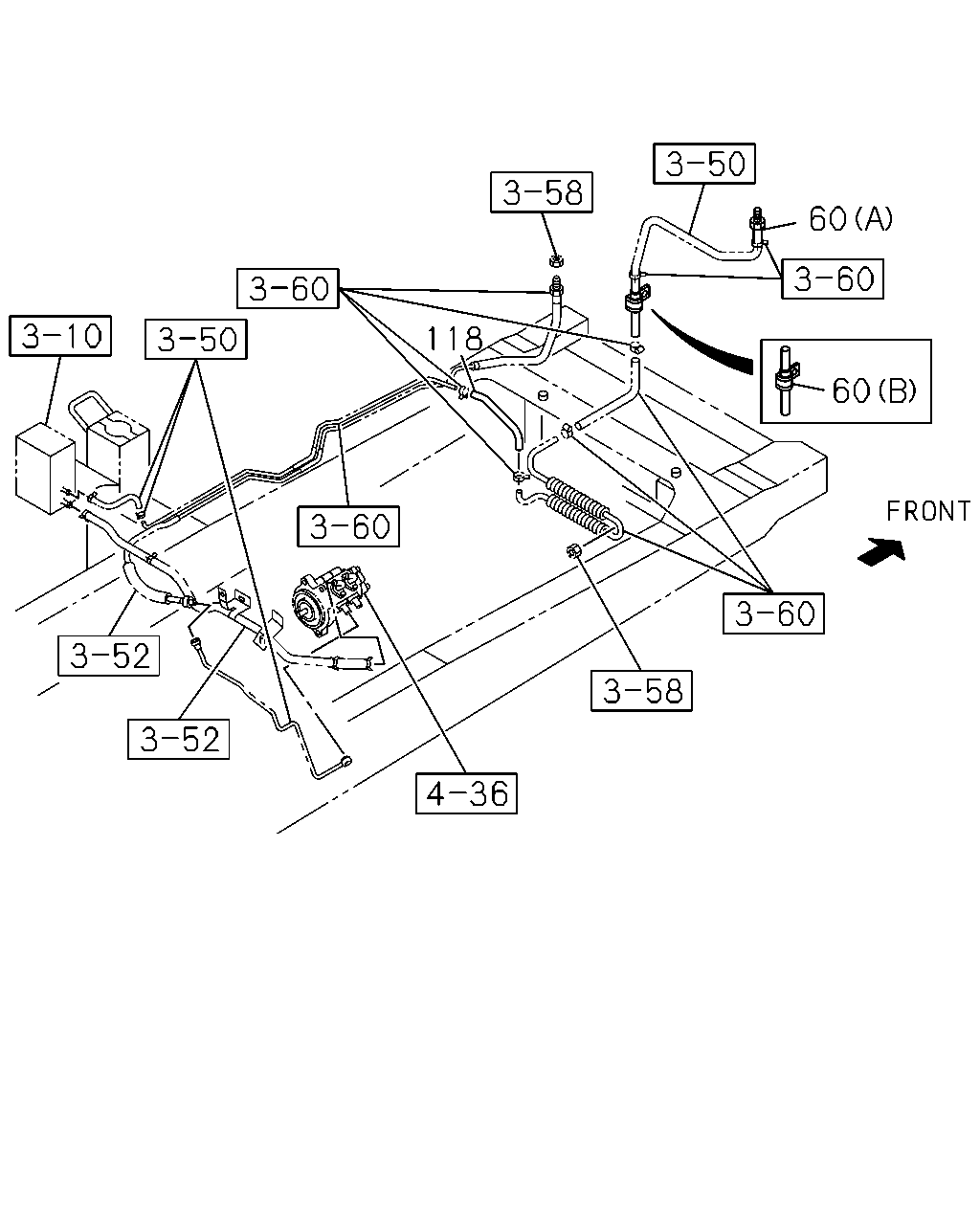

çizim 76129
60 118 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 04.685 PIPE ASM; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1012- ● ●
60 04.685 PIPE ASM; BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 1012- ● ●
118 04.680 HOSE; PIPE TO PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1012- ● ●

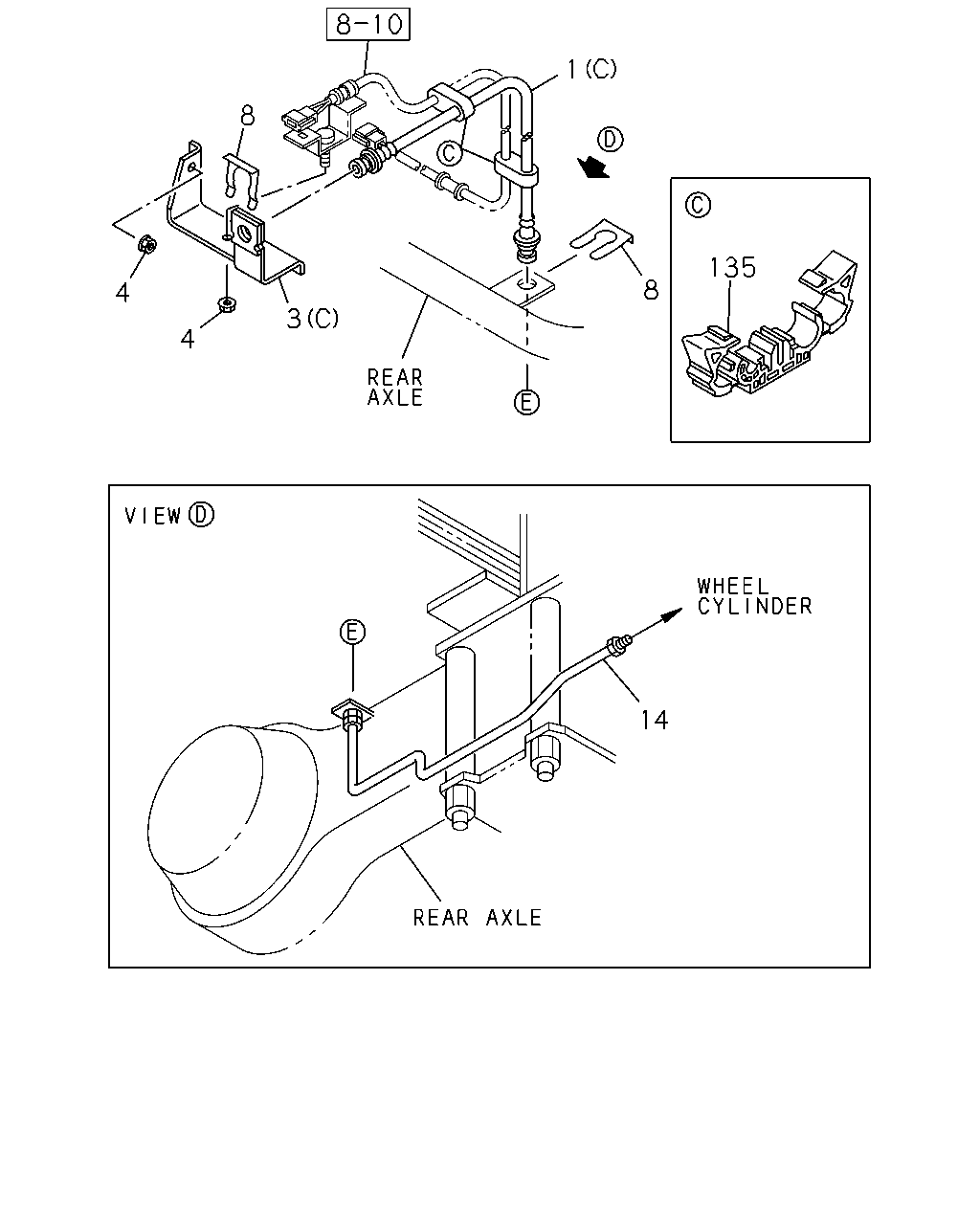

çizim 76580
1 8 135 8 4 4 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1012- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 1012-1406 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) L=405 		8-97089-061-0 01 1 1012-1406 ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) L=405 		8-97089-061-0 01 1 1407- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 04.845 (A) 		8-97205-199-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1012-1406 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1012-1406 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1012-1406 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1407- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98117-514-1 01 1 1012- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1406 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012-1406 ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1012-1406 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1407- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1407- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1012-1406 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1407- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-038-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98089-413-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-041-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98026-041-0 01 1 1012- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1012-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1012-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98027-461-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1307-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1309-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) ALGERIA EQUIPMENT(WN1) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1408-1412 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1501- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1501- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) ALGERIA EQUIPMENT(WN1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-97359-746-0 01 1 1501- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 1012-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-749-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1012-1107 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5> 		8-97359-748-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1108-1306 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1307-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1307-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1307-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),4 WHEEL ANTI LOCK BRA KE<JE5>,DUMP CHASSIS(V4D) 		8-97359-748-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1408- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 		8-98026-051-0 01 1 1012- ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 1012-1406 ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 1407- ● ●
çizim 103151
3 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 04.845 (A) 		8-97205-199-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1012-1406 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1012-1406 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1012-1406 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1407- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98117-514-1 01 1 1012- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1406 ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1406 ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1012-1406 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1407- ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1407- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
