Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#36392) — 266 parça

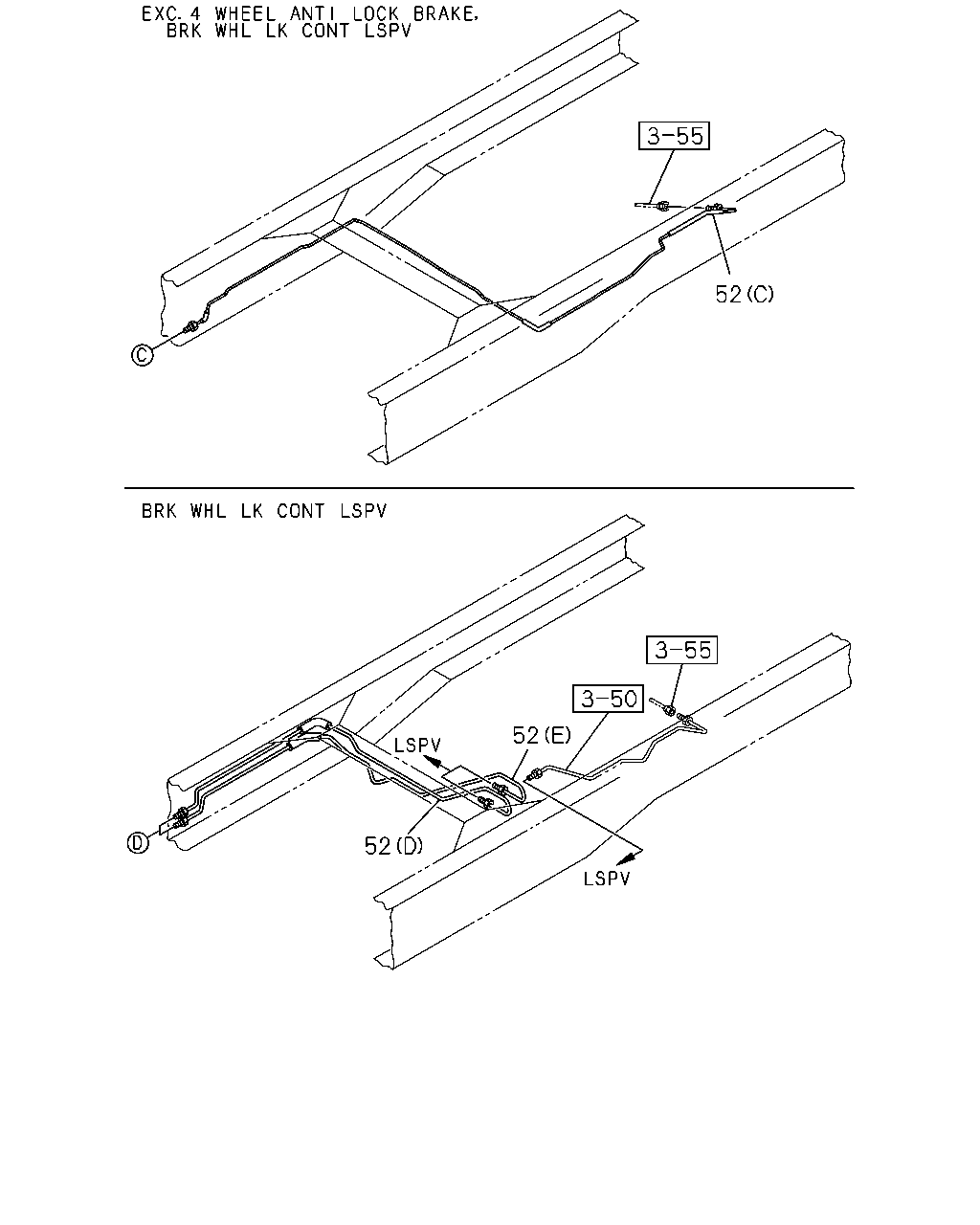

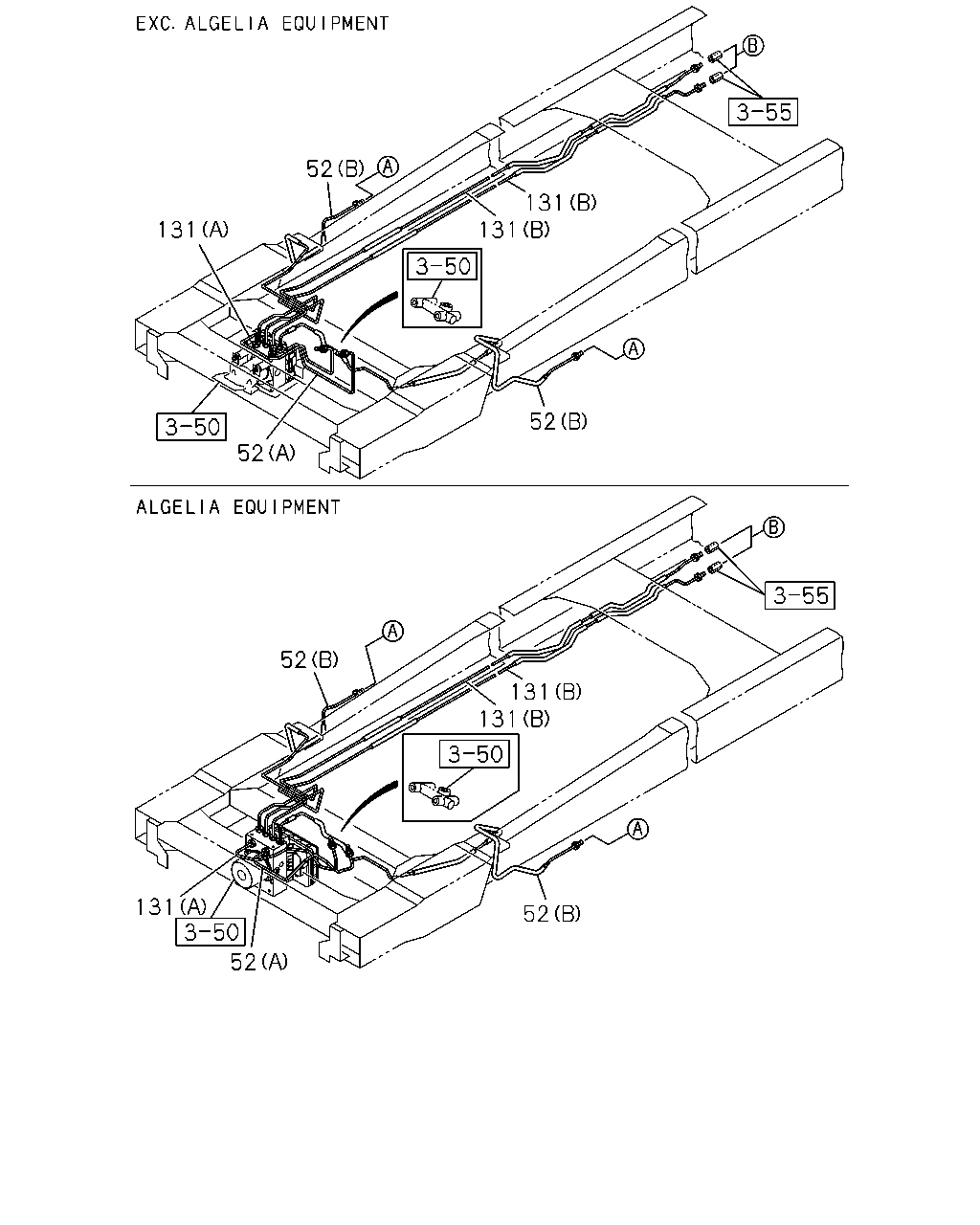

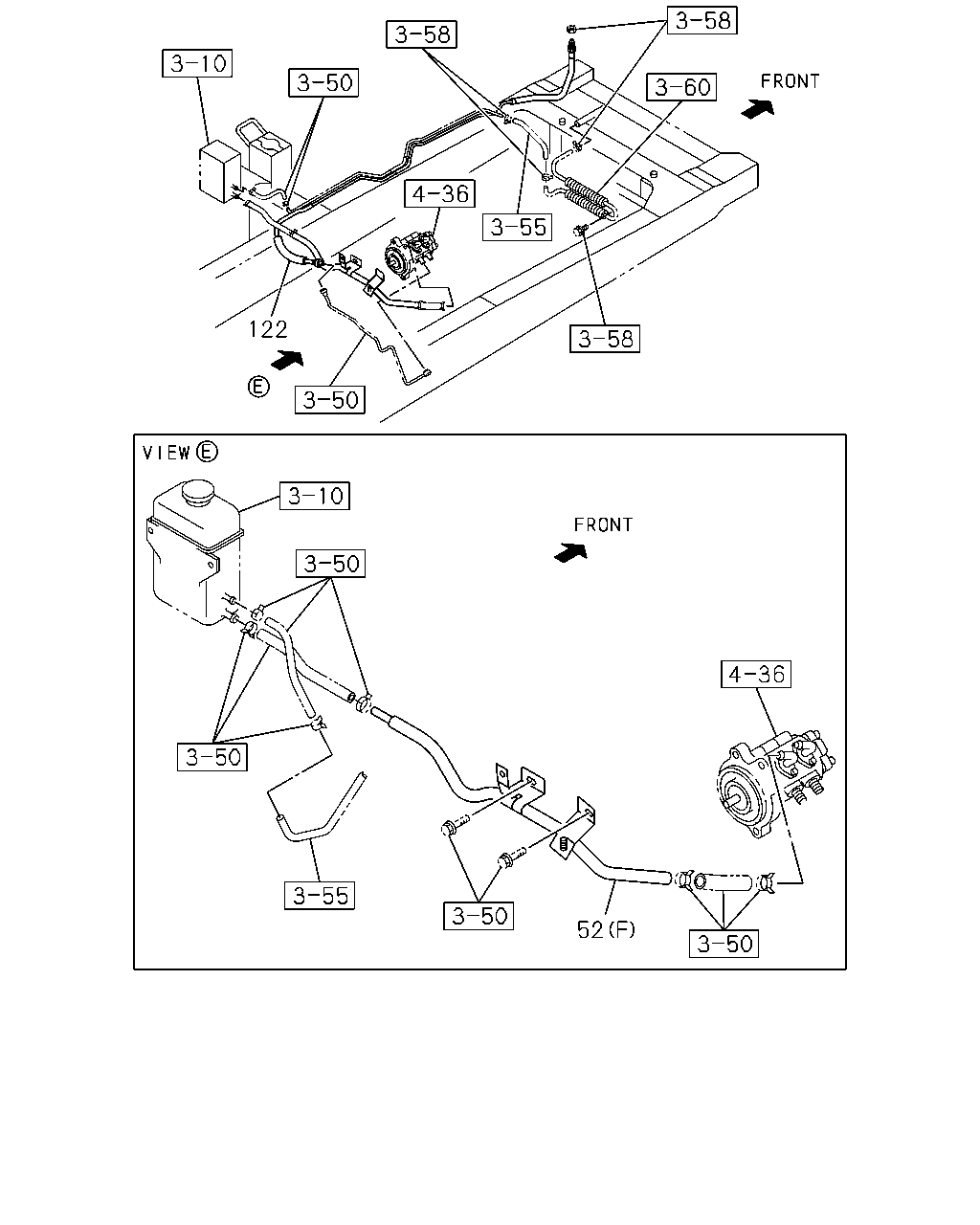

52 131 52 52 131 131 131 131 52 52 131 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98305-359-0	01	1	1501-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98305-360-0	01	1	1501-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98216-264-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98216-265-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-98201-456-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1303-1307	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1308-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98168-282-0	01	1	1308-1406		●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (F)	8-97370-410-0	01	1	1012-1106	●	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (F)	8-97370-410-0	01	1	1107-	●	●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT	8-97389-451-1	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR	8-98056-316-0	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT	8-97389-452-1	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR	8-98051-645-0	01	1	1012-			●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-261-0	01	1	1012-	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-262-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1407-				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-263-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1407-				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-264-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-264-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-264-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1407-	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1407-		●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1),FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1),FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-162-0	01	1	1012-	●	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-318-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1012-				●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1012-				●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98110-923-2	01	1	1501-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98110-929-1	01	1	1501-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,REAR	8-98201-457-0	01	1	1407-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-392-0	01	1	1407-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-393-1	01	1	1407-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1012-1406	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1407-	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1407-		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1012-1406	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1) 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1407-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1012-1406	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1) 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1407-	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-420-1	01	1	1012-1106	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-805-0	01	1	1107-1412	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-805-0	01	1	1501-	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-425-1	01	1	1012-1106	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-818-0	01	1	1107-1412	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-818-0	01	1	1501-	●

52 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98305-359-0	01	1	1501-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98305-360-0	01	1	1501-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98216-264-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98216-265-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-98201-456-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1303-1307	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1308-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98168-282-0	01	1	1308-1406		●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (F)	8-97370-410-0	01	1	1012-1106	●	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (F)	8-97370-410-0	01	1	1107-	●	●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT	8-97389-451-1	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR	8-98056-316-0	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT	8-97389-452-1	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR	8-98051-645-0	01	1	1012-			●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-261-0	01	1	1012-	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-262-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1407-				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-263-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1407-				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-264-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-264-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-264-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1407-	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1407-		●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1),FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1),FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-162-0	01	1	1012-	●	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-318-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1012-				●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1012-				●

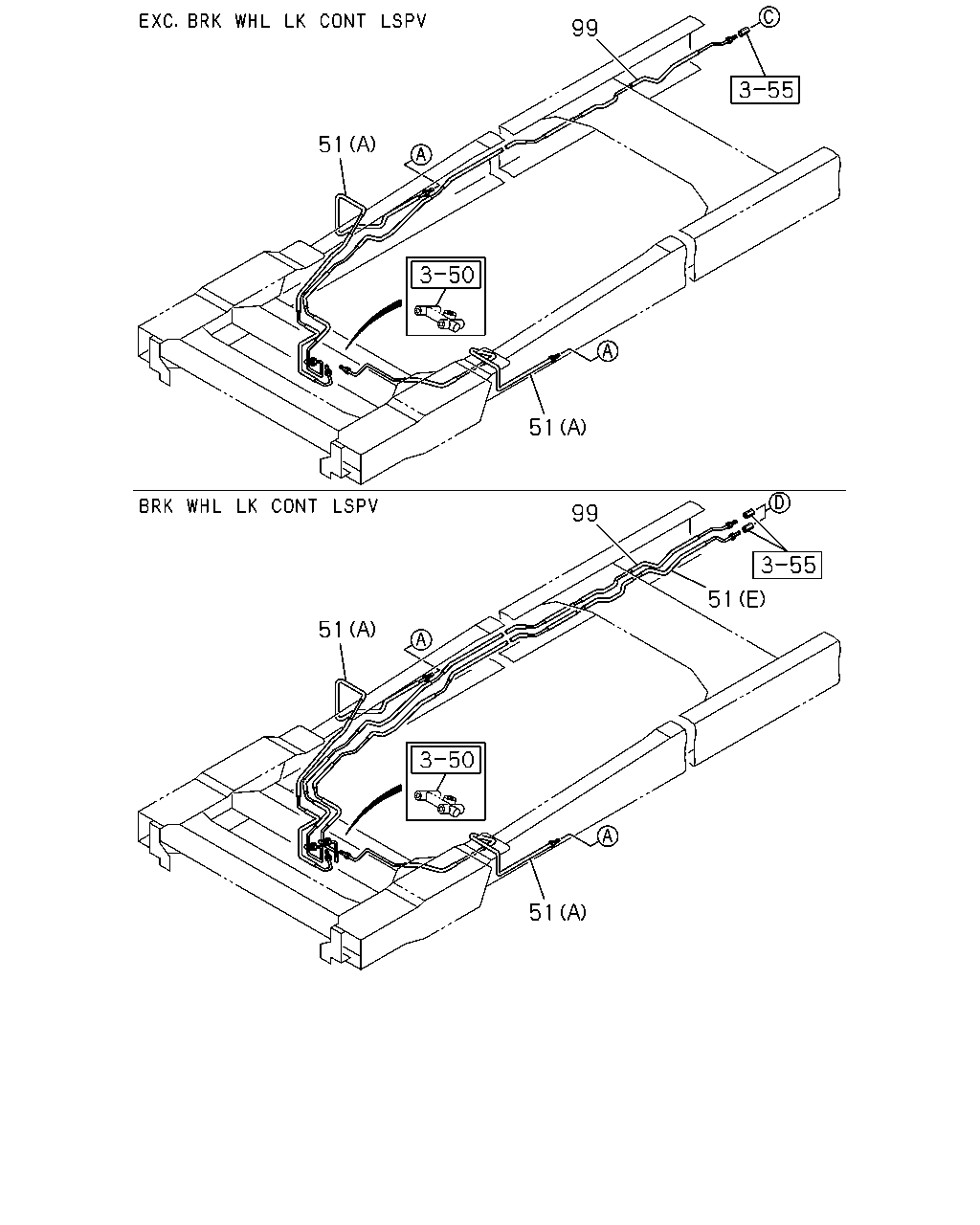

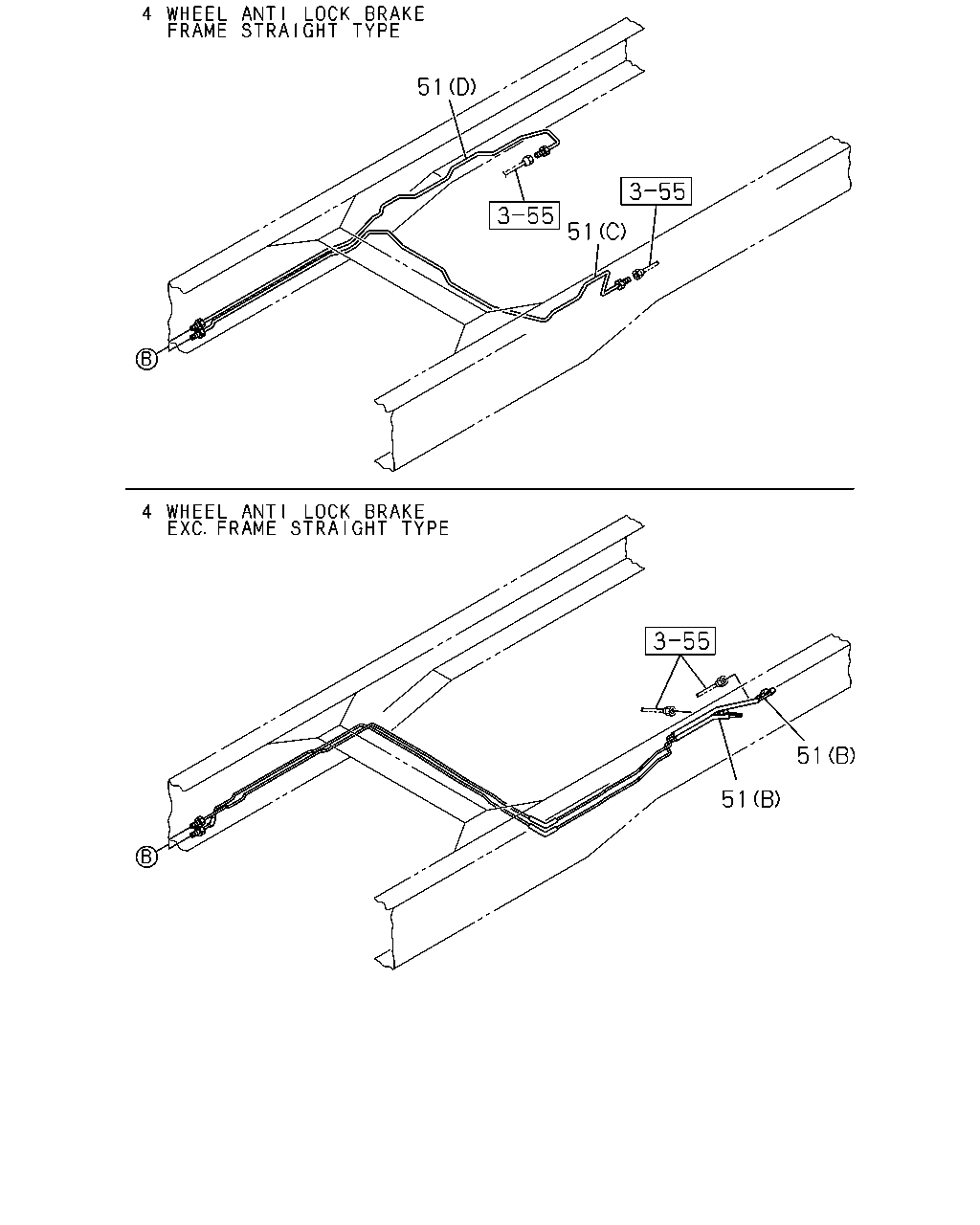

51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-519-1	01	1	1501-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-532-1	01	1	1501-	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-779-1	01	1	1108-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-779-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1108-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) (E) 4/6WAY TO 2WAY,FRONT	8-98056-331-1	01	1	1012-			●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98056-312-1	01	1	1012-			●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98056-312-1	01	1	1012-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98056-312-1	01	1	1012-				●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-599-0	01	1	1012-			●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-599-0	01	1	1012-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-599-0	01	1	1012-				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98136-043-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98136-043-0	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98136-043-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98136-044-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98136-044-0	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98136-044-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1012-1406				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1407-				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1012-1406				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1407-				●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-776-1	01	1	1012-	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-545-0	01	1	1012-	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-777-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-777-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-057-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-057-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98041-058-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98041-058-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-520-1	01	1	1012-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-533-1	01	1	1012-	●

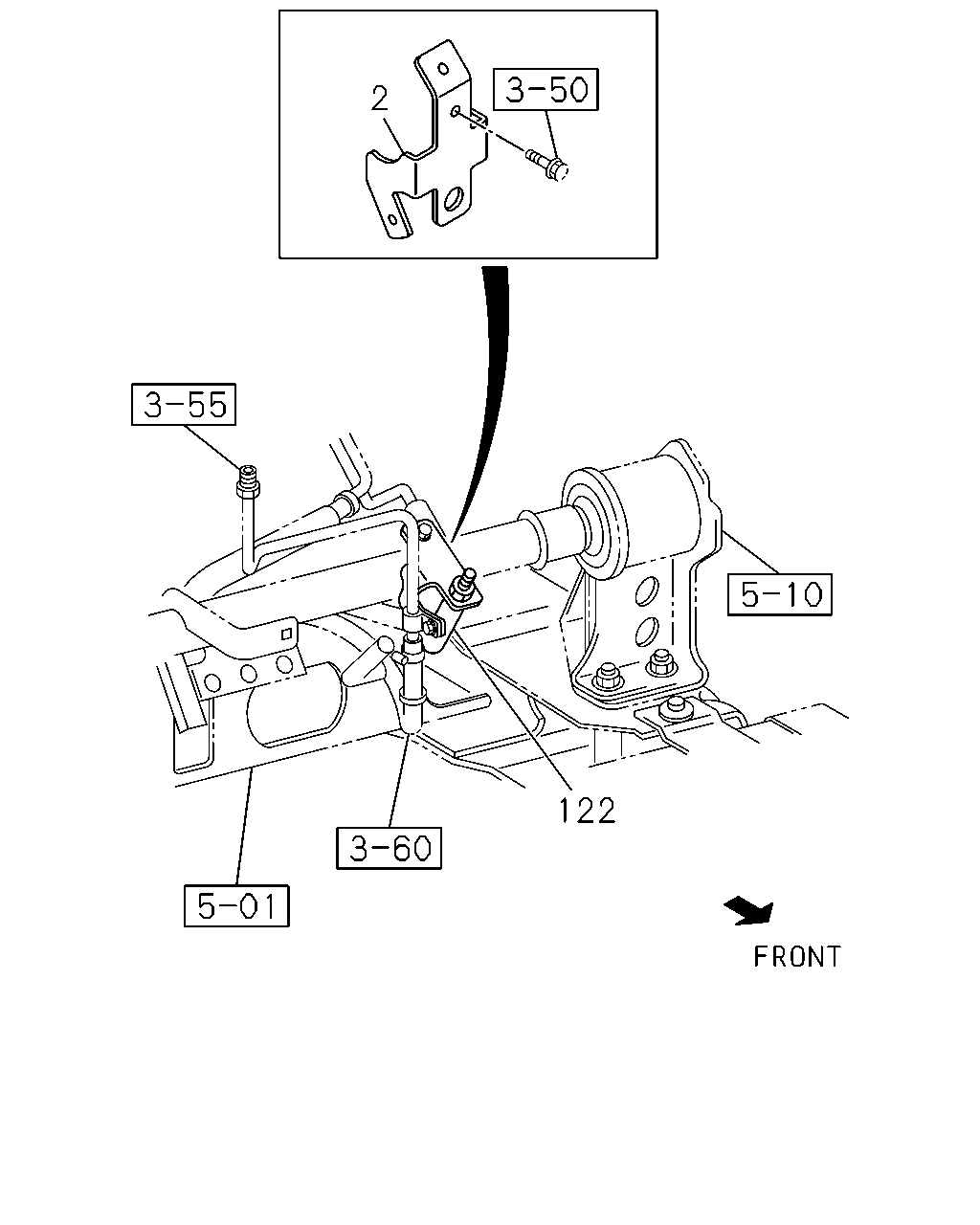

1 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	1012-			●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRONT WIDE TREAD<7GV>	8-97039-543-1	02	1	1012-	●	●
1	04.680 HOSE; FLEX,FRT BRK FRONT WIDE TREAD<7GV>	8-97115-907-0	02	1	1012-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1012-	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1012-	●	●	●	●

122 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH	8-98305-359-0	01	1	1501-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH	8-98305-360-0	01	1	1501-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98216-264-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98216-265-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-98201-456-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1303-1307	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1308-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98168-282-0	01	1	1308-1406		●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98168-282-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (F)	8-97370-410-0	01	1	1012-1106	●	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (F)	8-97370-410-0	01	1	1107-	●	●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 2WAY TO LSPV,FRONT	8-97389-451-1	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,REAR	8-98056-316-0	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 2WAY TO LSPV,FRONT	8-97389-452-1	01	1	1012-			●
52	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,REAR	8-98051-645-0	01	1	1012-			●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-261-0	01	1	1012-	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1012-1406				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-262-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-262-0	01	1	1407-				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1012-1406				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-263-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-263-0	01	1	1407-				●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-264-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98057-264-0	01	1	1012-1406		●
52	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR	8-98057-264-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1407-	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1407-		●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1),FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1012-1406	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. ALGERIA EQUIPMENT(WN1),FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1407-	●	●
52	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-162-0	01	1	1012-	●	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-318-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-319-0	01	1	1012-				●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1012-	●
52	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR	8-98056-415-0	01	1	1012-				●
122	04.685 PIPE ASM; BRK,2 WAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1253	8-98136-817-0	01	1	1012-1205	●	●
122	04.685 PIPE ASM; BRK,2 WAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98214-083-0	01	1	1206-	●	●
122	04.685 PIPE ASM; BRK,2 WAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1284	8-98136-575-0	01	1	1012-	●	●

51 99 51 99 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-519-1	01	1	1501-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-532-1	01	1	1501-	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-779-1	01	1	1108-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-779-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1108-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) (E) 4/6WAY TO 2WAY,FRONT	8-98056-331-1	01	1	1012-			●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98056-312-1	01	1	1012-			●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98056-312-1	01	1	1012-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98056-312-1	01	1	1012-				●
51	04.685 PIPE; BRK 4JJ1-TCS ENG(LFB) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-599-0	01	1	1012-			●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-599-0	01	1	1012-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98106-599-0	01	1	1012-				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98136-043-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98136-043-0	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98136-043-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98136-044-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98136-044-0	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98136-044-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1012-1406				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT	8-98065-765-1	01	1	1407-				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1012-1406		●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1012-1406				●
51	04.685 PIPE; BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRONTWIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT	8-98065-766-1	01	1	1407-				●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-776-1	01	1	1012-	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-545-0	01	1	1012-	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-777-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-777-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-057-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-057-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98041-058-0	01	1	1012-1406	●
51	04.685 PIPE; BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98041-058-0	01	1	1407-	●	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-520-1	01	1	1012-	●
51	04.685 PIPE; BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-533-1	01	1	1012-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JJ1-TCS ENG(LFB) 4/6WAY TO 2WAY,REAR	8-97389-415-2	01	1	1012-			●
99	04.686 PIPE ASM; 4/5/6 WAY 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR	8-97389-415-2	01	1	1012-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR	8-97389-415-2	01	1	1012-				●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1012-1406	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1012-1406		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1012-1406				●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1407-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1407-				●

2 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.681 BRACKET; FLEX HOSE,FRT BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98136-578-0	01	1	1012-	●	●
122	04.685 PIPE ASM; BRK,2 WAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1253	8-98136-817-0	01	1	1012-1205	●	●
122	04.685 PIPE ASM; BRK,2 WAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98214-083-0	01	1	1206-	●	●
122	04.685 PIPE ASM; BRK,2 WAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=1284	8-98136-575-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
