Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#36391) — 244 parça

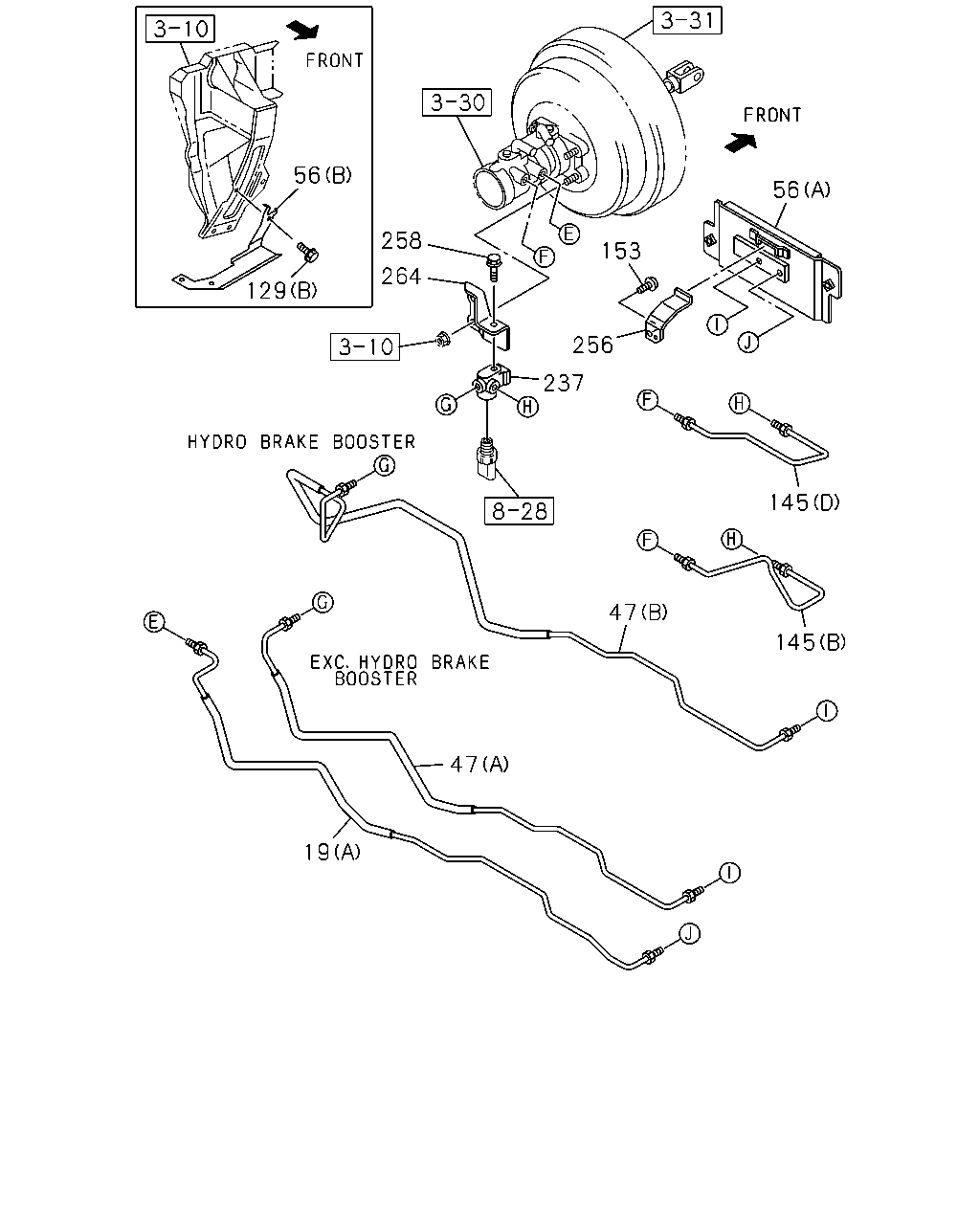

56 56 258 153 264 129 256 237 145 47 145 47 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-			●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=1059	8-98099-808-0	01	1	1012-1406			●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=1059	8-98099-808-0	01	1	1407-1407			●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. ALGERIA EQUIPMENT(WN1) (B) L=1059	8-98099-808-0	01	1	1408-1505			●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COUNTRY ALGERIA<D2G>,ALGERIA EQUIPMENT(WN1) (B) L=1059	8-98099-808-0	01	1	1506-			●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-807-0	01	1	1012-1406			●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-			●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1012-1406	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1406				●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1407-1407	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1407-1407			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1408-1502	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1408-1502			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1503-1505	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1503-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1503-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1506-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1407-1407			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. ALGERIA EQUIPMENT(WN1) (B) L=228	8-98133-411-0	01	1	1408-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COUNTRY ALGERIA<D2G>,ALGERIA EQUIPMENT(WN1) (B) L=228	8-98133-411-0	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1012-1406				●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1407-1407			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1408-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) (A) L=1052	8-98099-793-0	01	1	1408-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION COUNTRY ALGERIA<D2G> 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) HYDRO BRAKE BOOSTER(7QQ) EXC. COUNTRY ALGERIA<D2G> (A) L=1052	8-98099-793-0	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1506-			●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-		●	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1012-1406			●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1407-1407			●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-98111-748-1	01	1	1408-			●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-		●	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-1406			●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1407-1407			●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1408-			●	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1012-1406			●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1407-1407			●	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-97387-683-2	01	1	1408-			●	●

89 72 72 184 179 197 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-1406	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1407-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) THROTTLE CONTROL SYSTEM<6XH> HYDRO BRAKE BOOSTER(7QQ)	8-98270-826-0	01	1	1410-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) THROTTLE CONTROL SYSTEM<6XH> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98305-119-0	01	1	1501-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1012-1406	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1407-1409	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. ALGERIA EQUIPMENT(WN1)	8-98158-006-1	01	1	1410-	●	●
94	04.730 BRACKET; ABS CONT UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1)	8-98131-875-2	01	1	1408-1504	●	●
94	04.730 BRACKET; ABS CONT UNIT ALGERIA EQUIPMENT(WN1)	8-98131-875-2	01	1	1505-	●	●
179	04.685 SPACER; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1)	8-98130-134-0	03	1	1408-1504	●	●
179	04.685 SPACER; BRKT ALGERIA EQUIPMENT(WN1)	8-98130-134-0	03	1	1505-	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (B) M6X27 W/PL WASHER	8-98131-461-0	03	1	1408-1504	●	●
184	04.681 BOLT; CLIP ALGERIA EQUIPMENT(WN1) (B) M6X27 W/PL WASHER	8-98131-461-0	03	1	1505-	●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
197	04.730 RUBBER; DAMPER 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1)	8-98130-133-0	03	1	1408-1504	●	●
197	04.730 RUBBER; DAMPER ALGERIA EQUIPMENT(WN1)	8-98130-133-0	03	1	1505-	●	●

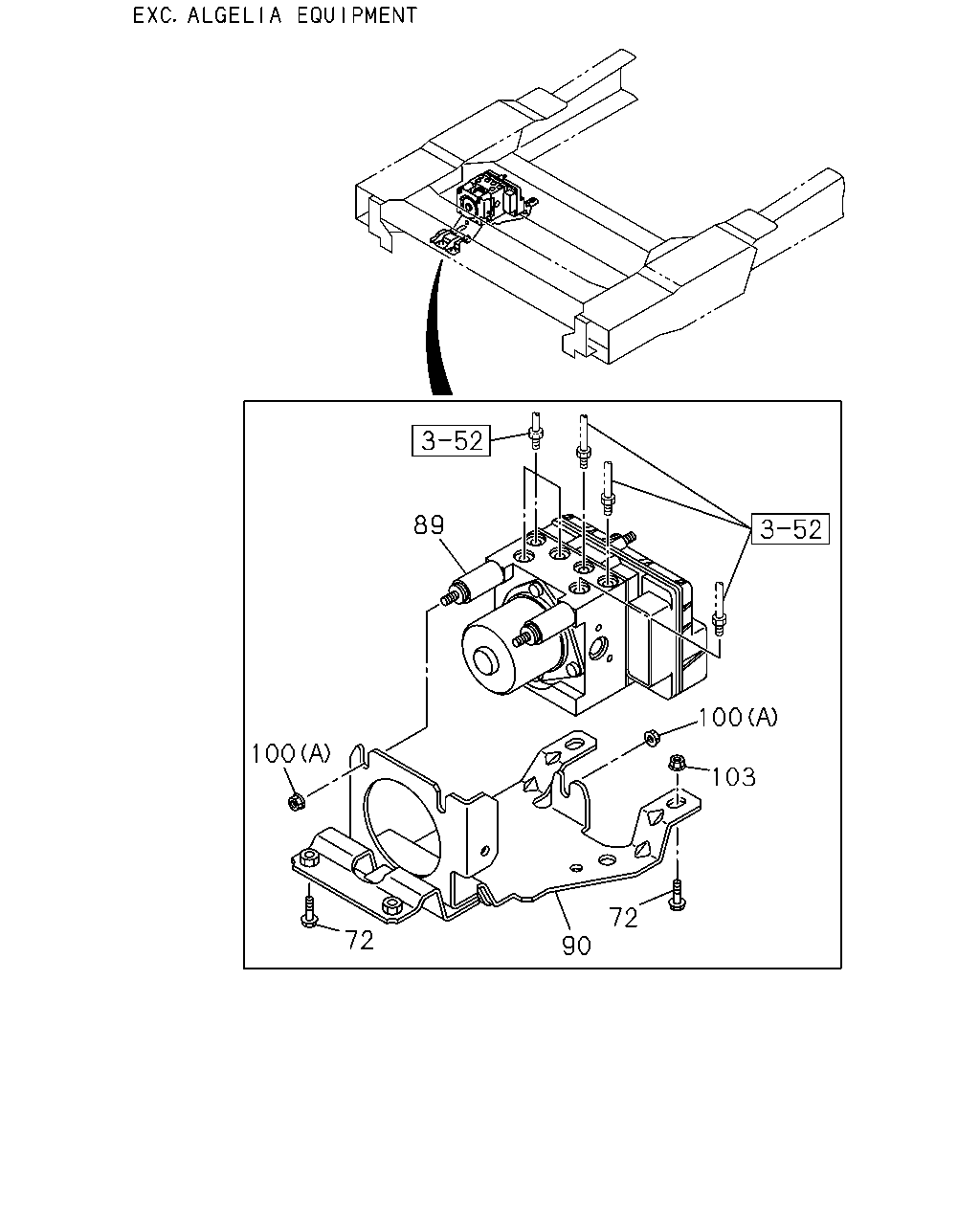

89 100 103 72 90 72 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-1406	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1407-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) THROTTLE CONTROL SYSTEM<6XH> HYDRO BRAKE BOOSTER(7QQ)	8-98270-826-0	01	1	1410-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) THROTTLE CONTROL SYSTEM<6XH> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98305-119-0	01	1	1501-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1012-1406	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1407-1409	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. ALGERIA EQUIPMENT(WN1)	8-98158-006-1	01	1	1410-	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1012-1406	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1407-1407	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-97385-320-0	01	1	1408-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1012-1406	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1407-1407	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1408-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1012-1106	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1107-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1303-1406	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-1407	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,FRAME STRAIGHTTYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-1407		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1408-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1408-		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1302	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1303-1406	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●	●

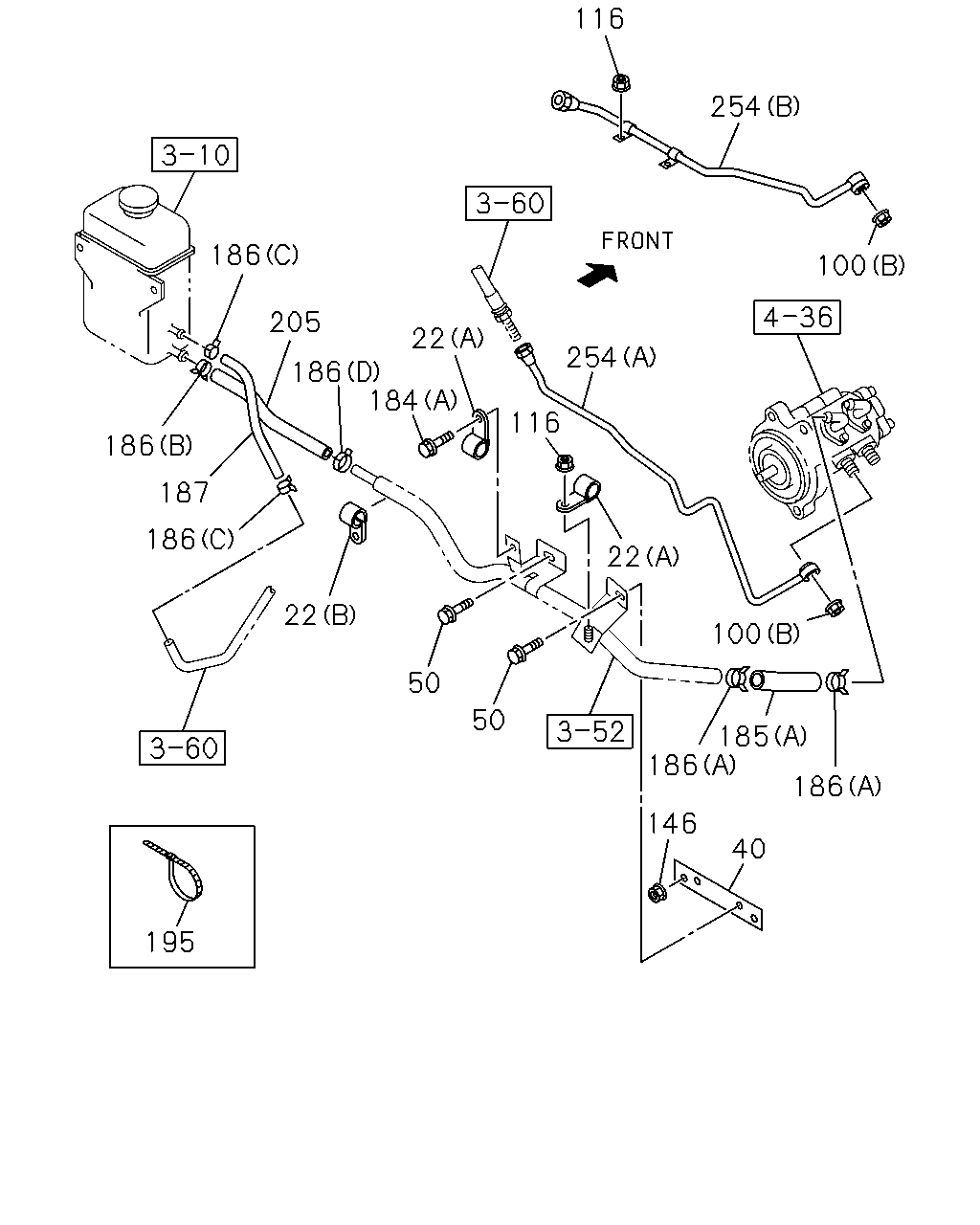

116 254 100 254 22 186 186 205 184 22 116 100 185 186 186 146 40 50 50 22 186 187 186 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1012-	●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1012-	●	●
40	04.690 BRACKET 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ)	8-97370-408-0	01	1	1012-	●	●
50	04.710 BOLT; PIPE 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-1106	●	●
50	04.710 BOLT; PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1107-	●	●
50	04.710 BOLT; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1012-1406	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1407-1407	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1408-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1012-1106	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1107-	●	●
116	04.686 NUT 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1106	●	●
116	04.686 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1107-	●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
146	04.685 NUT; BRKT 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1106	●	●
146	04.685 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1107-	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (B) M6X27 W/PL WASHER	8-98131-461-0	03	1	1408-1504	●	●
184	04.681 BOLT; CLIP ALGERIA EQUIPMENT(WN1) (B) M6X27 W/PL WASHER	8-98131-461-0	03	1	1505-	●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1012-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1012-1106	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1107-	●	●
186	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●
186	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●	●
186	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1012-	●	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1012-1106	●	●
186	04.681 CLIP; HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1107-	●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98100-245-0	01	1	1012-	●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1012-	●	●
195	04.681 CLIP; HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 02.559 L=250	5-09707-030-1	02	1	1012-	●	●
205	04.681 HOSE; TANK TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-97334-259-1	01	1	1012-	●	●
205	04.681 HOSE; TANK TO PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1012-	●	●
254	04.685 PIPE; BRAKE,2WAY 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97334-118-1	01	1	1012-1106	●	●
254	04.685 PIPE; BRAKE,2WAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97334-118-1	01	1	1107-	●	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-161-0	01	1	1012-	●	●

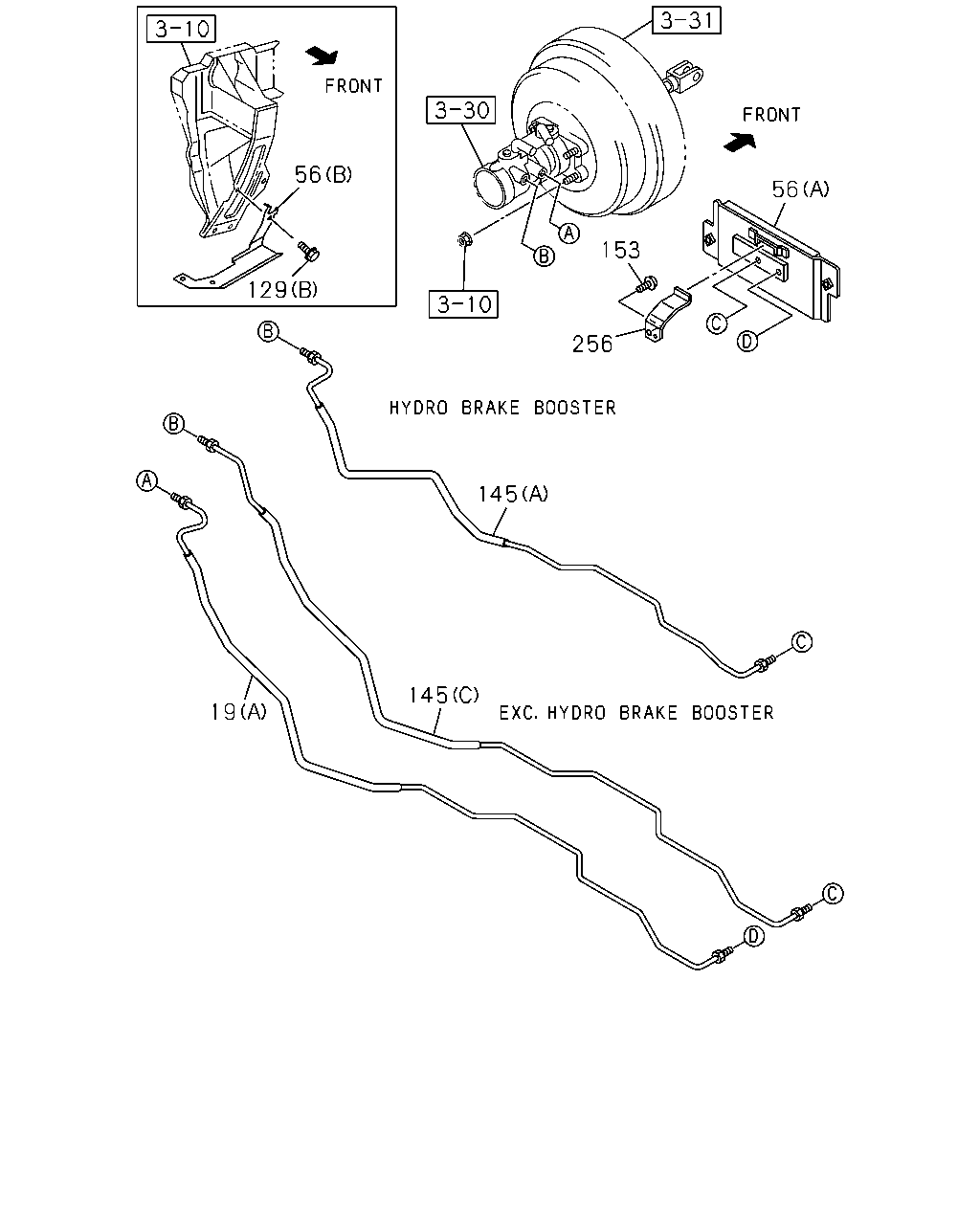

56 56 153 129 256 145 145 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-			●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-			●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1012-1406	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1406				●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1407-1407	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1407-1407			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1408-1502	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1408-1502			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1503-1505	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1503-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1503-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1506-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1407-1407			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. ALGERIA EQUIPMENT(WN1) (B) L=228	8-98133-411-0	01	1	1408-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COUNTRY ALGERIA<D2G>,ALGERIA EQUIPMENT(WN1) (B) L=228	8-98133-411-0	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1012-1406			●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1012-1406				●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1407-1407			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1408-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) (A) L=1052	8-98099-793-0	01	1	1408-1505			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION COUNTRY ALGERIA<D2G> 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) HYDRO BRAKE BOOSTER(7QQ) EXC. COUNTRY ALGERIA<D2G> (A) L=1052	8-98099-793-0	01	1	1506-			●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1506-			●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-		●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-		●	●	●

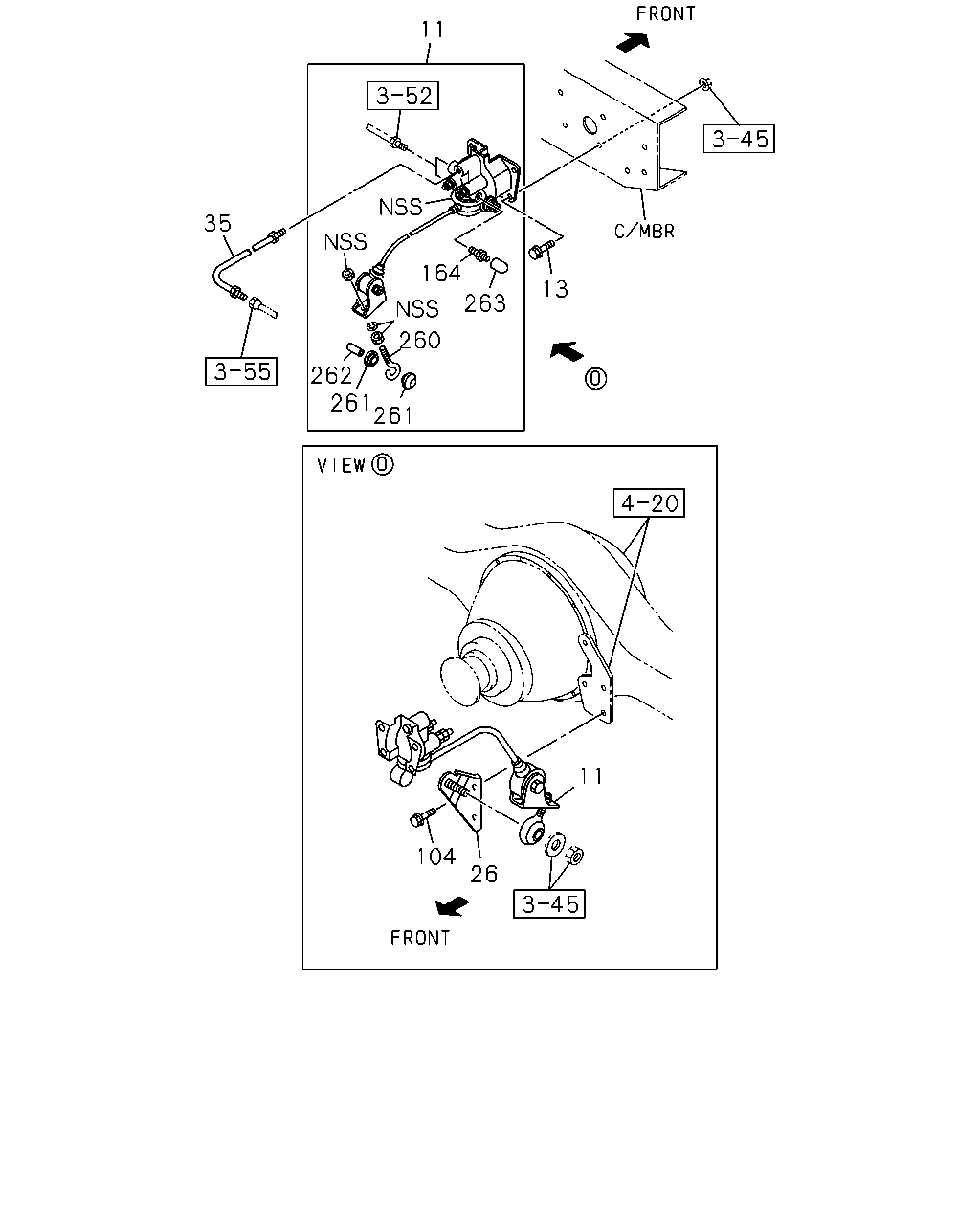

11 35 164 13 263 260 262 261 261 11 104 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	04.686 VALVE; BRK CONT 04.730	8-94427-224-2	01	1	1012-	●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1012-	●
26	04.730 BRACKET; PROPORTIONING VLV	8-98029-822-0	01	1	1012-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCS ENG(LFB)	8-97389-541-2	01	1	1012-	●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1012-	●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1012-	●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1012-	●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1012-	●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1012-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCS ENG(LFB)	8-97389-541-2	01	1	1012-	●

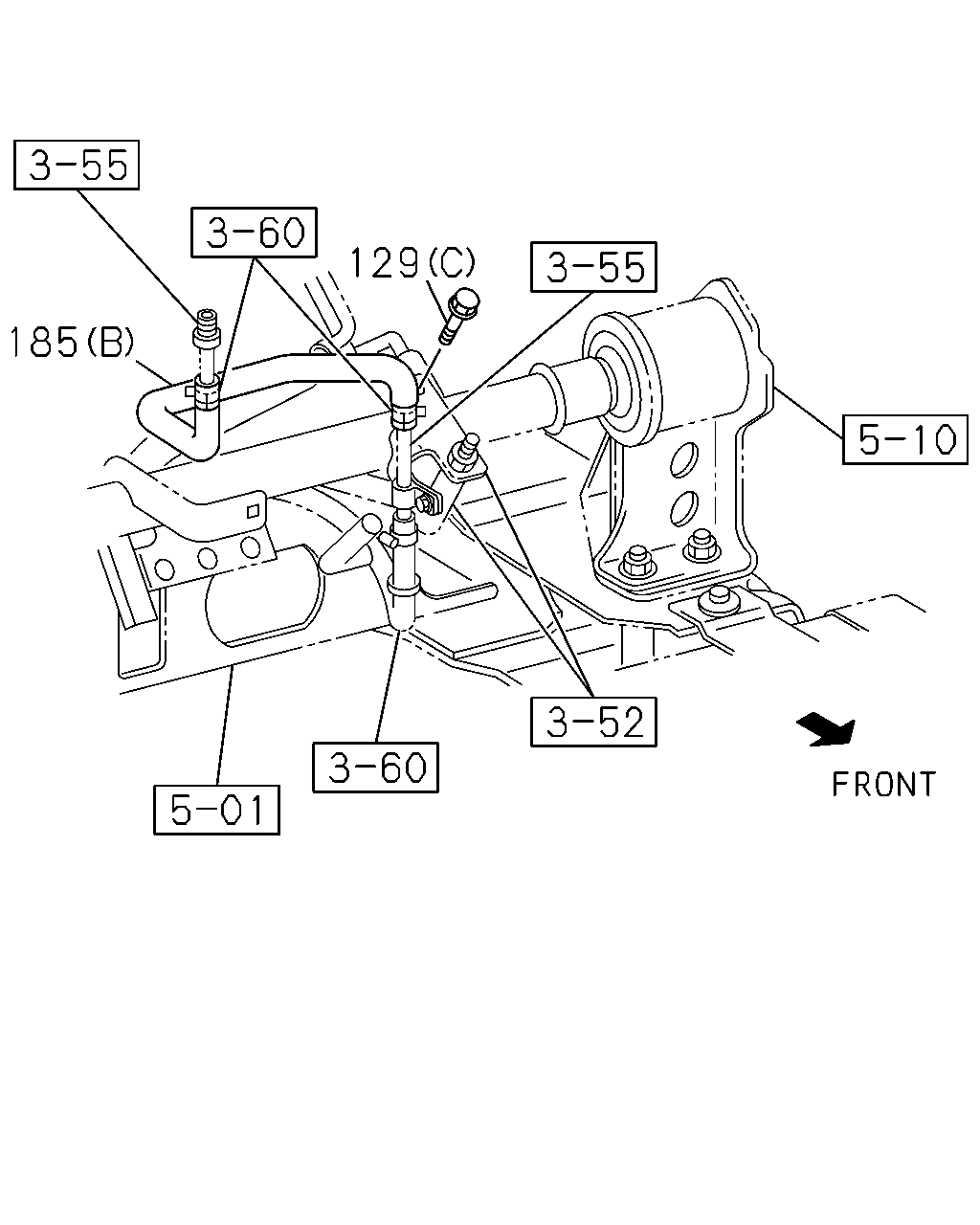

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-			●	●
185	04.681 HOSE; RUBBER,SUCTION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1012-			●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1012-1106			●	●
185	04.681 HOSE; RUBBER,SUCTION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1107-			●	●

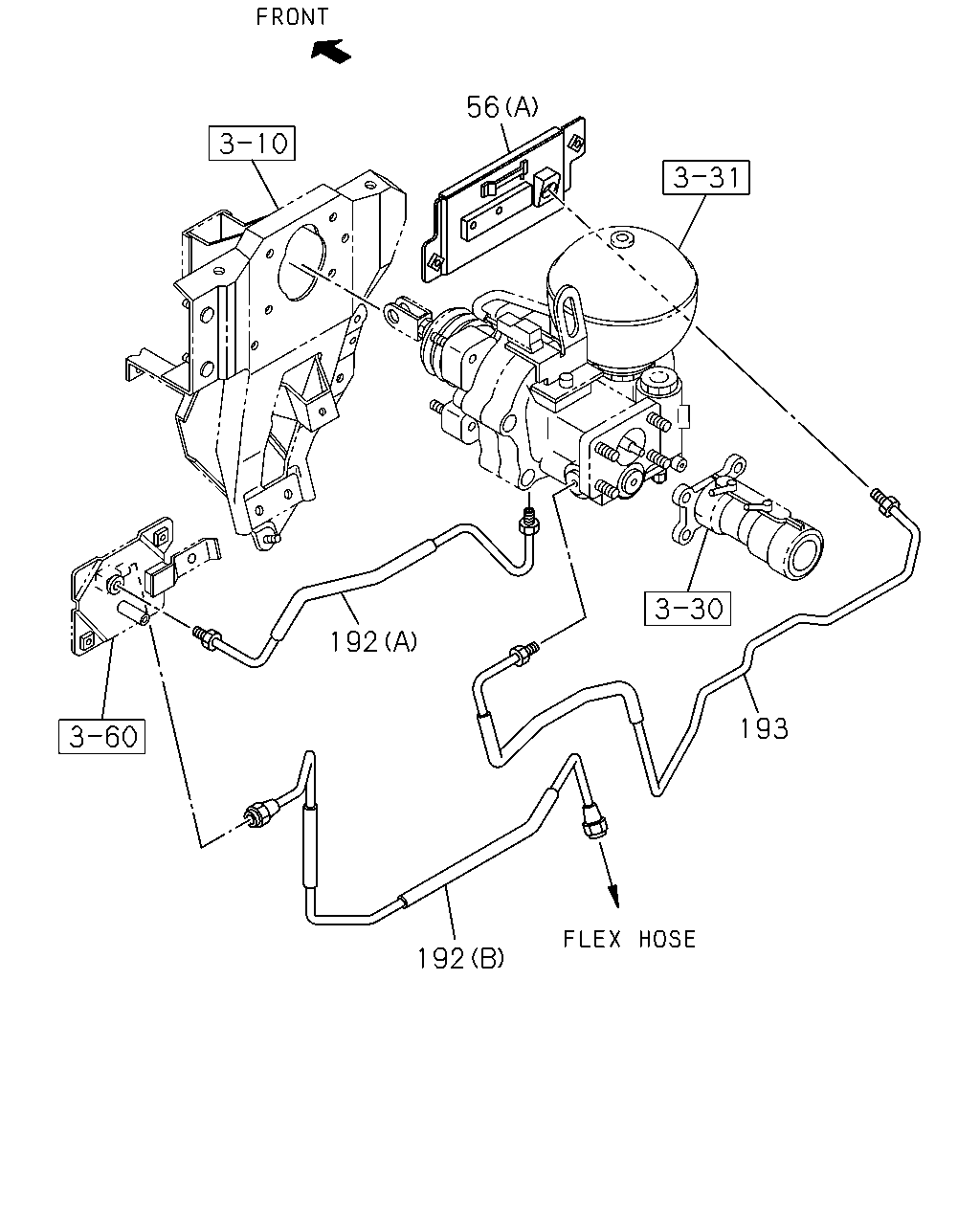

193 192 192 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-			●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1012-			●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1012-			●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98099-795-0	01	1	1012-			●	●

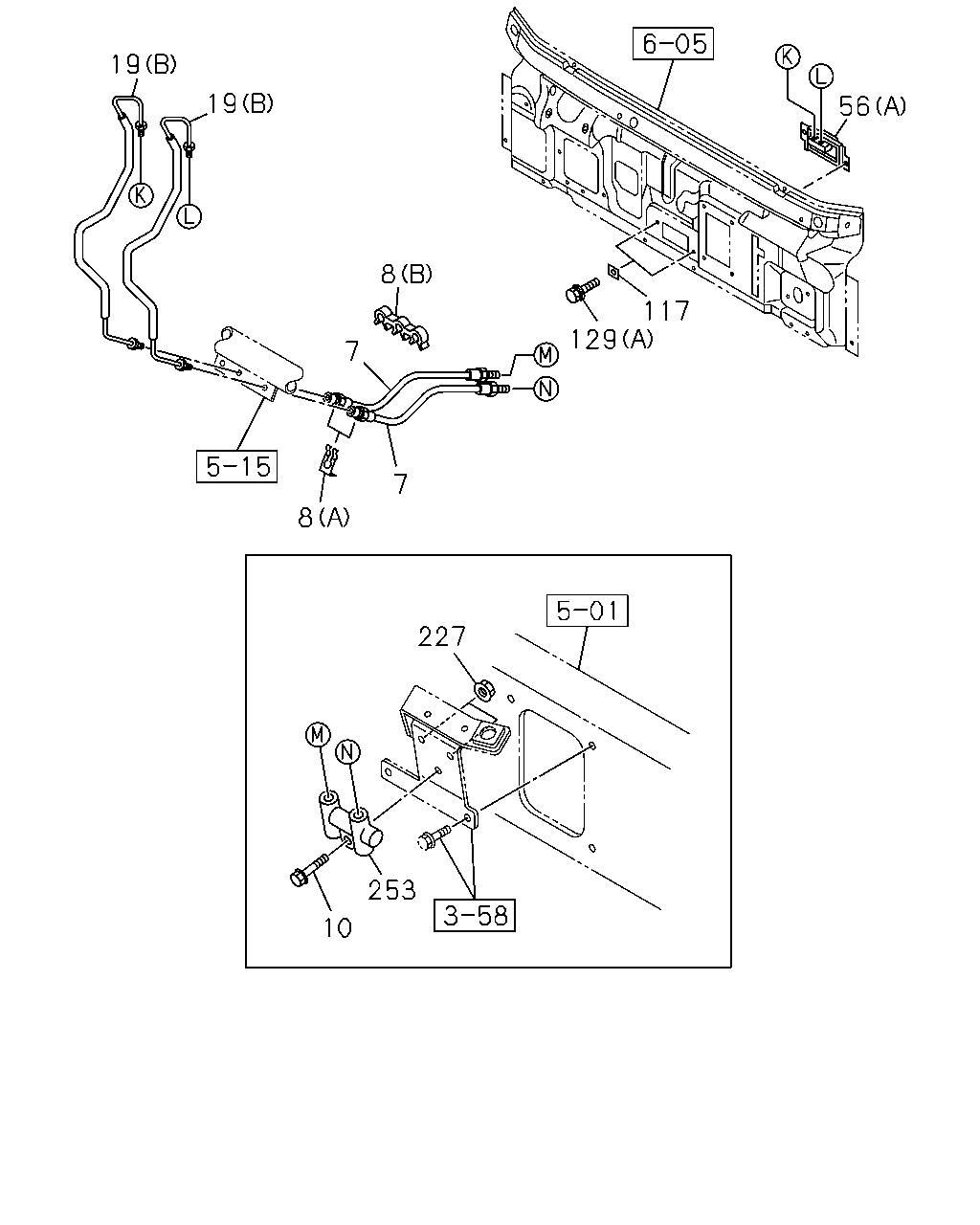

19 19 56 8 117 129 7 7 8 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1012-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1012-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1012-	●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-			●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-				●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-			●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-			●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1012-	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1012-1406			●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1012-1406		●		●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1407-			●	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1407-		●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1012-1406			●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1407-			●	●

130 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	1012-1406	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	1407-	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1012-1406	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1407-	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-1406	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
