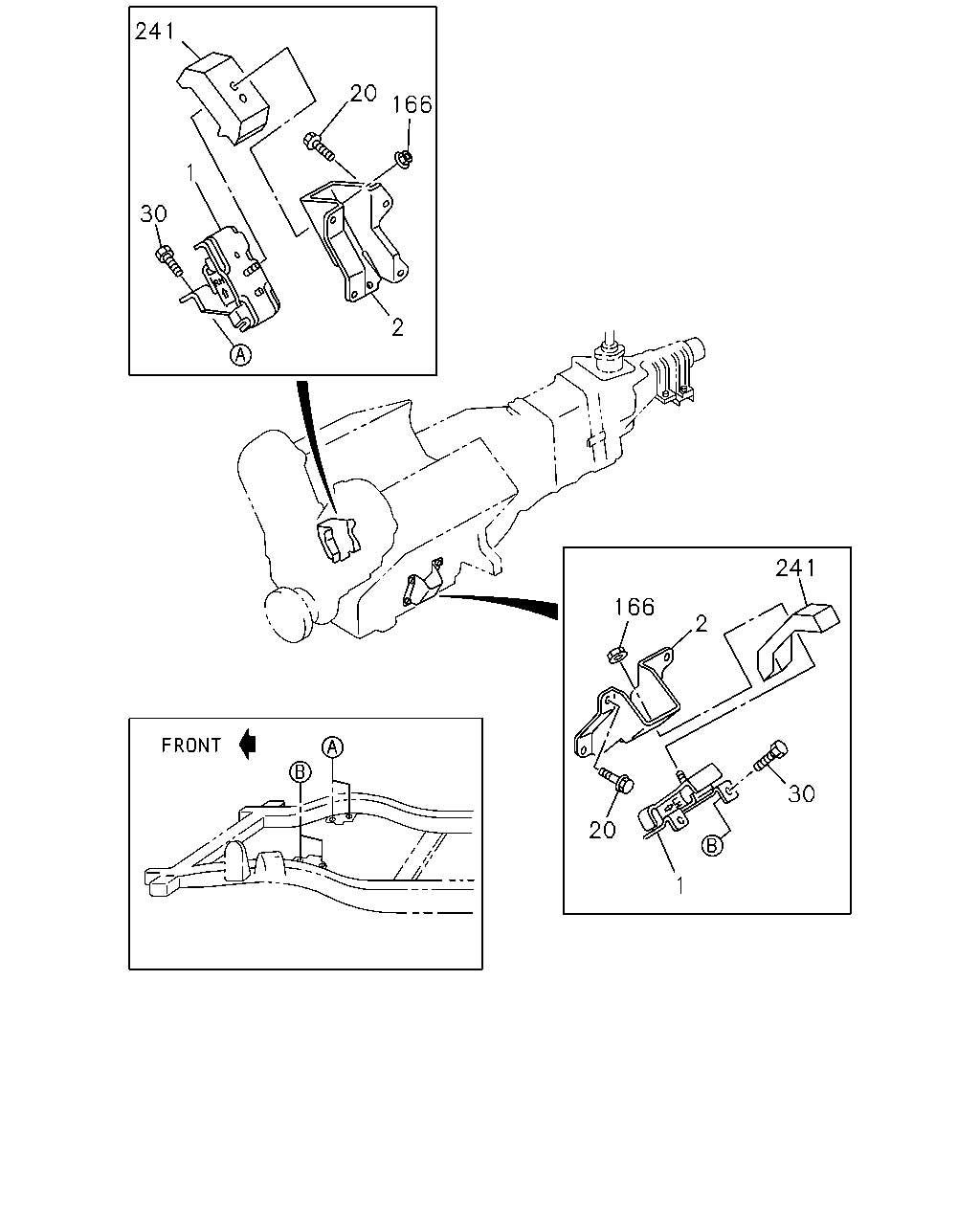

0-22 — ENGINE MOUNTING (#36386) — 25 parça

52 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9707-
52	RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ)	8-97125-125-2	01	1	9707-0206
52	RUBBER; CUSHION,ENG MTG,RR A/T AISIN(RMD)	8-97218-220-0	01	1	0207-0307
52	RUBBER; CUSHION,ENG MTG,RR	8-97218-220-0	01	1	0308-
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97125-128-2	01	1	9707-0206
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED 5C(RSN)	8-97289-640-1	01	1	0207-0307
79	BOLT; SUPPORT RUBBER TO TRANS A/T THM(RMQ) M10X35 FLANGE	0-28681-035-0	02	1	9707-0206
79	BOLT; SUPPORT RUBBER TO TRANS M/T MUA 5 SPEED(RMN) M10X25 FLANGE	0-28681-025-0	02	1	9707-0206
79	BOLT; SUPPORT RUBBER TO TRANS M10X35 FLANGE	0-28781-035-0	02	1	0207-0402
79	BOLT; SUPPORT RUBBER TO TRANS M10X35 FLANGE	0-28781-035-0	02	1	0403-

241 20 166 1 30 2 241 166 2 30 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RUBBER; ENG FOOT,FRT	8-97125-343-2	01	1	9707-0101
1	RUBBER; ENG FOOT,FRT	8-97232-518-0	01	1	0102-
1	RUBBER; ENG FOOT,FRT	8-97125-342-2	01	1	9707-0101
1	RUBBER; ENG FOOT,FRT	8-97232-517-0	01	1	0102-
2	FOOT; ENG	8-97106-558-1	01	1	9707-
2	FOOT; ENG	8-97146-072-0	01	1	9707-
20	BOLT; ENG FOOT M10X40 FLANGE	0-28181-040-0	01	1	9707-
20	BOLT; ENG FOOT M10X25 FLANGE	0-28781-025-0	07	1	9707-
30	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28481-030-0	04	1	9707-
166	NUT; SUPPORT RUBBER M10 FLANGE	0-91150-110-0	04	1	9707-
241	COVER; ENG MTG	8-97125-307-0	01	1	9707-0007
241	COVER; ENG MTG	8-97257-619-0	01	1	0008-
241	COVER; ENG MTG	8-97125-306-0	01	1	9707-9910
241	COVER; ENG MTG	8-97241-056-0	01	1	9911-0007
241	COVER; ENG MTG	8-97257-618-0	01	1	0008-
