◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#36384) — 54 parça

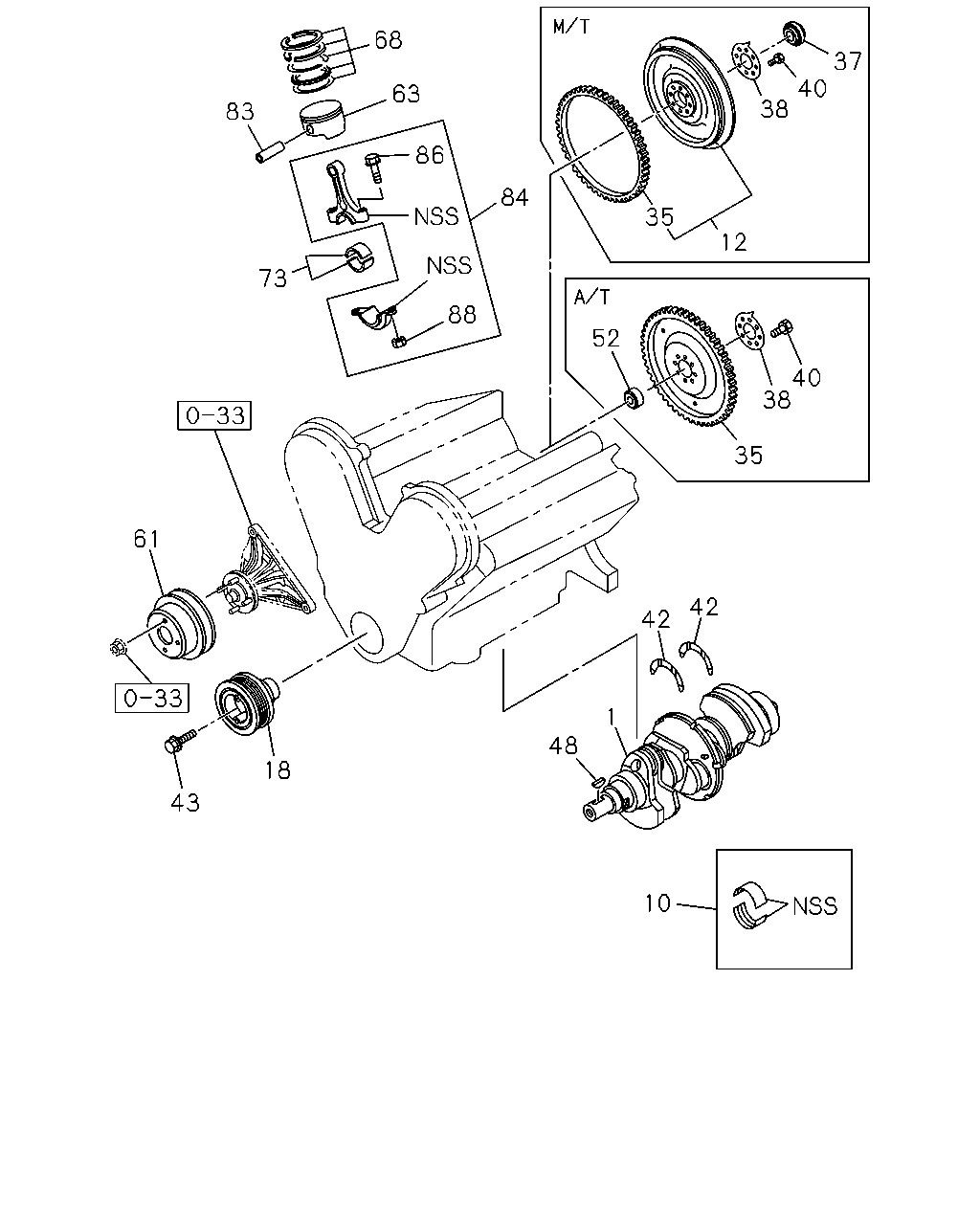

çizim 71045
68 37 40 38 63 83 86 84 35 12 73 88 52 40 38 35 61 42 42 1 48 18 43 10
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT 8-97131-857-2 01 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.1,NO.4 BROWN 		8-97179-296-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.1,NO.4 GREEN 		8-97179-297-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.1,NO.4 YELLOW 		8-97179-298-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.1,NO.4 BLUE 		8-97179-299-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.2,NO.3 BROWN 		8-97179-300-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.2,NO.3 GREEN 		8-97179-301-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.2,NO.3 YELLOW 		8-97179-302-0 02 1 9707-
10 METAL SET; CRANKSHAFT,STANDARD
NO.2,NO.3 BLUE 		8-97179-303-0 02 1 9707-
12 FLYWHEEL
M/T MUA 5 SPEED(RMN) 		8-97131-860-0 01 1 9707-0206
12 FLYWHEEL
M/T MUA 5 SPEED 5C(RSN) 		8-97131-860-0 01 1 0207-0307
18 PULLEY; CR/SHF
6-GROOVE 		8-97131-859-0 01 1 9707-0203
18 PULLEY; CR/SHF
6-GROOVE 		8-97321-296-0 01 1 0204-0308
18 PULLEY; CR/SHF
6-GROOVE 		8-97328-604-0 01 1 0309-
35 GEAR; RING
A/T THM(RMQ) Z=121 		8-97174-420-0 01 1 9707-0206
35 GEAR; RING
A/T AISIN(RMD) Z=121 		8-97174-420-0 01 1 0207-0307
35 GEAR; RING
Z=121 		8-97174-420-0 01 1 0308-
35 GEAR; RING
M/T MUA 5 SPEED(RMN) ID=281 		8-94374-959-0 01 1 9707-0206
35 GEAR; RING
M/T MUA 5 SPEED 5C(RSN) ID=281 		8-94374-959-0 01 1 0207-0307
37 BEARING; PILOT,TOP GEAR SHAFT
M/T MUA 5 SPEED(RMN) 		8-97031-741-0 01 1 9707-0206
37 BEARING; PILOT,TOP GEAR SHAFT
M/T MUA 5 SPEED 5C(RSN) 		8-97031-741-0 01 1 0207-0307
38 WASHER; FLYWHEEL
T=0.8 		8-94235-325-1 01 1 9707-
40 BOLT; FLYWHEEL
A/T THM(RMQ) M10X17 		8-97015-187-0 08 1 9707-0206
40 BOLT; FLYWHEEL
A/T AISIN(RMD) M10X17 		8-97015-187-0 08 1 0207-0307
40 BOLT; FLYWHEEL
M10X17 		8-97015-187-0 08 1 0308-
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED(RMN) M10X31 		8-94379-616-0 08 1 9707-0206
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5C(RSN) M10X31 		8-94379-616-0 08 1 0207-0307
42 WASHER; THRUST,CR/SHF 8-97014-208-0 02 1 9707-
43 BOLT; CR/SHF PULLEY
M16X30 		8-94108-479-0 01 1 9707-
48 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9707-
52 SLEEVE; CONV PILOT
A/T THM(RMQ) 		8-94384-695-0 01 1 9707-0206
52 SLEEVE; CONV PILOT
A/T AISIN(RMD) 		8-94384-695-0 01 1 0207-0307
52 SLEEVE; CONV PILOT 8-94384-695-0 01 1 0308-
61 PULLEY; FAN DRIVE
1-GROOVE 		8-97130-518-0 01 1 9707-0307
61 PULLEY; FAN DRIVE
1-GROOVE 		8-97352-277-0 01 1 0308-
63 PISTON
GRADE=A 		8-97172-674-0 06 1 9707-0307
63 PISTON
GRADE=B 		8-97172-675-0 06 1 9707-0307
63 PISTON
GRADE=C 		8-97172-676-0 06 1 9707-0307
63 PISTON
GRADE=A 		8-97358-034-0 06 1 0308-
63 PISTON
GRADE=B 		8-97358-035-0 06 1 0308-
63 PISTON
GRADE=C 		8-97358-036-0 06 1 0308-
68 RING SET; PISTON,STANDARD
T=1.5 		8-97136-135-0 06 1 9707-0307
68 RING SET; PISTON,STANDARD
T=1.2 		8-97371-552-0 06 1 0308-
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97179-293-0 06 1 9707-0402
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97179-293-0 12 1 0403-
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97179-294-0 06 1 9707-0402
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97179-294-0 12 1 0403-
73 METAL SET; CONN ROD,STANDARD
PINK 		8-97179-295-0 06 1 9707-0402
73 METAL SET; CONN ROD,STANDARD
PINK 		8-97179-295-0 12 1 0403-
83 PIN; PISTON 8-97149-195-1 06 1 9707-
84 ROD ASM; CONN 8-97136-202-0 06 1 9707-0302
84 ROD ASM; CONN 8-97351-159-0 06 1 0303-
86 BOLT; CONNROD
3/8-24UNF X 55.5 		8-97010-606-0 12 1 9707-
88 NUT; CONNROD
3/8-24 UNF 		8-94377-785-0 12 1 9707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
