◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#36383) — 89 parça

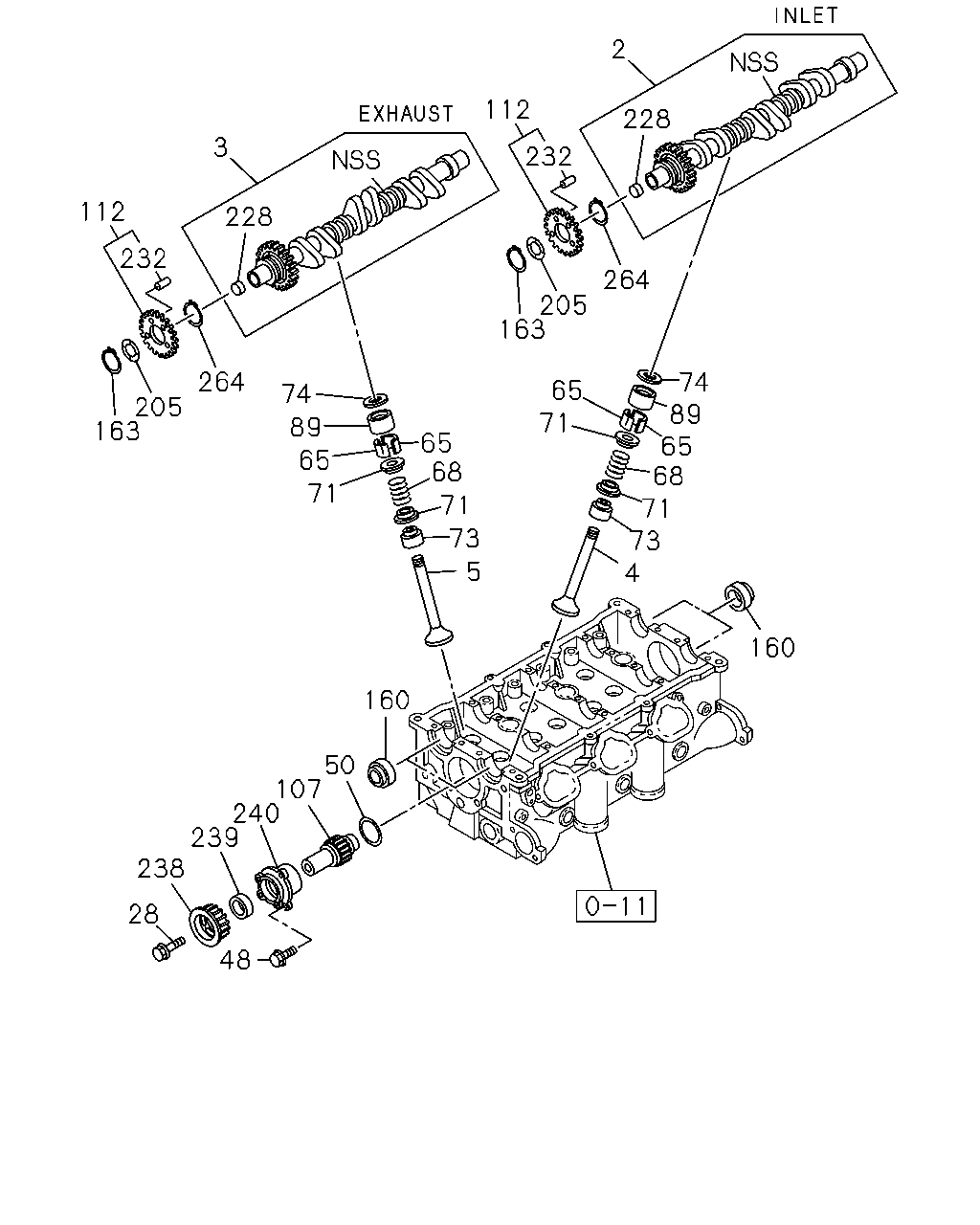

çizim 18642
2 112 228 3 232 112 228 232 264 205 163 264 74 89 65 68 71 3 4 65 71 74 205 163 89 65 68 65 71 71 73 5 160 160 50 107 240 239 238 28 48
BalonParca AdiParca NoAdetTipApplied Date
2 CAMSHAFT; INL 8-97131-946-1 01 1 9707-0402
2 CAMSHAFT; INL 8-97131-946-1 01 1 0403-
2 CAMSHAFT; INL 8-97131-944-1 01 1 9707-0402
2 CAMSHAFT; INL 8-97131-944-1 01 1 0403-
3 CAMSHAFT; EXH 8-97136-139-1 02 1 9707-
4 VALVE; INL 8-97131-961-0 12 1 9707-
5 VALVE; EXH 8-97131-962-0 12 1 9707-
28 BOLT; CAM PULLEY 8-97149-393-0 02 1 9707-0204
28 BOLT; CAM PULLEY 8-97330-881-0 02 1 0205-
48 BOLT; RET
M6X30 FLANGE 		0-28690-630-0 03 1 9707-0402
48 BOLT; RET
M6X30 FLANGE 		0-28690-630-0 03 1 0403-
48 BOLT; RET
M6X20 FLANGE 		0-28690-620-0 03 1 9707-0402
48 BOLT; RET
M6X20 FLANGE 		0-28690-620-0 03 1 0403-
50 GASKET; RET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97149-238-0 02 1 9707-
65 COLLAR; SPLIT 8-94429-487-0 48 1 9707-
68 SPRING; VLV 8-97136-328-0 24 1 9707-0108
68 SPRING; VLV 8-97314-228-0 24 1 0109-
71 SEAT; SPR
UPPER OD=24.2 		8-97136-329-1 24 1 9707-
71 SEAT; SPR
LOWER OD=27 		8-97149-155-0 24 1 9707-
73 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INLET 		8-94324-158-1 12 1 9707-0207
73 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INLET 		8-97332-359-0 12 1 0208-
73 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXHAUST 		8-97146-733-0 12 1 9707-
74 ADJUSTER; VLV GAP
T=2.40 		8-97149-262-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=2.42 		8-97149-263-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=2.44 		8-97149-264-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=2.46 		8-97149-265-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=2.48 		8-97149-266-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.50 		8-97149-267-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.52 		8-97149-268-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.54 		8-97149-269-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.56 		8-97149-270-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.58 		8-97149-271-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.60 		8-97149-272-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.62 		8-97149-273-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.64 		8-97149-274-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.66 		8-97149-275-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.68 		8-97149-276-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.70 		8-97149-277-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.72 		8-97149-278-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.74 		8-97149-279-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.76 		8-97149-280-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.78 		8-97149-281-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.80 		8-97149-282-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.82 		8-97149-283-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.84 		8-97149-284-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.86 		8-97149-285-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.88 		8-97149-286-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.90 		8-97149-287-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.92 		8-97149-288-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.94 		8-97149-289-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.96 		8-97149-290-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=2.98 		8-97149-291-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.00 		8-97149-292-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.02 		8-97149-293-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.04 		8-97149-294-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.06 		8-97149-295-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.08 		8-97149-296-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.10 		8-97149-297-0 AR 1 9707-
74 ADJUSTER; VLV GAP
T=3.12 		8-97149-298-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=3.14 		8-97149-299-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=3.16 		8-97149-300-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=3.18 		8-97149-301-0 AR 1 9707-9906
74 ADJUSTER; VLV GAP
T=3.20 		8-97149-302-0 AR 1 9707-9906
89 TAPPET; VLV 8-97148-296-1 24 1 9707-
107 SHAFT; IDLE GEAR
AIKOR 		8-97131-966-1 01 1 9707-
107 SHAFT; IDLE GEAR
AIKOR 		8-97131-965-1 01 1 9707-
107 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-871-0 01 1 0110-
107 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-870-0 01 1 0110-
112 GEAR; IDLE
TOKYO BUHIN KOGYO CO.LTD Z=40 		8-97136-655-1 04 1 9707-
112 GEAR; IDLE
SUMITOMO ELECTRIC INDUSTRIES Z=40 		8-97322-153-0 04 1 0201-
160 PLUG; CM/SHF END 8-97149-338-0 08 1 9707-
163 RING; SNAP,IDLE 8-97149-334-0 04 1 9707-
205 WASHER; LK,IDLE 8-97136-589-0 04 1 9707-
228 CUP; SEALING,CAMSHAFT
OD=8 		8-97039-526-0 04 1 9707-
232 PIN; GEAR SET
TOKYO BUHIN KOGYO CO.LTD OD=5 L=6 		9-09878-626-0 04 1 9707-
232 PIN; GEAR SET
SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7 		8-97173-670-0 04 1 0201-
238 PULLEY; TIMING,CAM 8-97136-327-0 02 1 9707-
239 SEAL; OIL,IDLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94389-593-1 02 1 9707-
240 RETAINER; IDLE 8-97132-365-1 01 1 9707-
240 RETAINER; IDLE 8-97132-364-1 01 1 9707-
264 SPRING; GEAR 8-97136-343-0 04 1 9707-

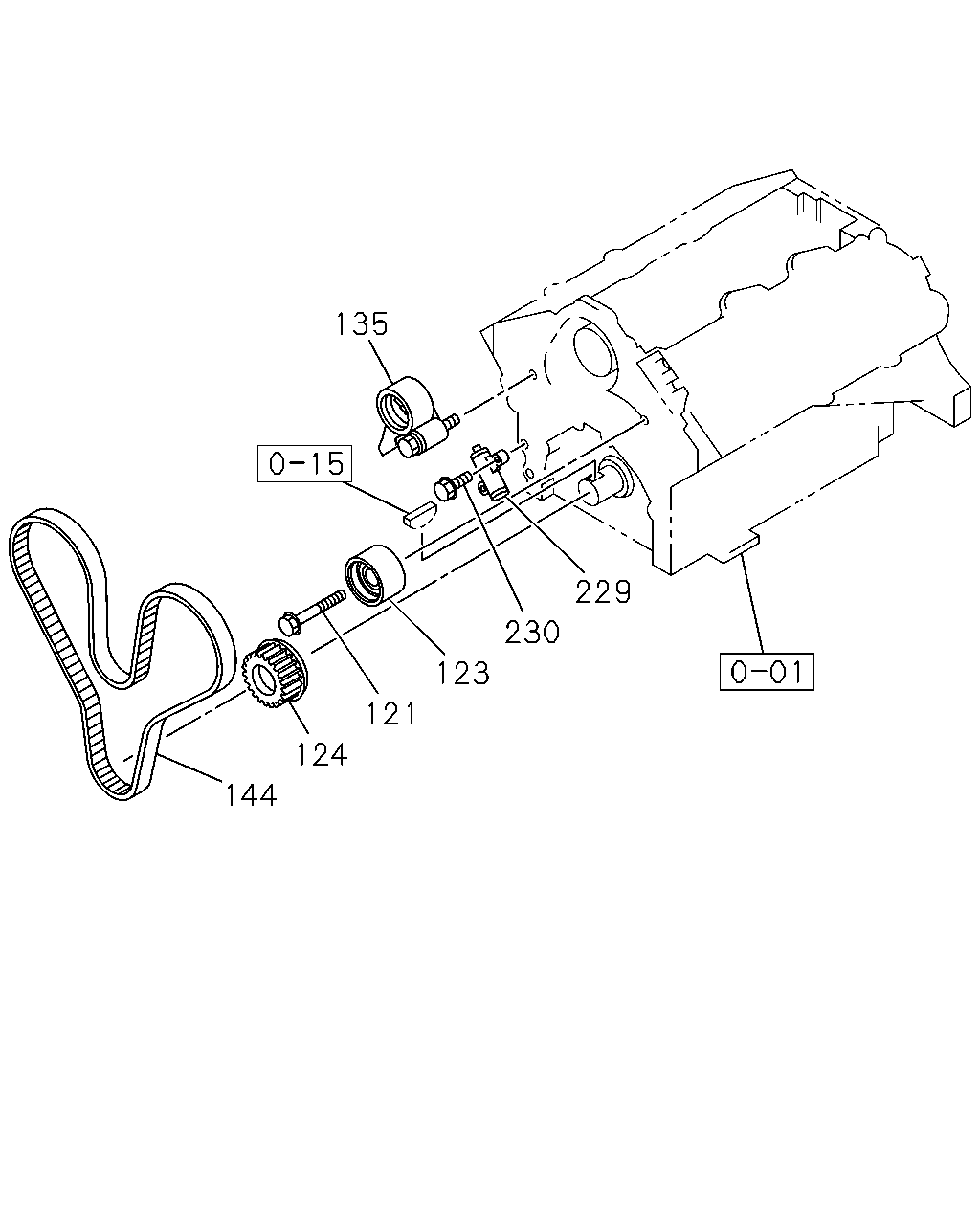

çizim 71376
135 229 230 123 121 124 144
BalonParca AdiParca NoAdetTipApplied Date
121 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28681-040-0 01 1 9707-
123 PULLEY; IDLE,TIMING 8-97146-877-0 01 1 9707-
124 PULLEY; TIMING,CR/SHF
Z=26 		8-97136-326-0 01 1 9707-
135 PULLEY; TENSIONER 8-97136-256-1 01 1 9707-
144 BELT; TIMING 8-97136-321-0 01 1 9707-
229 ROD ASM; PUSH,TENSIONER 8-97136-257-0 01 1 9707-0401
229 ROD ASM; PUSH,TENSIONER 8-97328-512-0 01 1 0402-
230 BOLT; PUSH ROD
M8X35 FLANGE 		0-28680-835-0 02 1 9707-
