◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#36376) — 65 parça

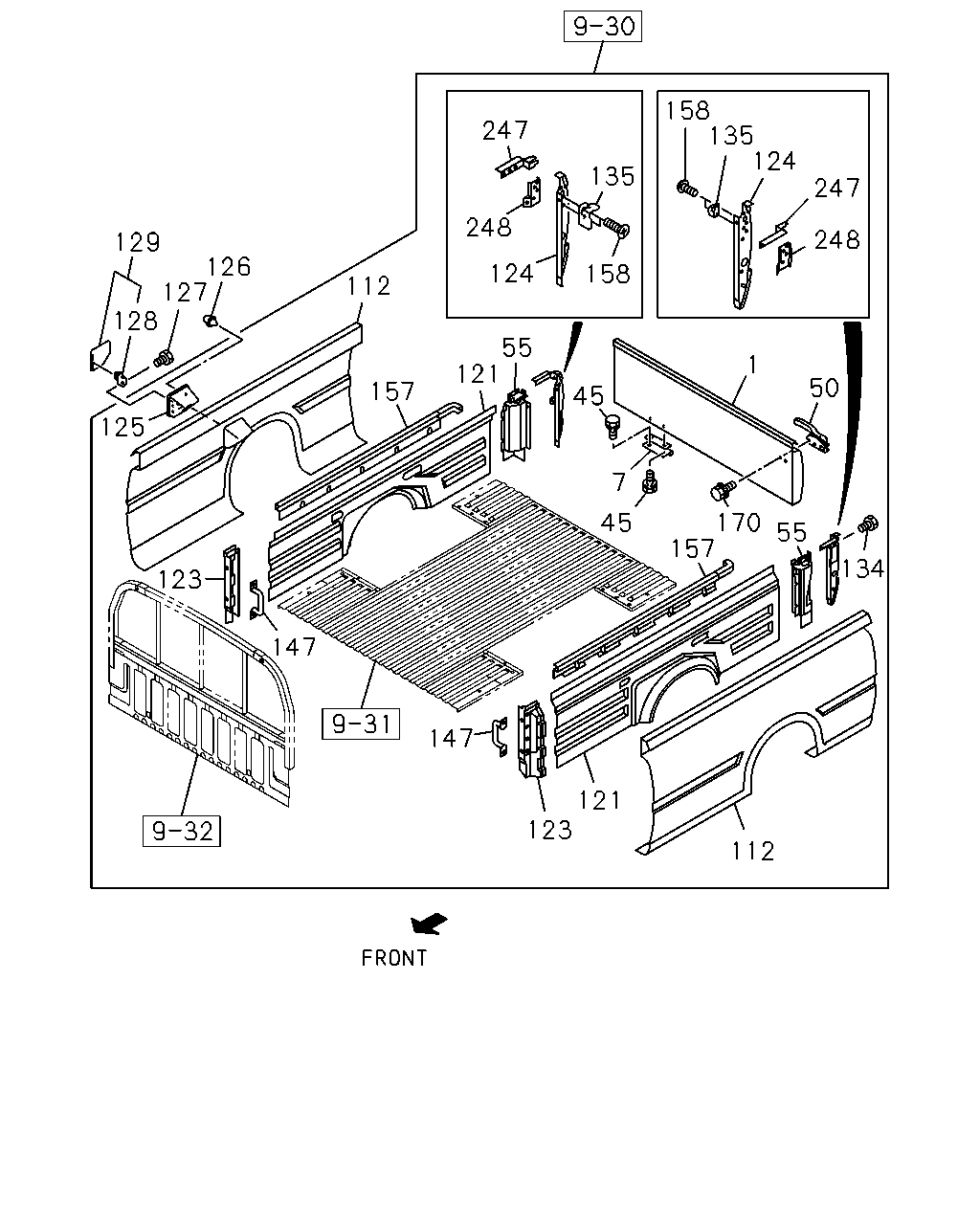

çizim 17194
158 135 124 247 135 247 248 248 129 126 127 128 124 158 112 55 121 1 50 157 45 125 7 170 157 45 55 134 123 147 147 121 123 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-835-1 01 1 9611- ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-984-2 01 1 9611- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE 8-97115-472-2 02 1 9611- ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.198 M8X18 		8-94419-345-0 10 1 9611-9706 ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.198 M8X18 		8-94419-345-0 08 1 9707- ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY 8-97037-420-0 02 1 9611- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER 8-97114-970-6 01 1 9611- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER 8-97114-912-6 01 1 9611- ● ● ● ● ● ●
112 17.455 PANEL; SIDE GATE 8-97114-925-5 01 1 9611- ● ●
112 17.455 PANEL; SIDE GATE 8-97114-867-6 01 1 9611- ● ●
112 17.455 PANEL; SIDE GATE 8-97114-924-5 01 1 9611- ● ●
112 17.455 PANEL; SIDE GATE 8-97114-866-6 01 1 9611- ● ●
112 17.455 PANEL; SIDE GATE 8-97114-927-5 01 1 9611- ● ●
112 17.455 PANEL; SIDE GATE 8-97114-869-7 01 1 9611- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97114-962-3 01 1 9611- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97114-904-3 01 1 9611- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97114-961-3 01 1 9611- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97114-903-3 01 1 9611- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97114-964-1 01 1 9611- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97114-906-1 01 1 9611- ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY 8-97114-965-3 01 1 9611- ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY 8-97118-579-2 01 1 9611- ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD 8-97114-942-5 01 1 9611- ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD 8-97114-883-5 01 1 9611- ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY 8-97114-885-2 01 1 9611- ● ● ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 01 1 9611- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ● ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY 8-97162-602-0 01 1 9611- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97163-109-0 01 1 9611- ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97115-026-2 01 1 9611- ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
04.197 M6X10 		8-97020-236-0 02 1 9611- ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY 8-97018-747-3 01 1 9611- ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY 8-97018-746-3 01 1 9611- ● ● ● ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97138-542-3 02 1 9611- ● ● ● ● ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-825-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-821-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-946-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-887-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-823-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-819-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-945-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-886-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-826-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97132-822-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-948-4 01 1 9611- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97114-889-4 01 1 9611- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
17.198 		9-03065-816-0 04 1 9611- ● ● ● ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 9611- ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR 8-97114-956-4 01 1 9611- ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR 8-97114-898-4 01 1 9611- ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR 8-97114-943-0 01 1 9611- ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR 8-97114-884-0 01 1 9611- ● ● ● ● ● ●

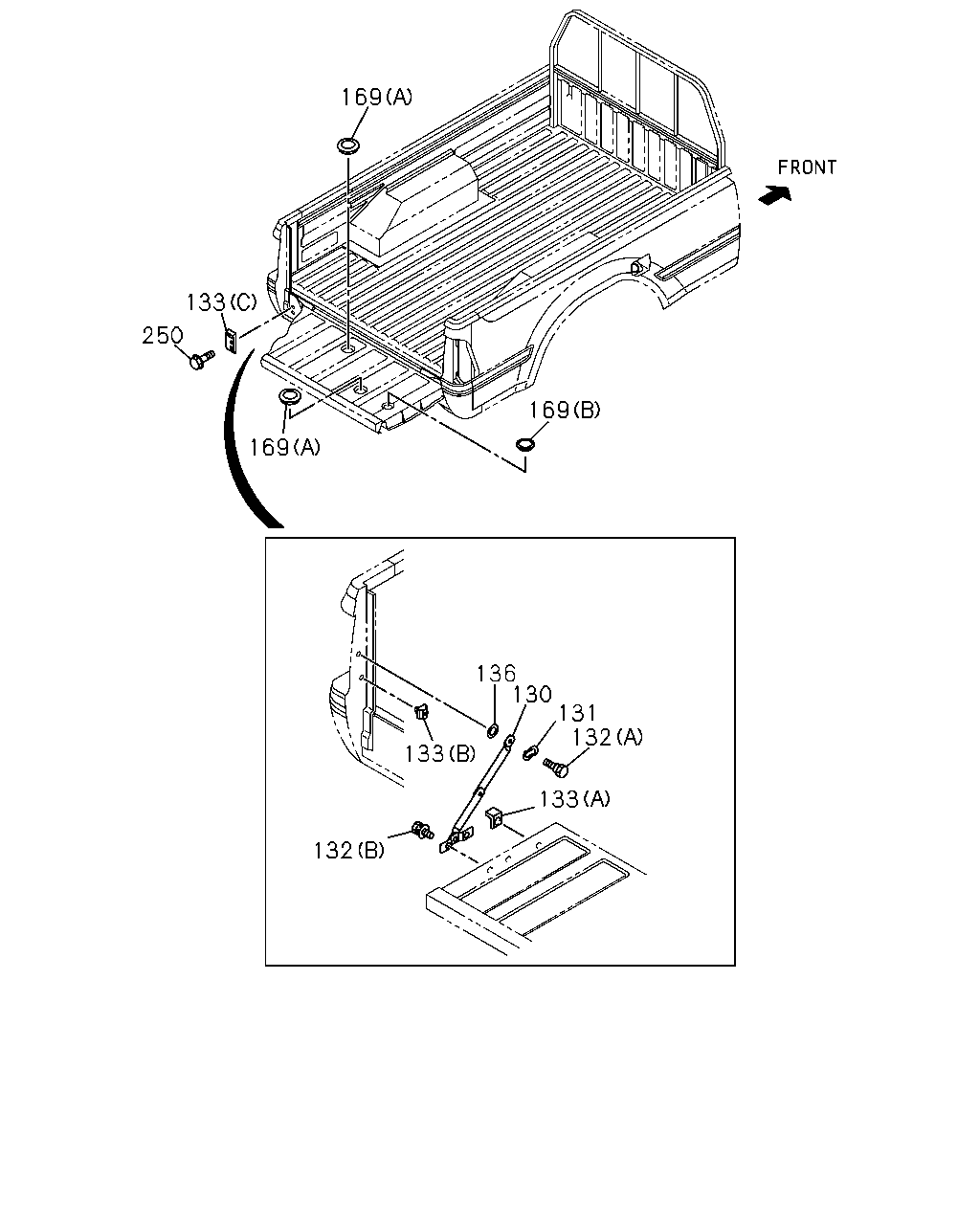

çizim 67290
169 133 250 169 169 136 130 131 132 133 133 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 17.225 LINK ASM; TAIL GATE,RR BODY 8-97063-897-2 02 1 9611- ● ● ● ● ● ●
131 17.635 WASHER; WAVE,TAIL GATE LINK,RR B 8-94481-020-0 02 1 9611- ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
(A) M8X14 		8-94481-021-0 02 1 9611- ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
17.507 (B) M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(A) 		8-94370-056-0 02 1 9611- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(B) 		8-94433-529-1 02 1 9611- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(C) 		8-97131-679-4 01 1 9611- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(C) 		8-97131-678-4 01 1 9611- ● ● ● ● ● ●
136 17.635 WASHER; PL,TAIL GATE LINK,RR BOD
16.674 ID=8.4 		9-09160-508-0 02 1 9611- ● ● ● ● ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
(A) 		8-97166-110-0 04 1 9611- ● ● ● ● ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
(B) 		8-97166-111-0 02 1 9611- ● ● ● ● ● ●
250 17.505 BOLT; STOPPER
08.080 M6X16 FLANGE 		8-97803-298-0 04 1 9611-9611 ● ● ● ● ● ●
250 17.505 BOLT; STOPPER
08.077 M6X18 		8-97071-681-0 04 1 9612- ● ● ● ● ● ●
