◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 9 - Tools ▶ 9-31 - REAR BODY; FLOOR AND FENDER ▶
9-31 — REAR BODY; FLOOR AND FENDER (#36374) — 26 parça

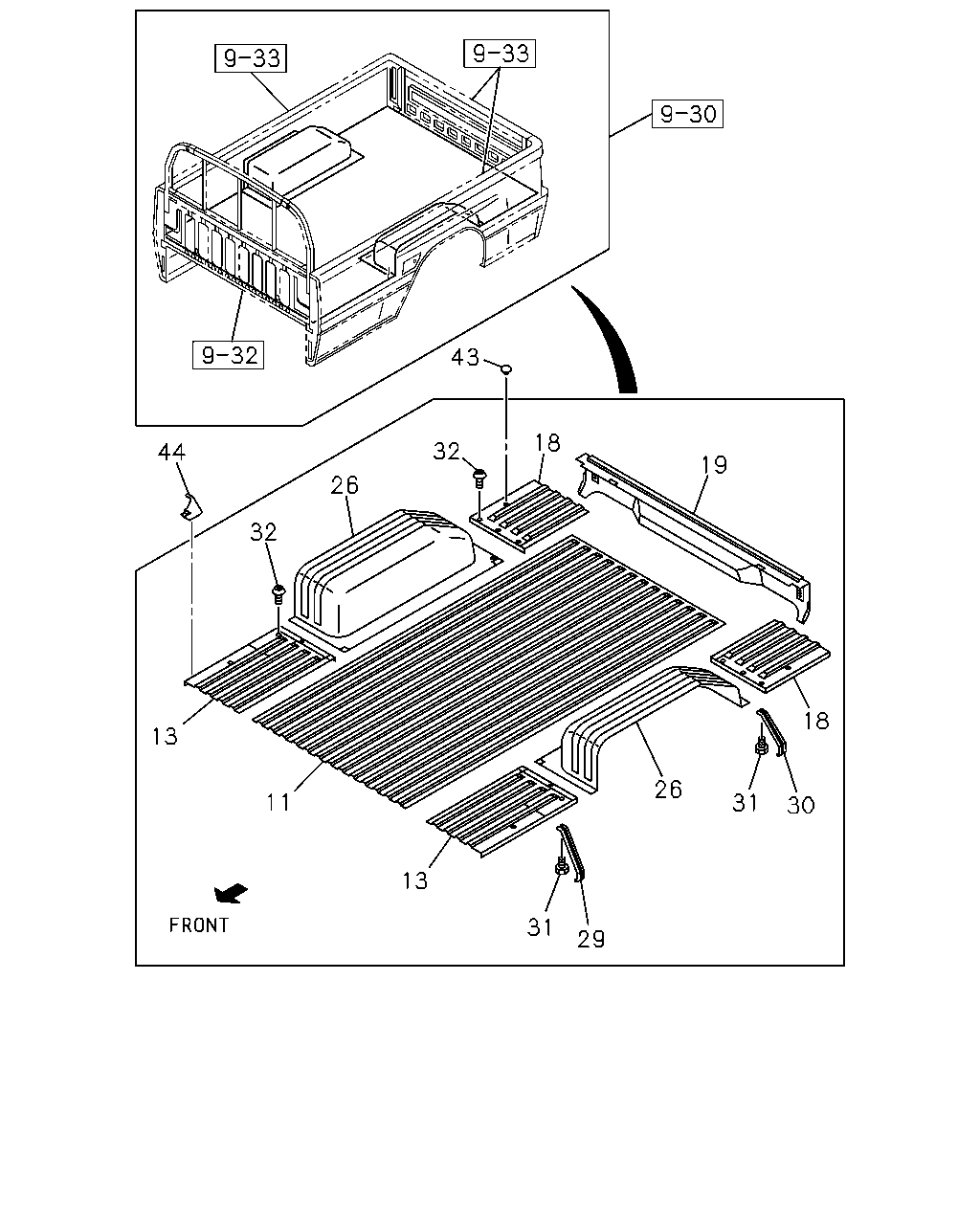

çizim 67320
43 18 32 44 19 26 32 18 13 26 11 31 30 13 31 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 17.400 PANEL; FLOOR BOARD,RR BODY 8-94454-490-2 01 1 9611- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY 8-94435-722-2 01 1 9611- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY 8-94454-489-1 01 1 9611- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B 8-94474-323-4 01 1 9611- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B 8-94474-322-4 01 1 9611- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B 8-94474-319-4 01 1 9611- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B 8-94474-318-4 01 1 9611- ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE 8-94463-164-2 01 1 9611- ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE 8-94463-163-2 01 1 9611- ● ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY 8-97136-566-2 01 1 9611- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY 8-94435-839-7 01 1 9611- ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY 8-94435-838-7 01 1 9611- ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY 8-97114-966-1 01 1 9611- ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY 8-97114-908-1 01 1 9611- ● ●
29 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD 8-97114-974-0 02 1 9611- ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD 8-97114-976-0 01 1 9611- ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD 8-97114-975-0 01 1 9611- ● ● ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
08.143 M6X16 W/PL WASHER 		8-94204-636-0 04 1 9611- ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
08.143 M6X16 W/PL WASHER 		8-94204-636-0 02 1 9611- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) M6X16 W/WASHER (+) 		8-97109-753-1 12 1 9611- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) M6X16 W/WASHER (+) 		8-97109-753-1 12 1 9611- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) M6X16 W/WASHER (+) 		8-97109-753-1 10 1 9611- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) M6X16 W/WASHER (+) 		8-97109-753-1 10 1 9611- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
M6X16 W/WASHER (+) 		8-97109-753-1 08 1 9611- ● ●
43 17.447 GROMMET; DUMMY HOLE,RR BODY 8-94478-200-0 02 1 9611- ● ● ● ● ● ●
44 17.505 SEAL; RR POST,RR BODY 8-97133-851-1 02 1 9611- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
