9-30 — REAR BODY ASM AND MOUNTING (#36373) — 26 parça
çizim 67889
13 11 11 16 15 16 15 13 12 11 11 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-94331-737-0 04 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (B) 		8-94331-738-1 06 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (B) 		8-94331-738-1 08 1 9611- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-94331-737-0 02 1 9611- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 03.163 M6X20 		9-07077-620-0 08 1 9611- ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 03.163 M6X20 		9-07077-620-0 04 1 9611- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9611-9701 ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9702- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-94479-376-1 02 1 9611-9702 ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-97169-896-0 02 1 9703- ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-94479-376-1 04 1 9611-9702 ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-97169-896-0 04 1 9703- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) M12 FLANGE 		8-97028-764-0 06 1 9611- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) M12 FLANGE 		8-97028-764-0 08 1 9611- ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 07.874 ID=12.5 		5-09503-093-0 06 1 9611- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 07.874 ID=12.5 		5-09503-093-0 08 1 9611- ● ●

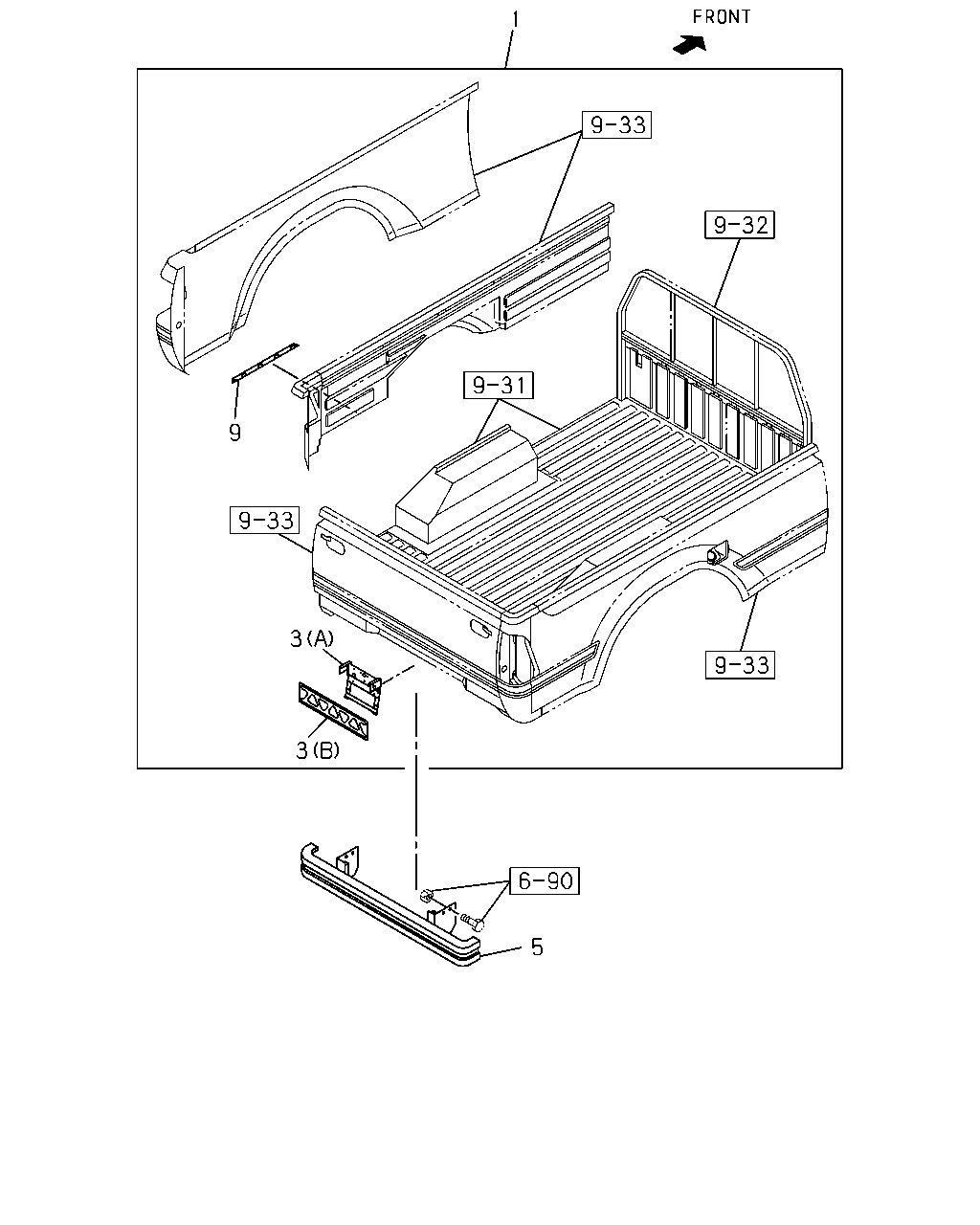

çizim 71102
1 9 3 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97135-775-1 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97135-772-1 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97135-774-1 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97135-771-1 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97135-773-1 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97135-770-1 01 1 9611- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (B) 		8-94327-560-1 01 1 9611- ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-97115-001-3 01 1 9611- ● ● ● ● ● ●
5 17.447 PROTECTOR
RR UNDERRUN PROTECTOR<6DY> 		8-94329-894-1 01 1 9611- ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97115-008-0 02 1 9611- ● ● ● ● ● ●
