8-90 — RADIO AND TV (#36371) — 28 parça

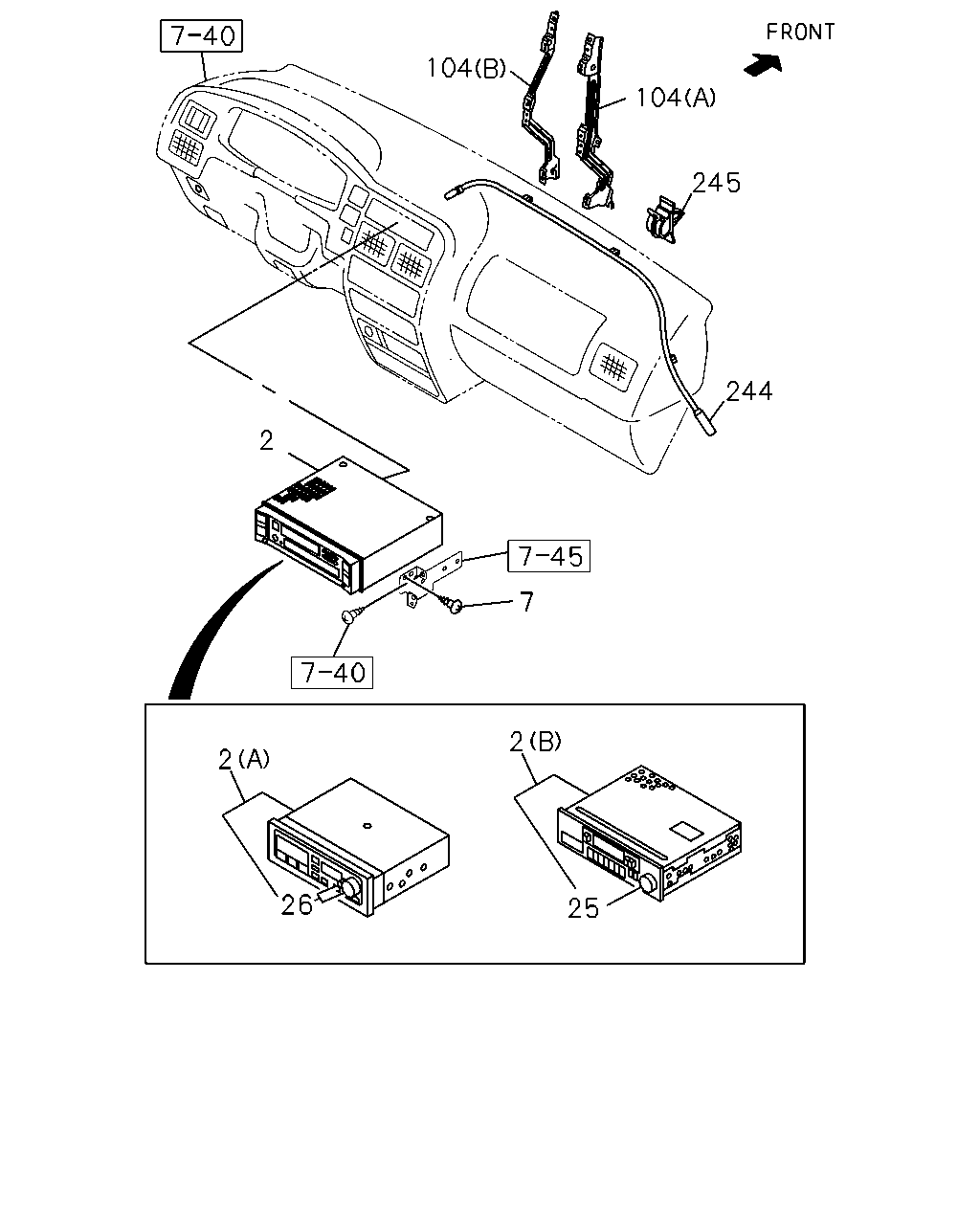

çizim 17730
245 244 2 7 2 2 26 25 104 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE ALL AREA BAND 2SPEAK ERS(7ND) (B) 		8-97137-801-0 01 1 9611- ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO AM ASIA/OCEANIA BAND(7AQ) (A) 		8-97131-640-0 01 1 9611- ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE ALL AREA BAND 2SPEAK ERS(7ND) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9611- ● ● ● ● ● ●
25 09.649 ATTACH KIT; CASSETTE DECK
AM/FM W/CASSETTE ALL AREA BAND 2SPEAK ERS(7ND) 		8-97162-105-0 01 1 9611- ● ● ● ● ● ●
26 09.649 ATTACH KIT; RADIO
RADIO AM ASIA/OCEANIA BAND(7AQ) SANYO 		8-97093-557-0 01 1 9611- ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(A) 		8-97111-964-0 01 1 9611-9708 ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
16.085 (A) 		8-97107-585-1 01 1 9709- ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(B) 		8-97111-965-2 01 1 9611-9708 ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(B) 		8-97107-584-3 01 1 9709- ● ● ● ● ● ●
244 09.647 CABLE; FEEDER
ANTENNA<U73> 		8-97145-351-1 01 1 9611- ● ● ● ● ● ●
245 09.647 CLIP; CABLE,FEEDER
ANTENNA<U73> 09.649 ID=7 		8-97085-207-0 01 1 9611-9708 ● ● ● ● ● ●
245 09.647 CLIP; CABLE,FEEDER
ANTENNA<U73> 04.342 ID=7 		5-09707-053-0 01 1 9709- ● ● ● ● ● ●

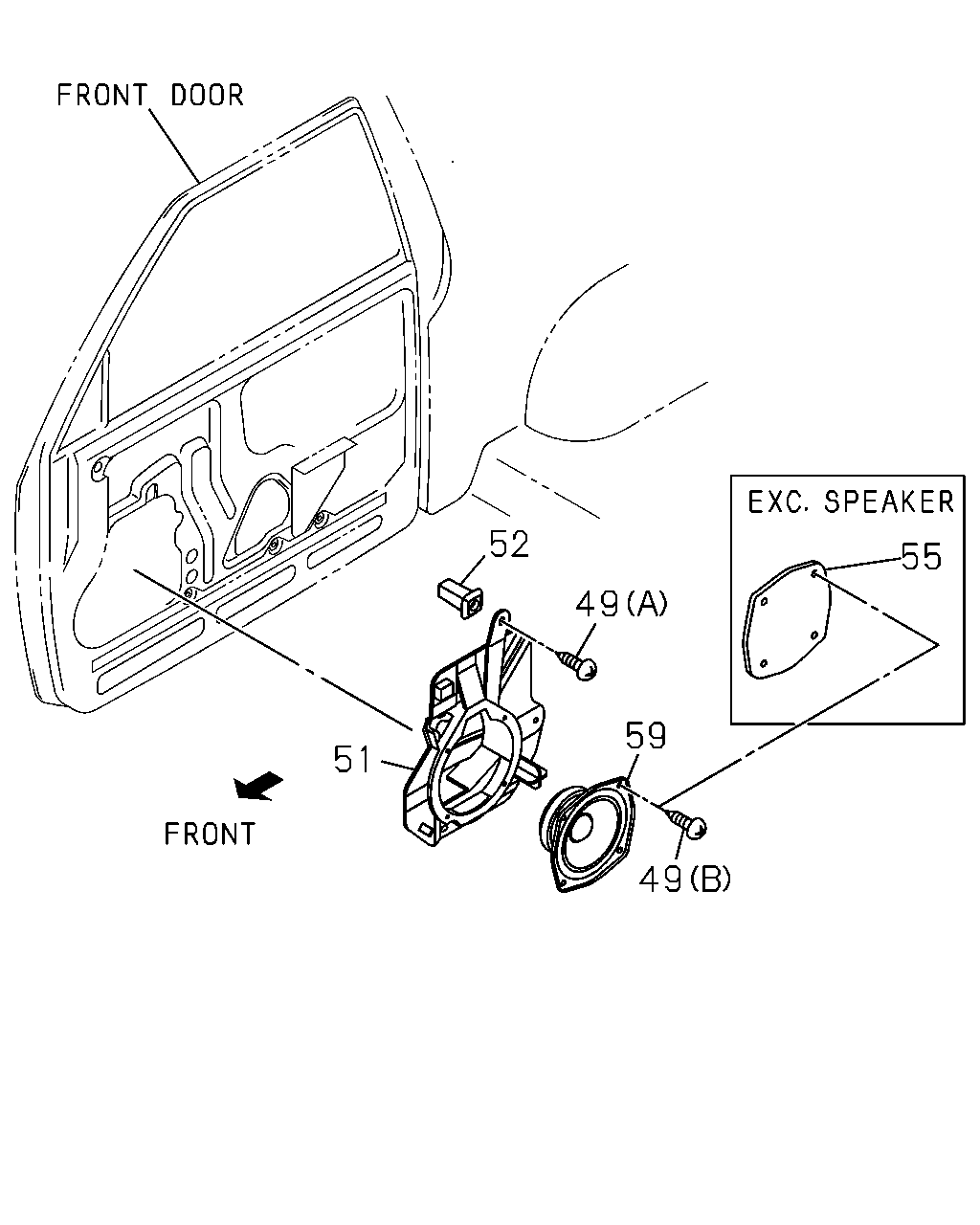

çizim 18410
52 55 49 59 51 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 09.655 SCREW; SPEAKER
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 06 1 9611- ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 08 1 9611- ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-962-5 01 1 9611-9711 ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-046-0 01 1 9712- ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-963-5 01 1 9611-9711 ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-047-0 01 1 9712- ● ● ● ● ● ●
52 09.655 GROMMET; SCREW,SPEAKER
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9611- ● ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. PRE WIRING & 2 SPEAKER<7MV>, AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-94372-840-0 02 1 9611- ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
AM/FM W/CASSETTE ALL AREA BAND 2SPEAK ERS(7ND) 		8-97147-525-0 02 1 9611- ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
PRE WIRING & 2 SPEAKER<7MV> 		8-97147-525-0 02 1 9611- ● ● ● ● ● ●
çizim 70157
81 83 198 80 88 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 09.645 ANTENNA
ANTENNA<U73> 		8-97131-638-1 01 1 9611- ● ● ● ● ● ●
81 09.647 NUT; ANTENNA POLE
ANTENNA<U73> 		8-97072-734-0 01 1 9611- ● ● ● ● ● ●
83 09.647 GROMMET; BASE,ANTENNA POLE INNER
ANTENNA<U73> 		8-97146-501-0 01 1 9611- ● ● ● ● ● ●
88 09.647 BOLT; ANTENNA EARTH
ANTENNA<U73> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9611- ● ● ● ● ● ●
89 09.775 GROMMET; FEEDER CABLE
EXC. ANTENNA<U73> 		8-94111-420-0 01 1 9611- ● ● ● ● ● ●
198 09.647 SHEET; ANTENNA
ANTENNA<U73> 		8-97146-502-0 01 1 9611- ● ● ● ● ● ●
