8-80 — WINDSHIELD WIPER AND WASHER (#36370) — 54 parça

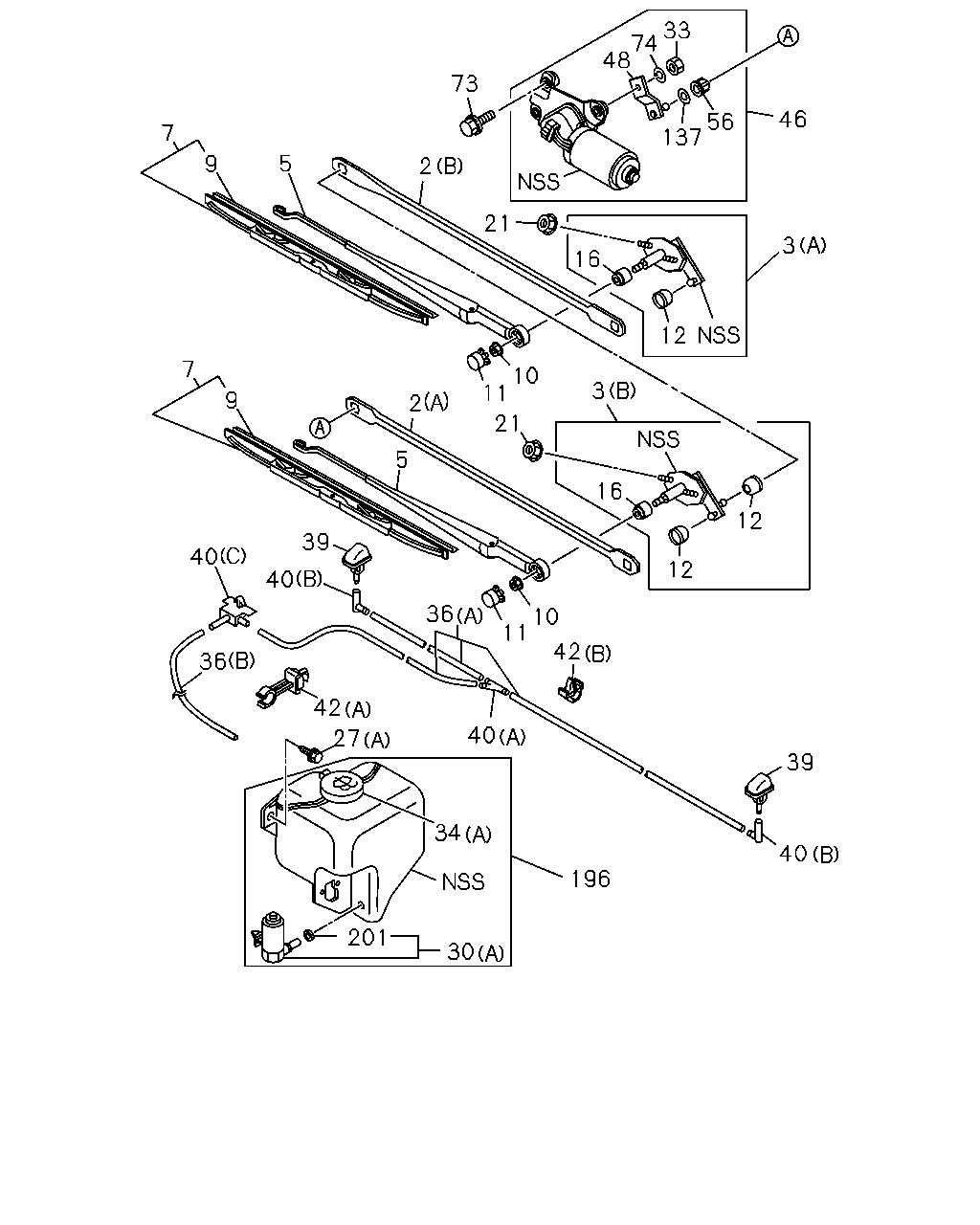

33 74 48 73 56 137 46 7 5 9 2 21 3 16 12 7 10 3 11 9 2 21 5 16 12 39 12 36 10 11 42 42 7 40 39 34 196 201 30 40 40 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.063 LINK; FRT WIPER (A)	8-97110-242-0	01	1	9611-	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER (B)	8-97110-243-0	01	1	9611-	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97110-240-0	01	1	9611-	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97110-241-0	01	1	9611-	●	●	●	●	●	●
5	16.063 ARM; WIPER DRIVER L=468	8-97149-370-0	01	1	9611-	●	●	●	●	●	●
5	16.063 ARM; WIPER ASSIST L=495	8-97149-371-0	01	1	9611-	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97136-363-0	02	1	9611-	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=450	8-94317-675-0	02	1	9611-	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 00.349 M8 FLANGE	9-09844-190-0	02	1	9611-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM	8-94460-965-0	02	1	9611-	●	●	●	●	●	●
12	16.063 RETAINER; BALL JOINT,FRT WIPER L 10.159	8-97025-889-0	03	1	9611-	●	●	●	●	●	●
16	16.063 SEAL; BALL JOINT	8-94319-016-0	02	1	9611-	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	04	1	9611-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK (A)	8-94335-625-1	01	1	9611-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK HEADLAMP WASHER<CE3> 02.780 (B)	8-94336-740-0	01	1	9611-	●	●	●	●	●	●
33	16.064 NUT; MOTOR TO ARM 00.787 M8	9-09111-408-0	01	1	9611-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK 10.154 (A)	8-94436-369-0	01	1	9611-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK HEADLAMP WASHER<CE3> 02.780 (B)	8-94336-738-0	01	1	9611-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (B) L=1340 SERVICED BY L=10000	8-94153-780-0	01	1	9611-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (A) SERVICED BY L=10000	9-09914-906-0	01	1	9611-	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-94447-235-0	02	1	9611-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A) 3WAY	5-83363-003-0	01	1	9611-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (B)	8-94335-628-0	02	1	9611-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97039-660-0	01	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (A) L=46	8-94154-654-1	01	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (B) ID=5.8 L=8	8-94155-681-0	03	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE HEADLAMP WASHER<CE3> 00.785 (C) ID=15	1-09987-115-0	02	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE) HEADLAMP WASHER<CE3> 02.559 (D) L=103	8-94239-339-0	01	1	9611-	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97111-930-0	01	1	9611-	●	●	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-94323-720-0	01	1	9611-	●	●	●	●	●	●
56	16.063 JOINT; OUTER,WIPER MOTOR 10.151	8-94323-719-0	01	1	9611-	●	●	●	●	●	●
73	16.063 BOLT 01.287 M6X25 W/LK&PL WASHER	8-94416-136-0	04	1	9611-	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR 00.002 ID=8.2	9-09150-508-0	01	1	9611-	●	●	●	●	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.151	8-94167-624-0	01	1	9611-	●	●	●	●	●	●
196	16.065 TANK; WASHER	8-97075-617-0	01	1	9611-	●	●	●	●	●	●
201	16.064 LINING; WIPER MOTOR 10.154	8-94352-050-0	01	1	9611-	●	●	●	●	●	●

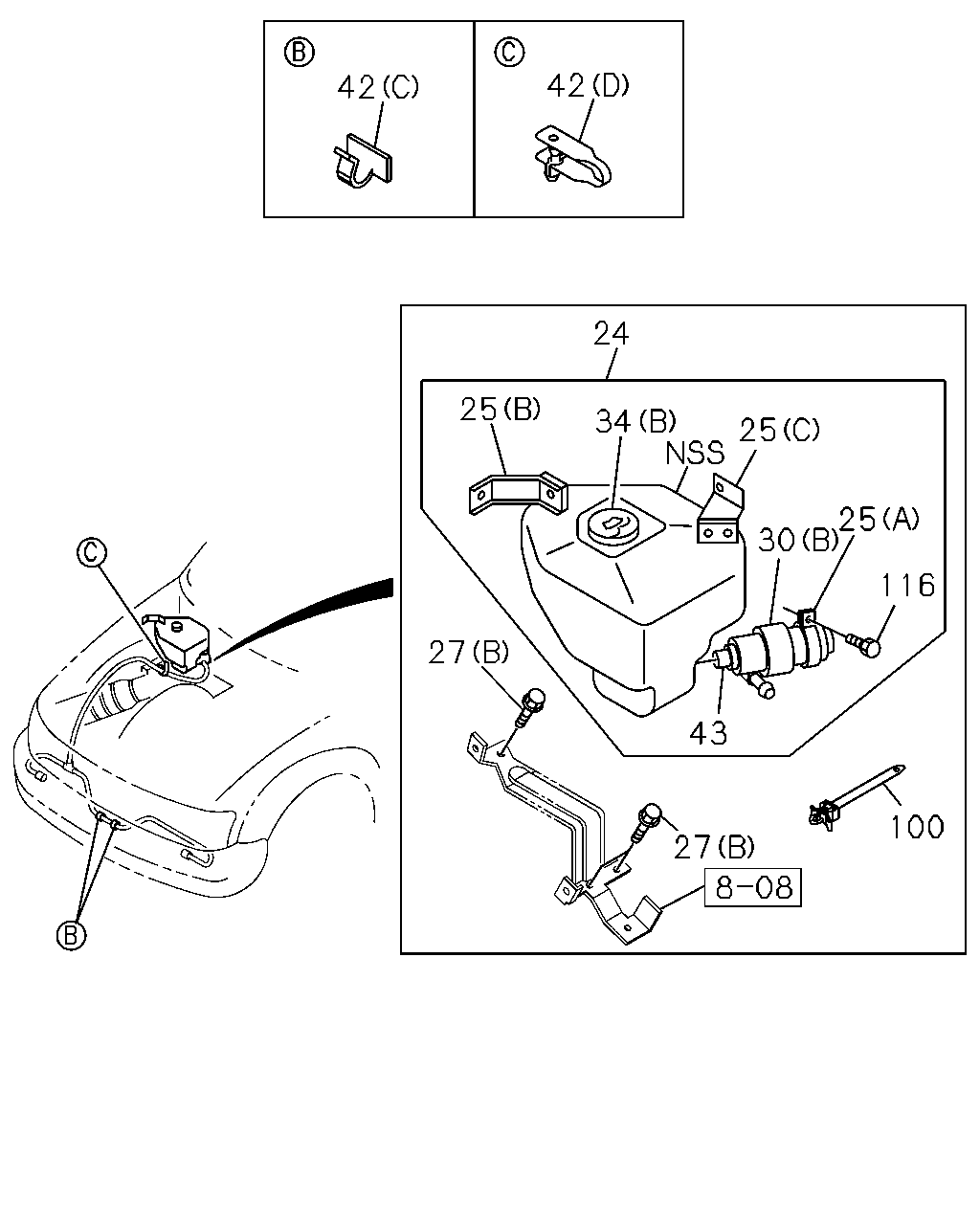

42 42 24 25 34 25 25 30 116 27 43 100 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	16.065 TANK ASM; WASHER HEADLAMP WASHER<CE3>	8-97147-117-0	01	1	9611-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK HEADLAMP WASHER<CE3> 02.780 (A)	8-94336-741-0	01	1	9611-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK HEADLAMP WASHER<CE3> 02.780 (B)	8-94336-742-0	01	1	9611-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK HEADLAMP WASHER<CE3> 02.780 (C)	8-94336-743-0	01	1	9611-	●	●	●	●	●	●
27	16.065 BOLT; WASHER TANK 03.885 (A) M6X20	8-94412-422-0	02	1	9611-	●	●	●	●	●	●
27	16.065 BOLT; WASHER TANK HEADLAMP WASHER<CE3> 03.440 (B) M6X18	8-94409-712-1	03	1	9611-9712	●	●	●	●	●	●
27	16.065 BOLT; WASHER TANK HEADLAMP WASHER<CE3> 06.635 (B) M6X16 FLANGE	0-28480-616-0	03	1	9801-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK (A)	8-94335-625-1	01	1	9611-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK HEADLAMP WASHER<CE3> 02.780 (B)	8-94336-740-0	01	1	9611-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK 10.154 (A)	8-94436-369-0	01	1	9611-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK HEADLAMP WASHER<CE3> 02.780 (B)	8-94336-738-0	01	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (A) L=46	8-94154-654-1	01	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (B) ID=5.8 L=8	8-94155-681-0	03	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE HEADLAMP WASHER<CE3> 00.785 (C) ID=15	1-09987-115-0	02	1	9611-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE) HEADLAMP WASHER<CE3> 02.559 (D) L=103	8-94239-339-0	01	1	9611-	●	●	●	●	●	●
43	16.065 RUBBER; GASKET,TANK HEADLAMP WASHER<CE3> 02.780	8-94336-739-0	01	1	9611-	●	●	●	●	●	●
100	16.065 CLIP; BAND,WASHER HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE) HEADLAMP WASHER<CE3> 02.559 L=142	8-94232-619-0	01	1	9611-	●	●	●	●	●	●
116	16.065 SCREW; TANK TO BRKT HEADLAMP WASHER<CE3> 02.780	8-94480-598-0	03	1	9611-	●	●	●	●	●	●
