6-47 — MUD GUARD AND INSULATOR (#3637) — 226 parça

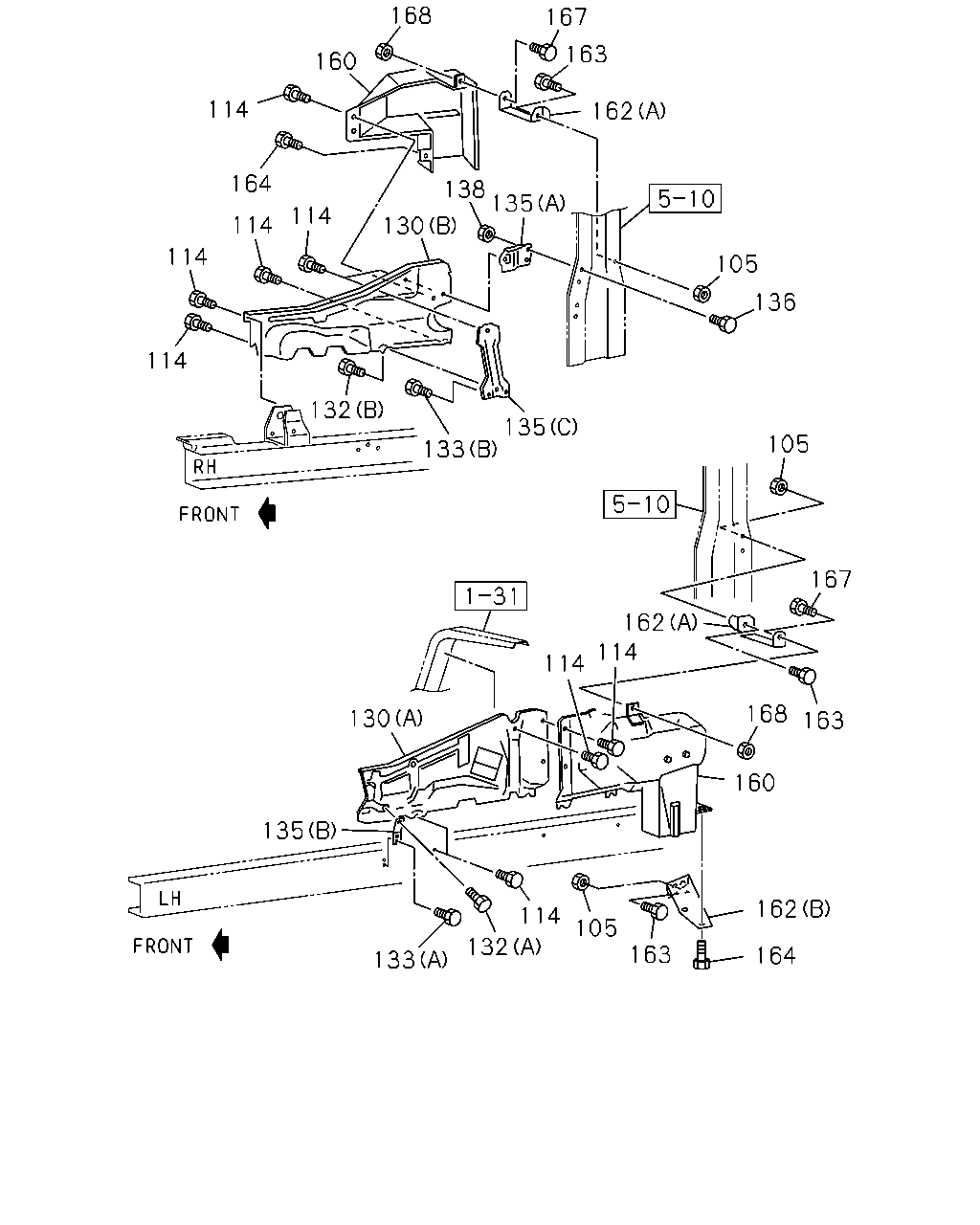

168 167 163 160 114 162 164 138 135 130 114 114 114 105 136 114 132 135 133 105 167 162 114 114 168 130 163 160 135 162 114 105 132 163 164 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8	9-09110-408-0	03	1	9307-
105	NUT; BRKT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9307-9501
105	NUT; BRKT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9502-9503
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9502-9503
105	NUT; BRKT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9504-
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9504-
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9504-
114	BOLT ANTI NOISE EQUIPMENT<SV9> M8X14 FLANGE	0-28080-814-0	01	1	9307-9501
114	BOLT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) M8X14 FLANGE	0-28080-814-0	01	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X14 FLANGE	0-28080-814-0	01	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER	1-09030-042-0	07	1	9307-9501
114	BOLT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) M8X22 W/LK&PL WASHER	1-09030-042-0	07	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X22 W/LK&PL WASHER	1-09030-042-0	07	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> M8X30 W/LK&PL WASHER	1-09030-080-0	04	1	9307-9501
114	BOLT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) M8X30 W/LK&PL WASHER	1-09030-080-0	04	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 W/LK&PL WASHER	1-09030-080-0	04	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-585-0	01	1	9307-9501
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (C)	1-79937-817-3	01	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-333-0	01	1	9307-
130	PANEL; SHUTTER NOISE TAIWAN EQUIPMENT(WW5) (C)	1-79937-817-3	01	1	9307-9501
130	PANEL; SHUTTER NOISE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A)	1-53192-585-0	01	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-585-0	01	1	9502-
130	PANEL; SHUTTER NOISE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (B)	1-53192-331-0	01	1	9307-
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (A)	0-28080-820-0	02	1	9307-9501
132	BOLT; SIDE PANEL 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9502-
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9502-
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (B) M8X35 W/LK&PL WASHER	1-09030-073-0	01	1	9307-9501
132	BOLT; SIDE PANEL 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	01	1	9502-
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X35 W/LK&PL WASHER	1-09030-073-0	01	1	9502-
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> (A) M8X30 FLANGE	0-28080-830-0	02	1	9307-9501
133	BOLT; FRAME 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A) M8X30 FLANGE	0-28080-830-0	02	1	9502-
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9502-
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> (B) M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9307-9501
133	BOLT; FRAME 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (B) M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9502-
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (A)	1-53441-494-1	01	1	9307-9501
135	BRACKET; SIDE PANEL 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A)	1-53441-494-1	01	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53441-494-1	01	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-503-1	01	1	9307-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (C)	1-53441-491-0	01	1	9307-9501
135	BRACKET; SIDE PANEL 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (C)	1-53441-491-0	01	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C)	1-53441-491-0	01	1	9502-
136	BOLT ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9307-9501
136	BOLT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28080-820-0	02	1	9502-
136	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9502-
138	NUT ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	06	1	9307-9501
138	NUT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	06	1	9502-
138	NUT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8	9-09110-408-0	06	1	9502-
160	COVER ASM; EXH ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-79930-912-2	01	1	9307-9503
160	COVER ASM; EXH ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE REGULATION HONG KONG<TCZ>	1-79930-912-2	01	1	9504-
160	COVER ASM; EXH ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-79931-081-0	01	1	9307-
160	COVER ASM; EXH 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5)	1-79931-164-0	01	1	9504-
160	COVER ASM; EXH 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9>	1-79930-910-1	01	1	9307-
162	BRACKET ANTI NOISE EQUIPMENT<SV9> (A)	1-53441-488-0	01	1	9307-9501
162	BRACKET 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A)	1-53441-488-0	01	1	9502-
162	BRACKET ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53441-488-0	01	1	9502-
162	BRACKET ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53441-487-0	01	1	9307-
162	BRACKET ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> (B)	1-53441-554-0	01	1	9502-9503
162	BRACKET ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> (B)	1-53441-554-0	01	1	9504-
162	BRACKET ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> (B)	1-53441-554-0	01	1	9504-
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9307-
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28080-830-0	02	1	9502-9503
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28080-830-0	02	1	9504-
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28080-830-0	02	1	9504-
163	BOLT; BRKT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9307-
164	BOLT; FLEX COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9307-
164	BOLT; FLEX COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	01	1	9307-
164	BOLT; FLEX COVER 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	01	1	9307-
167	BOLT; EXH COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9307-
167	BOLT; EXH COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X22 W/LK&PL WASHER	1-09030-042-0	02	1	9307-
168	NUT; EXH COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	02	1	9307-
168	NUT; EXH COVER 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	5-09440-005-0	01	1	9307-

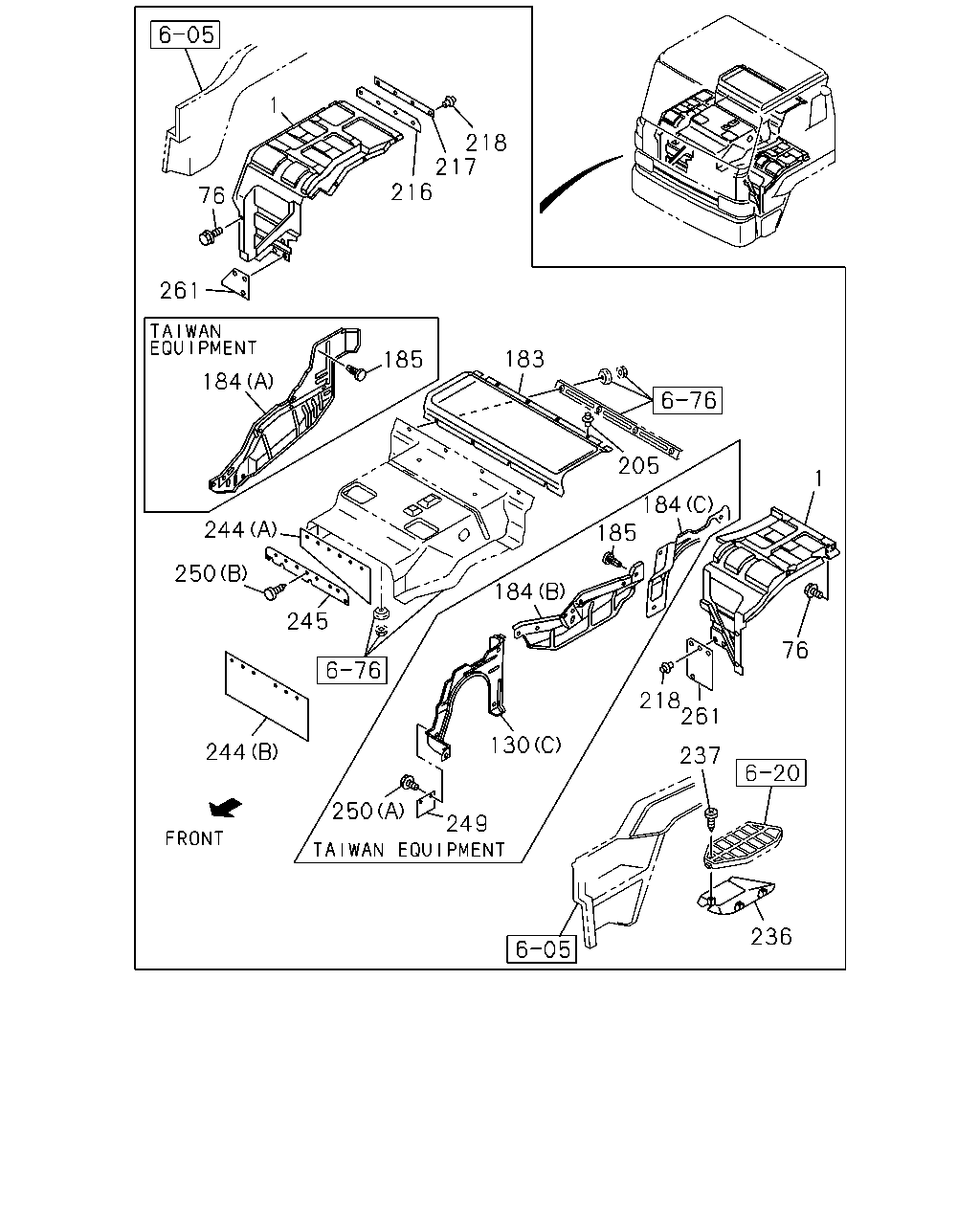

1 218 217 216 76 261 183 185 184 205 1 184 244 185 250 184 245 76 218 261 130 244 237 250 249 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-711-9	01	1	9002-9301
1	GUARD; MUD,FRT	1-79937-923-0	01	1	9302-
1	GUARD; MUD,FRT	1-79937-710-9	01	1	9002-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	16	1	9002-
76	BOLT; MUD GUARD M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
76	BOLT; MUD GUARD M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-585-0	01	1	9307-9501
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (C)	1-79937-817-3	01	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-333-0	01	1	9307-
130	PANEL; SHUTTER NOISE TAIWAN EQUIPMENT(WW5) (C)	1-79937-817-3	01	1	9307-9501
130	PANEL; SHUTTER NOISE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A)	1-53192-585-0	01	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-585-0	01	1	9502-
130	PANEL; SHUTTER NOISE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (B)	1-53192-331-0	01	1	9307-
183	INSULATOR; HEAT,BED PAN	1-71997-540-2	01	1	9002-9004
183	INSULATOR; HEAT,BED PAN	1-71997-539-5	01	1	9005-
184	INSULATOR; HEAT,ENG SIDE FRT TAIWAN EQUIPMENT(WW5) (C)	1-71997-896-0	01	1	9307-9501
184	INSULATOR; HEAT,ENG SIDE FRT ANTI NOISE EQUIPMENT<SV9> (C)	1-71997-896-0	01	1	9502-
184	INSULATOR; HEAT,ENG SIDE FRT TAIWAN EQUIPMENT(WW5) (B)	1-71997-970-0	01	1	9307-9501
184	INSULATOR; HEAT,ENG SIDE FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-71997-970-0	01	1	9502-
184	INSULATOR; HEAT,ENG SIDE FRT TAIWAN EQUIPMENT(WW5) (A)	1-71997-748-2	01	1	9307-9501
184	INSULATOR; HEAT,ENG SIDE FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-71997-748-2	01	1	9502-
185	CLIP; HEAT INSULATOR TAIWAN EQUIPMENT(WW5)	8-94279-048-0	17	1	9307-9501
185	CLIP; HEAT INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	17	1	9502-
205	FASTENER; MUD COVER 10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) D6X23 BLACK	1-09987-114-0	06	1	9002-9212
205	FASTENER; MUD COVER 10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5)	1-09987-189-0	06	1	9301-9501
205	FASTENER; MUD COVER 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-09987-189-0	06	1	9502-
205	FASTENER; MUD COVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) D6X23 BLACK	1-09987-114-0	07	1	9002-9212
205	FASTENER; MUD COVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-09987-189-0	07	1	9301-9502
205	FASTENER; MUD COVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-09987-189-0	07	1	9503-
216	RUBBER; RR,MUD GUARD FRT EXC. AIR CON MANUAL CONTROL(C60)	1-79937-716-1	01	1	9002-
217	RETAINER; RUBBER,MUD GUARD FRT EXC. AIR CON MANUAL CONTROL(C60)	1-79937-717-1	01	1	9002-
218	FASTENER; RUBBER AIR CON MANUAL CONTROL(C60)	5-09989-002-0	05	1	9002-
218	FASTENER; RUBBER EXC. AIR CON MANUAL CONTROL(C60)	5-09989-002-0	08	1	9002-
236	GUARD ASM; MUD 1ST STEP	1-79937-744-0	02	1	9002-9405
236	GUARD ASM; MUD 1ST STEP TAIWAN EQUIPMENT(WW5)	1-79937-744-0	02	1	9406-
237	BOLT; MUD GUARD M6X16 W/LK&PL WASHER	1-09980-497-0	06	1	9002-9307
237	BOLT; MUD GUARD M6X16 W/LK&PL WASHER	1-09980-586-0	06	1	9308-9405
237	BOLT; MUD GUARD TAIWAN EQUIPMENT(WW5) M6X16 W/LK&PL WASHER	1-09980-586-0	06	1	9406-
244	GUARD; MUD,SPLASH 10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) (A)	1-79937-856-0	01	1	9002-9306
244	GUARD; MUD,SPLASH 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	1-79937-772-1	01	1	9002-9502
244	GUARD; MUD,SPLASH 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-79937-772-1	01	1	9503-
245	RUBBER; SHUTTER,RAD	1-79937-723-4	01	1	9002-
249	RUBBER; SHUTTER TAIWAN EQUIPMENT(WW5)	1-79937-886-0	01	1	9307-9501
249	RUBBER; SHUTTER ANTI NOISE EQUIPMENT<SV9>	1-79937-886-0	01	1	9502-
250	FASTENER; SHUTTER (A)	1-09987-189-0	07	1	9002-
250	FASTENER; SHUTTER TAIWAN EQUIPMENT(WW5) (B)	1-09983-105-0	02	1	9307-9501
250	FASTENER; SHUTTER ANTI NOISE EQUIPMENT<SV9> (B)	1-09983-105-0	02	1	9502-
261	RUBBER; FRT,MUD GUARD AIR CON MANUAL CONTROL(C60)	1-79937-774-1	01	1	9002-
261	RUBBER; FRT,MUD GUARD AIR CON MANUAL CONTROL(C60)	1-79937-742-0	01	1	9002-
261	RUBBER; FRT,MUD GUARD EXC. AIR CON MANUAL CONTROL(C60)	1-79937-742-0	02	1	9002-

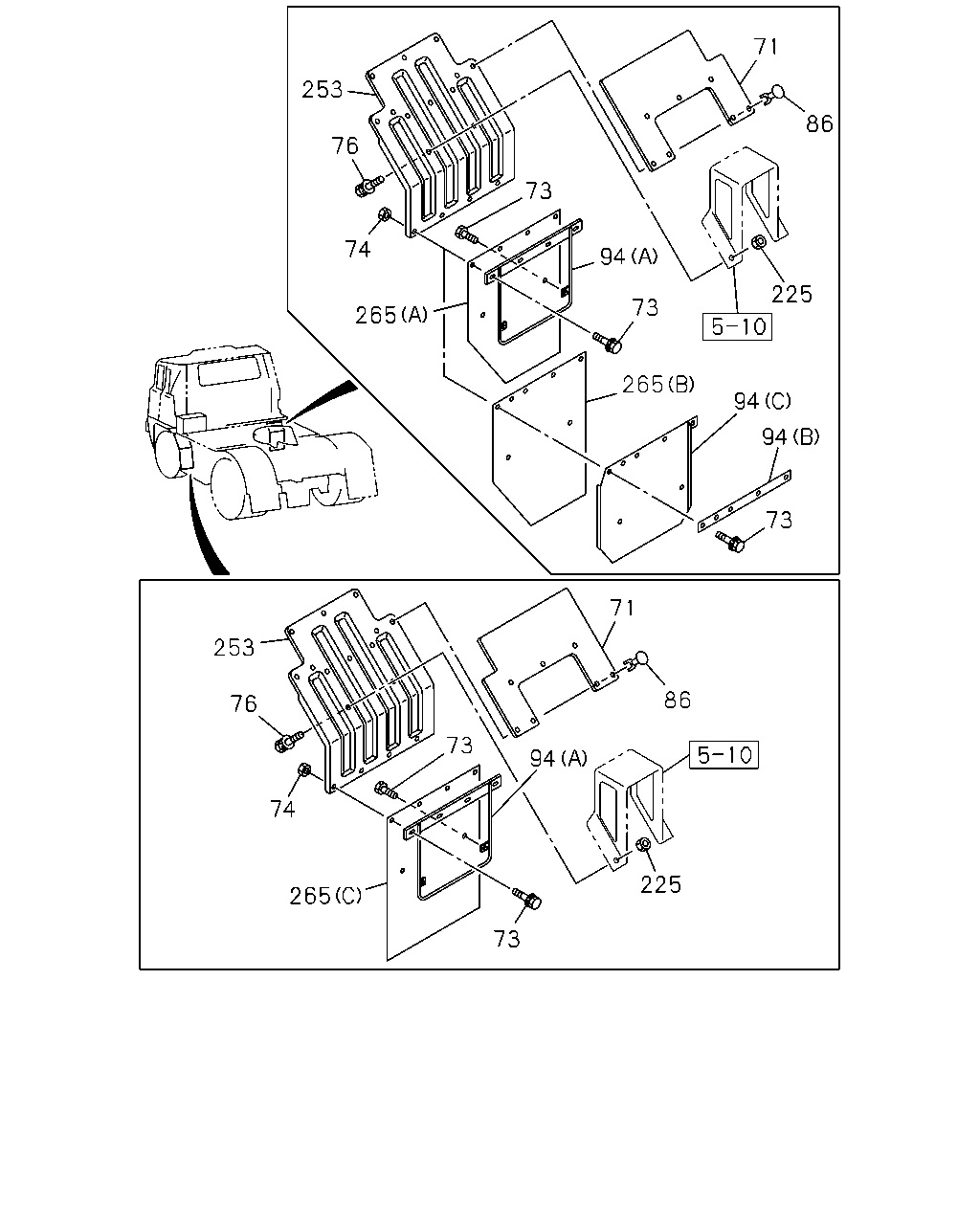

71 253 86 76 73 74 94 225 73 265 265 94 94 73 71 253 86 76 73 94 74 225 265 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	RUBBER; SEAL TAIWAN EQUIPMENT(WW5) 470X230	1-79930-645-1	01	1	9002-
71	RUBBER; SEAL TAIWAN EQUIPMENT(WW5) 470X320	1-79930-644-1	01	1	9002-
71	RUBBER; SEAL EXC. TAIWAN EQUIPMENT(WW5) L=230	1-79930-589-0	01	1	9002-
71	RUBBER; SEAL EXC. TAIWAN EQUIPMENT(WW5) L=345	1-79930-588-1	01	1	9002-
73	BOLT; MUD COVER BRKT AIR DRYER<PS7> V TYPE ENG<91L> M8X16 W/LK&PL WASHER	9-01960-816-0	05	1	9002-9204
73	BOLT; MUD COVER BRKT AIR DRYER<PS7> M8X16 W/LK&PL WASHER	0-50140-816-0	05	1	9205-9306
73	BOLT; MUD COVER BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	12	1	9307-
73	BOLT; MUD COVER BRKT EXC. SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER	9-01960-816-0	04	1	9002-9204
73	BOLT; MUD COVER BRKT EXC. SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER	0-50140-816-0	04	1	9205-9205
73	BOLT; MUD COVER BRKT V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER	9-01960-816-0	06	1	9002-9204
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> M8X16 W/LK&PL WASHER	9-01960-816-0	06	1	9002-9204
73	BOLT; MUD COVER BRKT SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER	9-01960-816-0	06	1	9002-9204
73	BOLT; MUD COVER BRKT V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER	0-50140-816-0	06	1	9205-9205
73	BOLT; MUD COVER BRKT L TYPE ENG<90L> M8X16 W/LK&PL WASHER	0-50140-816-0	06	1	9205-9205
73	BOLT; MUD COVER BRKT SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER	0-50140-816-0	06	1	9205-9205
73	BOLT; MUD COVER BRKT EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER	0-50140-816-0	06	1	9206-9306
74	NUT M8	9-09110-408-0	08	1	9307-
74	NUT AIR DRYER<PS7> M8	9-09110-408-0	05	1	9002-9306
74	NUT EXC. AIR DRYER<PS7> M8	9-09110-408-0	04	1	9002-9306
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	16	1	9002-
76	BOLT; MUD GUARD M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
76	BOLT; MUD GUARD M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-
86	CLIP; MUD GUARD	5-09987-033-0	07	1	9002-9306
86	CLIP; MUD GUARD	5-09987-033-0	14	1	9307-
94	RETAINER; FLAP RUBBER AIR DRYER<PS7> V TYPE ENG<91L> (C)	1-79930-738-2	01	1	9002-9306
94	RETAINER; FLAP RUBBER AIR DRYER<PS7> V TYPE ENG<91L> (B)	1-79930-757-1	01	1	9002-9306
94	RETAINER; FLAP RUBBER SUB AIR TANK<SJD> (A)	1-79930-749-0	01	1	9002-9105
94	RETAINER; FLAP RUBBER (A)	1-79930-870-1	01	1	9106-9108
94	RETAINER; FLAP RUBBER (A)	1-79930-888-1	01	1	9109-
94	RETAINER; FLAP RUBBER EXC. SUB AIR TANK<SJD> (A)	1-79930-341-0	01	1	9002-9105
94	RETAINER; FLAP RUBBER V TYPE ENG<91L> EXC. AIR DRYER<PS7> (A)	8-94300-800-2	01	1	9002-9306
94	RETAINER; FLAP RUBBER L TYPE ENG<90L> (A)	8-94300-800-2	01	1	9002-9306
94	RETAINER; FLAP RUBBER (A)	8-94300-800-2	01	1	9307-
225	NUT; MUD GUARD M10 FLANGE	5-09440-006-0	08	1	9002-
253	GUARD; MUD	1-79930-733-0	01	1	9002-9006
253	GUARD; MUD	1-79930-851-2	01	1	9007-9106
253	GUARD; MUD	1-79930-887-1	01	1	9107-
253	GUARD; MUD AIR DRYER<PS7> V TYPE ENG<91L>	1-79930-754-2	01	1	9002-9306
253	GUARD; MUD V TYPE ENG<91L> EXC. AIR DRYER<PS7>	1-79930-740-0	01	1	9002-9006
253	GUARD; MUD L TYPE ENG<90L>	1-79930-740-0	01	1	9002-9006
253	GUARD; MUD V TYPE ENG<91L> EXC. AIR DRYER<PS7>	1-79930-850-2	01	1	9007-9106
253	GUARD; MUD L TYPE ENG<90L>	1-79930-850-2	01	1	9007-9106
253	GUARD; MUD V TYPE ENG<91L> EXC. AIR DRYER<PS7>	1-79930-886-1	01	1	9107-9306
253	GUARD; MUD L TYPE ENG<90L>	1-79930-886-1	01	1	9107-9306
253	GUARD; MUD	1-79930-886-1	01	1	9307-
265	RUBBER; FLAP,REAR AIR DRYER<PS7> V TYPE ENG<91L> (B)	1-79930-756-1	01	1	9002-9306
265	RUBBER; FLAP,REAR SUB AIR TANK<SJD> (C)	1-79930-798-0	01	1	9002-9011
265	RUBBER; FLAP,REAR (C)	1-79930-798-0	01	1	9012-9105
265	RUBBER; FLAP,REAR (C)	1-79930-869-0	01	1	9106-
265	RUBBER; FLAP,REAR EXC. SUB AIR TANK<SJD> (C)	1-79930-343-1	01	1	9002-9011
265	RUBBER; FLAP,REAR V TYPE ENG<91L> EXC. AIR DRYER<PS7> (A)	1-79930-544-0	01	1	9002-9306
265	RUBBER; FLAP,REAR L TYPE ENG<90L> (A)	1-79930-544-0	01	1	9002-9306
265	RUBBER; FLAP,REAR (A)	1-79930-544-0	01	1	9307-

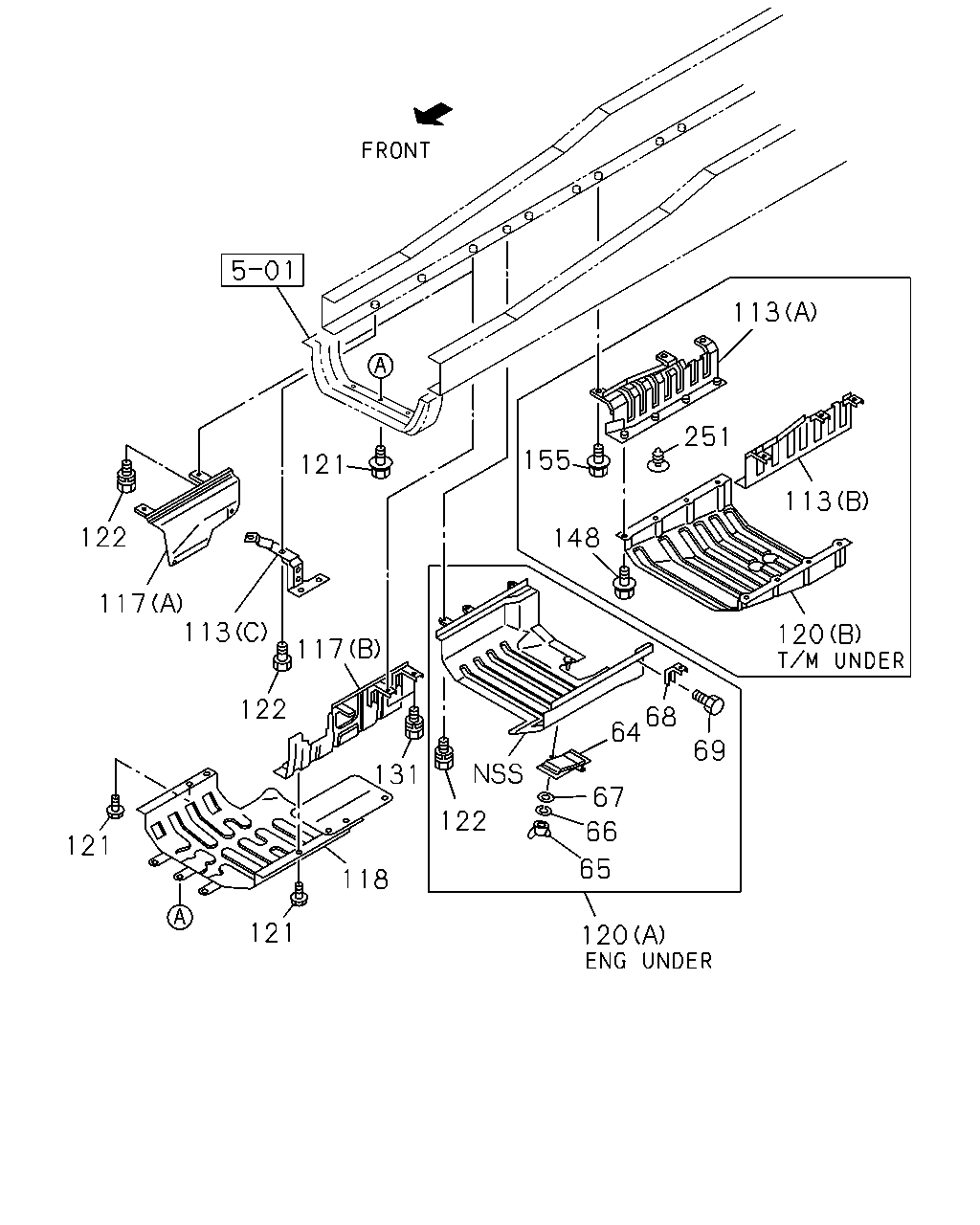

113 251 155 121 113 122 148 117 113 120 117 122 68 64 69 131 67 122 66 121 65 118 121 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	COVER; CHECK HOLE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53441-421-0	01	1	9307-9501
64	COVER; CHECK HOLE ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L>	1-53441-421-0	01	1	9502-
65	NUT; WING ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8 WING NUT	9-09118-408-0	02	1	9307-9501
65	NUT; WING ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8 WING NUT	9-09118-408-0	02	1	9502-
66	WASHER; LK ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> ID=8.2	9-09150-508-0	02	1	9307-9501
66	WASHER; LK ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> ID=8.2	9-09150-508-0	02	1	9502-
67	WASHER; PL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> ID=8.4	9-09160-508-0	02	1	9307-9501
67	WASHER; PL ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> ID=8.4	9-09160-508-0	02	1	9502-
68	STAY; COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53441-452-0	03	1	9307-9501
68	STAY; COVER ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L>	1-53441-452-0	03	1	9502-
69	BOLT; COVER TO STAY ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X16 FLANGE	0-28280-816-0	06	1	9307-9501
69	BOLT; COVER TO STAY ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X16 FLANGE	0-28280-816-0	06	1	9502-
113	PANEL; SIDE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C)	1-53192-587-0	01	1	9307-9503
113	PANEL; SIDE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-53192-587-0	01	1	9504-
113	PANEL; SIDE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-372-0	01	1	9307-9312
113	PANEL; SIDE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-366-0	01	1	9307-9312
113	PANEL; SIDE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (C)	1-53192-872-0	01	1	9504-
117	PANEL; SIDE,B UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-588-1	01	1	9307-
117	PANEL; SIDE,B UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-352-0	01	1	9307-
118	PANEL ASM; UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53192-356-1	01	1	9307-
120	PANEL; UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-344-0	01	1	9307-9312
120	PANEL; UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-358-4	01	1	9307-9501
120	PANEL; UNDER ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A)	1-53192-358-5	01	1	9502-
121	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	06	1	9307-
121	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	03	1	9307-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	06	1	9307-9501
122	BOLT ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	06	1	9502-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9307-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X35 FLANGE	0-28080-835-0	02	1	9307-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	02	1	9307-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X16 FLANGE	0-28080-816-0	01	1	9307-9503
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE REGULATION HONG KONG<TCZ> M8X16 FLANGE	0-28080-816-0	01	1	9504-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9307-9503
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE	0-28080-825-0	02	1	9504-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9307-9501
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9307-9501
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9502-
131	BOLT; PANEL 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28080-830-0	02	1	9502-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9502-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X35 FLANGE	0-28080-835-0	02	1	9307-
131	BOLT; PANEL 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28080-825-0	03	1	9504-
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	08	1	9307-9312
155	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X35 FLANGE	0-28080-835-0	06	1	9307-9312
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L>	8-94279-048-0	09	1	9502-
251	CLIP; NOISE INSULATOR 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	08	1	9307-
251	CLIP; NOISE INSULATOR 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	8-94279-048-0	06	1	9502-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	8-94279-048-0	06	1	9502-
251	CLIP; NOISE INSULATOR 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	9-09543-763-0	02	1	9502-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	9-09543-763-0	02	1	9502-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	8-94279-048-0	31	1	9401-9501
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	8-94279-048-0	22	1	9502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
