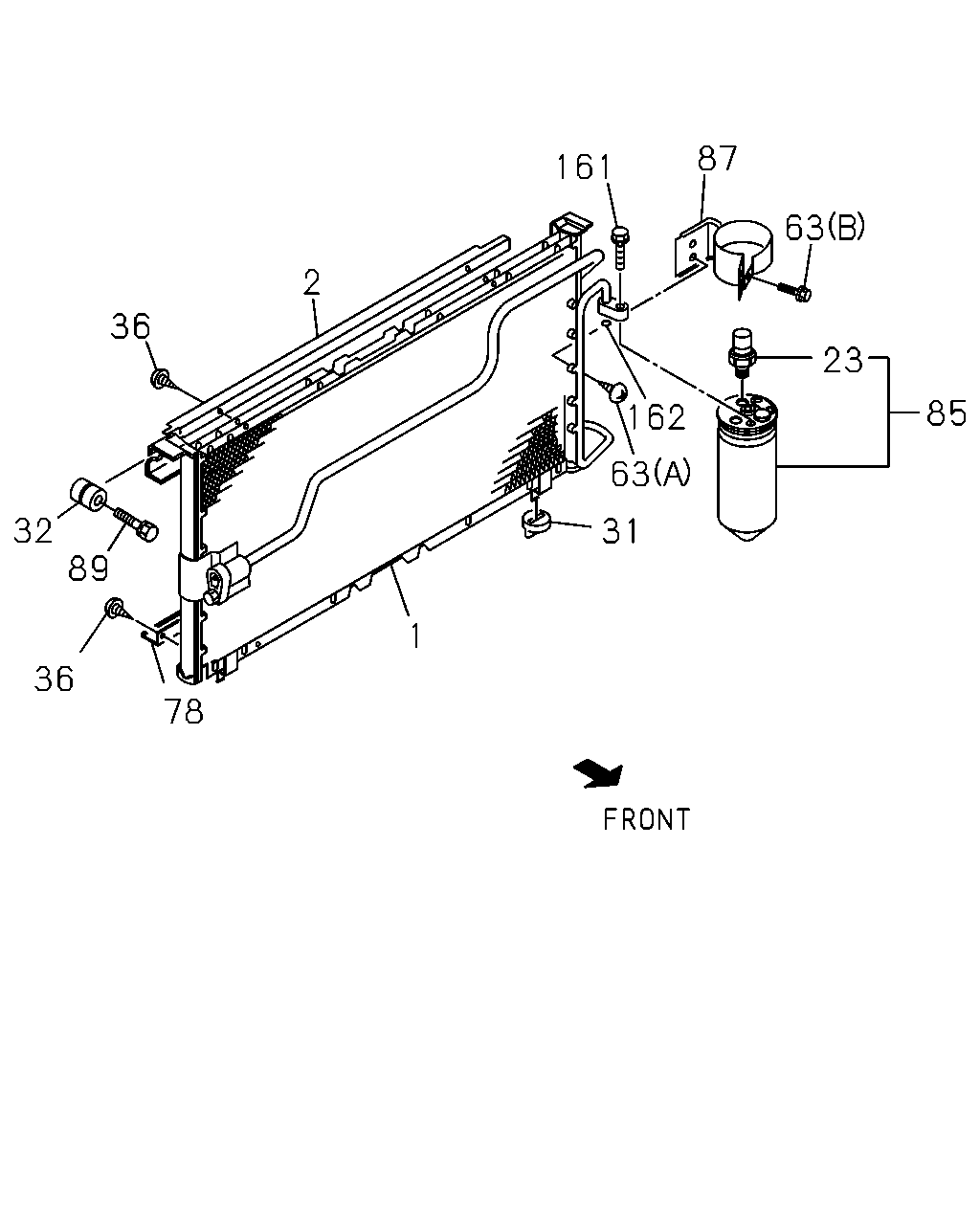

8-75 — CONDENSER (#36369) — 14 parça

87 161 63 2 36 23 162 85 63 32 89 31 1 36 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97115-212-1	01	1	9611-	●	●	●	●	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9611-	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-659-0	01	1	9611-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97018-673-0	02	1	9611-	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97096-063-0	02	1	9611-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9611-	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) (B) M6X20	8-97049-253-0	01	1	9611-	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 09.190 (A) M5X14 TAPPING	8-97049-258-0	02	1	9611-	●	●	●	●	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-257-0	01	1	9611-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97115-452-0	01	1	9611-	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97091-159-0	01	1	9611-	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60)	8-97049-255-0	02	1	9611-	●	●	●	●	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) M6X25	8-97095-660-0	01	1	9611-	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9611-	●	●	●	●	●	●
