◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#36368) — 25 parça

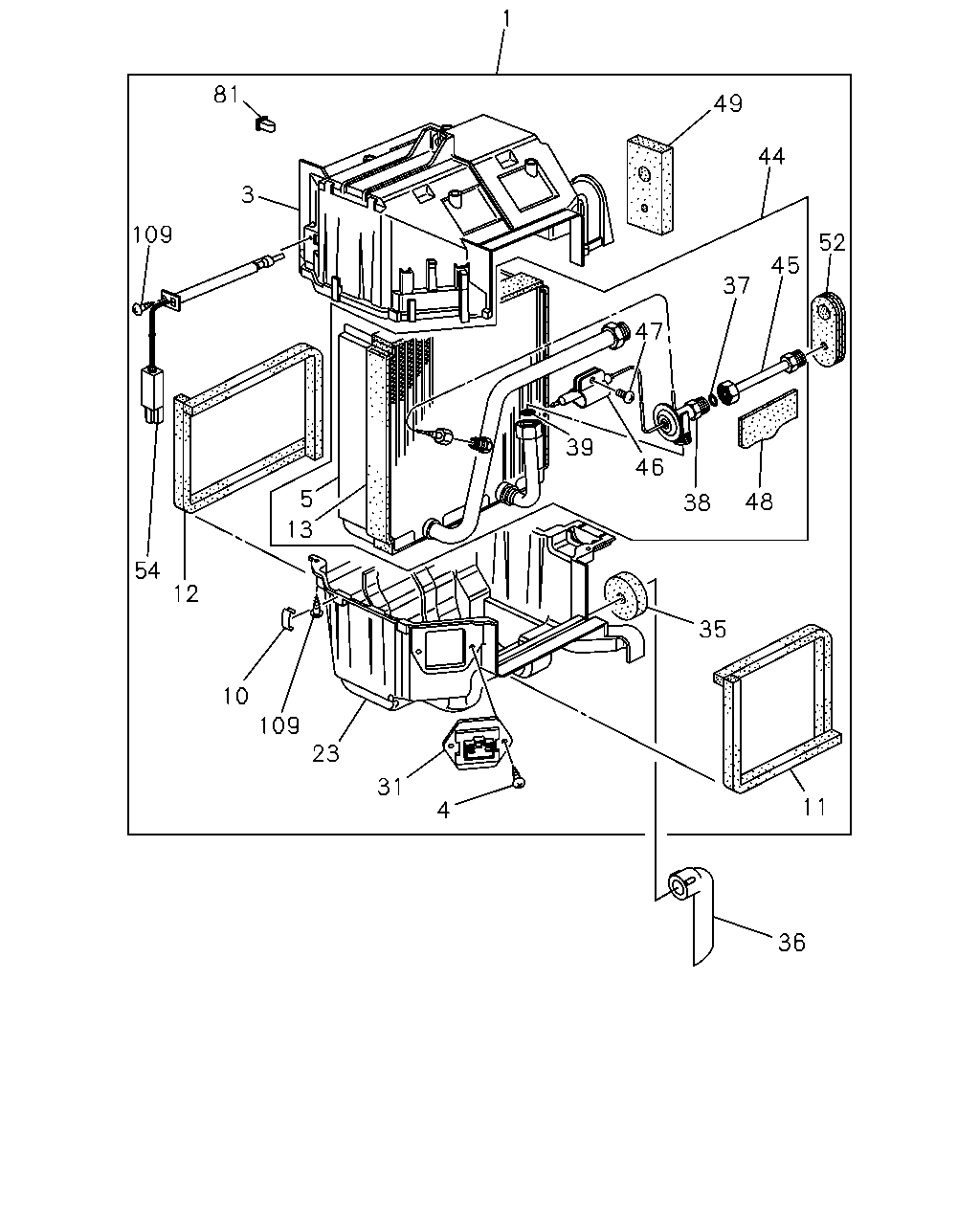

çizim 71994
1 81 49 44 3 109 52 45 37 47 39 46 5 48 38 13 54 12 35 10 109 23 31 11 4 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97122-764-1 01 1 9611- ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97107-603-1 01 1 9611- ● ● ● ● ● ●
4 09.211 SCREW; RESISTOR TO CASE
AIR CONDITIONER MANUAL CONT(C60) 08.855 		8-94248-807-0 02 1 9611- ● ● ● ● ● ●
5 09.210 EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97143-352-0 01 1 9611- ● ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60) 08.854 		1-83574-148-0 03 1 9611- ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97103-724-0 01 1 9611- ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97103-723-0 01 1 9611- ● ● ● ● ● ●
13 09.211 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60) T=5.0 		8-97069-402-0 01 1 9611- ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-97046-486-1 01 1 9611- ● ● ● ● ● ●
31 09.277 RESISTOR; POWER EVAP
AIR CONDITIONER MANUAL CONT(C60) 08.855 		8-97078-452-1 01 1 9611- ● ● ● ● ● ●
35 09.211 GROMMET; EVAP,LOW
AIR CONDITIONER MANUAL CONT(C60) 		8-97069-405-2 01 1 9611- ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-94446-972-1 01 1 9611- ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) ID=6 		8-94481-700-0 01 1 9611- ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-97143-242-0 01 1 9611- ● ● ● ● ● ●
39 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-94481-717-0 01 1 9611- ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97143-361-0 01 1 9611- ● ● ● ● ● ●
45 09.220 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60) 		8-97046-489-0 01 1 9611- ● ● ● ● ● ●
46 09.214 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60) 		1-83574-124-1 01 1 9611- ● ● ● ● ● ●
47 09.214 SCREW; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97130-601-0 01 1 9611- ● ● ● ● ● ●
48 09.214 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97103-725-0 01 1 9611- ● ● ● ● ● ●
49 09.211 GROMMET; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97069-404-1 01 1 9611- ● ● ● ● ● ●
52 09.242 GROMMET; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-801-0 01 1 9611- ● ● ● ● ● ●
54 09.172 THERMOSTAT; A/C
AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A" 		8-97087-577-0 01 1 9611- ● ● ● ● ● ●
81 09.211 CLIP; THERMOSTAT A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-94481-724-0 01 1 9611- ● ● ● ● ● ●
109 09.211 BOLT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 04 1 9611- ● ● ● ● ● ●
