8-73 — BLOWER UNIT (#36367) — 15 parça

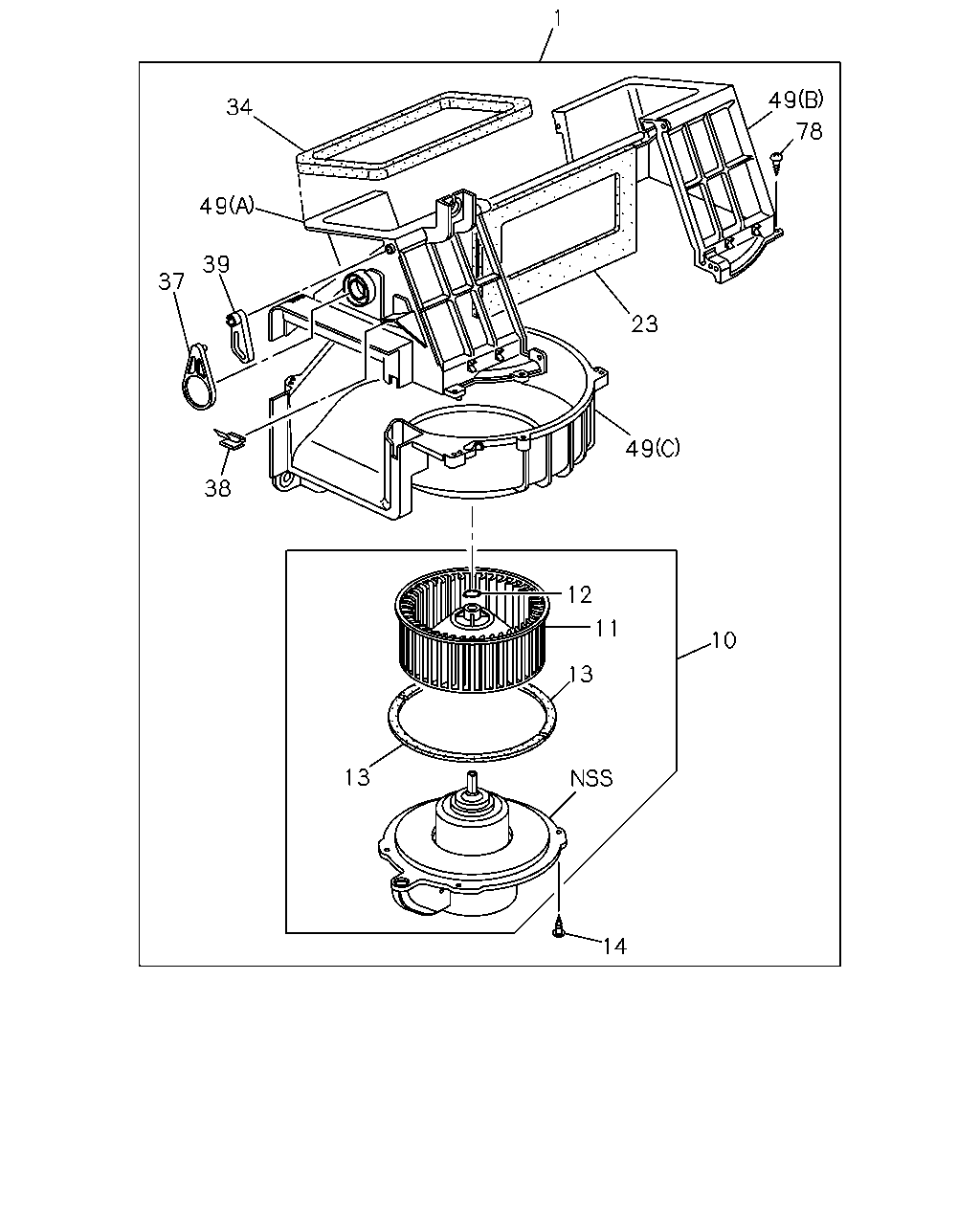

çizim 69723
1 49 34 78 49 39 37 23 49 38 12 11 10 13 13 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.855 BLOWER ASM 8-97139-525-0 01 1 9611- ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-727-0 01 1 9611- ● ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 9611- ● ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9611- ● ● ● ● ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9611- ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9611- ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-94324-818-2 01 1 9611- ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 9611- ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-94324-819-1 01 1 9611- ● ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9611- ● ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
08.852 		8-94324-820-0 01 1 9611- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94324-808-4 01 1 9611- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94324-809-1 01 1 9611- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94324-810-4 01 1 9611- ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9611- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
