8-65 — CONTROL LEVER; HEATER AND AIR CON (#36365) — 11 parça

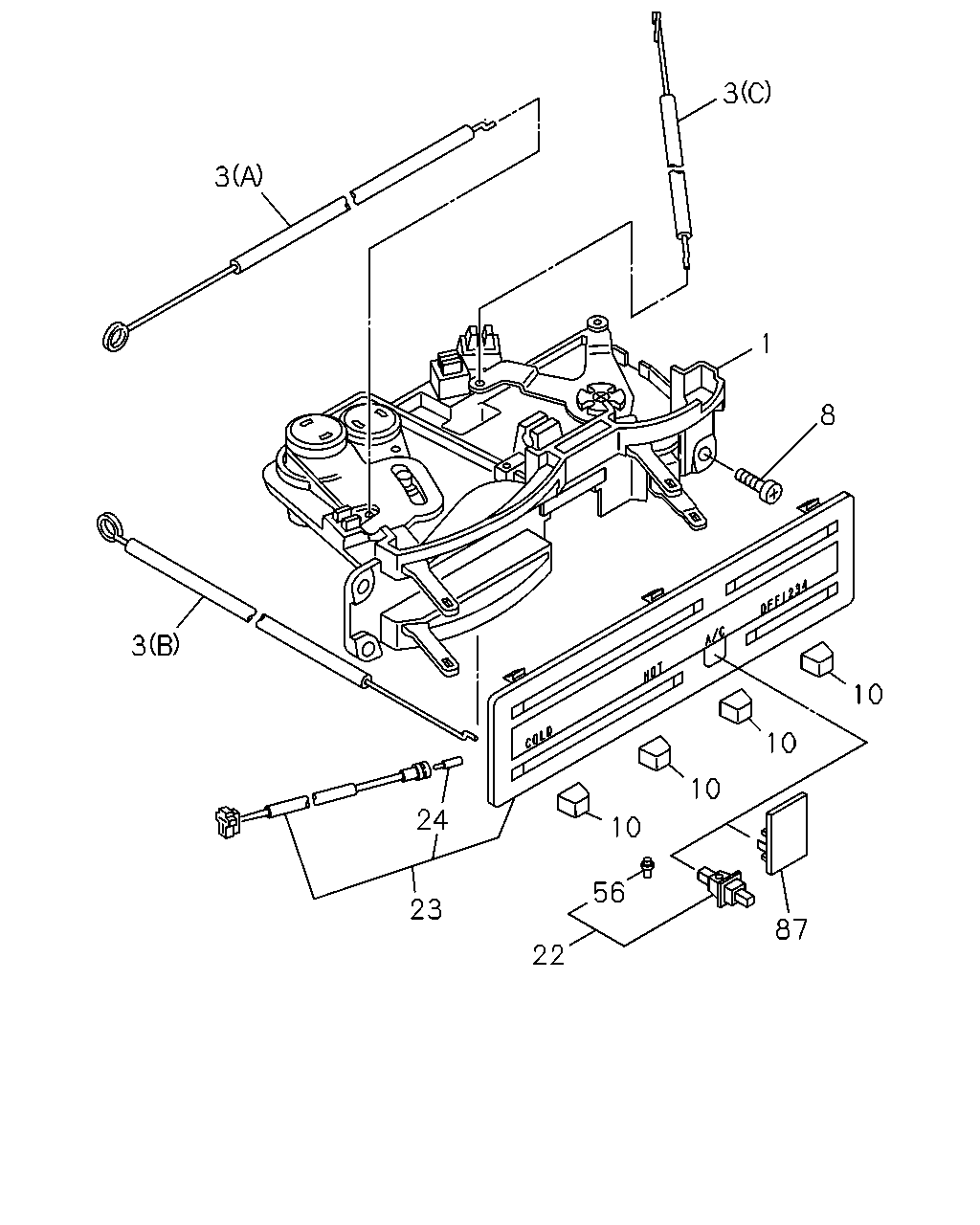

çizim 69079
3 3 1 8 3 10 10 10 24 10 56 23 87 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.849 LEVER SUB ASM; HTR CONT 8-97118-217-0 01 1 9611- ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE LEVER 		8-97118-219-0 01 1 9611- ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) TEMP LEVER 		8-97118-221-0 01 1 9611- ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) F/C LEVER 		8-97118-222-0 01 1 9611- ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER 8-94435-195-0 04 1 9611- ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9611- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER 8-97107-570-2 01 1 9611- ● ● ● ● ● ●
24 08.991 BULB; CONT LEVER
12V 1.4W 		5-82194-021-0 01 1 9611- ● ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA 		8-94337-134-0 01 1 9611- ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 08.852 		8-94435-500-0 01 1 9611- ● ● ● ● ● ●
