Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

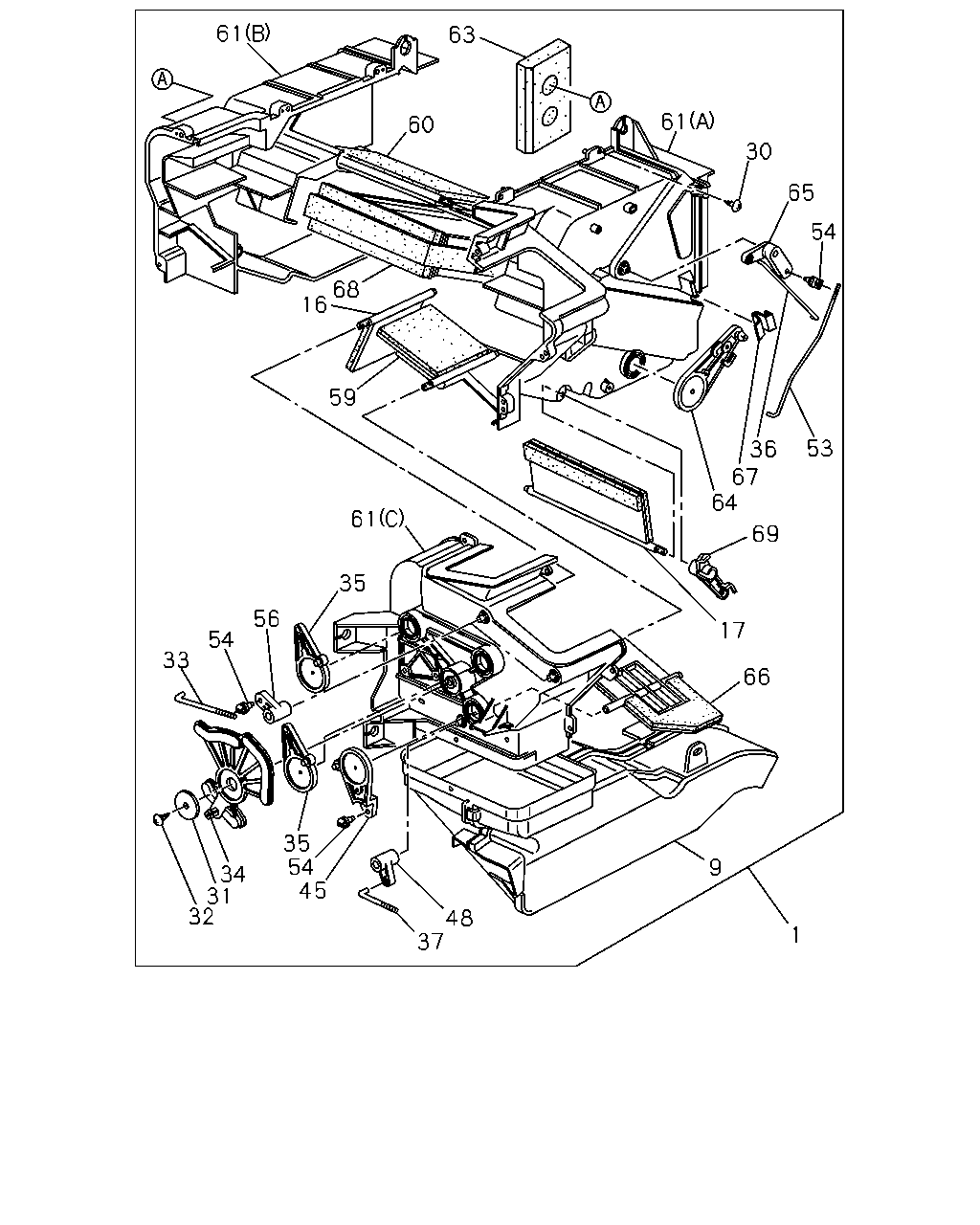

8-60 - HEATER UNIT; FRONT
▶
8-60 — HEATER UNIT; FRONT
(#36364) — 29 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
61
63
61
60
30
65
54
68
16
59
53
36
67
64
61
69
35
56
17
54
33
66
35
54
45
9
34
31
32
48
37
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
08.845 HEATER UNIT
8-97100-187-0
01
1
9611-
●
●
●
●
●
●
9
08.854 DUCT; HTR UNIT
8-97164-336-0
01
1
9611-
●
●
●
●
●
●
16
09.786 SHUTTER; HTR UNIT,CENTER UPR
08.854
8-94324-837-0
01
1
9611-
●
●
●
●
●
●
17
09.786 SHUTTER; HTR UNIT,CENTER
08.845
8-94324-834-0
01
1
9611-
●
●
●
●
●
●
30
08.845 SCREW; HTR UNIT
08.852 M4X16
8-94324-850-0
13
1
9611-
●
●
●
●
●
●
31
08.852 WASHER; HTR UNIT
8-94129-950-0
01
1
9611-
●
●
●
●
●
●
32
08.852 SCREW; HTR UNIT
10.240 M5X20
9-09829-324-1
01
1
9611-
●
●
●
●
●
●
33
09.786 ROD; SHUTTER LEVER
08.866
8-94324-849-0
02
1
9611-
●
●
●
●
●
●
34
09.786 LEVER; SHUTTER,HTR UNIT
8-94324-845-1
01
1
9611-
●
●
●
●
●
●
35
08.852 LEVER; SHUTTER,HTR UNIT
8-94324-843-1
02
1
9611-
●
●
●
●
●
●
36
08.852 ROD; HTR UNIT
09.786
8-94324-847-0
01
1
9611-
●
●
●
●
●
●
37
08.852 ROD; LEVER
8-94324-848-0
01
1
9611-
●
●
●
●
●
●
45
09.786 LEVER; SHUTTER,HTR UNIT
8-94324-844-1
01
1
9611-
●
●
●
●
●
●
48
09.786 LEVER; HTR UNIT
8-94324-842-0
01
1
9611-
●
●
●
●
●
●
53
08.866 ROD; SHUTTER LEVER
8-94324-846-0
01
1
9611-
●
●
●
●
●
●
54
08.854 CLIP; SHUTTER LEVER
09.786
8-94248-794-0
04
1
9611-
●
●
●
●
●
●
56
09.786 LEVER; SHUTTER,HTR UNIT
08.856
8-94324-841-0
02
1
9611-
●
●
●
●
●
●
59
08.845 SHUTTER; HTR UNIT,SIDE
8-94324-835-0
01
1
9611-
●
●
●
●
●
●
60
08.854 DOOR; MIX,HTR UNIT
8-94324-833-0
01
1
9611-
●
●
●
●
●
●
61
08.854 CASE; HTR UNIT
(A)
8-94324-828-3
01
1
9611-
●
●
●
●
●
●
61
08.854 CASE; HTR UNIT
(B)
8-94324-829-3
01
1
9611-
●
●
●
●
●
●
61
08.854 CASE; HTR UNIT
(C)
8-94324-830-1
01
1
9611-
●
●
●
●
●
●
63
08.856 LINING; HTR UNIT
8-97069-416-1
01
1
9611-
●
●
●
●
●
●
64
09.786 LEVER; MIX,DOOR
8-94324-840-1
01
1
9611-
●
●
●
●
●
●
65
09.786 LEVER; MIX,DOOR
08.852
8-94324-838-0
01
1
9611-
●
●
●
●
●
●
66
09.786 SHUTTER; HTR UNIT,CENTER LWR
08.854
8-94324-836-0
01
1
9611-
●
●
●
●
●
●
67
08.854 CLIP; HTR UNIT
09.787
8-94337-654-0
02
1
9611-
●
●
●
●
●
●
68
08.854 CORE; HTR UNIT
8-94327-444-2
01
1
9611-
●
●
●
●
●
●
69
08.852 LEVER; SHUTTER,HTR UNIT
8-97045-854-0
01
1
9611-
●
●
●
●
●
●
