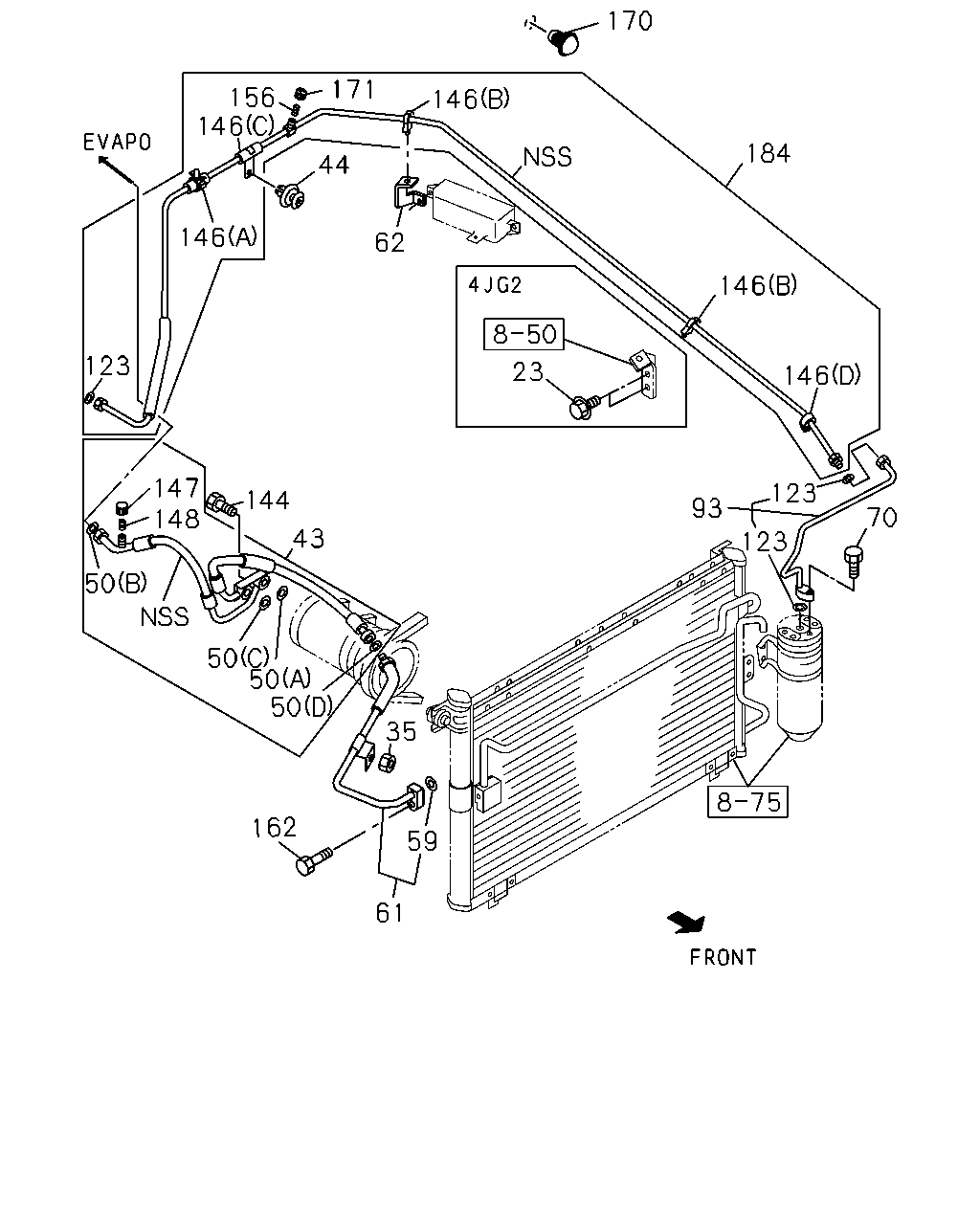

8-52 — PIPING; AIR CONDITIONING (#36363) — 28 parça

170 171 156 146 146 184 44 146 62 146 123 23 146 147 148 123 144 93 70 43 123 50 50 50 50 35 59 61 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 08.077 M6X18	8-94408-386-1	02	1	9611-	●	●	●	●	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91150-206-0	01	1	9611-	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97086-226-2	01	1	9611-	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 12.801 D6.8X12	8-94198-687-0	01	1	9611-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (D) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.260 (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CONDITIONER MANUAL CONT(C60) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97044-164-2	01	1	9611-	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60)	8-94462-279-2	01	1	9611-	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9611-	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. PORTUGAL EQUIPMENT(6JK) "R-134A"	8-97085-858-0	01	1	9611-	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) PORTUGAL EQUIPMENT(6JK) "R-134A"	8-97079-704-0	01	1	9611-			●			●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9611-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9611-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9611-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9611-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9611-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9611-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (D)	8-97087-079-0	01	1	9611-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9611-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9611-	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	9611-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-	●	●	●	●	●	●
170	09.220 PLUG; HOLE 16.067	8-94279-922-0	01	1	9712-	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9611-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-860-2	01	1	9611-	●	●	●	●	●	●
