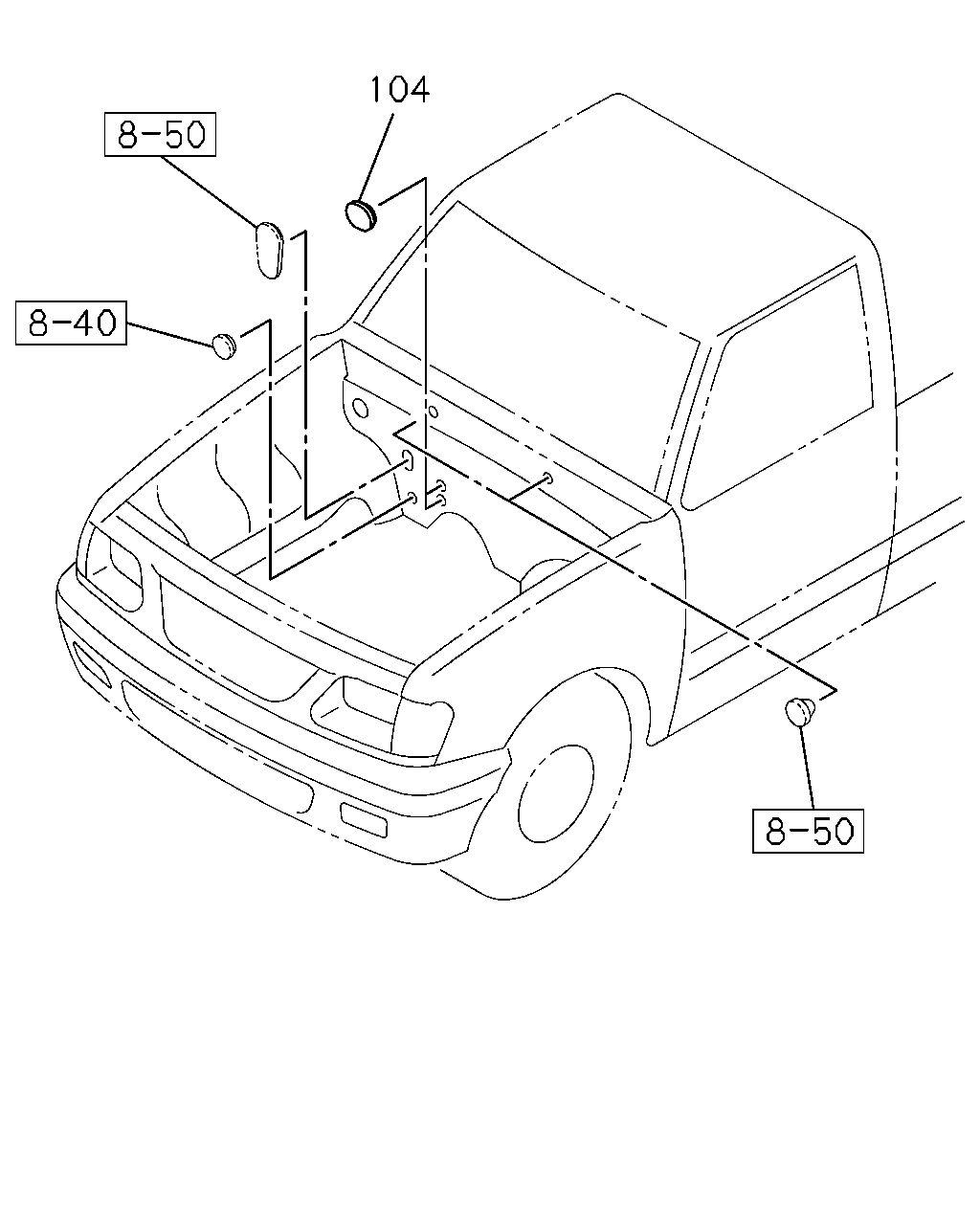

8-45 — HEATER PIPING (#36361) — 10 parça
çizim 17729
104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
104 16.550 PLUG; RUBBER,HTR HOSE HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97125-023-0 02 1 9611- ● ● ● ● ● ●
çizim 69501
25 13 25 13 13 13 27 82 23 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 08.846 CLIP; HTR HOSE
(A) ID=25 		8-94369-726-0 02 1 9611- ● ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
(B) ID=25 		8-94369-726-0 01 1 9611-9707 ● ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
(B) ID=22 		8-94382-401-0 02 1 9611-9707 ● ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
(B) ID=22 		8-94382-401-0 03 1 9708- ● ● ● ● ● ●
23 08.846 CLIP; WATER HOSE,DASH LWR 8-94338-298-1 01 1 9611- ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
(A) 		8-97070-690-2 01 1 9611- ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
(B) 		8-97081-556-1 01 1 9611- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI 8-97070-691-2 01 1 9611- ● ● ● ● ● ●
82 08.866 SCREW; HTR HOSE CLIP TO DASH
02.343 		8-94470-854-1 01 1 9611- ● ● ● ● ● ●
