Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#36360) — 25 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
◀

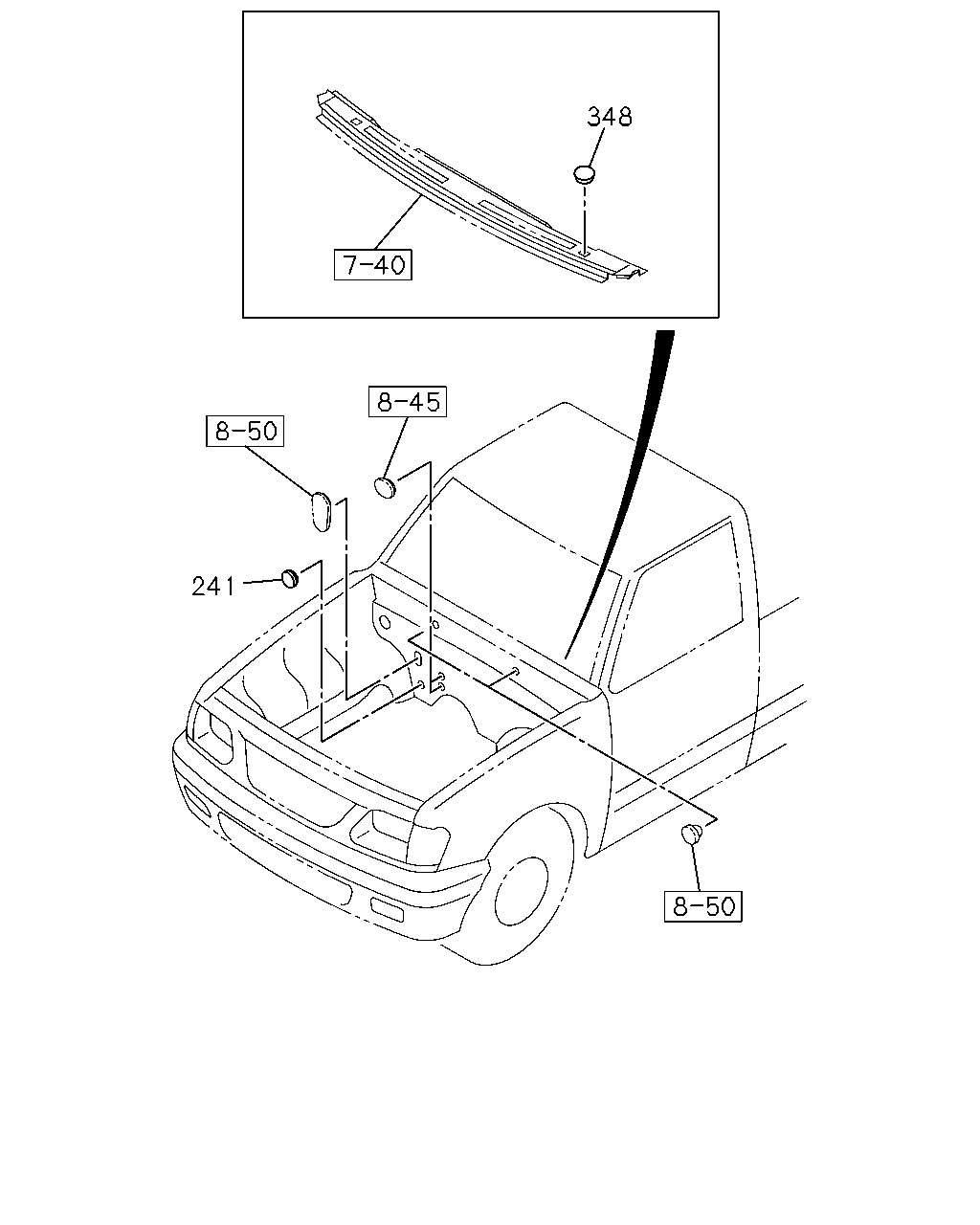

[840A] NO.2 (2 parça)
[840A] NO.1 (23 parça)
▶
348
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
241
16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 00.206
8-94222-309-1
01
1
9611-
●
●
●
●
●
●
348
08.850 COVER; SUN SENSOR
8-97121-843-1
01
1
9611-
●
●
●
●
●
●
24
6
1
24
6
222
25
24
194
222
116
222
222
300
59
280
116
185
194
65
72
71
44
105
104
103
98
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
09.779 NOZZLE; DEFROSTER,INST PNL
8-97107-800-0
01
1
9611-
●
●
●
●
●
●
6
09.779 DUCT; SIDE DEFROSTER
8-97119-906-1
01
1
9611-
●
●
●
●
●
●
6
09.779 DUCT; SIDE DEFROSTER
8-97100-190-0
01
1
9611-
●
●
●
●
●
●
24
03.890 SCREW; NOZZLE TO INST PNL
15.222 (A) M5X16 TAPPING W/PL WASHER
0-74315-516-0
04
1
9611-
●
●
●
●
●
●
24
03.890 SCREW; NOZZLE TO INST PNL
06.760 (B)
8-94243-190-0
05
1
9611-
●
●
●
●
●
●
25
09.786 DUCT; CENTER
8-97100-192-1
01
1
9611-
●
●
●
●
●
●
26
08.845 NUT; HTR
07.833 M6 FLANGE
8-97063-399-0
04
1
9611-
●
●
●
●
●
●
44
09.222 NUT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE
8-97063-399-0
02
1
9611-
●
●
●
●
●
●
59
09.786 DUCT; VENT,ASSIST SIDE
8-97101-305-0
01
1
9611-
●
●
●
●
●
●
65
09.786 DUCT; VENT,DRIVER SIDE
8-97100-193-0
01
1
9611-
●
●
●
●
●
●
71
08.845 NUT; BLOWER UNIT TO DASH
07.833 M6 FLANGE
8-97063-399-0
01
1
9611-
●
●
●
●
●
●
72
08.857 BOLT; BLOWER UNIT
10.701 M6X16
8-94206-784-0
02
1
9611-
●
●
●
●
●
●
98
09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-94376-106-0
01
1
9611-
●
●
●
●
●
●
103
08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING
1-83579-114-0
02
1
9611-
●
●
●
●
●
●
104
08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97045-850-0
01
1
9611-
●
●
●
●
●
●
105
08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 00.030
8-97045-851-0
01
1
9611-
●
●
●
●
●
●
116
08.845 SCREW; TAP AIR DUCT
16.085 M5X16 TAPPING
9-09829-323-1
07
1
9611-
●
●
●
●
●
●
185
09.262 SCREW; VENT DUCT
16.085 M5X16 TAPPING
9-09829-323-1
01
1
9611-9705
●
●
●
●
●
●
185
09.262 SCREW; VENT DUCT
15.222 M5X16 TAPPING W/PL WASHER
0-74315-516-0
01
1
9706-
●
●
●
●
●
●
194
09.262 COVER; HOLE,RAM AIR
8-94435-191-0
02
1
9611-
●
●
●
●
●
●
222
09.787 FASTENER; DUCT
06.760
8-94243-190-0
05
1
9611-
●
●
●
●
●
●
280
09.264 DUCT; VENT,DRIVER SIDE
8-97100-194-0
01
1
9611-
●
●
●
●
●
●
300
09.264 DUCT; VENT,CENTER
8-97118-559-1
01
1
9611-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
