8-28 — CHASSIS ELECTRICAL (#36359) — 9 parça

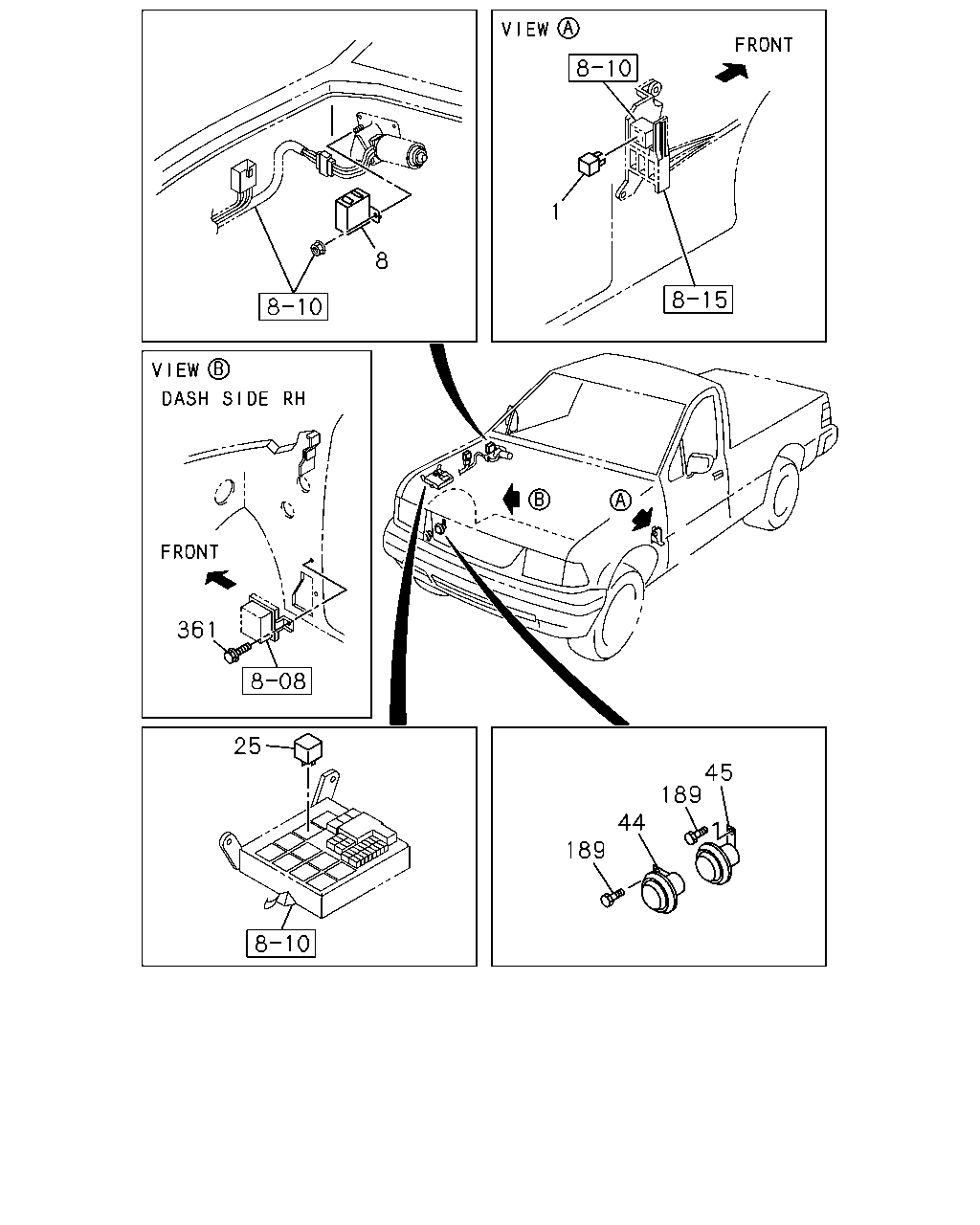

çizim 69828
1 8 361 25 45 189 44 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9611- ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97105-453-0 01 1 9611- ● ● ● ● ● ●
8 16.067 RELAY; WIPER 8-97096-762-1 01 1 9611- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97138-273-0 01 1 9611- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97138-270-0 01 1 9611- ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9611- ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9611- ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
HEADLAMP WASHER<CE3> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ●
