Sayfa 8-26 - Isuzu EPC

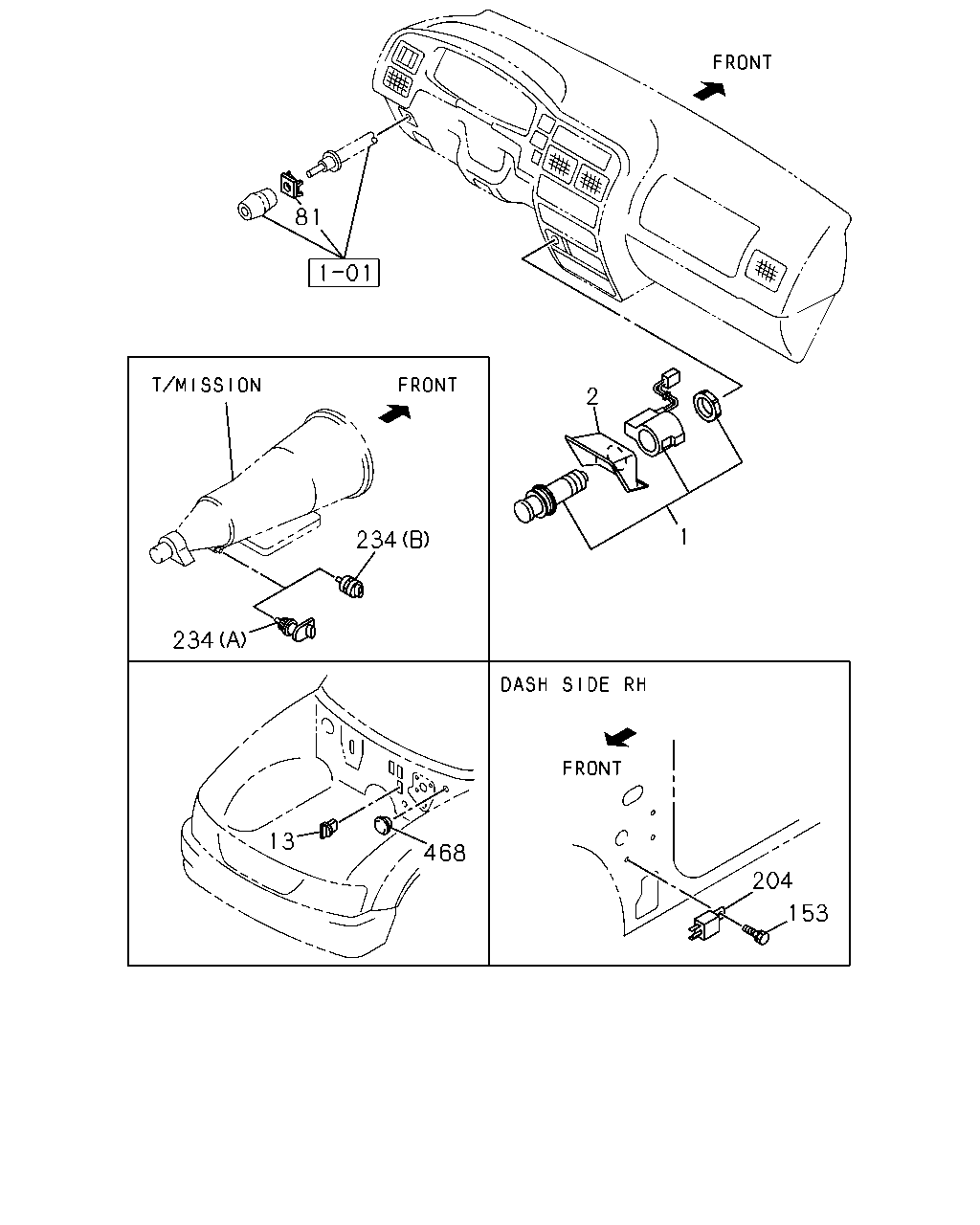

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#36358) — 9 parça

81 2 1 234 234 13 468 204 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.709 LIGHTER; CIGAR	8-97100-029-0	01	1	9611-	●	●	●	●	●	●
2	09.709 BEZEL; CIGAR LIGHTER BLACK	8-94333-793-0	01	1	9611-	●	●	●	●	●	●
13	03.880 PLUG; CONTROLLER,CRUISE 12.804	8-94147-164-1	01	1	9611-	●	●	●	●	●	●
81	03.451 BEZEL; IDLE CONT	8-97065-377-3	01	1	9611-	●	●	●	●	●	●
153	16.085 BOLT; BUZZER FIX 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●
204	02.195 BUZZER; KEY REMIND 02.485	8-94100-124-0	01	1	9611-	●	●	●	●	●	●
234	03.682 SENSOR; VEHICLE SPD M/T MSG 5 SPEED(M75) (A)	8-97129-727-0	01	1	9611-	●	●	●	●	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC) (B) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9611-	●	●	●	●	●	●
468	04.342 GROMMET; HOLE,METER CABLE 16.585 OD=31.6	8-94198-177-0	01	1	9611-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
