8-21 — METER ASM (#36356) — 82 parça

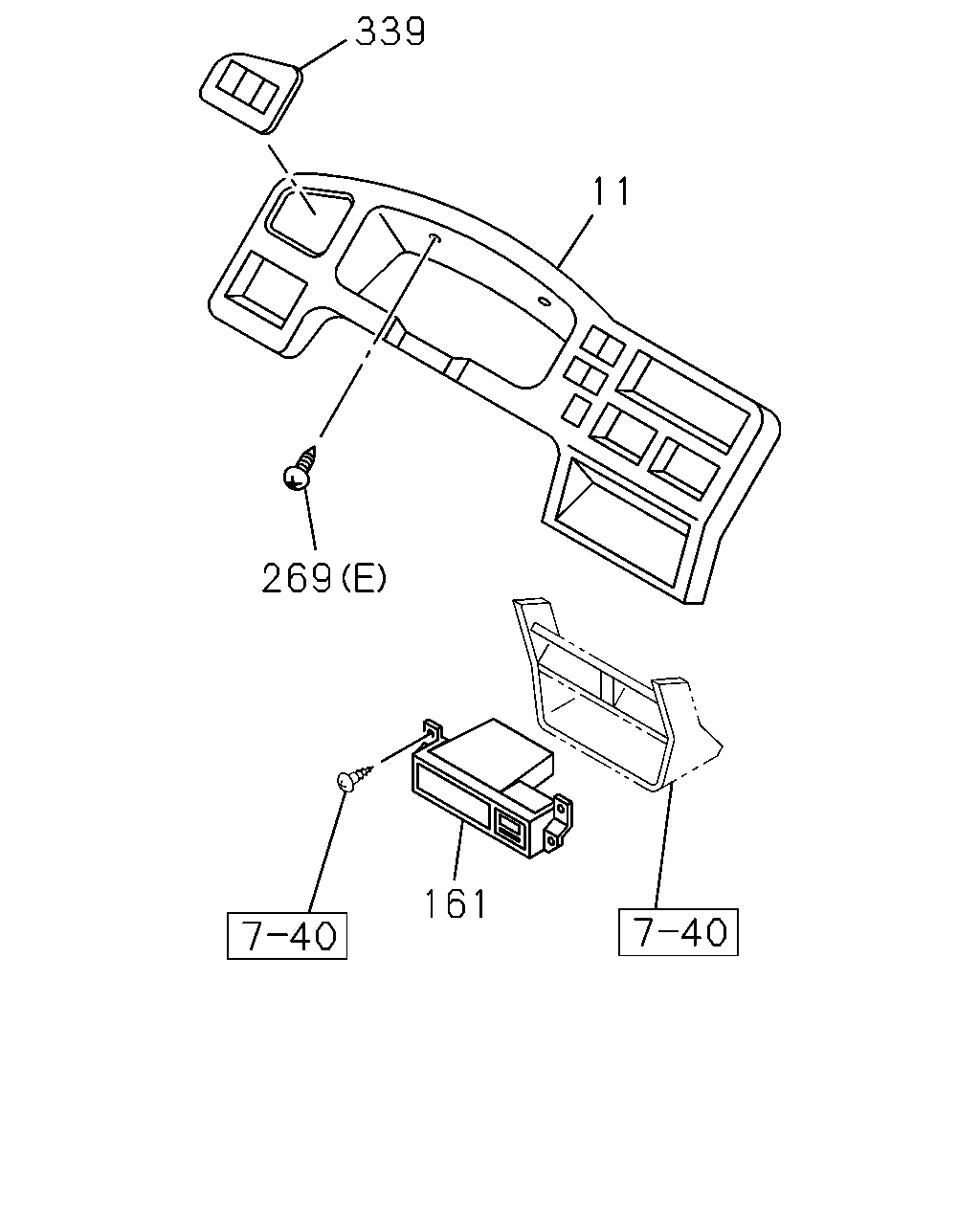

339 11 269 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	09.743 CLUSTER ASM; METER INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK	8-97154-763-2	01	1	9611-	●	●	●	●	●	●
11	09.743 CLUSTER ASM; METER EXC. INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK	8-97154-709-1	01	1	9611-	●	●	●	●	●	●
161	09.772 CLOCK; CLUSTER METER DIGITAL CLOCK<UE8>	8-97122-058-1	01	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 16.085 (E) M5X16 TAPPING	9-09829-323-1	03	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> 09.744 (B)	8-97069-347-0	03	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> 09.744 (C)	8-97069-348-0	08	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> 09.744 (D) M3X31	8-94326-740-0	06	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> 09.744 (C)	8-97069-348-0	02	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 4JG2 ENG(RJC),4JA1 ENG(RLE) 09.744 (A)	8-97045-595-0	04	1	9611-	●	●	●	●	●	●
339	09.743 BEZEL; SW,CLUSTER METER	8-97107-569-0	01	1	9611-	●	●	●	●	●	●

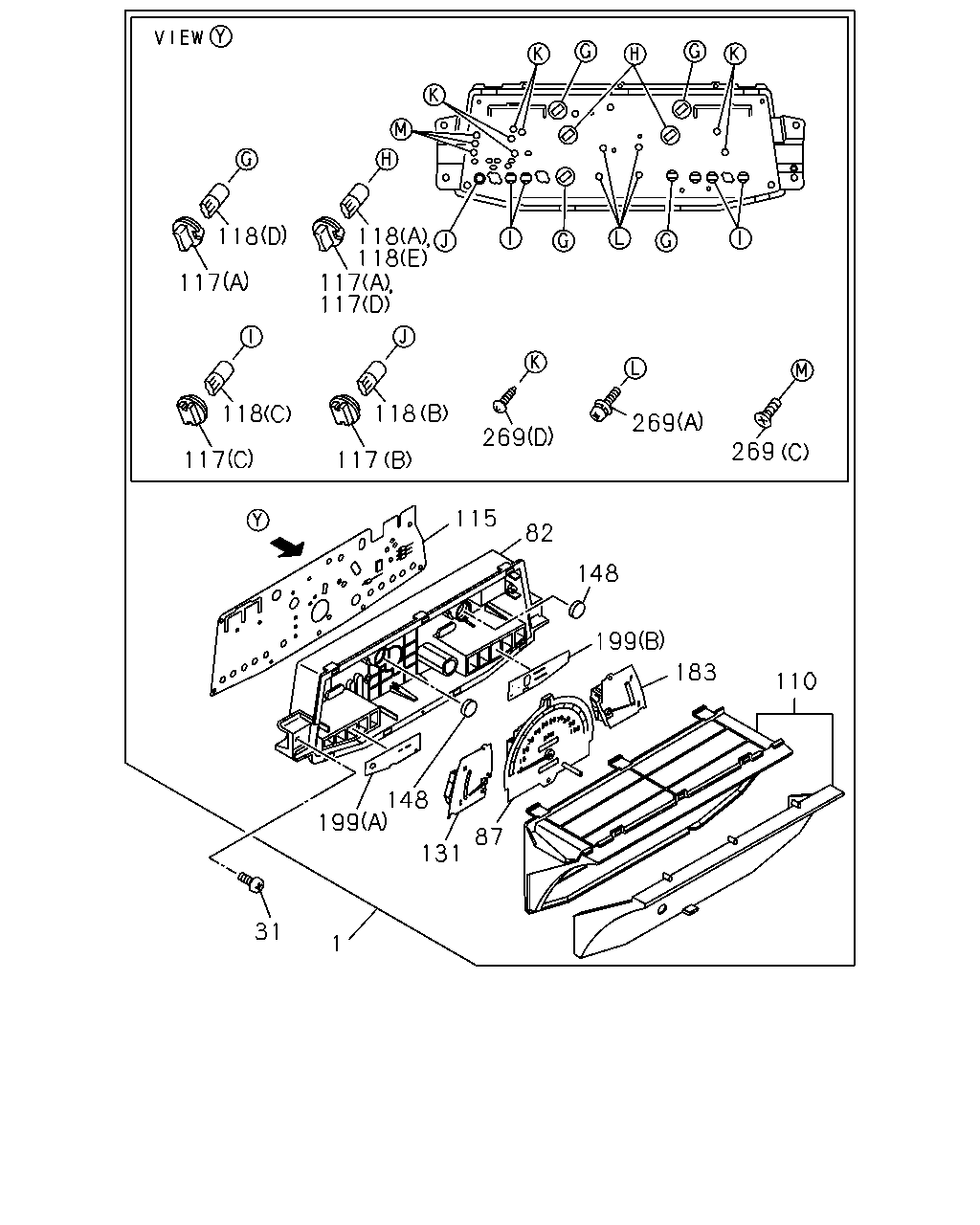

118 118 118 117 117 117 269 269 117 117 115 82 148 199 183 110 148 199 87 131 31 1 118 118 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16>	8-97112-472-4	01	1	9611-	●	●	●	●	●	●
1	09.735 METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97112-471-3	01	1	9611-	●	●	●	●	●	●
31	09.761 SCREW; METER,INST PANEL 02.726 M5X16 TAPPING W/PL WASHER	0-74300-516-0	04	1	9611-	●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER TACHOMETER<U16>	8-97104-695-0	01	1	9611-	●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-97118-775-0	01	1	9611-	●	●	●	●	●	●
87	09.761 SPEEDOMETER TACHOMETER<U16>	8-97132-260-3	01	1	9611-	●	●	●	●	●	●
87	09.761 SPEEDOMETER EXC. TACHOMETER<U16>	8-97132-255-1	01	1	9611-	●	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16>	8-97080-609-0	01	1	9611-	●	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-075-0	01	1	9611-9711	●	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97171-067-0	01	1	9712-	●	●	●	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97132-275-1	01	1	9611-	●	●	●	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97132-325-1	01	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK 09.765 (A) 12V 3.4W	5-82188-001-0	AR	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK 09.765 (B) 14V 3W	8-97104-703-0	AR	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK 02.892 (C) 12V 1.4W BLACK	8-94114-138-0	AR	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK (D) 24V 3W GREEN	8-97045-599-0	AR	1	9712-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (A) 14V 3.4W W/CAP	5-82194-024-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (C) 12V 1.4W	8-94152-313-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 09.765 (B) 14V 3W	8-97104-702-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (D) 12V 3.4W	9-82691-397-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (E) 14V 3.4W W/CAP	8-97171-066-0	AR	1	9712-	●	●	●	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER TACHOMETER<U16>	8-97139-580-1	01	1	9611-	●	●	●	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97109-304-1	01	1	9611-	●	●	●	●	●	●
148	09.748 LENS; PILOT,TURN SIGNAL,CLUSTER EXC. TACHOMETER<U16>	8-94325-264-0	02	1	9611-	●	●	●	●	●	●
183	03.107 GAUGE; FUEL TACHOMETER<U16>	8-97139-581-1	01	1	9611-	●	●	●	●	●	●
183	03.107 GAUGE; FUEL EXC. TACHOMETER<U16>	8-97109-306-3	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP TACHOMETER<U16> (A)	8-97104-686-0	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP TACHOMETER<U16> (B)	8-97139-582-2	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP EXC. TACHOMETER<U16> (A)	8-97132-283-0	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP EXC. TACHOMETER<U16> (B)	8-97139-534-1	01	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 16.085 (E) M5X16 TAPPING	9-09829-323-1	03	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> 09.744 (B)	8-97069-347-0	03	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> 09.744 (C)	8-97069-348-0	08	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> 09.744 (D) M3X31	8-94326-740-0	06	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> 09.744 (C)	8-97069-348-0	02	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 4JG2 ENG(RJC),4JA1 ENG(RLE) 09.744 (A)	8-97045-595-0	04	1	9611-	●	●	●	●	●	●

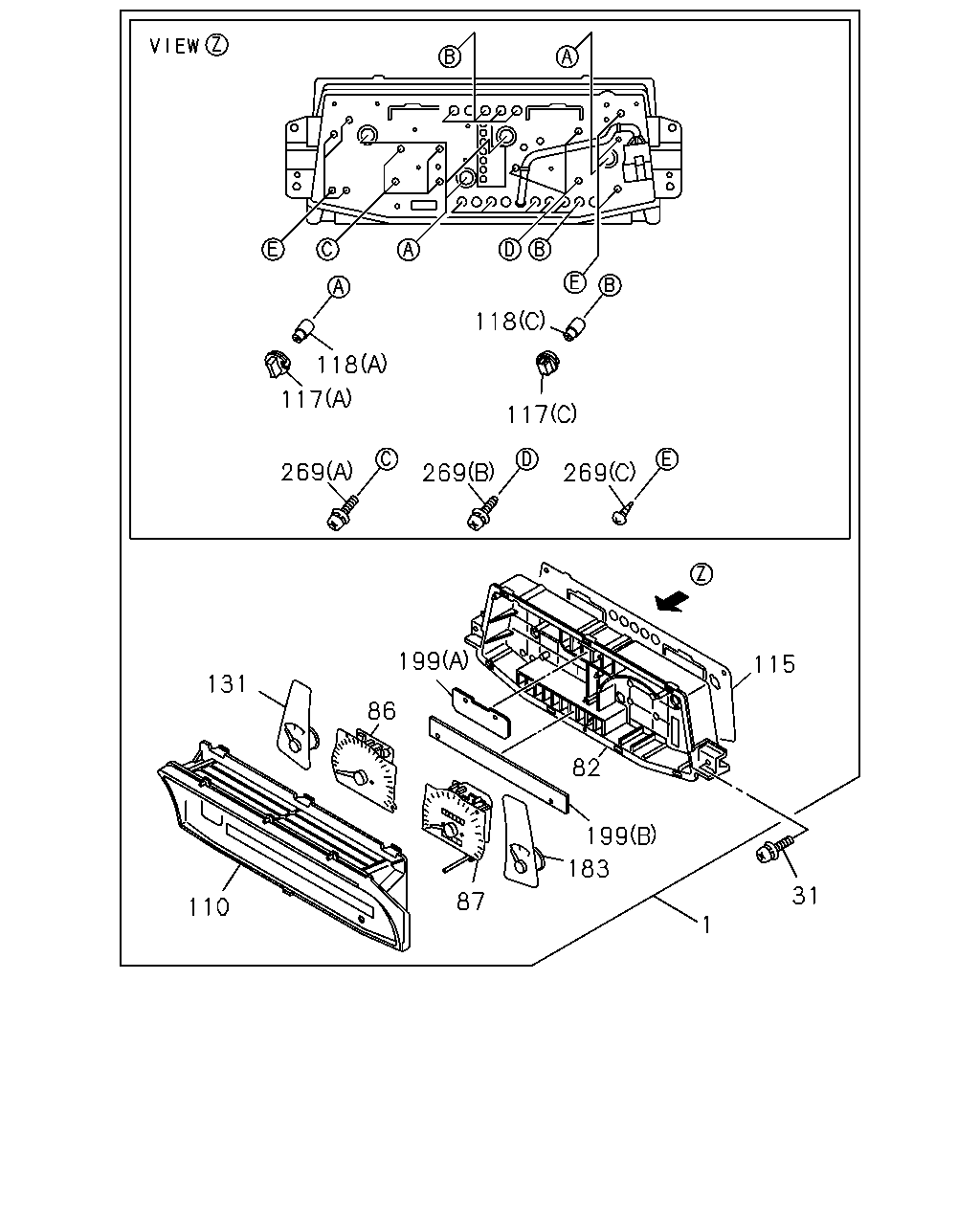

118 118 117 117 269 269 269 199 115 131 86 82 199 183 31 87 110 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16>	8-97112-472-4	01	1	9611-	●	●	●	●	●	●
1	09.735 METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97112-471-3	01	1	9611-	●	●	●	●	●	●
31	09.761 SCREW; METER,INST PANEL 02.726 M5X16 TAPPING W/PL WASHER	0-74300-516-0	04	1	9611-	●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER TACHOMETER<U16>	8-97104-695-0	01	1	9611-	●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-97118-775-0	01	1	9611-	●	●	●	●	●	●
86	09.750 TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-97135-890-2	01	1	9611-	●	●	●	●	●	●
87	09.761 SPEEDOMETER TACHOMETER<U16>	8-97132-260-3	01	1	9611-	●	●	●	●	●	●
87	09.761 SPEEDOMETER EXC. TACHOMETER<U16>	8-97132-255-1	01	1	9611-	●	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16>	8-97080-609-0	01	1	9611-	●	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-075-0	01	1	9611-9711	●	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97171-067-0	01	1	9712-	●	●	●	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97132-275-1	01	1	9611-	●	●	●	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97132-325-1	01	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK 09.765 (A) 12V 3.4W	5-82188-001-0	AR	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK 09.765 (B) 14V 3W	8-97104-703-0	AR	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK 02.892 (C) 12V 1.4W BLACK	8-94114-138-0	AR	1	9611-	●	●	●	●	●	●
117	09.744 SOCKET; BULB,GAUGE & CLOCK (D) 24V 3W GREEN	8-97045-599-0	AR	1	9712-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (A) 14V 3.4W W/CAP	5-82194-024-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (C) 12V 1.4W	8-94152-313-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 09.765 (B) 14V 3W	8-97104-702-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (D) 12V 3.4W	9-82691-397-0	AR	1	9611-	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (E) 14V 3.4W W/CAP	8-97171-066-0	AR	1	9712-	●	●	●	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER TACHOMETER<U16>	8-97139-580-1	01	1	9611-	●	●	●	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97109-304-1	01	1	9611-	●	●	●	●	●	●
183	03.107 GAUGE; FUEL TACHOMETER<U16>	8-97139-581-1	01	1	9611-	●	●	●	●	●	●
183	03.107 GAUGE; FUEL EXC. TACHOMETER<U16>	8-97109-306-3	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP TACHOMETER<U16> (A)	8-97104-686-0	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP TACHOMETER<U16> (B)	8-97139-582-2	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP EXC. TACHOMETER<U16> (A)	8-97132-283-0	01	1	9611-	●	●	●	●	●	●
199	09.772 LENS; WARNING LAMP EXC. TACHOMETER<U16> (B)	8-97139-534-1	01	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 16.085 (E) M5X16 TAPPING	9-09829-323-1	03	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> 09.744 (B)	8-97069-347-0	03	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> 09.744 (C)	8-97069-348-0	08	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> 09.744 (D) M3X31	8-94326-740-0	06	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> 09.744 (C)	8-97069-348-0	02	1	9611-	●	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 4JG2 ENG(RJC),4JA1 ENG(RLE) 09.744 (A)	8-97045-595-0	04	1	9611-	●	●	●	●	●	●
