8-15 — FIXING PARTS; WIRING HARNESS (#36354) — 139 parça

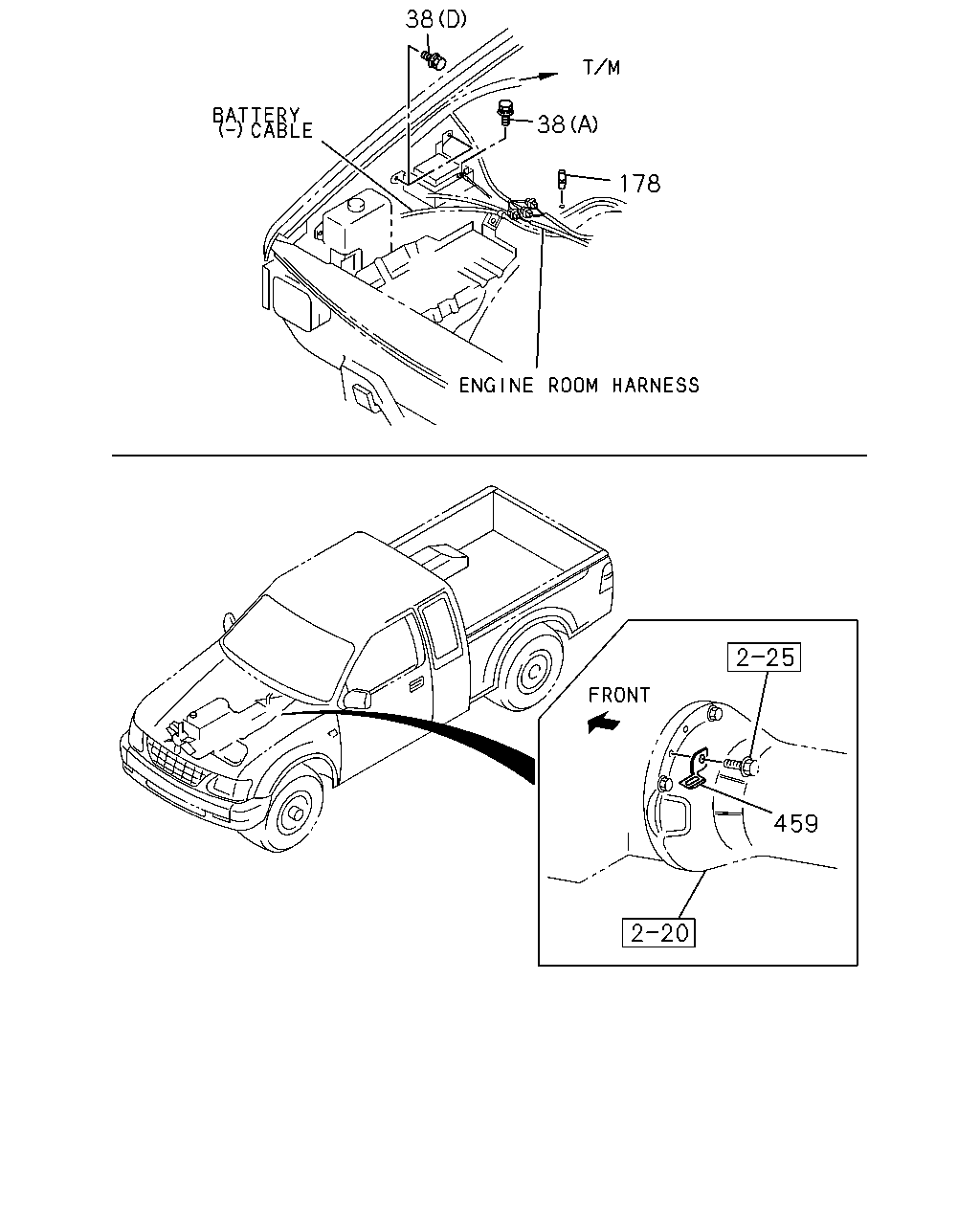

çizim 19214
38 38 178 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611- ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) 16.550 OD=12 		9-09956-122-0 01 1 9611- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC) EXC. HEADLAMP WASHER<CE3> 16.550 OD=12 		9-09956-122-0 01 1 9611- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS 8-94315-284-0 01 1 9611- ● ● ● ● ● ●

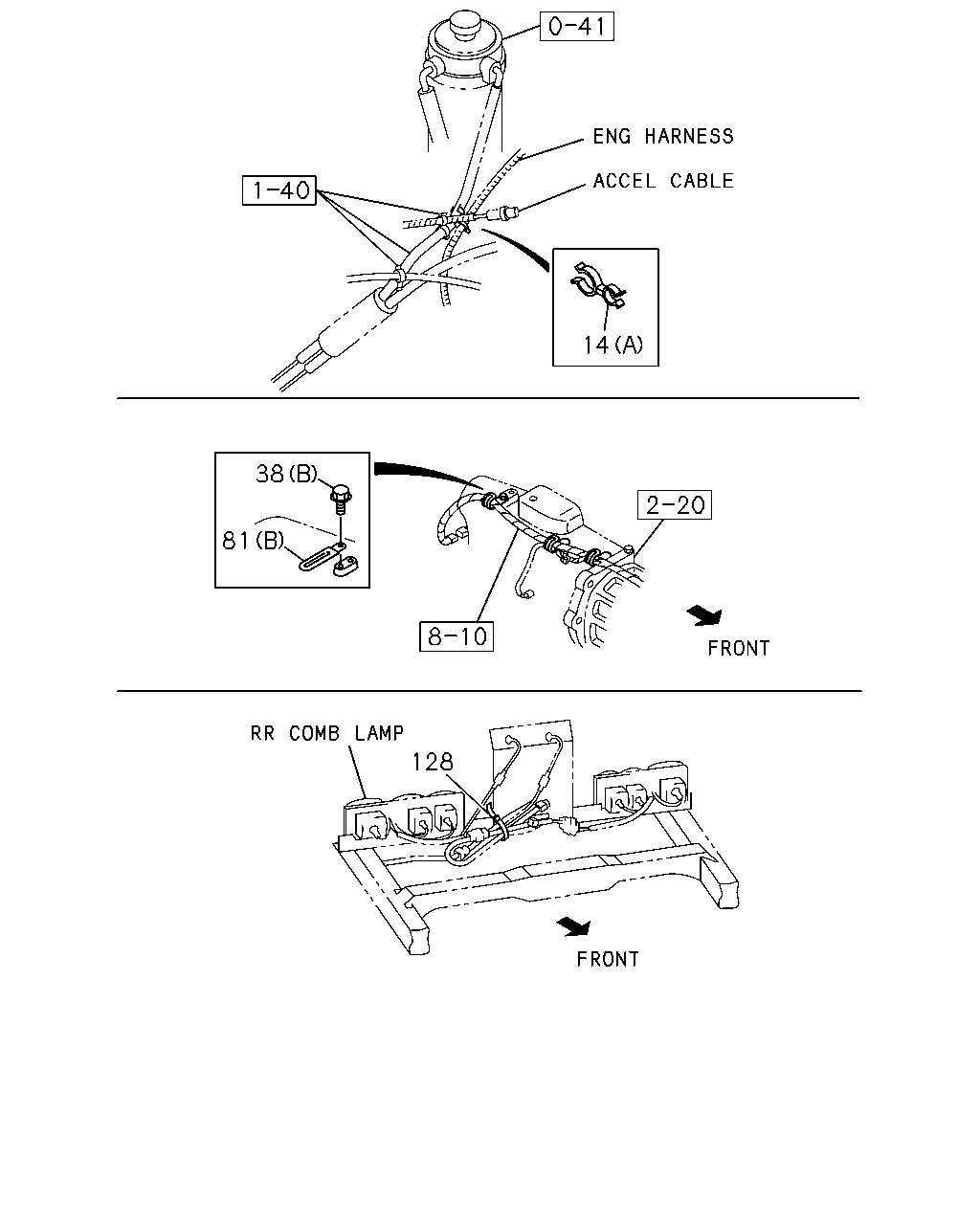

çizim 19215
14 38 81 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) 03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) L=250 		5-09707-030-1 01 1 9611- ● ● ● ● ● ●
çizim 67196
14 95 104 16 102 408 16 128 16 507 512
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) 03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9705- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (E) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9611-9701 ● ● ● ● ● ●
95 02.559 CLIP; CABLE
AIR CONDITIONER MANUAL CONT(C60) 02.480 ID=25 		8-94120-831-0 01 1 9611- ● ● ● ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) L=250 		5-09707-030-1 01 1 9611- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JG2 ENG(RJC) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ●
507 02.559 FINISHER
08.228 L=80 SERVICED BY L=240 		1-71998-400-0 01 1 9611-9711 ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 01 1 9712- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
06.518 		8-97109-628-2 01 1 9611- ● ● ● ● ● ●
çizim 71010
74 74 74 74 81 16 74 81 16 38 16 38 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9705- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (E) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9611-9701 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9611- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ●

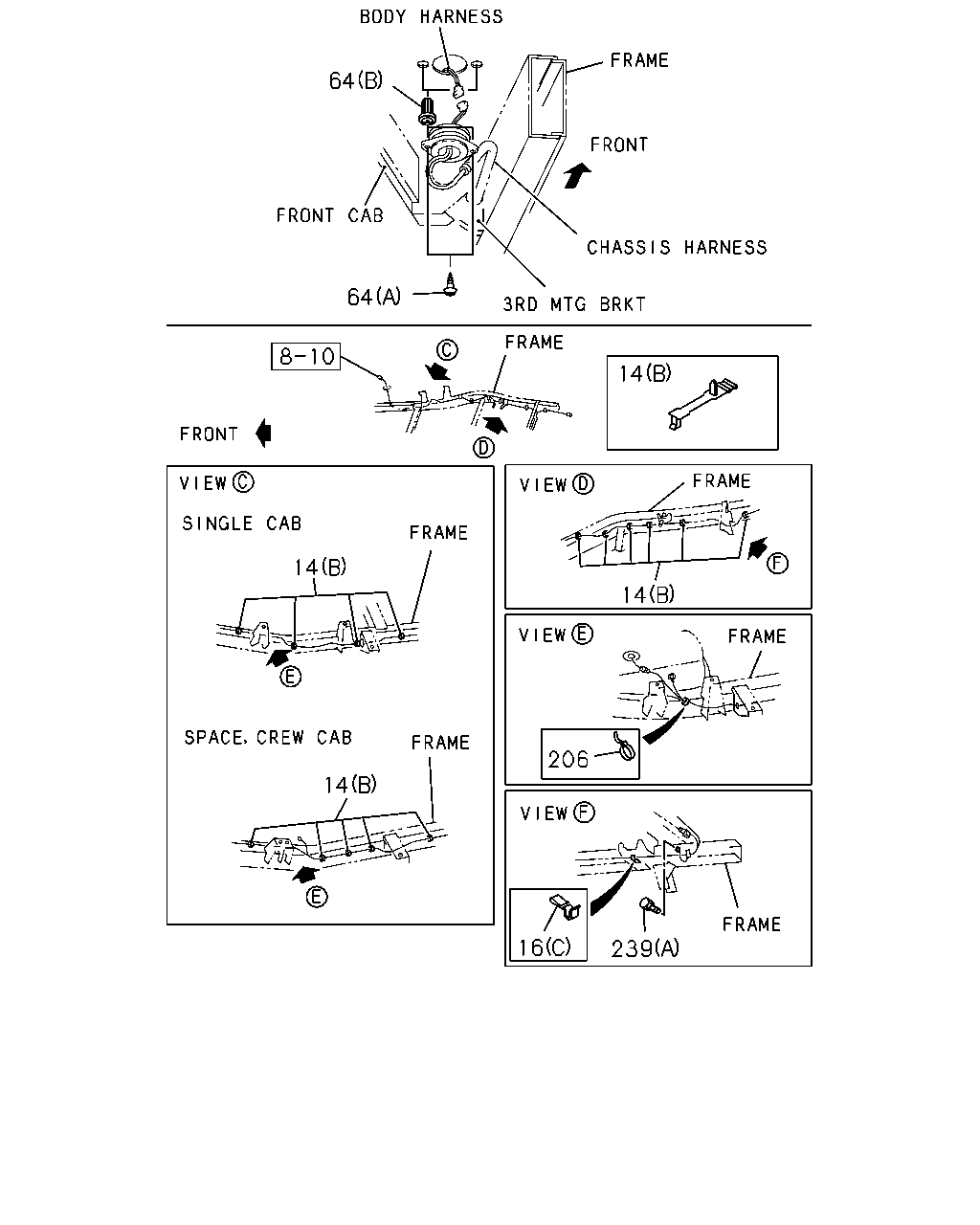

çizim 71163
64 64 14 14 14 206 14 16 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) 03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9705- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (E) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9611-9701 ● ● ● ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9611- ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9611- ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9611- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9611- ● ● ● ● ● ●

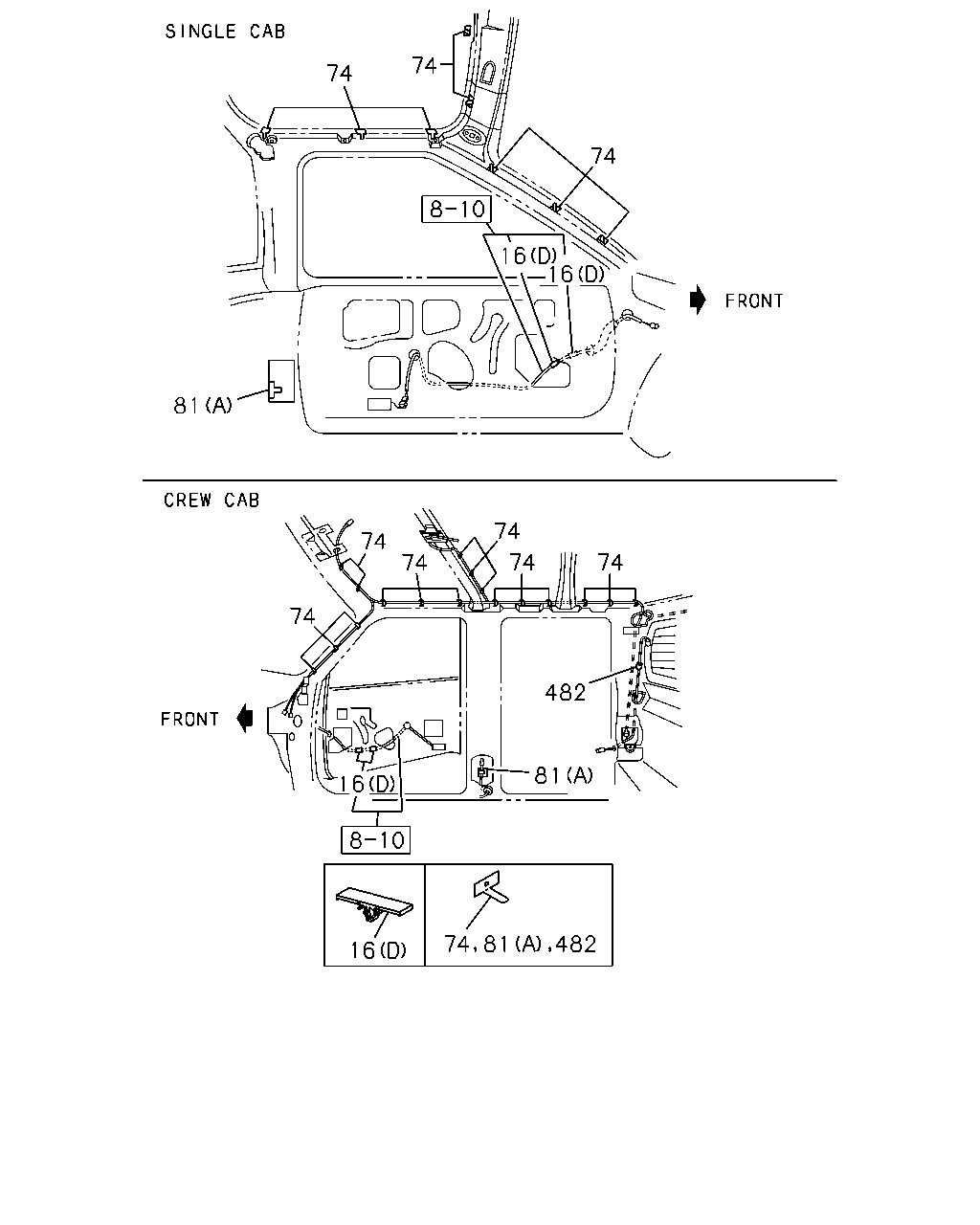

çizim 71286
74 74 74 16 16 81 74 74 74 74 74 74 482 81 16 74 81 482 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9705- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (E) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9611-9701 ● ● ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9611- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9611- ● ●
çizim 71374
16 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (F) ID=8.5 		5-09700-275-0 01 1 9705- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (E) ID=18 L=44 		8-94225-185-0 03 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9611-9701 ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ●

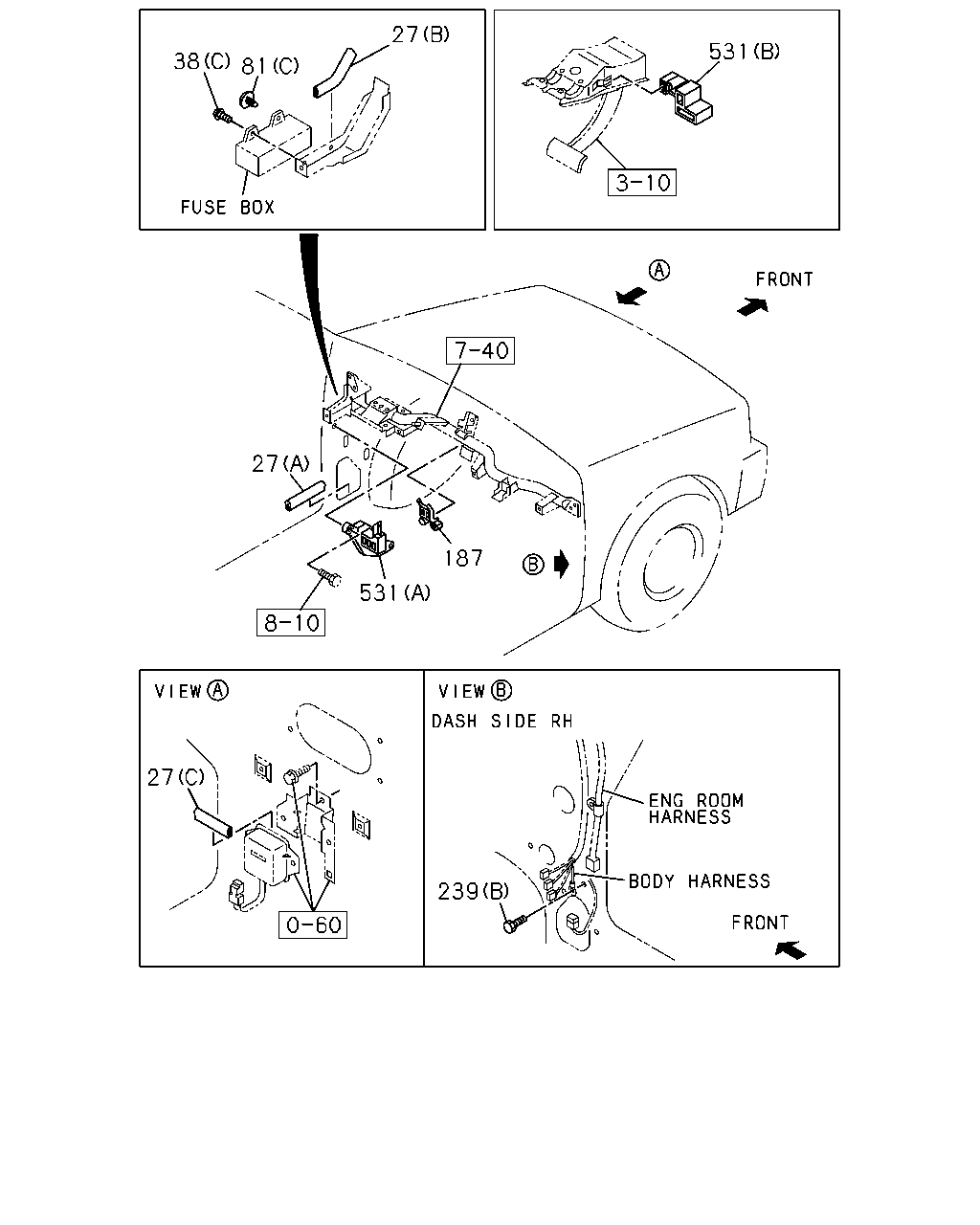

çizim 72219
27 531 38 81 27 187 531 27 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9611-9612 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9701- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9611- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611- ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ● ● ●
187 02.559 CLIP; CHAS HARN TO DASH 8-94474-013-2 01 1 9611- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9611- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9611- ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (A) 		8-97102-731-2 01 1 9611- ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (B) 		8-97110-341-1 01 1 9611- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
