8-10 — WIRING HARNESS AND FUSE (#36353) — 46 parça

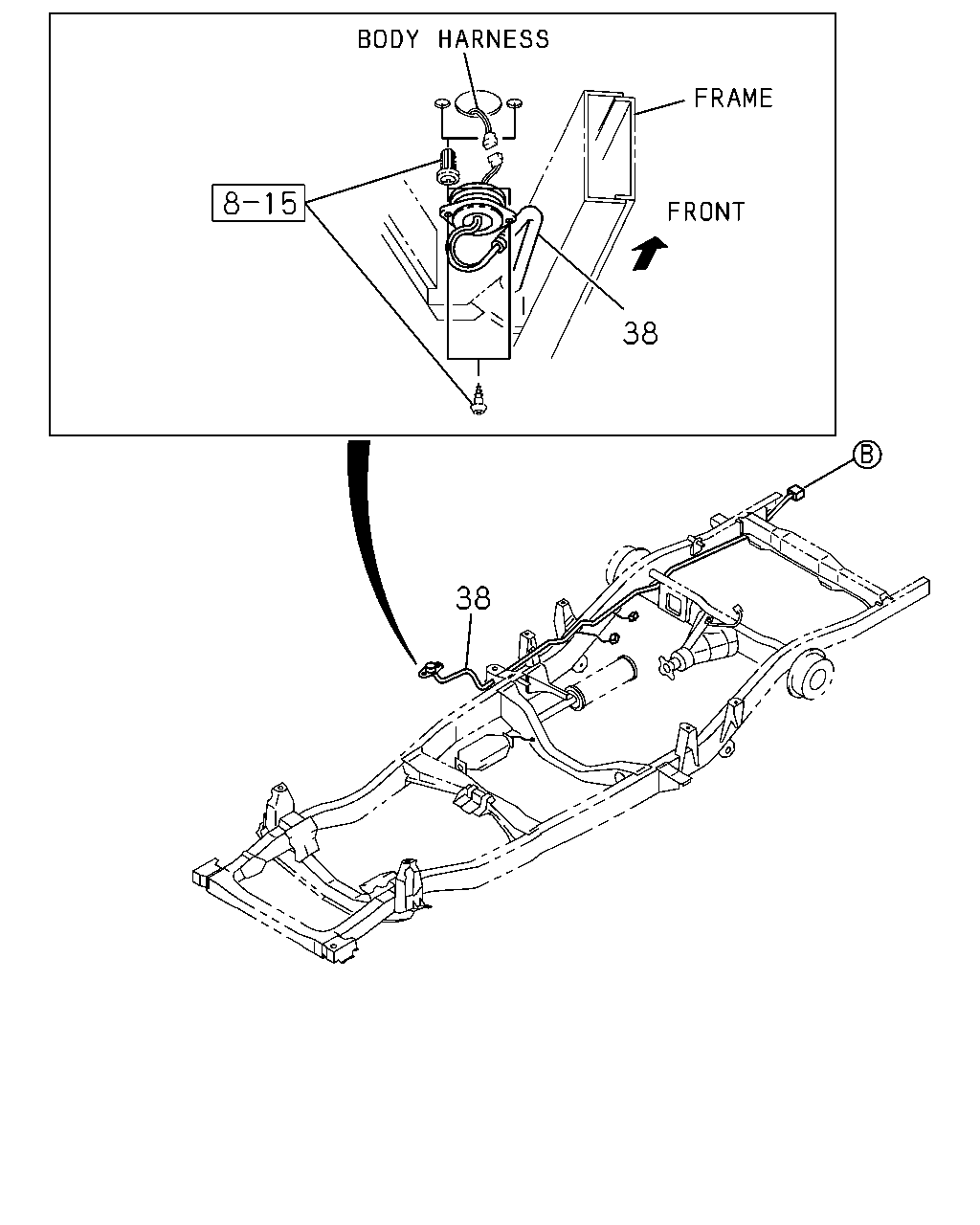

çizim 17681
38 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.480 HARNESS; CHAS 8-97139-746-2 01 1 9611- ● ● ● ● ● ●

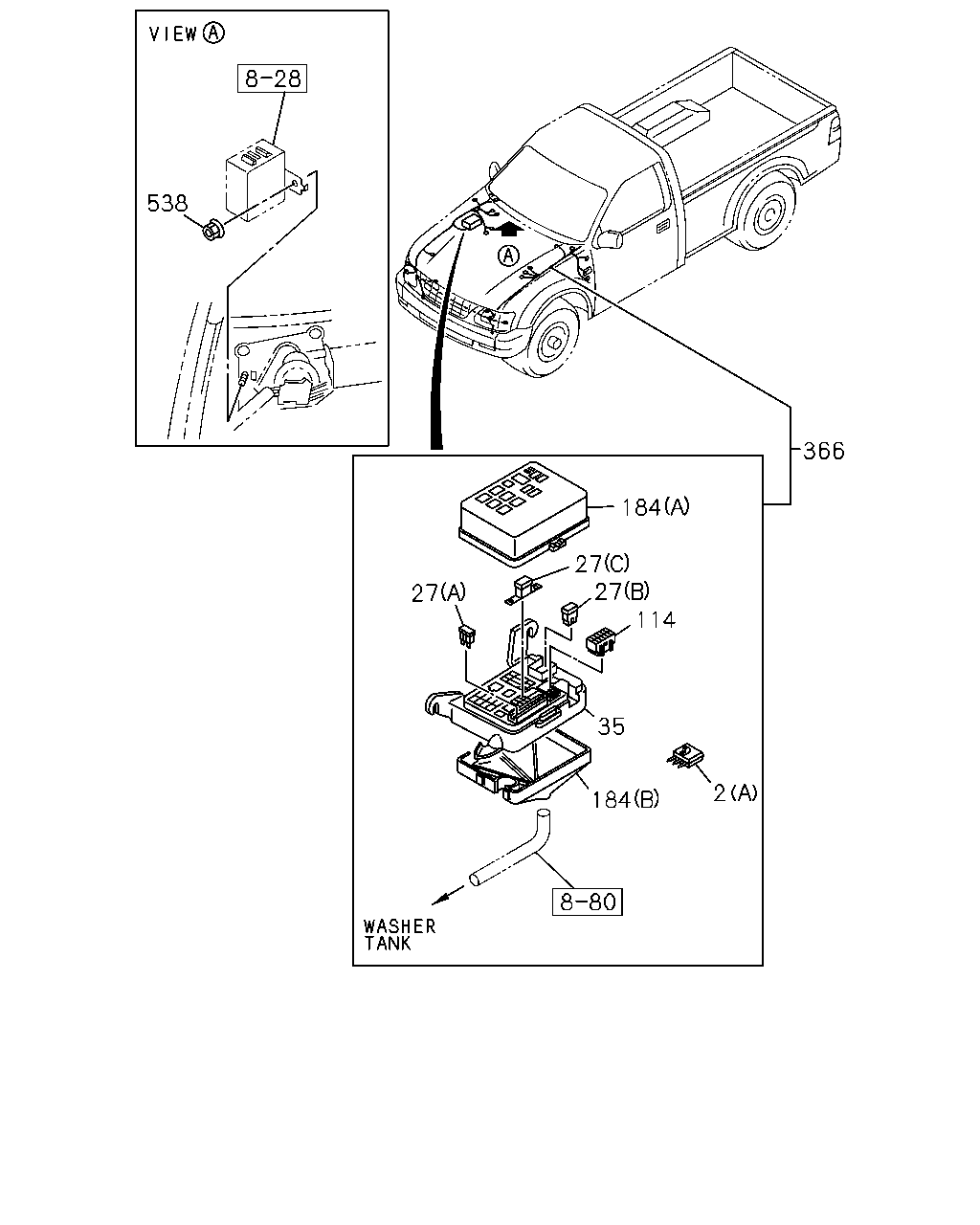

çizim 18447
538 366 184 27 27 114 27 35 2 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9611- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-94388-301-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 9611- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 9611- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97104-108-2 01 1 9611- ● ● ● ● ● ●
114 02.483 BOX ASM; FUSE 8-97104-121-0 01 1 9611- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9611- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97142-803-1 01 1 9611- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97165-606-3 01 1 9611- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) 		8-97165-605-3 01 1 9611- ● ● ● ● ● ●
538 02.483 NUT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9611- ● ● ● ● ● ●
çizim 71373
2 4 50 292 11 347 548
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9611- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9611- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97102-735-4 01 1 9611- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97165-637-0 01 1 9611- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9611- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9611- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> EXC. HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9611- ● ● ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 AR 1 9611- ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 AR 1 9611- ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 AR 1 9611- ● ● ● ● ● ●
292 02.483 BOLT; BOX
01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9611-9707 ● ● ● ● ● ●
292 02.483 BOLT; BOX
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 9708- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
HEATER IN SEAT<6QQ> 		8-97142-241-1 01 1 9611- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. HEATER IN SEAT<6QQ> 		8-97141-738-1 01 1 9611- ● ● ● ● ● ●
548 02.483 GROMMET
04.785 		8-94126-868-0 02 1 9611- ● ●

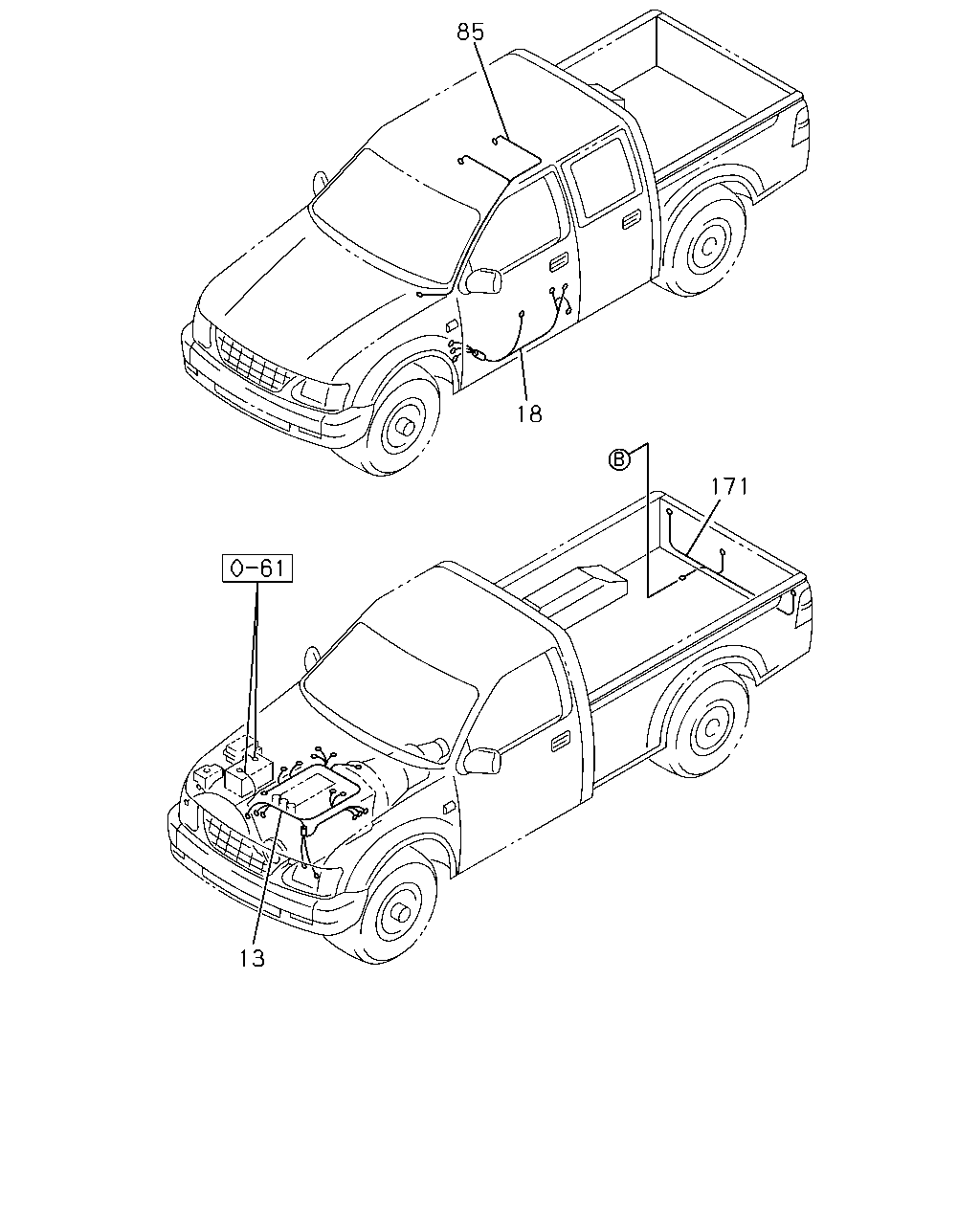

çizim 72169
85 18 171 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) 		8-97165-596-1 01 1 9611- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97160-415-2 01 1 9611- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97132-568-0 02 1 9611-9711 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97181-137-0 02 1 9712- ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97132-558-0 01 1 9611- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-0 01 1 9611- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-97132-560-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-97132-559-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97160-429-1 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-0 01 1 9611- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-97147-710-0 01 1 9611- ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-715-0 01 1 9611- ● ● ● ● ● ●
