Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-08 - HEAD LAMP WASHER
▶

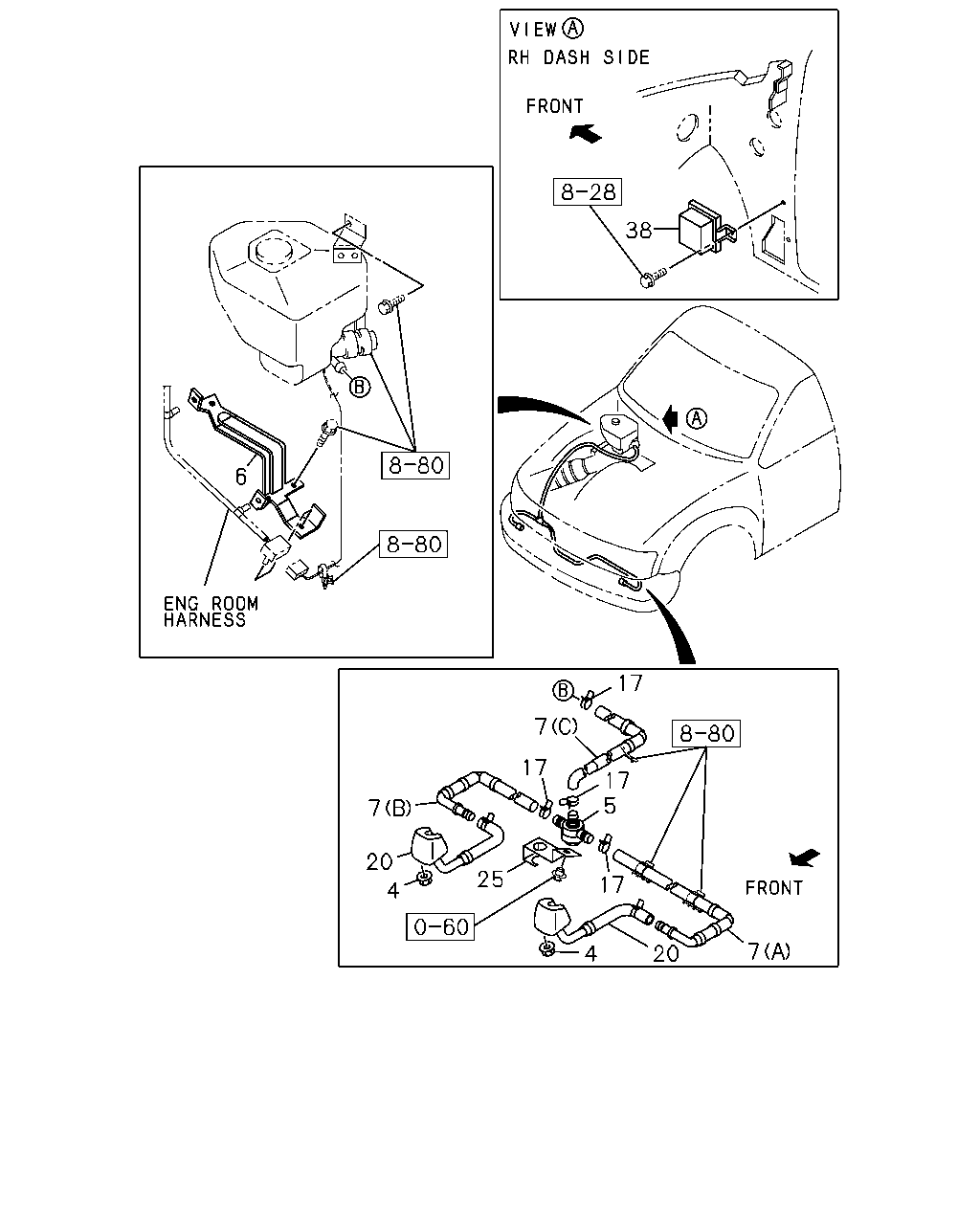

8-08 — HEAD LAMP WASHER
(#36352) — 10 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
38
6
17
7
17
17
5
7
20
25
17
4
7
20
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
4
02.780 NUT; TANK,HEADLAMP CLEANER
HEADLAMP WASHER<CE3> 04.594 M6 FLANGE
0-91150-106-0
04
1
9611-
●
●
●
●
●
●
5
02.780 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3>
8-94474-960-0
01
1
9611-
●
●
●
●
●
●
6
02.780 BRACKET; HEADLAMP CLEANER PUMP
HEADLAMP WASHER<CE3> 02.559
8-94316-333-0
01
1
9611-
●
●
●
●
●
●
7
02.780 HOSE; HLC
HEADLAMP WASHER<CE3> (A)
8-97045-998-0
01
1
9611-
●
●
●
●
●
●
7
02.780 HOSE; HLC
HEADLAMP WASHER<CE3> (B)
8-97045-999-0
01
1
9611-
●
●
●
●
●
●
7
02.780 HOSE; HLC
HEADLAMP WASHER<CE3> (C)
8-97046-001-0
01
1
9611-
●
●
●
●
●
●
17
02.780 CLIP; HLC HOSE
HEADLAMP WASHER<CE3>
8-94474-968-0
04
1
9611-
●
●
●
●
●
●
20
02.780 NOZZLE; HEADLAMP CLEANER
HEADLAMP WASHER<CE3>
8-97112-097-0
02
1
9611-
●
●
●
●
●
●
25
02.780 BRACKET; HLC HOSE
HEADLAMP WASHER<CE3>
8-97046-002-0
01
1
9611-
●
●
●
●
●
●
38
02.780 CONTROLLER ASM; HEADLAMP CLEANER
HEADLAMP WASHER<CE3>
8-97084-558-0
01
1
9611-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
