◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#36350) — 45 parça
çizim 69603
5 5 1 9 5 15 6 3 1 161 8 5 5 7 98 12 161 161 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-732-0 01 1 9611- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-731-0 01 1 9611- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-450-0 01 1 9611- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-449-0 01 1 9611- ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.689 		5-82236-002-0 01 1 9611- ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.689 		5-82236-001-0 01 1 9611- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 9611- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 9611- ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-002-0 01 1 9611- ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-001-0 01 1 9611- ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 09.744 (A) M5X14 TAPPING 		1-72548-072-0 04 1 9611- ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X20 		8-97811-082-0 04 1 9611- ● ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-176-0 02 1 9611- ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR COMB LAMP VERTICAL<T98> 09.744 M5 FLANGE 		5-09440-003-0 08 1 9611- ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 16.588 D=7X7 L=7.5 		5-09983-007-0 04 1 9611- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 9611- ● ● ● ● ● ●
98 02.708 WASHER
RR COMB LAMP VERTICAL<T98> 16.225 ID=6 		8-94126-642-0 04 1 9611- ● ● ● ● ● ●
161 02.689 TUBE; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-174-0 06 1 9611- ● ● ● ● ● ●

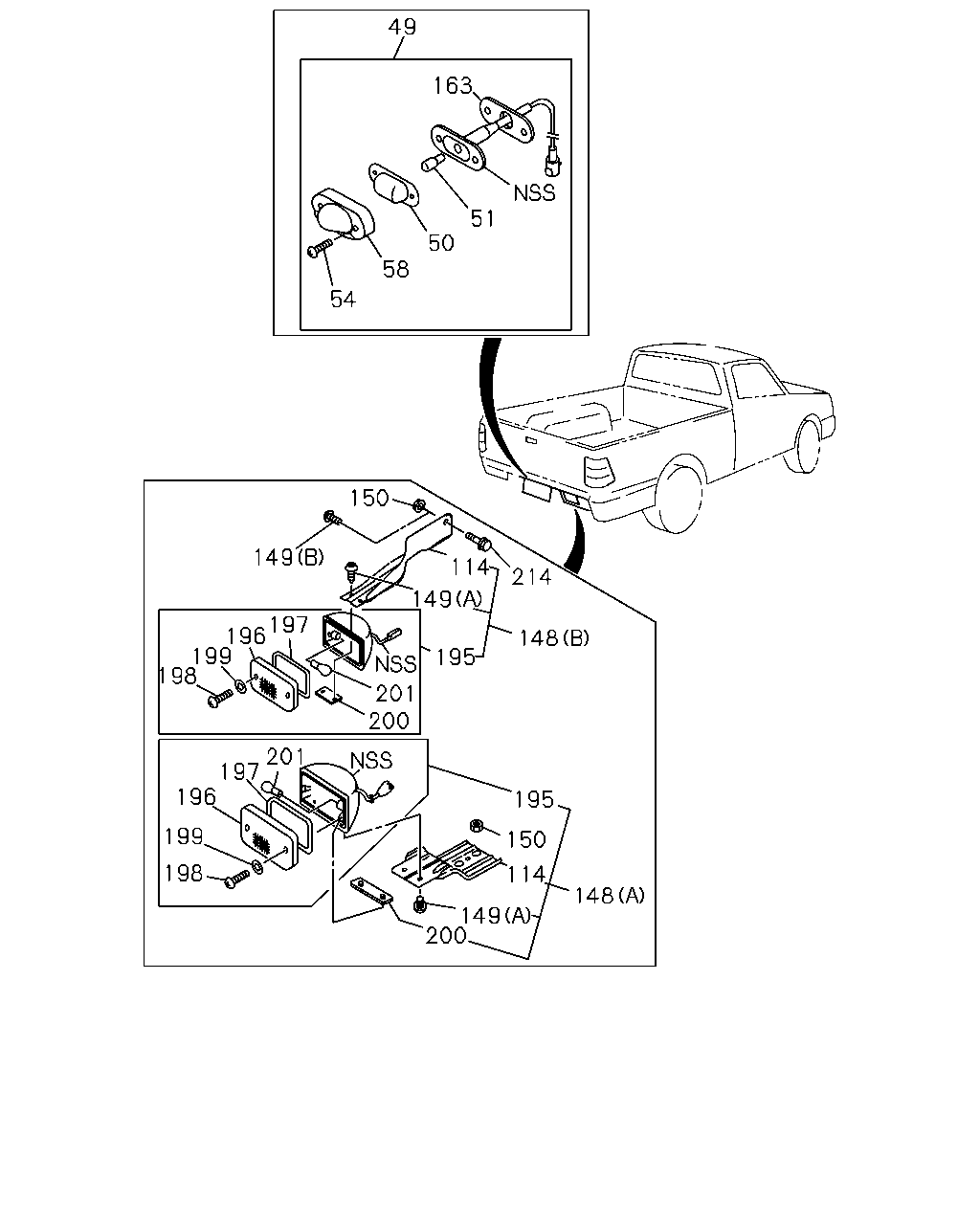

çizim 71068
49 163 51 50 58 54 150 149 114 214 149 197 196 199 198 148 195 201 200 201 197 196 195 199 150 198 114 148 149 200
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 02.700 LAMP; LICENSE PLATE 8-94443-186-2 02 1 9611- ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP 8-94135-878-2 02 1 9611- ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 9611- ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9611- ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
BLACK 		8-94323-724-0 02 1 9611- ● ● ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-330-0 01 1 9611- ● ● ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-328-0 01 1 9611- ● ● ● ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> (A) 		8-94313-111-1 01 1 9611- ● ● ● ● ● ●
148 02.679 LAMP ASM; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-94334-657-2 01 1 9611- ● ● ● ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> (A) 		8-94336-327-0 02 1 9611- ● ● ● ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> RR UNDERRUN PROTECTOR<6DY> 06.512 (B) M5X14 W/LK WASHER 		9-03910-514-0 02 1 9611- ● ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9611- ● ● ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 07.070 M4 FLANGE 		1-09440-004-0 02 1 9611-9709 ● ● ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 09.011 M12 FLANGE 		8-97028-764-0 02 1 9710- ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP 8-94232-866-0 02 1 9611- ● ● ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-332-0 01 1 9611- ● ● ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-322-0 01 1 9611- ● ● ● ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-331-0 01 1 9611- ● ● ● ● ● ●
196 02.679 LENS; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-325-0 01 1 9611- ● ● ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-324-0 01 1 9611- ● ● ● ● ● ●
198 02.688 SCREW; LENS TO BODY
RR FOG LAMP<T79> 		0-71190-416-0 02 1 9611- ● ● ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-326-0 02 1 9611- ● ● ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-329-0 01 1 9611- ● ● ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-323-0 01 1 9611- ● ● ● ● ● ●
201 08.991 BULB; RR FOG LAMP
RR FOG LAMP<T79> 12V 21W 		8-94124-074-0 01 1 9611- ● ● ● ● ● ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 07.070 M12X30 FLANGE 		8-94475-424-0 02 1 9611-9709 ● ● ● ● ● ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 FLANGE 		0-28691-230-0 02 1 9710- ● ● ● ● ● ●
