8-01 — LAMP; FRONT AND FRONT SIDE (#36349) — 48 parça

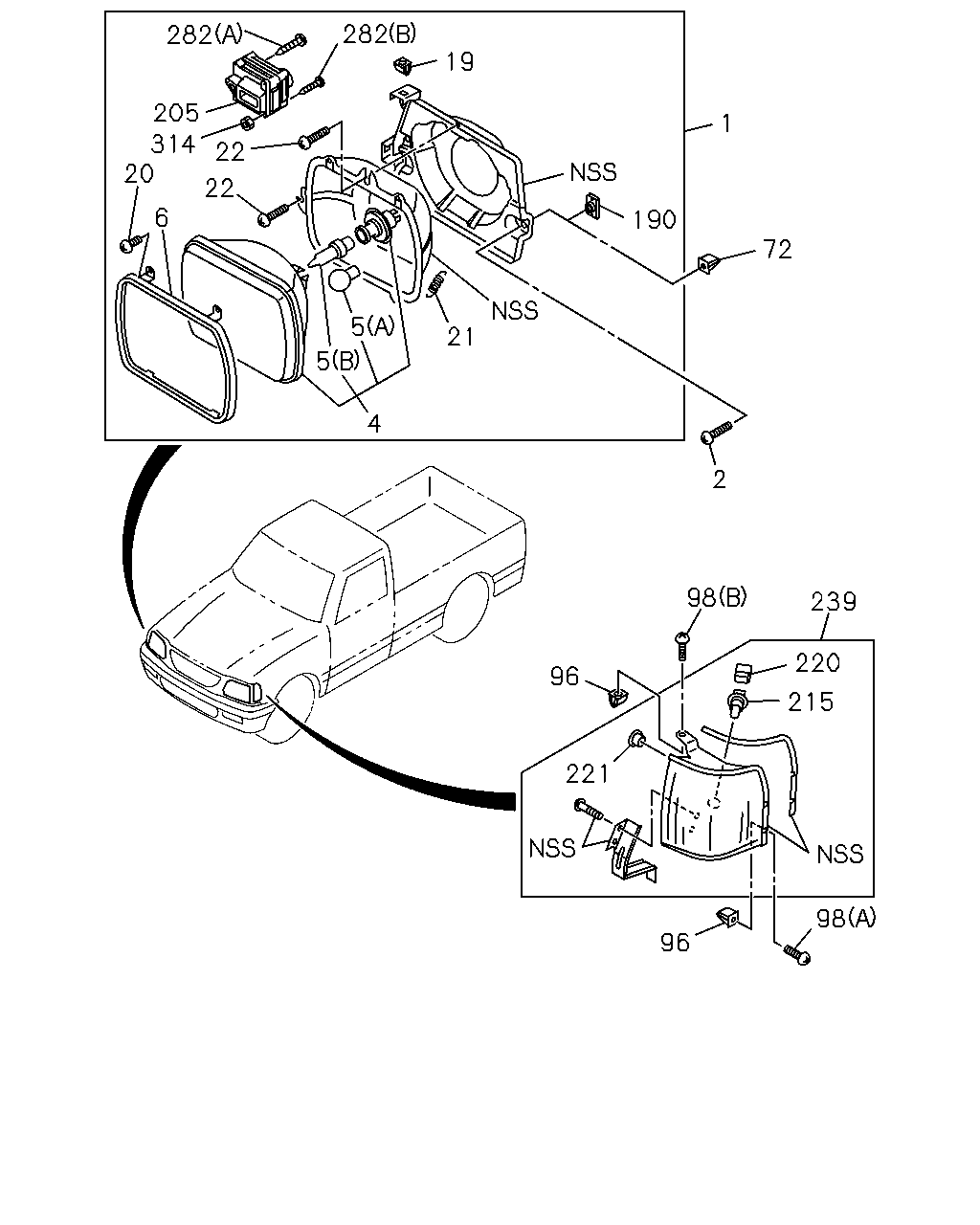

çizim 70107
282 282 19 205 314 20 1 22 22 6 190 72 5 21 5 4 2 98 239 220 96 215 221 98 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> 12V 60/55W 		8-97044-423-2 01 1 9611- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> 12V 60/55W 		8-97044-422-3 01 1 9611- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 12V 45/40W 		8-97039-811-2 01 1 9611- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 12V 45/40W 		8-97039-810-3 01 1 9611- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 12V 45/40W 		8-97039-813-2 01 1 9611- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 12V 45/40W 		8-97039-812-3 01 1 9611- ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 08 1 9611- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> 		8-94334-632-1 02 1 9611- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-94334-628-1 02 1 9611- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> 		8-94334-630-1 02 1 9611- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		1-88302-128-0 02 1 9611- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9611- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 08.991 (B) 12V 45/40W YELLOW 		5-82193-002-0 02 1 9611- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9611- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9611- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 9611- ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-97042-577-0 04 1 9611- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97042-612-0 04 1 9611- ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 08 1 9611- ● ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9611- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9611- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9611- ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP 8-97042-578-0 02 1 9611- ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP 8-97113-326-0 02 1 9611- ● ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9611- ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9611- ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9611- ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9611- ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9611- ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
(A) 		8-97015-555-0 02 1 9611- ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
(B) M4X35 		8-97042-611-0 04 1 9611- ● ● ● ● ● ●
314 02.727 NUT; ACTUATOR
09.262 M4 		9-99111-404-0 04 1 9611- ● ● ● ● ● ●
çizim 71101
60 68 67 76 75 99 104 286 224 223 91 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 02.585 LAMP ASM; FRT COMB 8-97137-734-0 01 1 9611-9611 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97173-534-0 01 1 9612- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97137-733-0 01 1 9611-9611 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97173-533-0 01 1 9612- ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 9611- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 21W 		8-94124-074-0 02 1 9611- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9611- ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94117-030-0 01 1 9611- ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94112-723-0 01 1 9611- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-94124-595-0 02 1 9611- ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97131-931-0 02 1 9611- ● ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9611- ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 9611- ● ● ● ● ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 9611- ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 9611- ● ● ● ● ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 9611- ● ● ● ● ● ●
