Sayfa 7-60 - Isuzu EPC

7-60 — SEAT BELT (#36348) — 60 parça

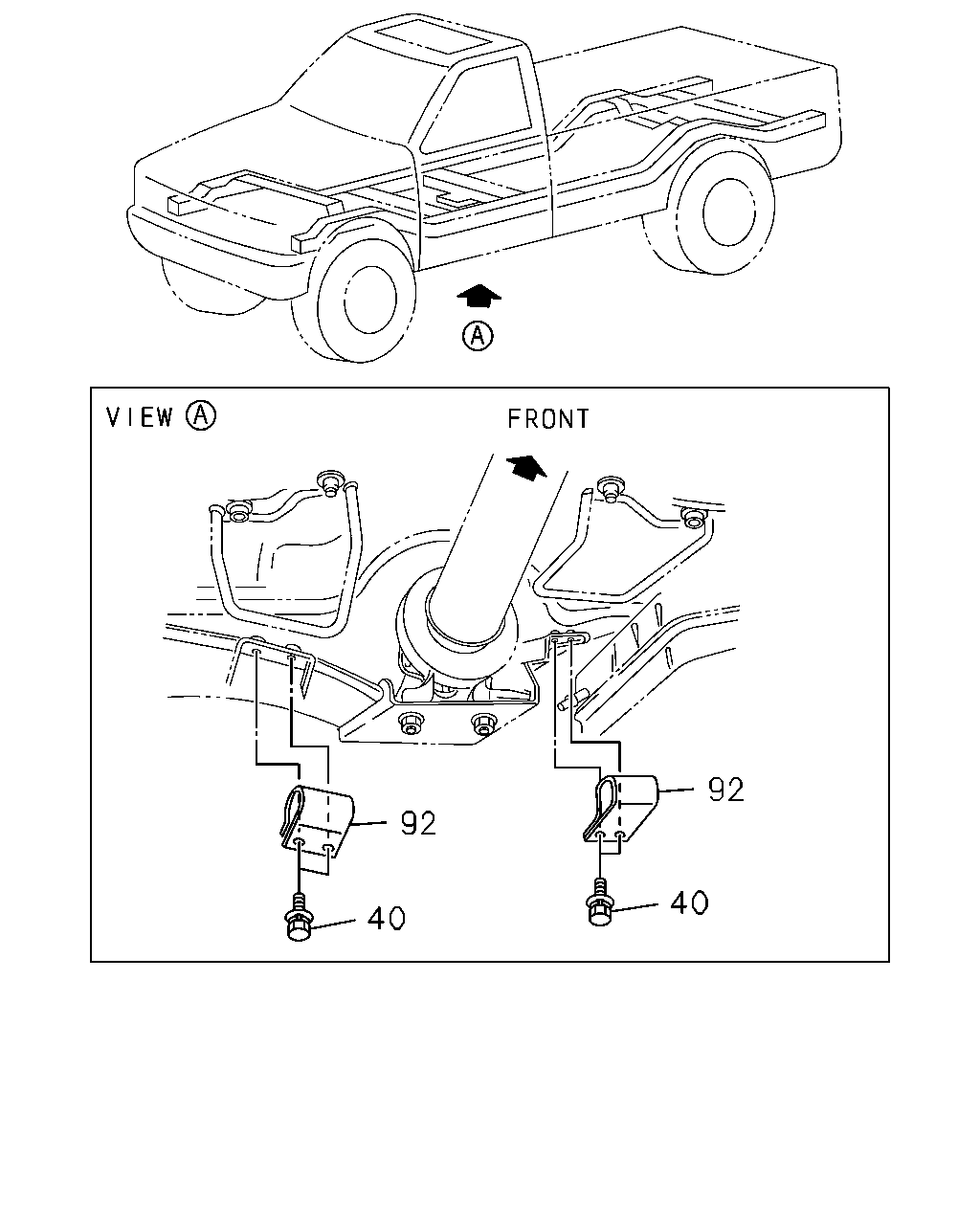

92 92 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
40	16.545 BOLT; BRKT,ANCHOR M8X30 W/LK&PL WASHER	8-94320-540-1	04	1	9611-	●	●	●	●	●	●
92	16.714 BRACKET; SEAT BELT ANCHOR	8-94473-965-3	02	1	9611-	●	●		●	●
92	16.714 BRACKET; SEAT BELT ANCHOR	8-97146-231-0	02	1	9611-			●			●

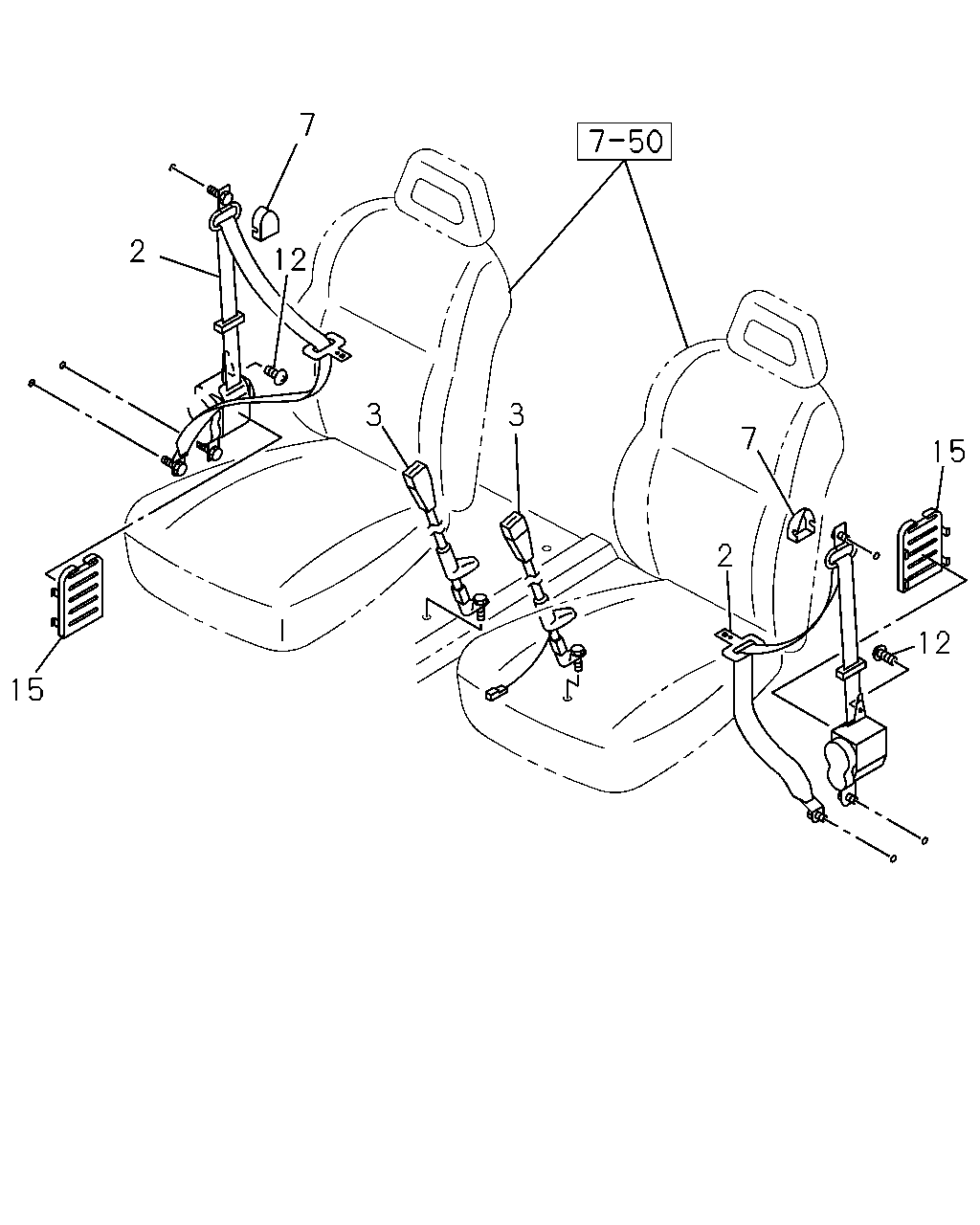

7 2 12 3 3 7 15 2 12 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY	8-97156-071-4	02	1	9611-	●			●
2	16.714 BELT; SEAT,TONGUE SIDE RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-070-3	02	1	9611-		●
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY	8-97156-070-3	02	1	9611-					●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-078-3	02	1	9611-		●
2	16.714 BELT; SEAT,TONGUE SIDE RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-069-3	02	1	9611-			●
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY	8-97156-069-3	02	1	9611-						●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-077-3	02	1	9611-			●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97156-086-1	01	1	9611-	●
3	16.714 BELT; SEAT,BUCKLE SIDE RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-086-1	01	1	9611-		●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97156-081-1	01	1	9611-	●
3	16.714 BELT; SEAT,BUCKLE SIDE RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-081-1	01	1	9611-		●	●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-085-1	01	1	9611-		●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-079-1	01	1	9611-		●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-084-1	01	1	9611-			●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-083-1	01	1	9611-			●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97157-997-0	01	1	9611-				●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97157-996-0	01	1	9611-				●	●	●
7	16.714 COVER; SHOULDER ANCHOR,FRT SEAT GRAY	8-97154-700-0	02	1	9611-	●	●	●	●	●	●
12	16.714 SCREW; RETRACTOR COVER,SEAT BELT M8X10	9-03800-810-0	02	1	9611-	●	●	●	●	●	●
15	16.714 COVER; DUST,FRT SEAT BELT RETRAC EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97154-701-3	02	1	9611-9611		●
15	16.714 COVER; DUST,FRT SEAT BELT RETRAC GRAY	8-97154-701-3	02	1	9612-		●			●

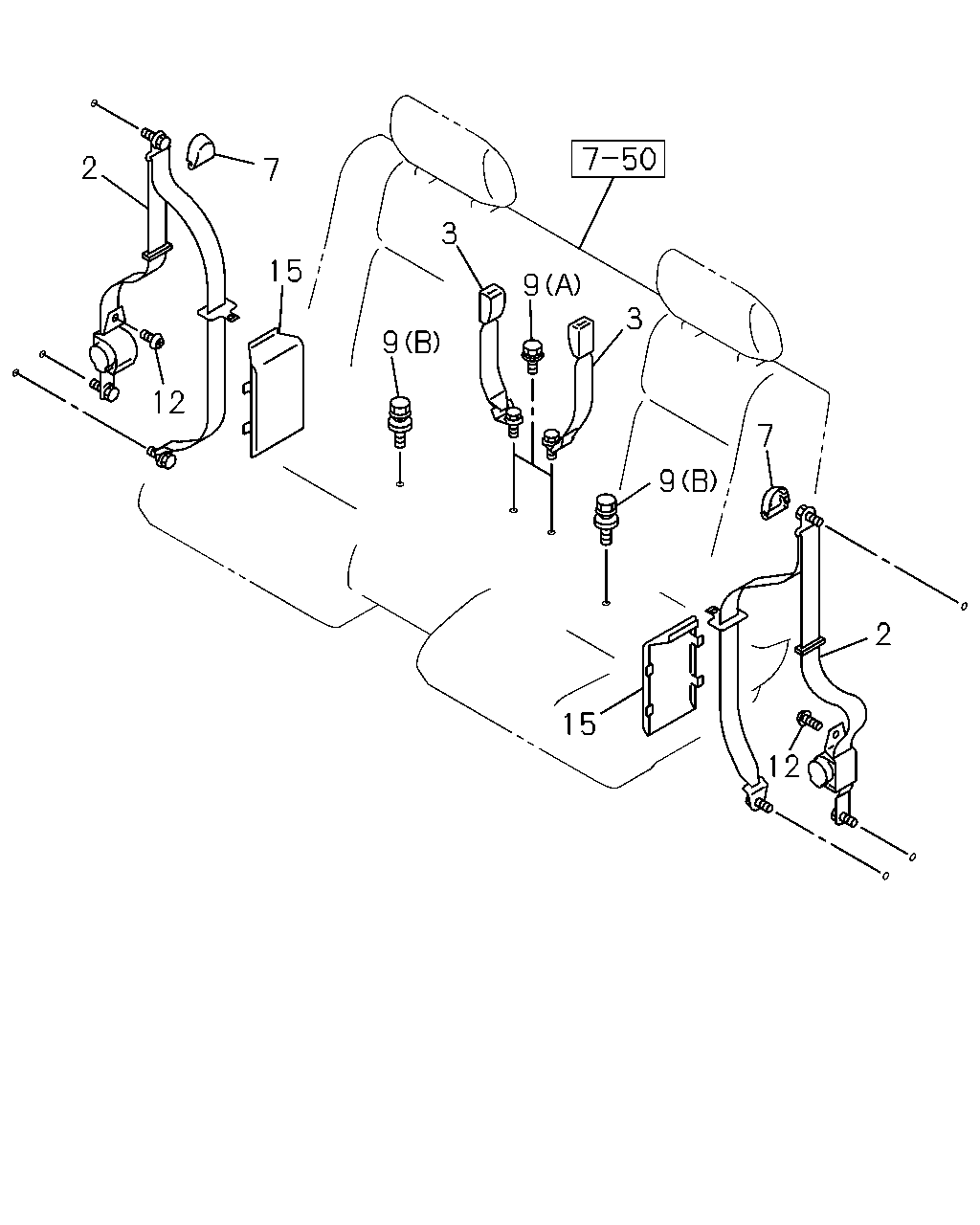

2 7 3 15 9 3 9 12 7 9 2 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY	8-97156-071-4	02	1	9611-	●			●
2	16.714 BELT; SEAT,TONGUE SIDE RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-070-3	02	1	9611-		●
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY	8-97156-070-3	02	1	9611-					●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-078-3	02	1	9611-		●
2	16.714 BELT; SEAT,TONGUE SIDE RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-069-3	02	1	9611-			●
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY	8-97156-069-3	02	1	9611-						●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97156-077-3	02	1	9611-			●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97156-086-1	01	1	9611-	●
3	16.714 BELT; SEAT,BUCKLE SIDE RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-086-1	01	1	9611-		●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97156-081-1	01	1	9611-	●
3	16.714 BELT; SEAT,BUCKLE SIDE RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-081-1	01	1	9611-		●	●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-085-1	01	1	9611-		●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-079-1	01	1	9611-		●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-084-1	01	1	9611-			●
3	16.714 BELT; SEAT,BUCKLE SIDE EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97156-083-1	01	1	9611-			●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97157-997-0	01	1	9611-				●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97157-996-0	01	1	9611-				●	●	●
7	16.714 COVER; SHOULDER ANCHOR,FRT SEAT GRAY	8-97154-700-0	02	1	9611-	●	●	●	●	●	●
9	16.714 BOLT; SEAT BELT ANCHOR (B)	8-97039-649-0	02	1	9611-	●	●	●	●	●	●
9	16.714 BOLT; SEAT BELT ANCHOR 14.875 (A) 7/16"X22 UNF	8-94389-890-0	02	1	9611-9711	●			●
9	16.714 BOLT; SEAT BELT ANCHOR (B)	8-97039-649-0	04	1	9611-	●			●
12	16.714 SCREW; RETRACTOR COVER,SEAT BELT M8X10	9-03800-810-0	02	1	9611-	●	●	●	●	●	●
15	16.714 COVER; DUST,FRT SEAT BELT RETRAC EXC. RR SEAT NON SPLIT BACK(S3B) GRAY	8-97154-701-3	02	1	9611-9611		●
15	16.714 COVER; DUST,FRT SEAT BELT RETRAC GRAY	8-97154-701-3	02	1	9612-		●			●

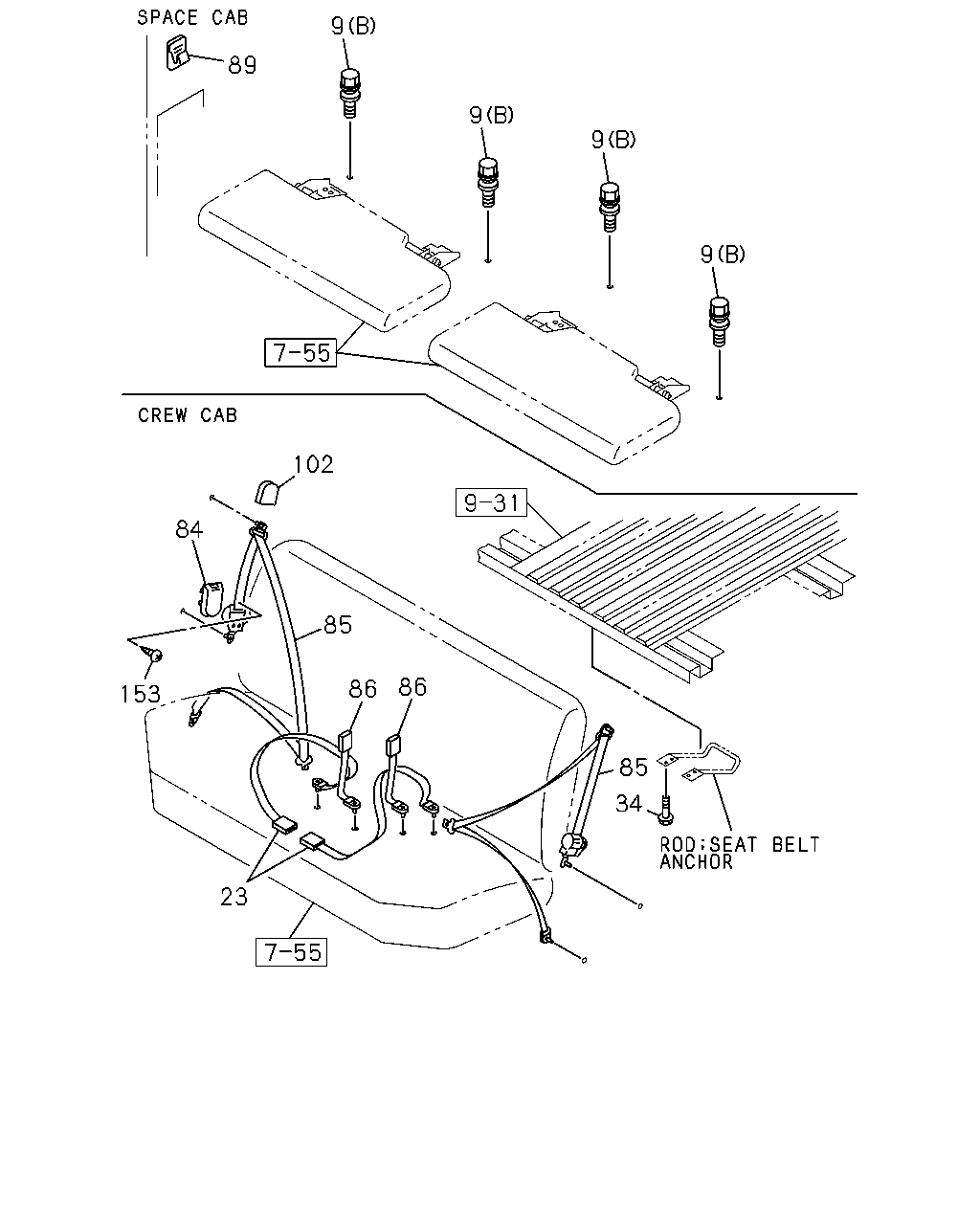

9 89 9 9 9 102 84 85 86 86 153 85 34 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	16.714 BOLT; SEAT BELT ANCHOR (B)	8-97039-649-0	02	1	9611-	●	●	●	●	●	●
9	16.714 BOLT; SEAT BELT ANCHOR 14.875 (A) 7/16"X22 UNF	8-94389-890-0	02	1	9611-9711	●			●
9	16.714 BOLT; SEAT BELT ANCHOR (B)	8-97039-649-0	04	1	9611-	●			●
23	16.714 BELT; SEAT,CENTER DARK GRAY	8-97156-092-1	01	1	9611-			●			●
34	16.714 BOLT; SEAT BELT ROD RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 07.039	8-94130-273-0	04	1	9611-9711			●			●
34	16.714 BOLT; SEAT BELT ROD RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94198-549-0	04	1	9712-			●			●
84	16.714 COVER; RETRACTOR,RR SEAT BELT GRAY	8-97153-655-5	02	1	9611-			●			●
85	16.714 BELT; SEAT,RR OUTER DARK GRAY	8-97156-089-4	02	1	9611-			●			●
86	16.714 BELT; SEAT,RR INNER GRAY	8-97156-090-0	02	1	9611-			●			●
89	16.714 HOOK; LATCH PLATE,SEAT BELT GRAY	8-97154-708-2	02	1	9611-	●			●
102	16.714 COVER; SHOULDER ANCHOR GRAY	8-97154-700-0	02	1	9611-			●			●
153	16.714 SCREW; RETRACTOR M8X10	9-03800-810-0	02	1	9611-			●			●
