7-55 — REAR SEAT (#36347) — 21 parça

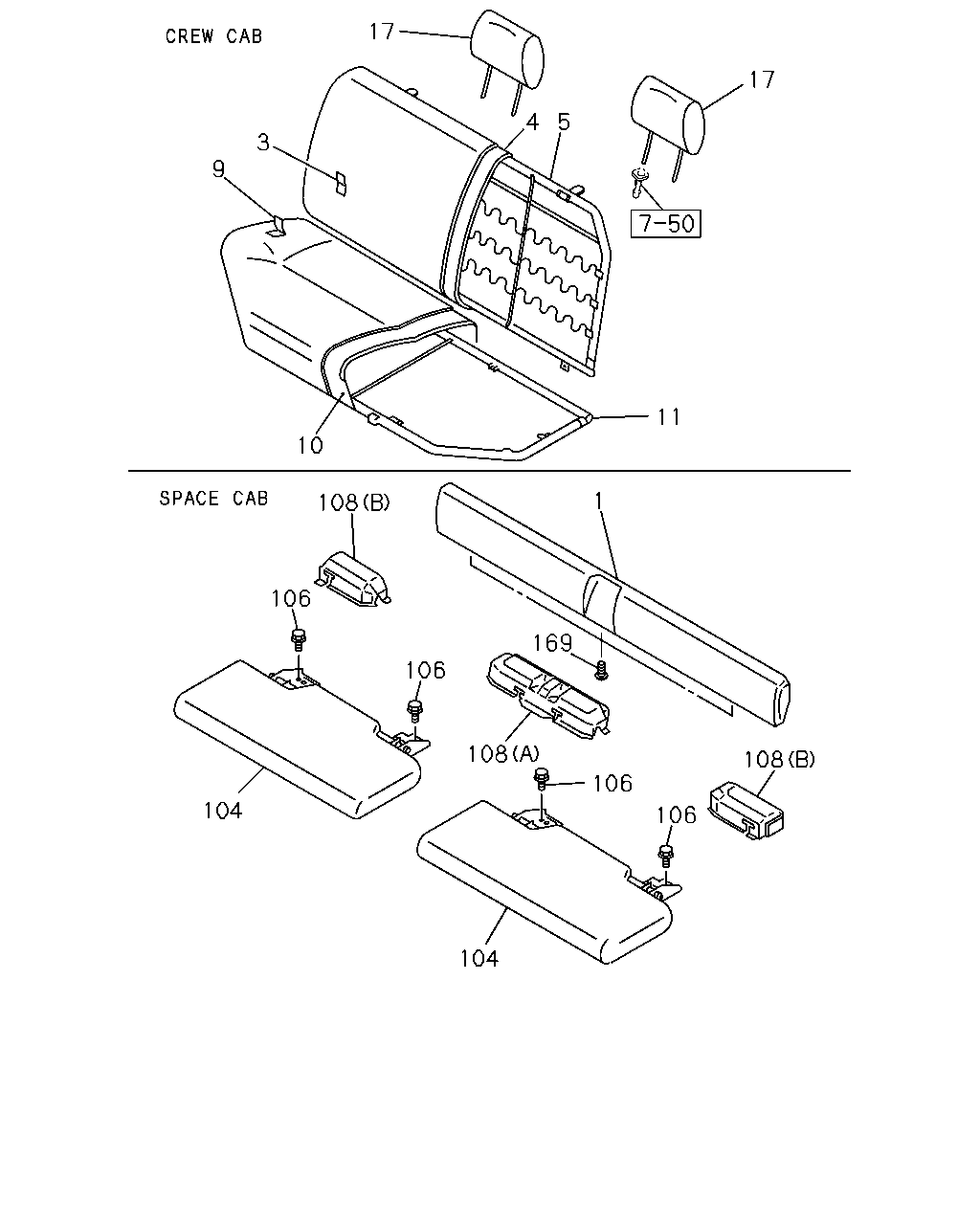

çizim 70694
17 17 4 5 3 9 11 10 1 108 106 169 106 108 108 106 104 106 104
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; RR SEAT
JUMP SEAT<AJ2> GRAY 		8-97154-656-0 01 1 9611-
3 16.714 COVER; TRIM,RR SEAT BACK
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-534-0 01 1 9611-
3 16.714 COVER; TRIM,RR SEAT BACK
4X4 CREW CAB(TFS*W*) GRAY 		8-97156-534-0 01 1 9611-
4 16.720 PAD; RR,SEAT BACK
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-477-3 01 1 9611-
4 16.720 PAD; RR,SEAT BACK
4X4 CREW CAB(TFS*W*) 		8-94473-477-3 01 1 9611-
5 16.720 FRAME ASM; RR SEAT BACK
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-928-1 01 1 9611-
5 16.720 FRAME ASM; RR SEAT BACK
4X4 CREW CAB(TFS*W*) 		8-97137-928-1 01 1 9611-
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-525-0 01 1 9611-
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X4 CREW CAB(TFS*W*) GRAY 		8-97156-525-0 01 1 9611-
10 16.716 PAD; CUSHION,RR SEAT
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-481-1 01 1 9611-
10 16.716 PAD; CUSHION,RR SEAT
4X4 CREW CAB(TFS*W*) 		8-94473-481-1 01 1 9611-
11 16.716 FRAME ASM; CUSHION,RR SEAT
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-480-1 01 1 9611-
11 16.716 FRAME ASM; CUSHION,RR SEAT
4X4 CREW CAB(TFS*W*) 		8-94473-480-1 01 1 9611-
17 16.718 REST; HD,RR SEAT
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-536-1 02 1 9611-
17 16.718 REST; HD,RR SEAT
4X4 CREW CAB(TFS*W*) GRAY 		8-97156-536-1 02 1 9611-
104 16.714 SEAT ASM; JUMP
JUMP SEAT<AJ2> GRAY 		8-97155-055-0 02 1 9611-
106 16.682 BOLT; JUMP SEAT
SPACE CAB(TF**C*) M8X25 W/PL WASHER 		8-94175-938-1 08 1 9611-
108 16.714 COVER; HINGE BRKT
JUMP SEAT<AJ2> (A) GRAY 		8-97154-713-3 01 1 9611-
108 16.714 COVER; HINGE BRKT
JUMP SEAT<AJ2> (B) GRAY 		8-97154-712-3 01 1 9611-
108 16.714 COVER; HINGE BRKT
JUMP SEAT<AJ2> (B) GRAY 		8-97154-711-3 01 1 9611-
169 16.720 SCREW; SEAT BACK
JUMP SEAT<AJ2> 16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 03 1 9611-
