7-45 — CONSOLE BOX (#36345) — 144 parça

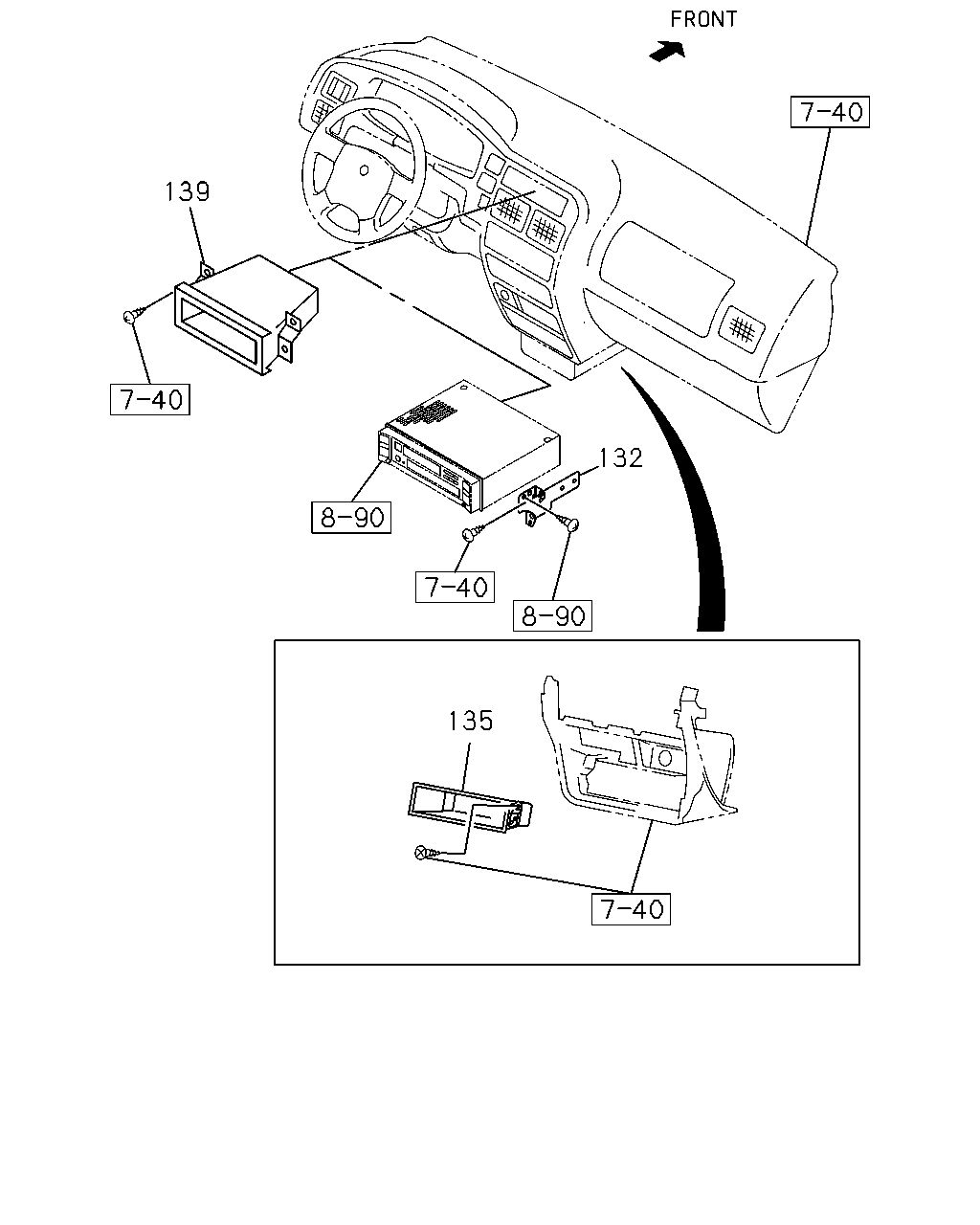

çizim 17411
139 132 135
BalonParca AdiParca NoAdetTipApplied Date
132 16.650 BRACKET; AUDIO BOX
RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-583-2 01 1 9611-
132 16.650 BRACKET; AUDIO BOX
RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-582-2 01 1 9611-
135 16.650 BOX; CONSOLE,LWR
EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9611-
139 16.650 BOX; CONSOLE,UPR
EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), AM/FMW/CASSETTE ALL AREA BAND 2SPEAKERS(7ND),I NST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97114-757-0 01 1 9611-

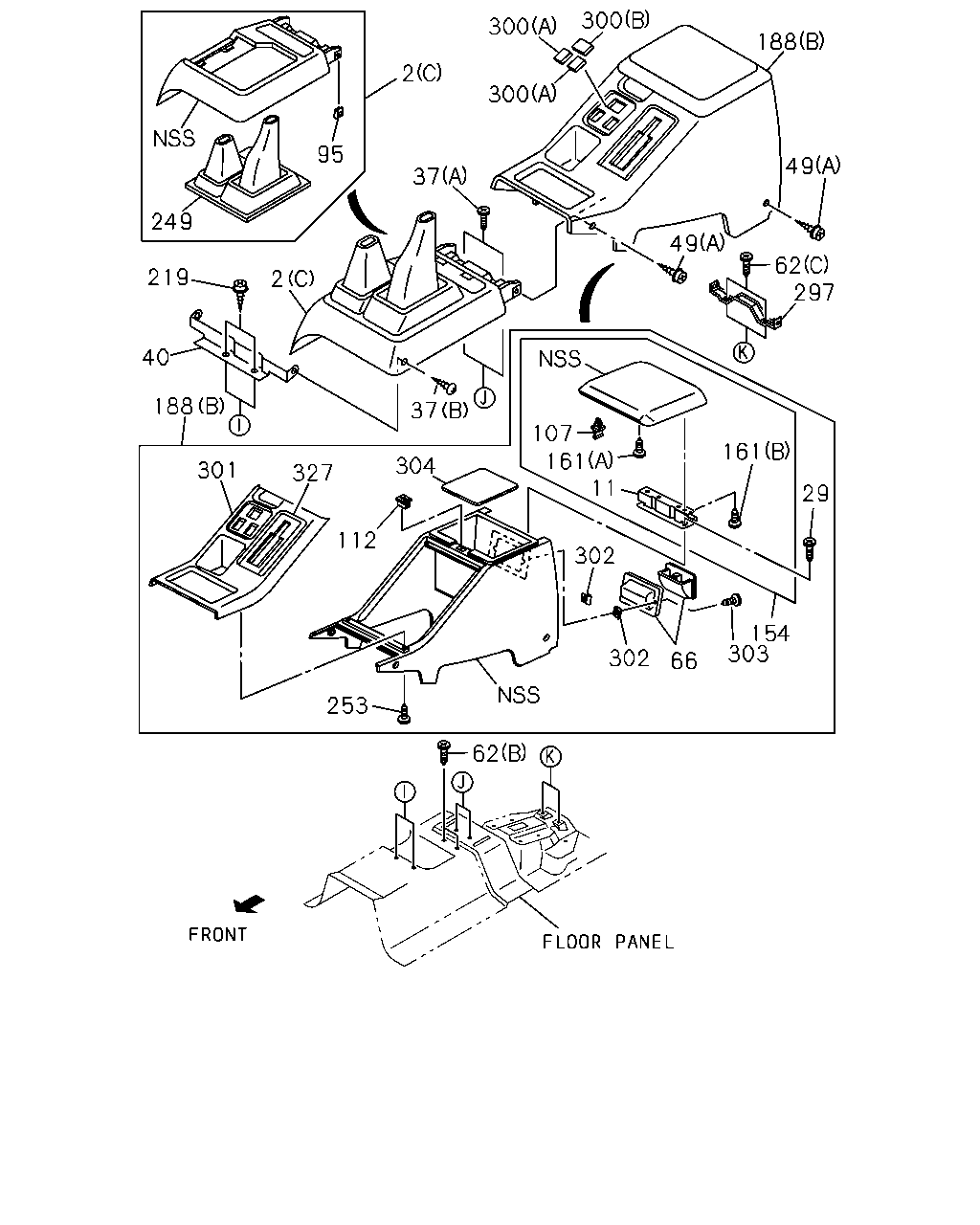

çizim 67984
300 300 188 2 300 95 49 37 249 49 62 297 219 2 40 37 188 107 161 161 304 301 327 11 29 112 302 154 303 302 66 253 62
BalonParca AdiParca NoAdetTipApplied Date
2 16.081 CONSOLE; CENTER
4X2(TFB***) (A) GRAY 		8-97156-743-0 01 1 9611-
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611-
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611-
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-94253-330-0 01 1 9611-
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9611-
29 16.650 SCREW; HINGE
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) (A) 		8-94463-384-0 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) (B) 		8-94479-072-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9611-
49 04.017 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-
49 04.017 SCREW; CONSOLE
4X4(TFS***) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-
62 16.650 SCREW; BRKT
4X2(TFB***) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9611-
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9611-
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) GRAY 		8-97150-683-1 01 1 9611-
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9611-
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9611-
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9611-
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9611-
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9611-
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97155-548-0 01 1 9611-
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9611-
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9611-
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) CENTER CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9611-
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9611-
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9611-
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M8X14 		9-03900-814-0 04 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9611-
249 16.674 COVER
4X4(TFS***) UP GRADE PACKAGE(7MA) BLACK 		8-97155-555-1 01 1 9611-
253 09.744 SCREW; BEZEL
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.650 M4.5X10 		8-94489-930-0 03 1 9611-
297 16.650 BRACKET; RR CONSOLE
4X4(TFS***) 		8-97069-670-1 01 1 9611-
300 16.650 COVER; HOLE,CONSOLE SW
4X4(TFS***) UP GRADE PACKAGE(7MA) (A) GRAY 		8-97152-694-2 02 1 9611-
300 16.650 COVER; HOLE,CONSOLE SW
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-604-0 01 1 9611-
301 16.650 BEZEL; CONSOLE
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) GRAY 		8-97157-826-1 01 1 9611-
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9611-
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) 		8-94123-300-5 02 1 9611-
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-
304 16.650 PAD; CONSOLE BOX
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97088-559-0 01 1 9611-
327 16.650 STRIPE; HAND BRAKE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-047-1 01 1 9611-

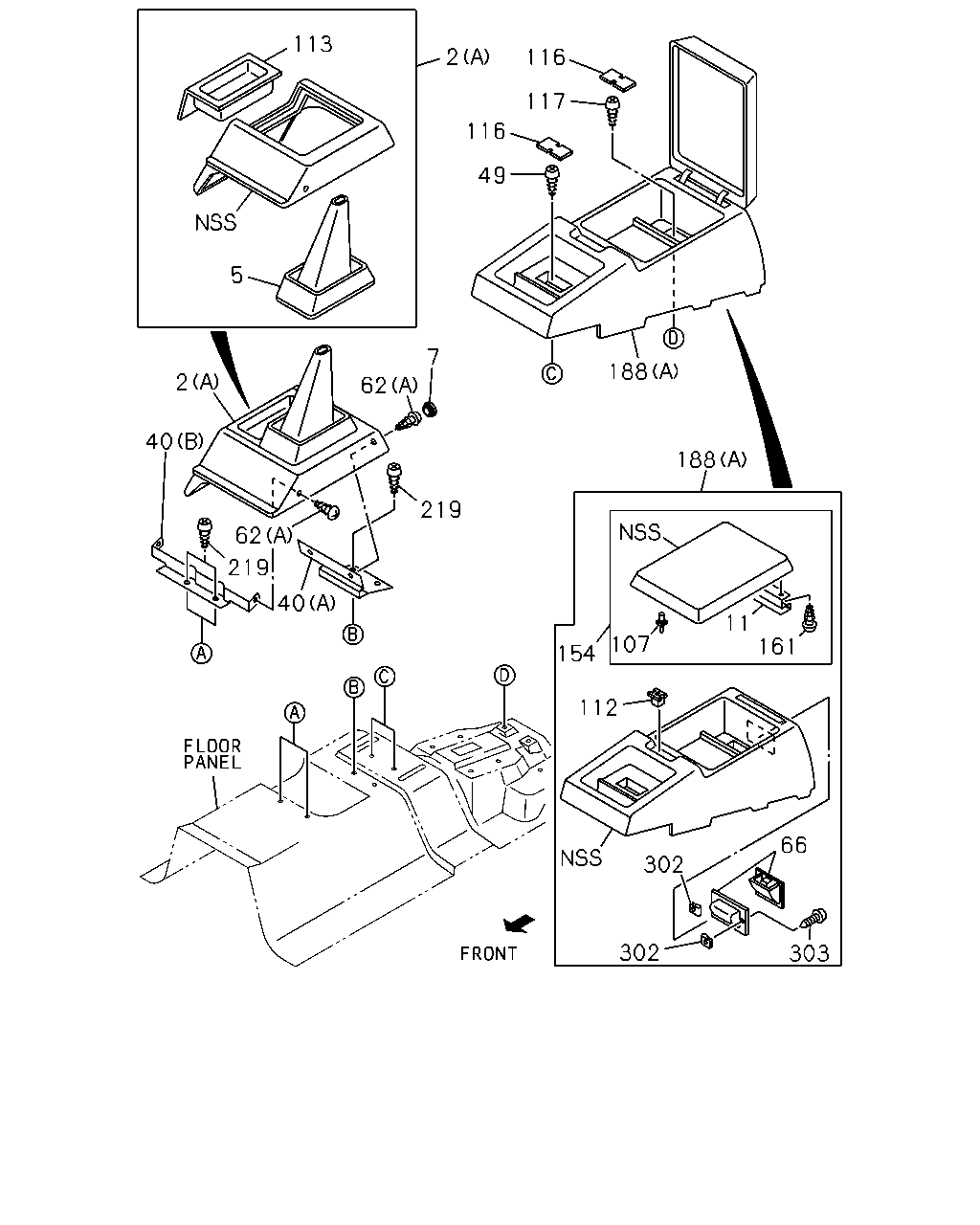

çizim 72321
113 2 116 117 116 49 5 7 188 2 62 40 188 219 62 219 40 11 107 161 154 112 66 302 302 303
BalonParca AdiParca NoAdetTipApplied Date
2 16.081 CONSOLE; CENTER
4X2(TFB***) (A) GRAY 		8-97156-743-0 01 1 9611-
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611-
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611-
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 		8-97147-044-0 01 1 9611-
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) GRAY 		8-97150-582-1 02 1 9611-
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9611-
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-94253-330-0 01 1 9611-
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) (A) 		8-94463-384-0 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) (B) 		8-94479-072-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9611-
49 04.017 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-
49 04.017 SCREW; CONSOLE
4X4(TFS***) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-
62 16.650 SCREW; BRKT
4X2(TFB***) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9611-
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9611-
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) GRAY 		8-97150-683-1 01 1 9611-
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9611-
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9611-
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9611-
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9611-
113 04.015 BOX; CONSOLE
4X2(TFB***) BLACK 		8-94373-417-2 01 1 9611-
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97150-577-2 02 1 9611-
117 16.650 SCREW; CONSOLE TO BODY PNL
4X2(TFB***) CENTER CONSOLE<D63> 16.870 M5X19 		1-09981-152-0 02 1 9611-
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97155-548-0 01 1 9611-
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9611-
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9611-
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) CENTER CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9611-
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9611-
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9611-
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M8X14 		9-03900-814-0 04 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9611-
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9611-
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) 		8-94123-300-5 02 1 9611-
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-

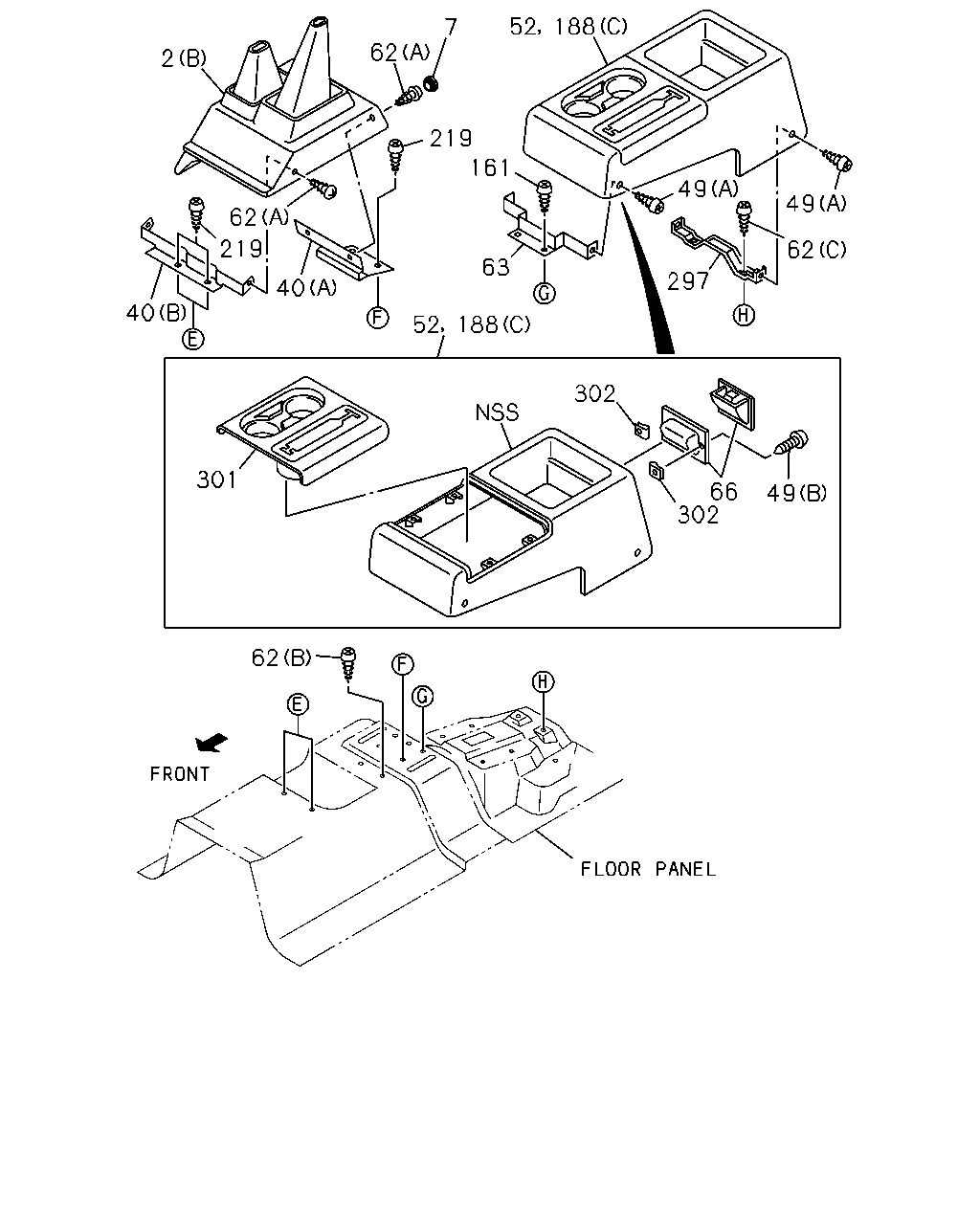

çizim 72407
52 188 7 62 2 219 161 49 49 62 219 62 63 297 40 40 52 188 302 301 66 302 49 62
BalonParca AdiParca NoAdetTipApplied Date
2 16.081 CONSOLE; CENTER
4X2(TFB***) (A) GRAY 		8-97156-743-0 01 1 9611-
2 16.081 CONSOLE; CENTER
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611-
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611-
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) GRAY 		8-97150-582-1 02 1 9611-
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) (A) 		8-94463-384-0 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) (B) 		8-94479-072-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9611-
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9611-
49 04.017 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-
49 04.017 SCREW; CONSOLE
4X4(TFS***) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-
52 16.650 CONSOLE; FRT
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97154-601-3 01 1 9611-
62 16.650 SCREW; BRKT
4X2(TFB***) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9611-
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9611-
63 16.650 BRACKET; FRT CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 		8-97115-115-0 01 1 9611-
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9611-
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) GRAY 		8-97150-683-1 01 1 9611-
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9611-
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) CENTER CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9611-
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9611-
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9611-
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M8X14 		9-03900-814-0 04 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9611-
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9611-
297 16.650 BRACKET; RR CONSOLE
4X4(TFS***) 		8-97069-670-1 01 1 9611-
301 16.650 BEZEL; CONSOLE
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE(7MA) GRAY 		8-97157-826-1 01 1 9611-
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9611-
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) 		8-94123-300-5 02 1 9611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
