Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

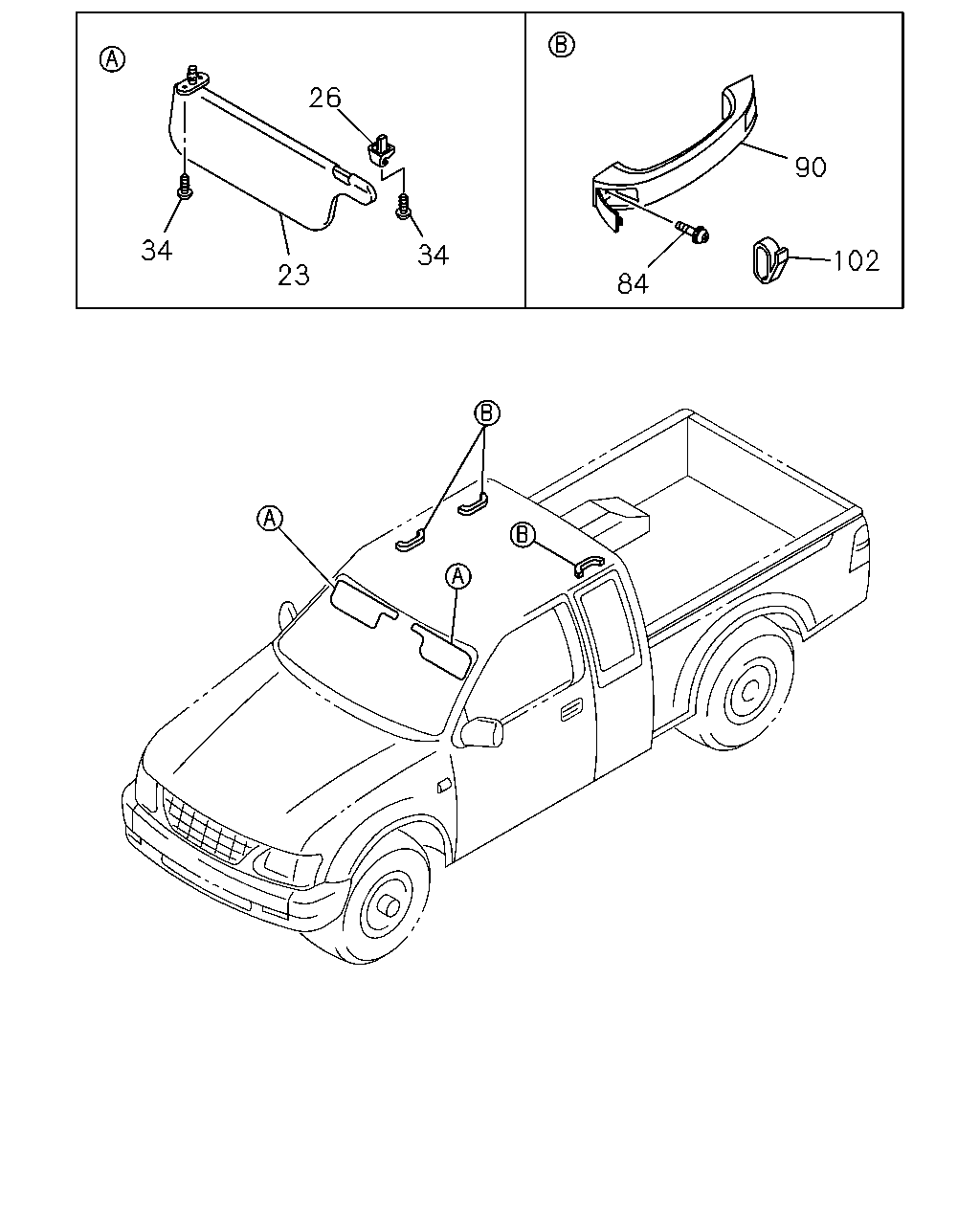

7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#36344) — 11 parça
26
90
34
34
102
23
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
16.070 SUN VISOR
LIGHT GRAY
8-97154-098-0
01
1
9611-
23
16.070 SUN VISOR
LIGHT GRAY
8-97154-616-0
01
1
9611-
26
16.070 HOLDER; SUN VISOR
LIGHT GRAY
8-97153-244-2
02
1
9611-
34
16.070 SCREW; SUN VISOR
08.977 M4X16 TAPPING OVAL-HEAD
0-70580-416-0
06
1
9611-
84
16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> M6X20
8-94337-721-0
02
1
9611-9711
84
16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> 16.650 M6X20 W/LK&PL WASHER
1-09981-073-0
02
1
9712-
84
16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> M6X20
8-94337-721-0
04
1
9611-9711
84
16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> 16.650 M6X20 W/LK&PL WASHER
1-09981-073-0
04
1
9712-
90
16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> GRAY
8-97152-650-2
01
1
9611-
90
16.450 GRIP; ASSIST,ROOF
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> GRAY
8-97152-650-2
02
1
9611-
102
16.450 HOOK; COAT HANGER
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> GRAY
8-97150-620-1
01
1
9611-
