7-40 — INSTRUMENT PANEL AND BOX (#36342) — 91 parça

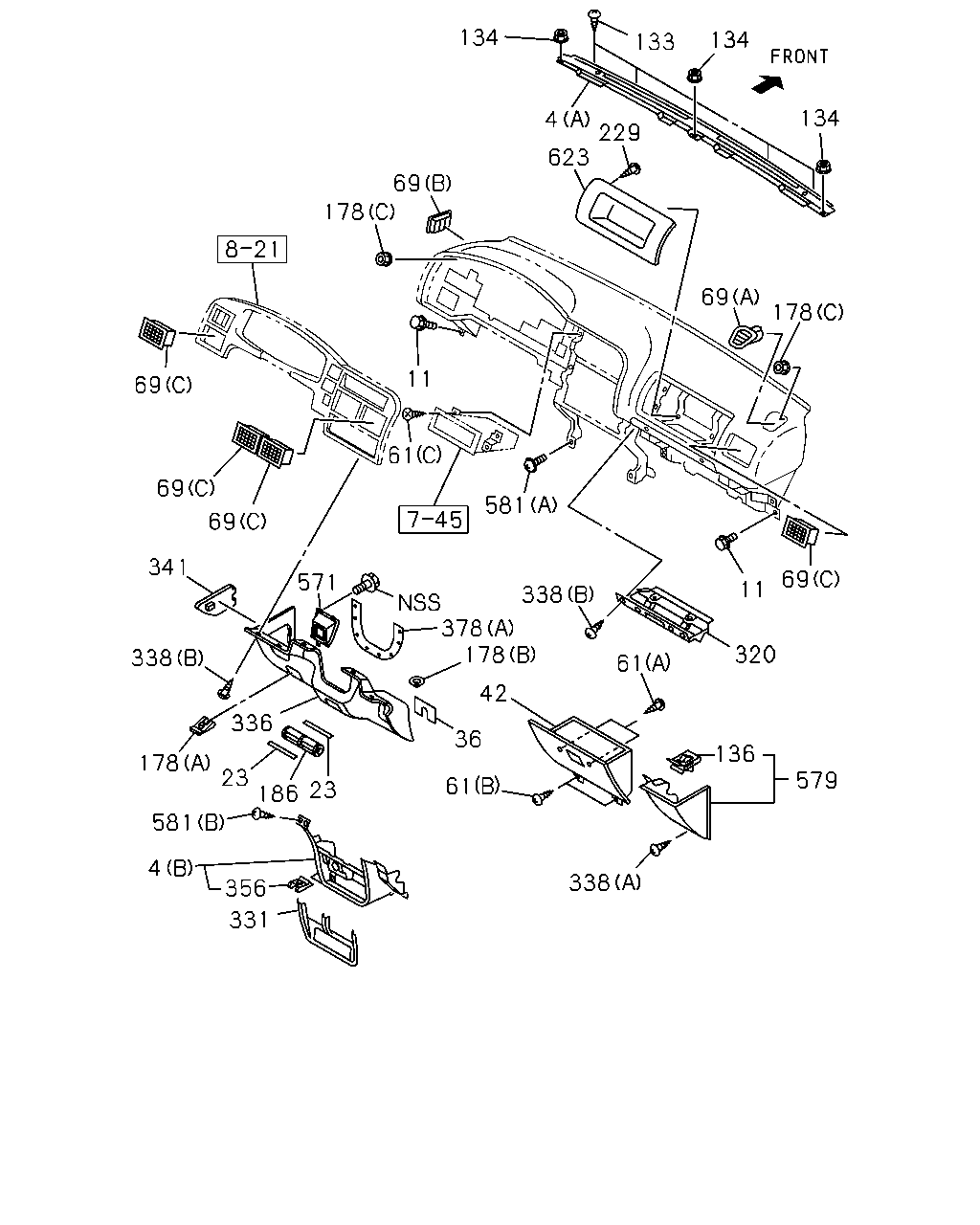

çizim 17412
134 134 133 134 4 229 623 69 178 69 178 11 69 61 69 581 69 341 69 571 11 338 378 178 320 338 61 42 336 36 136 178 23 579 61 23 186 581 4 338 356 331
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.080 COVER; INST PNL
(A) 		8-97101-621-3 01 1 9611- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 9611- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9611- ● ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 9611- ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-097-0 01 1 9611- ● ● ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 9611- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9611- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9611- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9611- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97152-701-1 04 1 9611- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97150-595-1 01 1 9611- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97150-594-5 01 1 9611- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9611- ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9611-9711 ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9712- ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9712- ● ● ●
178 16.085 NUT; INST PANEL
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 02 1 9611- ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-780-0 08 1 9611- ● ● ●
178 16.085 NUT; INST PANEL
07.833 (C) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9611- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-781-0 14 1 9611-9711 ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-781-0 12 1 9712- ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97806-851-2 01 1 9611- ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9611- ● ● ●
229 09.744 SCREW; BOX,INST
09.787 M5X14 TAPPING 		9-07066-514-0 06 1 9611- ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9611- ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 9611- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97156-095-1 01 1 9611- ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97153-209-4 01 1 9611- ● ● ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9611- ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9611- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 9611- ● ● ● ● ● ●
356 16.085 NUT; COVER
09.262 M5 SPIRE NUT 		8-94217-271-0 01 1 9611- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9611-9802 ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9803- ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97185-746-0 01 1 9611-9801 ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9802- ● ● ● ● ● ●
571 09.743 BEZEL; POCKET
GRAY 		8-97153-211-0 01 1 9611- ● ● ●
579 16.080 COVER; INST PNL
GRAY 		8-97150-598-3 01 1 9611- ● ● ● ● ● ●
581 09.744 SCREW
15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9801 ● ● ● ● ● ●
581 09.744 SCREW
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9802- ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 07 1 9611- ● ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97154-858-0 01 1 9611- ● ● ● ● ● ●

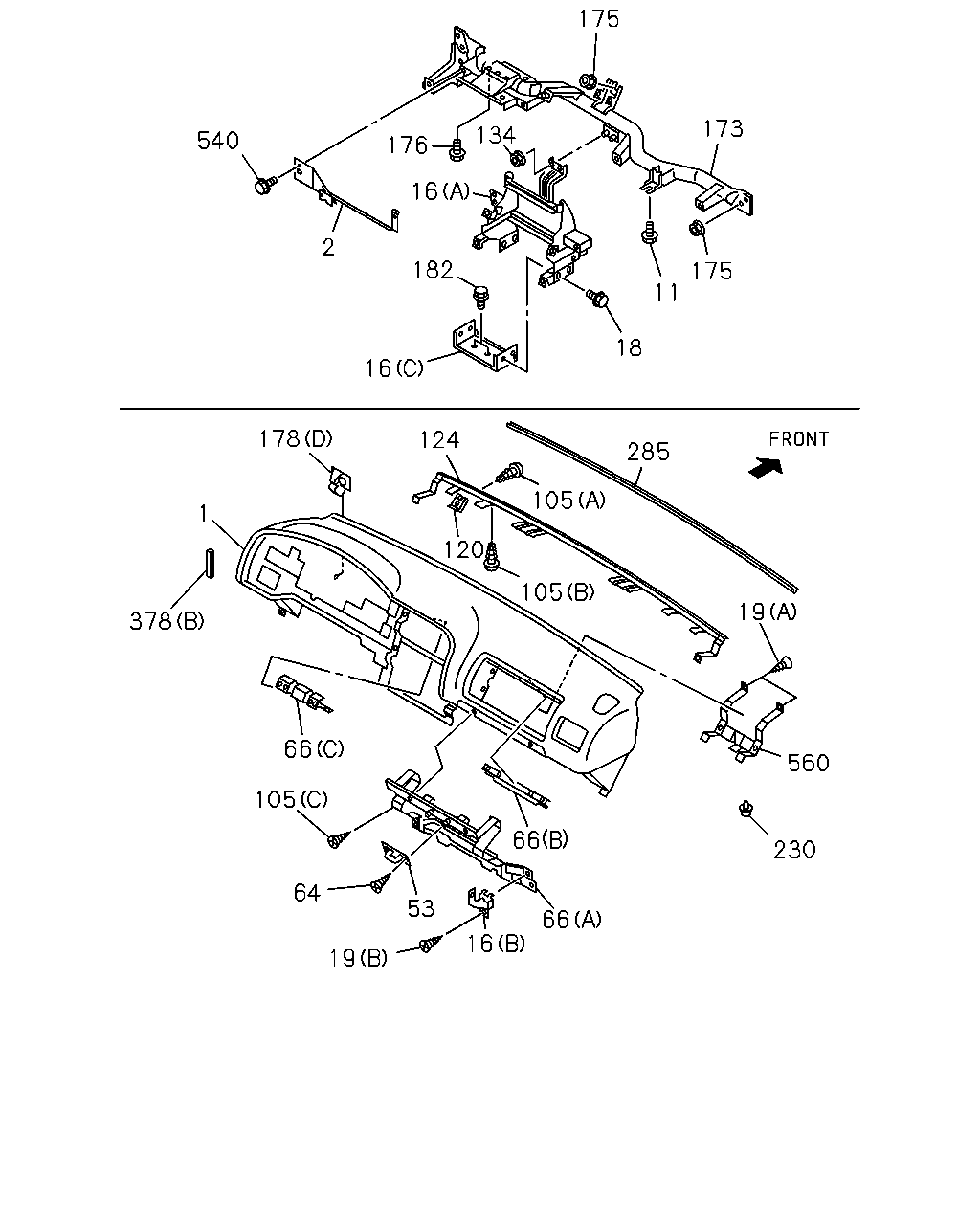

çizim 67201
175 173 176 134 540 16 2 182 175 11 18 16 178 124 285 105 1 120 105 19 378 66 560 105 66 230 64 53 66 16 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
GRAY 		8-97156-099-2 01 1 9611- ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97112-305-3 01 1 9611-9710 ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97187-497-1 01 1 9711- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9611- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97112-446-1 01 1 9611- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97114-331-1 01 1 9611- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97132-077-0 01 1 9611- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
12.809 M6X16 FLANGE 		0-28280-616-0 04 1 9611-9612 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
08.080 M6X16 FLANGE 		8-97803-298-0 04 1 9701- ● ● ● ● ● ●
19 16.081 SCREW; BRKT
09.787 (A) M5X14 TAPPING 		9-07066-514-0 09 1 9611- ● ● ● ● ● ●
19 16.081 SCREW; BRKT
06.514 (B) M5X14 TAPPING 		9-07076-514-0 01 1 9611- ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97125-756-0 01 1 9611- ● ● ● ● ● ●
64 16.085 SCREW; STRIKER
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9611- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97114-724-1 01 1 9611-9712 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(C) 		8-97114-725-0 01 1 9611- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97134-474-1 01 1 9611- ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.175 (A) M4X12 TAPPING 		9-07066-412-0 20 1 9611-9801 ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.175 (A) M4X12 TAPPING 		9-07066-412-0 16 1 9802- ● ● ● ● ● ●
105 16.115 SCREW; REINF
08.010 (B) M5X12 TAPPING 		9-07066-512-0 08 1 9611- ● ● ● ● ● ●
105 16.115 SCREW; REINF
09.787 (C) M5X14 TAPPING 		9-07066-514-0 04 1 9611- ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 07 1 9611-9711 ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 08 1 9712- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97134-514-0 01 1 9611- ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97115-516-1 01 1 9611-9710 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-520-0 01 1 9711- ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97160-115-0 01 1 9611-9710 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-556-0 01 1 9711- ● ● ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9611- ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 02 1 9611- ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-780-0 08 1 9611- ● ● ●
178 16.085 NUT; INST PANEL
07.833 (C) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9611- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-781-0 14 1 9611-9711 ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-781-0 12 1 9712- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
10.230 M6X16 FLANGE 		8-94380-676-1 02 1 9611-9708 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9709- ● ● ● ● ● ●
230 09.744 CLIP; INST
16.165 H=16.7 		8-97022-017-0 01 1 9611- ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL 8-97142-524-0 01 1 9611- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9611-9802 ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9803- ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97185-746-0 01 1 9611-9801 ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9802- ● ● ● ● ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9611- ● ● ● ● ● ●
560 16.085 BRACKET 8-97166-913-0 01 1 9611- ● ● ● ● ● ●
