7-30 — LOCK CYLINDER SET (#36341) — 14 parça

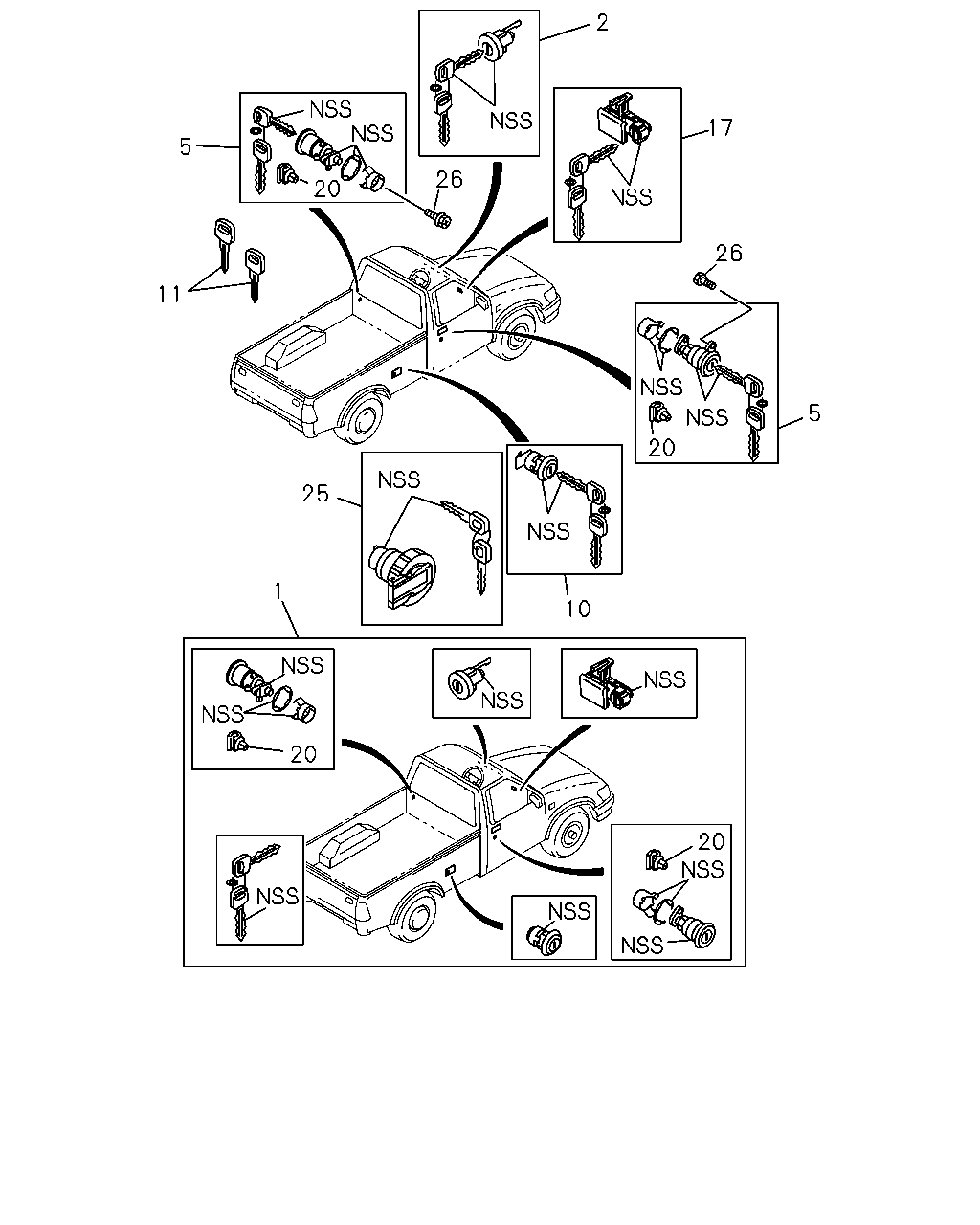

çizim 72167
2 17 5 26 20 26 11 5 20 25 1 10 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) GRAY 		8-97154-720-0 01 1 9611- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) GRAY 		8-97154-722-0 01 1 9611- ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-97123-116-0 01 1 9611- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-97040-781-0 01 1 9611- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-97040-780-0 01 1 9611- ● ● ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97042-990-0 01 1 9611- ● ● ● ● ● ●
11 02.187 KEY; BLANK
WO/NOTCH 		8-97045-966-0 AR 1 9611- ● ● ● ● ● ●
11 02.187 KEY; BLANK
W/NOTCH 		8-97045-967-0 AR 1 9611- ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 5-87410-587-0 01 1 9611- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 9611- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 9611- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97042-991-0 01 1 9611- ● ● ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X10 FLANGE 		8-97100-047-0 02 1 9611-9706 ● ● ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 02 1 9707- ● ● ● ● ● ●
