◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#3634) — 62 parça

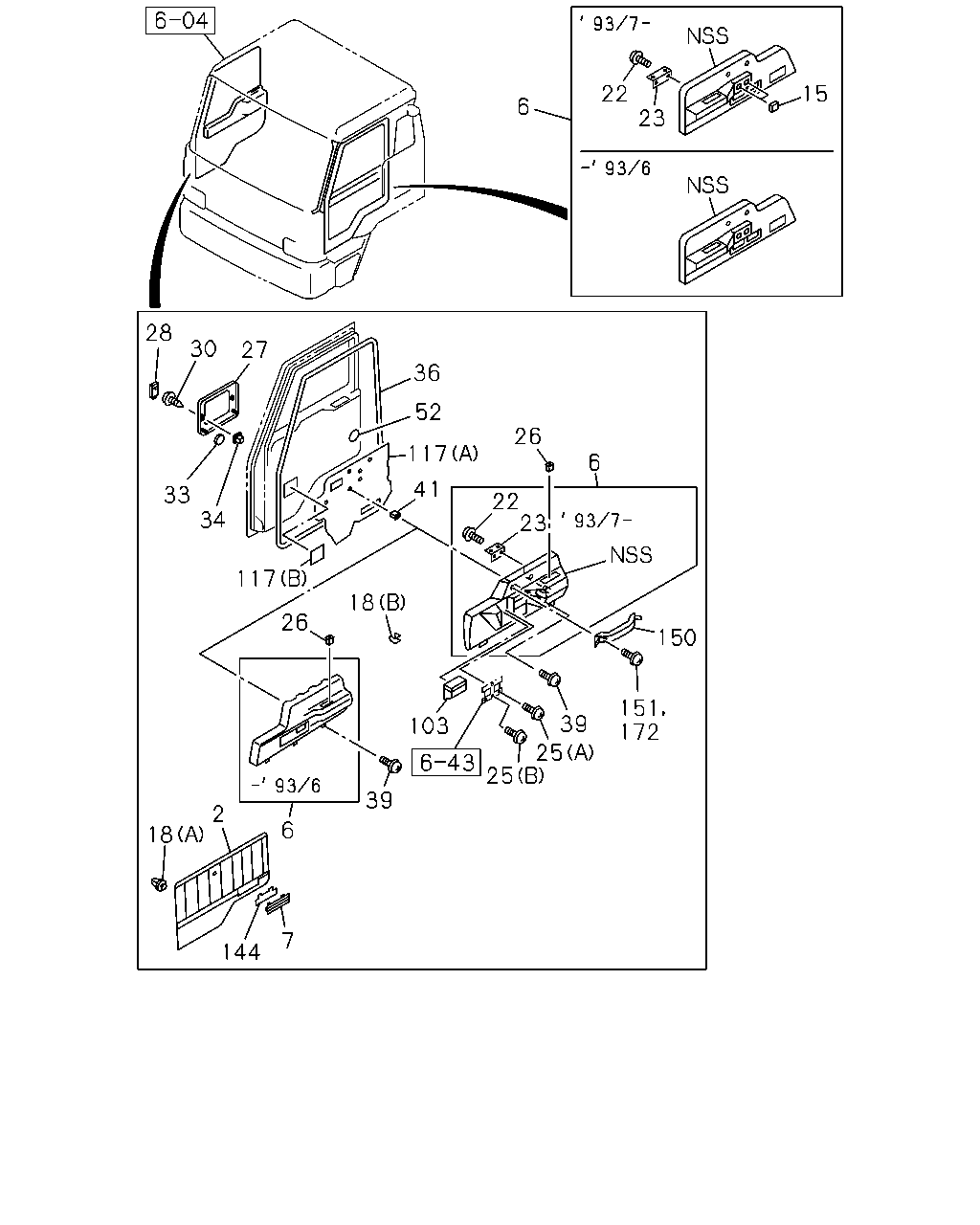

çizim 36475
22 15 6 23 28 30 27 36 52 26 117 6 41 33 34 22 23 117 18 26 150 151 172 39 103 25 25 39 2 6 18 7 144
BalonParca AdiParca NoAdetTipApplied Date
2 TRIM; DOOR,LWR
POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-429-0 01 1 9009-9306
2 TRIM; DOOR,LWR
POWER WINDOW<A30> 		1-73337-445-0 01 1 9307-
2 TRIM; DOOR,LWR
EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-347-0 01 1 9002-9306
2 TRIM; DOOR,LWR
EXC. POWER WINDOW<A30> 		1-73338-344-0 01 1 9307-
2 TRIM; DOOR,LWR
SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-349-0 01 1 9002-9306
2 TRIM; DOOR,LWR
POWER WINDOW<A30> 		1-73337-446-0 01 1 9307-
2 TRIM; DOOR,LWR
SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> 		1-73337-348-0 01 1 9002-9306
2 TRIM; DOOR,LWR
EXC. POWER WINDOW<A30> 		1-73337-468-0 01 1 9307-
2 TRIM; DOOR,LWR
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-73338-310-0 01 1 9002-9306
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-417-0 01 1 9009-9306
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-460-0 01 1 9307-
6 TRIM; DOOR,UPR
POWER WINDOW<A30> 		1-73337-441-0 01 1 9307-
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73338-309-0 01 1 9002-9306
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73338-314-0 01 1 9002-9306
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73337-467-2 01 1 9307-
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> 		1-73337-432-1 01 1 9307-
7 COVER; DOOR OUTLET VENT 1-73337-310-0 02 1 9002-9306
7 COVER; DOOR OUTLET VENT 1-73338-345-0 02 1 9307-
15 COVER; HOLE,DOOR TRIM
EXC. POWER WINDOW<A30> 		1-73337-471-2 02 1 9307-
18 CLIP; DOOR PAD
(A) 		1-09987-119-1 22 1 9002-
18 CLIP; DOOR PAD
(B) 		1-73337-276-0 04 1 9002-9306
22 SCREW; DOOR TRIM BRKT
POWER WINDOW<A30> M4X12 TAPPING 		9-07076-412-0 04 1 9307-
22 SCREW; DOOR TRIM BRKT
EXC. POWER WINDOW<A30> M4X12 TAPPING 		9-07076-412-0 04 1 9307-
23 BRACKET; DOOR TRIM
POWER WINDOW<A30> 		1-73337-311-1 02 1 9307-
23 BRACKET; DOOR TRIM
EXC. POWER WINDOW<A30> 		1-73337-311-1 02 1 9307-
25 SCREW; ASH TRAY,DOOR
(A),(B) M6X16 TAPPING 		0-71180-616-0 04 1 9002-9306
25 SCREW; ASH TRAY,DOOR
(B) M6X16 TAPPING 		0-71180-616-0 03 1 9307-
25 SCREW; ASH TRAY,DOOR
(A) M6X30 		0-74110-630-0 01 1 9307-
26 GROMMET; SCREW,ASH TRAY DOOR 1-09983-061-0 04 1 9002-9306
26 GROMMET; SCREW,ASH TRAY DOOR 1-09983-061-0 03 1 9307-
27 PANEL; ORNAMENT,DOOR 1-71997-511-0 01 1 9006-
27 PANEL; ORNAMENT,DOOR 1-71997-510-0 01 1 9006-
28 MOLDING; DOOR ORNAMENT 1-71997-524-1 04 1 9002-
30 SCREW; DOOR ORNAMENT
M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9002-
33 GROMMET; DOOR ORNAMENT 1-09983-090-0 04 1 9002-
34 GROMMET; SCREW,DOOR ORNAMENT 1-09983-061-0 04 1 9002-
36 SEAL; DOOR,MAIN,CAB SIDE
L=3060 		1-76717-063-4 02 1 9002-
39 SCREW; DOOR PAD
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 08 1 9002-
41 GROMMET; SCREW,DOOR PAD 1-09983-061-0 08 1 9002-
52 SEAL; WATER,DOOR LWR
OD=25 BLACK 		1-76798-019-0 03 1 9002-9205
52 SEAL; WATER,DOOR LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 03 1 9206-9306
52 SEAL; WATER,DOOR LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 05 1 9206-9306
52 SEAL; WATER,DOOR LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9307-
103 TRAY ASM; ASH,DOOR
BLACK 		1-76457-036-2 02 1 9002-9306
103 TRAY ASM; ASH,DOOR
BLACK 		1-76457-036-2 01 1 9307-
103 TRAY ASM; ASH,DOOR 1-76457-046-1 01 1 9307-
117 SEAL ASM; WATER DOOR
(B) 		1-76797-023-0 02 1 9204-
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-093-0 01 1 9009-9011
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-106-0 01 1 9012-9306
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> (A) 		1-76777-110-0 01 1 9307-
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-108-1 01 1 9012-9306
117 SEAL ASM; WATER DOOR
POWER WINDOW<A30> (A) 		1-76777-106-0 01 1 9307-
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-083-1 01 1 9002-9210
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-090-0 01 1 9002-9210
117 SEAL ASM; WATER DOOR
SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> (A) 		1-76777-087-1 01 1 9002-9210
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30> (A) 		1-76777-087-1 01 1 9211-
117 SEAL ASM; WATER DOOR
SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> (A) 		1-76777-086-1 01 1 9002-9210
117 SEAL ASM; WATER DOOR
EXC. POWER WINDOW<A30> (A) 		1-76777-086-1 01 1 9211-
144 SHUTTER; DOOR TRIM 1-73337-288-0 02 1 9002-
150 GRIP; ASSIST,DOOR TRIM 1-73618-161-0 01 1 9307-
151 SCREW; ASSIST GRIP,DOOR TRIM
M6X20 		1-09980-550-0 02 1 9307-
172 BOLT; ASSIST GRIP
M6X20 		1-09980-550-0 02 1 9307-
