◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#36338) — 19 parça

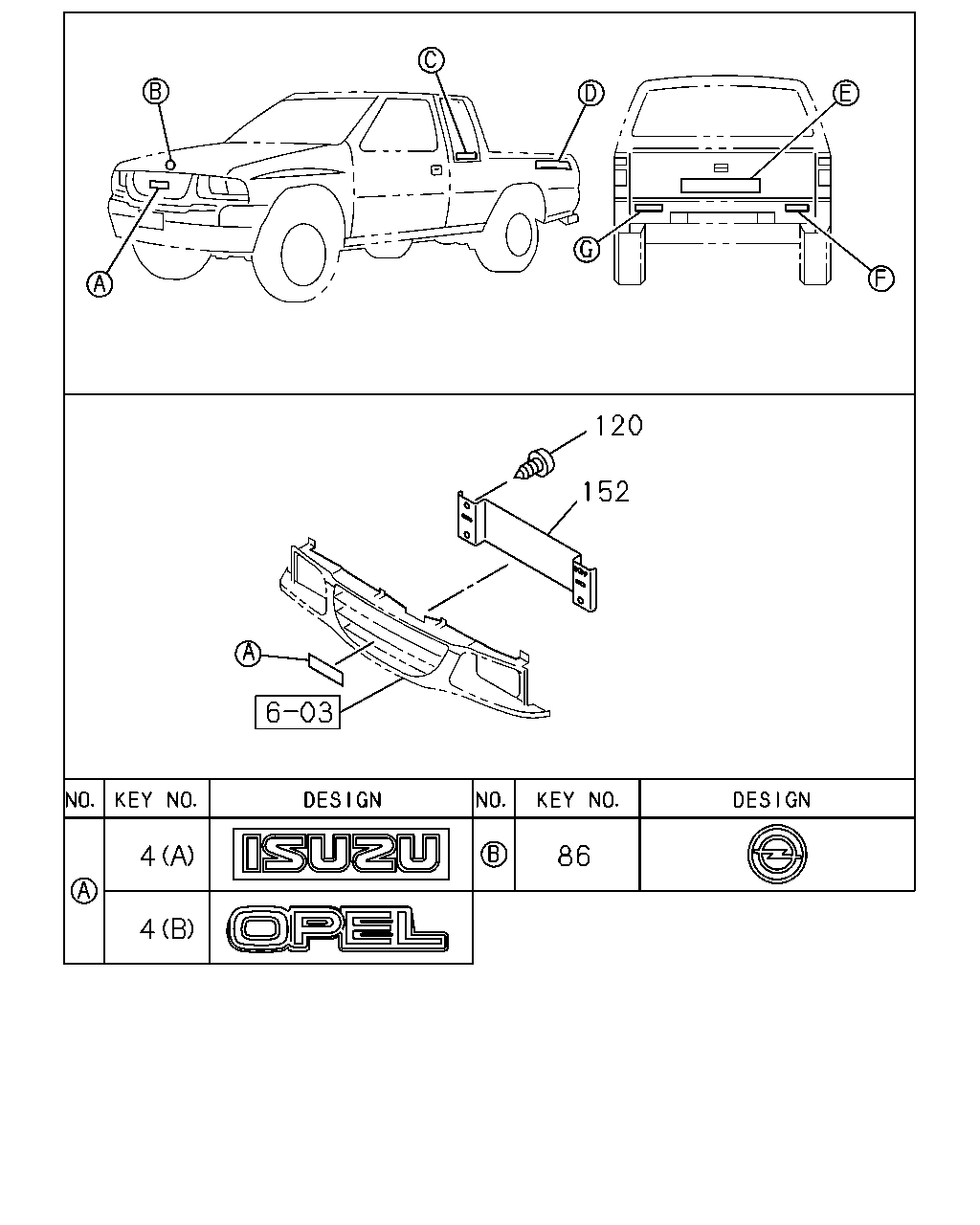

çizim 19081
120 152 86 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 01.303 EMBLEM; RAD GRILLE
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (A) 		8-97096-933-2 01 1 9611-
4 01.303 EMBLEM; RAD GRILLE
EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (B) 		8-97147-806-2 01 1 9611-
86 08.808 EMBLEM; SYMBOL,BODY FRT
EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) 		8-97147-805-1 01 1 9611-
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 9611-
152 01.303 RETAINER; MARK 8-97175-941-0 01 1 9611-
çizim 19082
38
BalonParca AdiParca NoAdetTipApplied Date
38 01.303 PLATE; NAME 8-97115-470-0 01 1 9611-

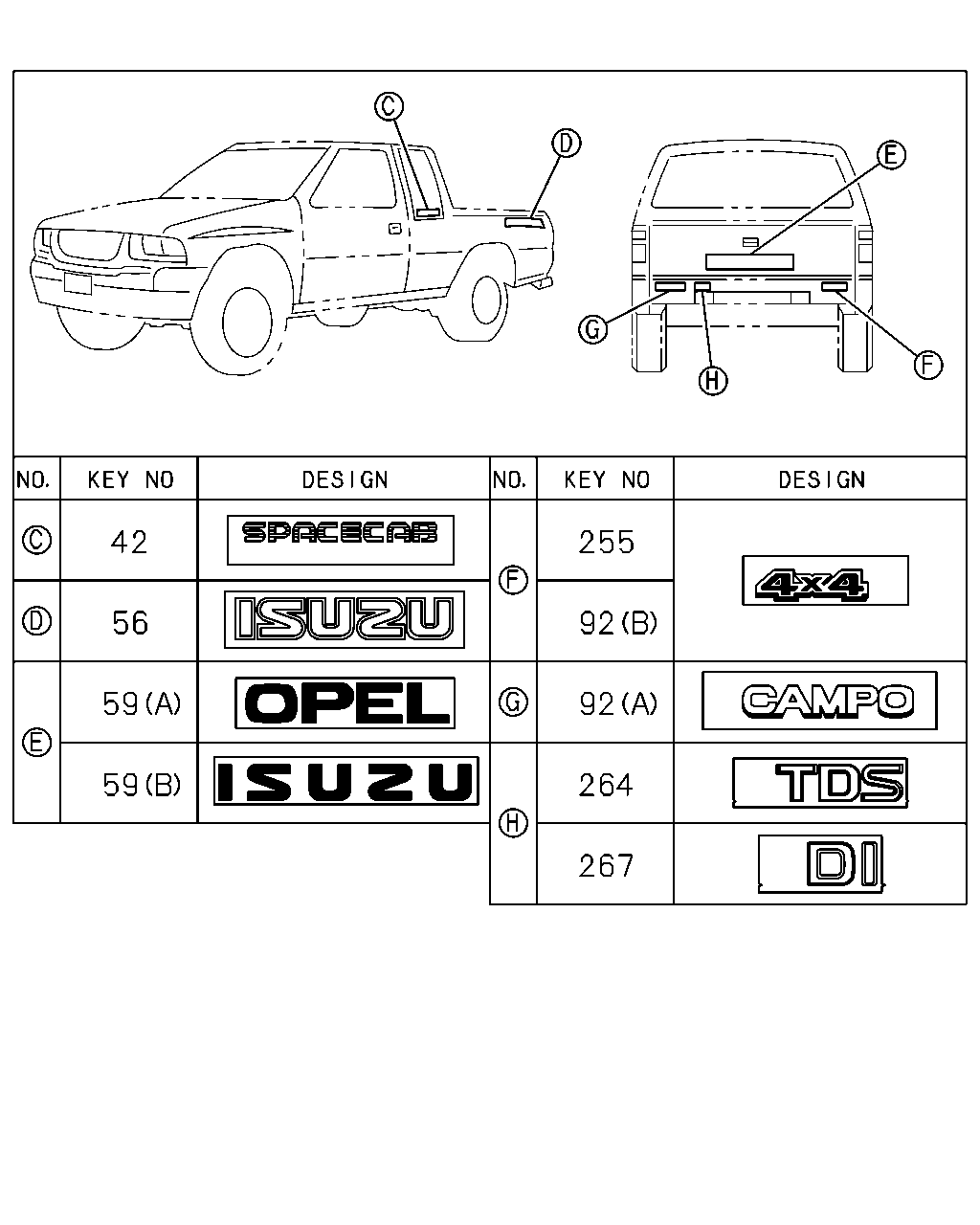

çizim 71634
42 255 56 92 59 92 264 59 267
BalonParca AdiParca NoAdetTipApplied Date
42 16.507 DECAL; RR QUARTER
SPACE CAB(TF**C*) 		8-97115-101-0 02 1 9611-
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU RED(6FS) 		8-97022-699-0 02 1 9611-
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU WHITE(S5N) 		8-97022-698-0 02 1 9611-
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINE BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR IRON GRAY MET(849) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9611-
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINE BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR IRON GRAY MET(849) EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (A) LIGHT SILVER 		8-97082-226-0 01 1 9611-
59 01.303 DECAL; TAIL GATE
BODY COLOR TRITON BLUE MICA(725),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 9611-
59 01.303 DECAL; TAIL GATE
BODY COLOR TRITON BLUE MICA(725),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753) EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (A) DARK SILVER 		8-97082-227-0 01 1 9611-
92 08.147 DECAL; RR END
EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (A) 		8-97149-381-1 01 1 9611-
92 08.147 DECAL; RR END
4X4(TFS***) EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) 01.303 (B) 		8-97141-969-0 01 1 9611-
92 08.147 DECAL; RR END
4X4(TFS***) CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 01.303 (B) 		8-97141-969-0 01 1 9611-
255 01.303 DECAL; "4X4"
4X4(TFS***) CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97141-969-0 01 1 9611-
264 01.303 DECAL; TDS
4JG2 ENG(RJC) EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) 		8-97149-383-1 01 1 9611-
267 01.303 DECAL; "DI"
4JA1 ENG(RLE) EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) 		8-97149-384-1 01 1 9611-
