◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#36337) — 25 parça

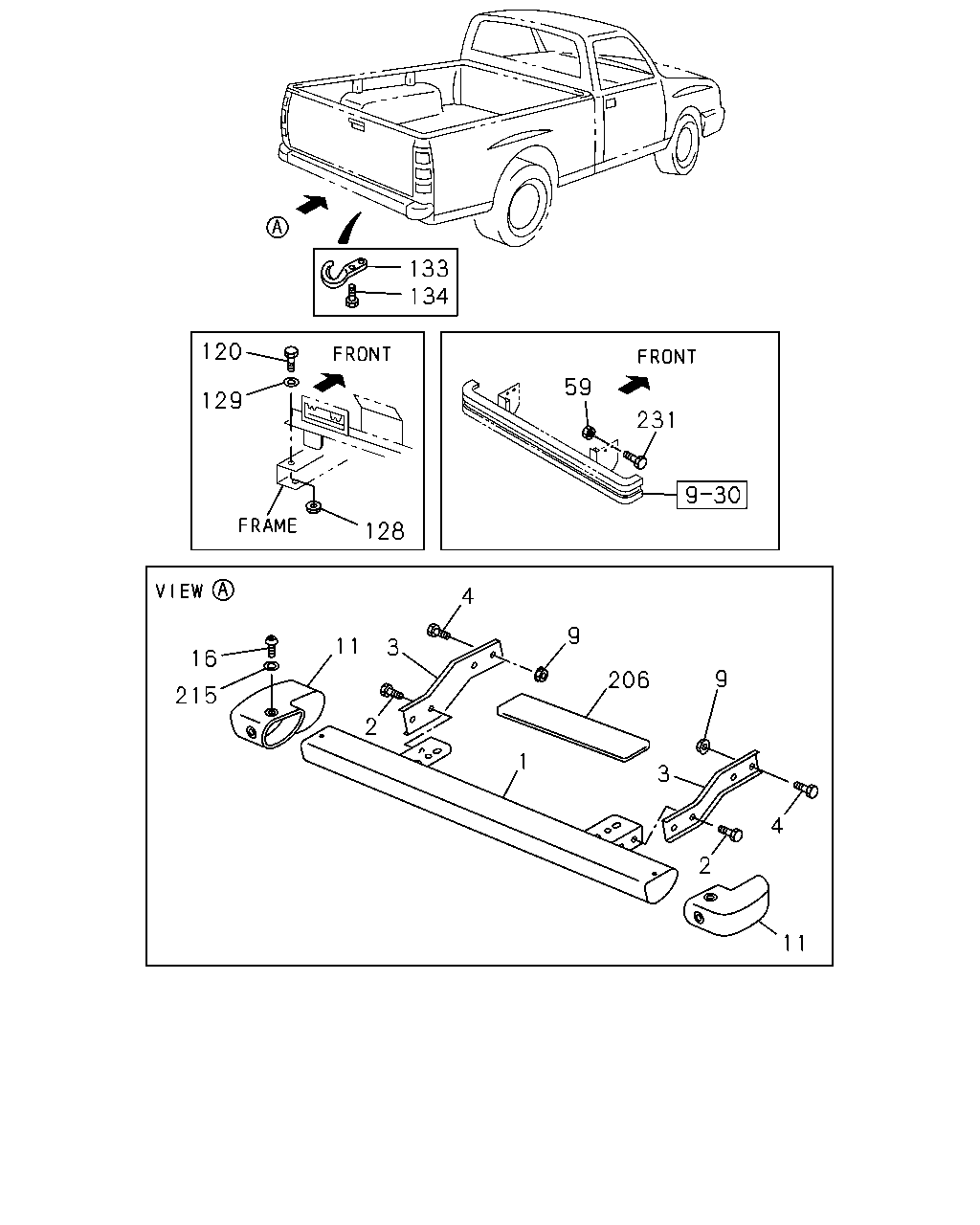

çizim 72126
133 134 120 59 129 231 128 4 9 11 16 9 206 215 2 1 3 4 2 11 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) 		8-94462-368-2 01 1 9611- ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) 		8-94462-369-2 01 1 9611- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M12X30 FLANGE 		0-28691-230-0 04 1 9611- ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-371-2 01 1 9611- ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-370-2 01 1 9611- ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9611- ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 04 1 9611- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-373-1 01 1 9611- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-372-1 01 1 9611- ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M6X20 		8-94324-557-0 06 1 9611- ● ● ● ● ● ●
59 07.833 NUT; PROTECTOR
RR UNDERRUN PROTECTOR<6DY> 07.070 M4 FLANGE 		1-09440-004-0 04 1 9611-9711 ● ● ●
59 07.833 NUT; PROTECTOR
RR UNDERRUN PROTECTOR<6DY> 09.011 M12 FLANGE 		8-97028-764-0 04 1 9712- ● ● ●
120 07.800 BOLT
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 05.812 M8X20 		0-20800-820-0 02 1 9611-9709 ● ● ● ● ● ●
120 07.800 BOLT
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9710- ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9611-9709 ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9710- ● ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9611- ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 07.068 		8-94361-852-0 01 1 9611-9706 ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 07.068 		8-94361-852-0 01 1 9707- ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 07.068 		8-94361-852-0 01 1 9707- ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9611-9706 ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70>,TOW HOOK RR ONLY<7TK> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9707- ● ● ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) BLACK 		8-94298-100-1 01 1 9611- ● ● ● ● ● ●
215 07.070 WASHER; PL,BUMPER RR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) ID=6 OD=18 		8-94324-671-0 06 1 9611- ● ● ● ● ● ●
231 04.510 BOLT; PROTECTOR,RR BODY
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9611- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
