6-75 — MAT AND CARPET (#36332) — 77 parça

222 221

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	221	16.800 DAMPER; FLOOR CREW CAB(TF*W) 4JG2 ENG(RJC),4JA1 ENG(RLE) 16.545	8-97139-100-1	01	1	9611-
	222	16.800 BOLT; DAMPER CREW CAB(TF*W) 16.549 M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9611-

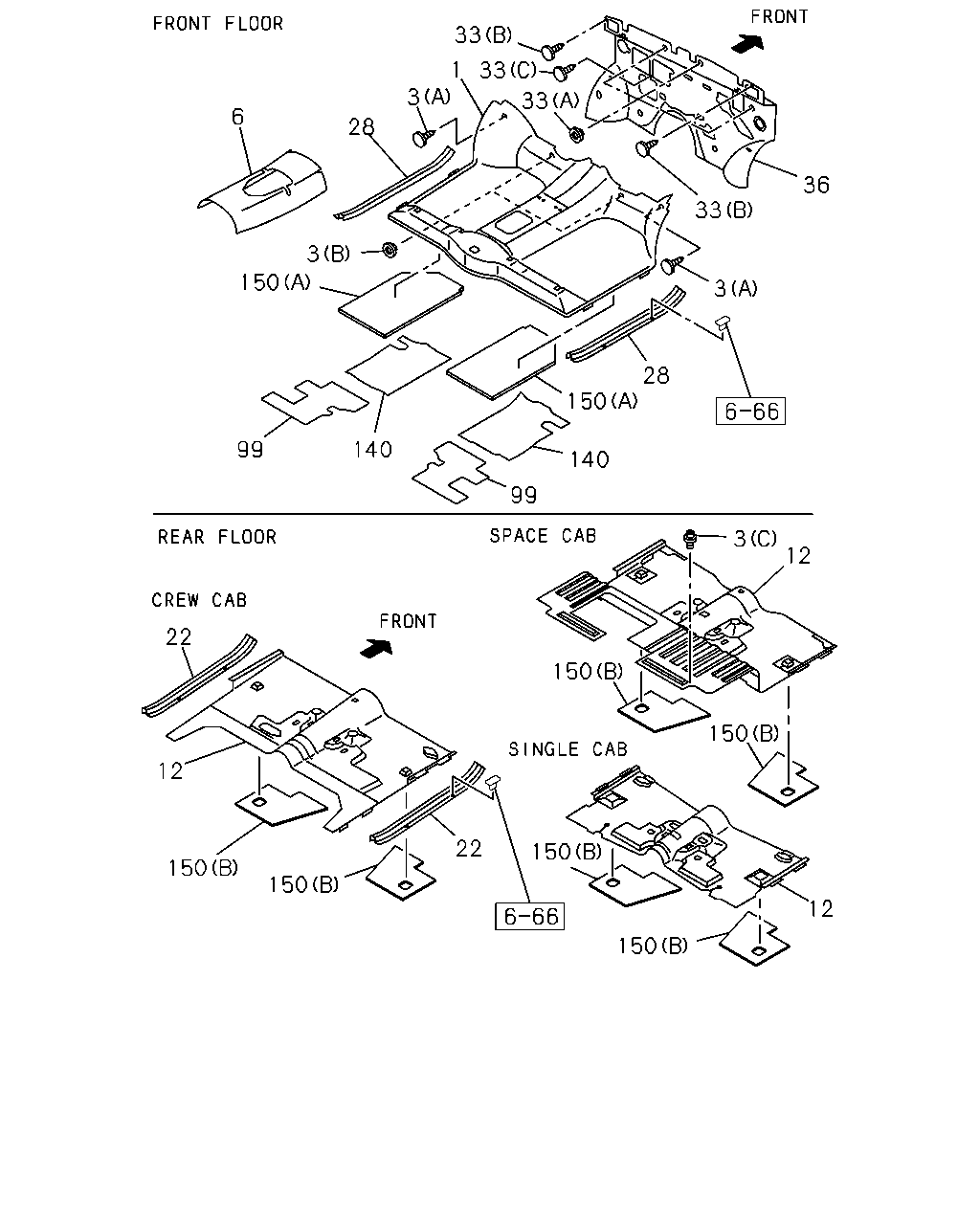

33 1 33 3 3 6 2 36 33 3 150 3 28 150 99 140 140 99 3 12 22 150 150 12 22 150 150 150 12 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.850 CARPET; FLOOR,FRT 4X2(TFB***) FLOOR CARPET<B30> CENTER CONSOLE<D63> DARK GRAY	8-97154-551-2	01	1	9611-
1	16.850 CARPET; FLOOR,FRT 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> EXC. CENTER CONSOLE<D63> DARK GRAY	8-97154-559-2	01	1	9611-
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> RR SEAT NON SPLIT BACK(S3B) EXC. CENTER CONSOLE<D63> DARK GRAY	8-97154-559-2	01	1	9611-
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) FLOOR CARPET<B30> EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97154-552-2	01	1	9611-
1	16.850 CARPET; FLOOR,FRT 4X4(TFS***) FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-369-3	01	1	9611-
1	16.850 CARPET; FLOOR,FRT 4X4(TFS***) FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97158-493-0	01	1	9611-9709
1	16.850 CARPET; FLOOR,FRT 4X4(TFS***) FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,UP GRADE PACKAGE(7MA)	8-97195-975-1	01	1	9710-
1	16.850 CARPET; FLOOR,FRT 4X4(TFS***) FLOOR CARPET<B30> UP GRADE PACKAGE(7MA) DARK GRAY	8-97154-550-2	01	1	9611-
2	16.800 MAT; FLOOR 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) RR SEAT NON SPLIT BACK(S3B) EXC. FLOOR CARPET<B30>,CENTER CONSOLE<D63> DARK GRAY	8-97154-569-2	01	1	9611-
2	16.800 MAT; FLOOR 4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. FLOOR CARPET<B30>,RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97154-568-2	01	1	9611-
2	16.800 MAT; FLOOR 4X4(TFS***) EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>, UP GRADE PACKAGE(7MA) DARK GRAY	8-97154-566-2	01	1	9611-9709
2	16.800 MAT; FLOOR 4X4(TFS***) EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>, UP GRADE PACKAGE(7MA) DARK GRAY	8-97195-976-0	01	1	9710-
2	16.800 MAT; FLOOR 4X4(TFS***) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-372-2	01	1	9611-
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) 16.850 (C)	8-94321-035-0	03	1	9611-
6	16.110 DEADENER; FLOOR GEAR BOX FRT	8-97132-019-0	01	1	9611-
12	16.850 CARPET; FLOOR,RR JUMP SEAT<AJ2> FLOOR CARPET<B30> CENTER CONSOLE<D63> DARK GRAY	8-97154-593-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR JUMP SEAT<AJ2> FLOOR CARPET<B30> EXC. CENTER CONSOLE<D63> DARK GRAY	8-97154-592-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> CENTER CONSOLE<D63> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK 2<7MW> DARK GRAY	8-97154-591-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> CENTER CONSOLE<D63> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97156-039-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2>,CENTER CONSOLE<D63>, NOISE INSULATION PACK 2<7MW> DARK GRAY	8-97154-590-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,CENTER CONSOLE<D63> DARK GRAY	8-97156-038-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> CENTER CONSOLE<D63> RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97155-152-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> EXC. CENTER CONSOLE<D63> RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97155-151-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97155-150-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> CENTER CONSOLE<D63> RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97154-589-2	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> EXC. RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97154-588-2	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK 2<7MW> DARK GRAY	8-97154-583-0	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97156-040-0	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) JUMP SEAT<AJ2> FLOOR CARPET<B30> DARK GRAY	8-97154-584-1	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X4 SINGLE CAB(TFSS) FLOOR CARPET<B30> DARK GRAY	8-97154-582-0	01	1	9611-
12	16.850 CARPET; FLOOR,RR 4X4 CREW CAB(TFSW) FLOOR CARPET<B30> DARK GRAY	8-97153-625-1	01	1	9611-
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	9611-
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	9611-
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	9611-
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	03	1	9611-
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	9611-
33	16.550 CLIP; INSULATION 16.800 (C)	8-97046-468-0	01	1	9611-
36	16.550 INSULATION; PAD,DASH INNER	8-97112-108-1	01	1	9611-
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	9611-
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	9611-
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-1	02	1	9611-
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-2	02	1	9611-

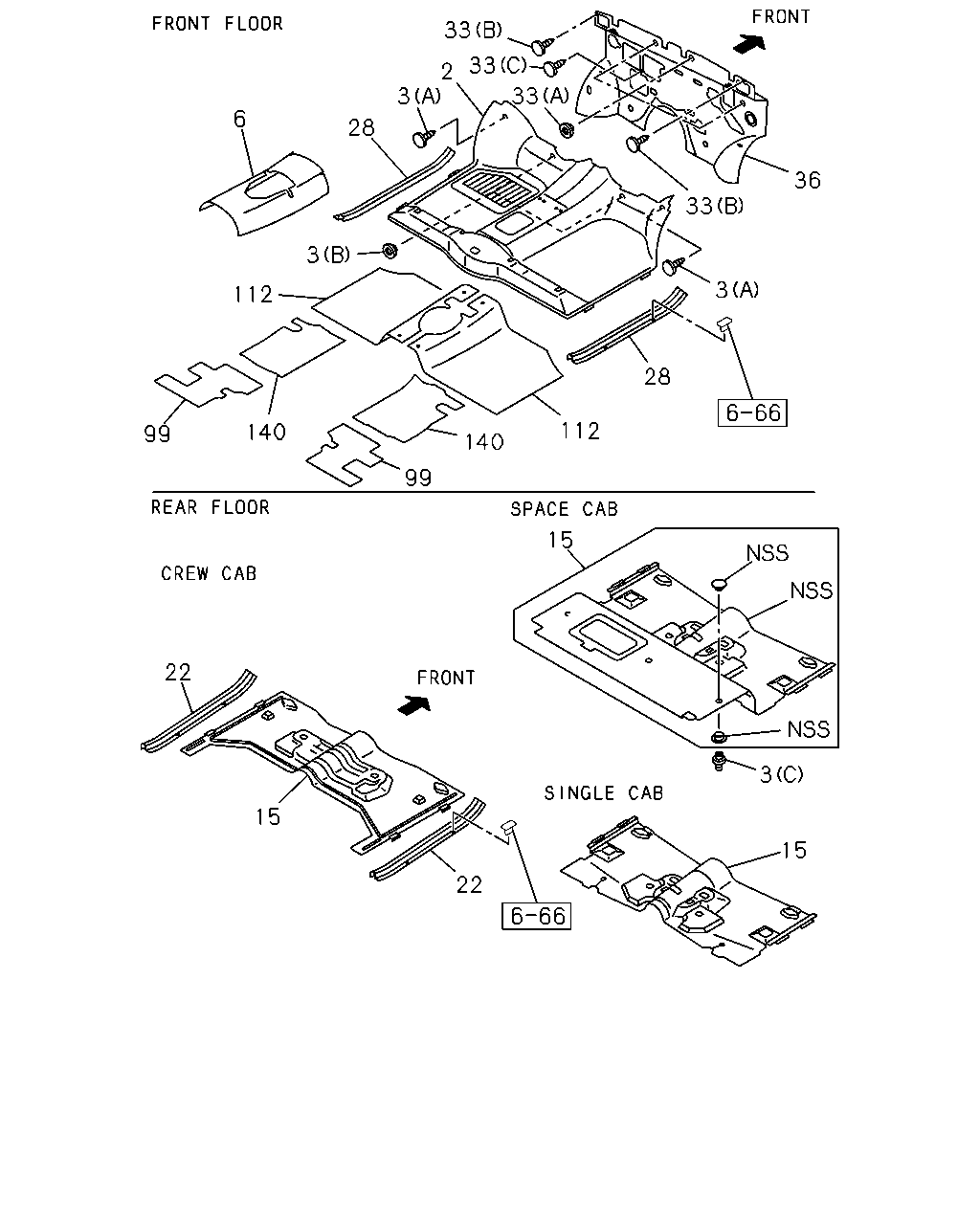

33 33 2 3 3 6 28 36 33 3 3 112 28 112 140 99 140 99 15 22 3 15 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	16.800 MAT; FLOOR 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) RR SEAT NON SPLIT BACK(S3B) EXC. FLOOR CARPET<B30>,CENTER CONSOLE<D63> DARK GRAY	8-97154-569-2	01	1	9611-
2	16.800 MAT; FLOOR 4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. FLOOR CARPET<B30>,RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97154-568-2	01	1	9611-
2	16.800 MAT; FLOOR 4X4(TFS***) EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>, UP GRADE PACKAGE(7MA) DARK GRAY	8-97154-566-2	01	1	9611-9709
2	16.800 MAT; FLOOR 4X4(TFS***) EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>, UP GRADE PACKAGE(7MA) DARK GRAY	8-97195-976-0	01	1	9710-
2	16.800 MAT; FLOOR 4X4(TFS***) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-372-2	01	1	9611-
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) 16.850 (C)	8-94321-035-0	03	1	9611-
6	16.110 DEADENER; FLOOR GEAR BOX FRT	8-97132-019-0	01	1	9611-
15	16.800 MAT; FLOOR REAR JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-581-1	01	1	9611-
15	16.800 MAT; FLOOR REAR JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30>,CENTER CONSOLE<D63> DARK GRAY	8-97154-576-6	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X2 SPACE CAB(TFBC) EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30>, CENTER CONSOLE<D63> DARK GRAY	8-97154-575-6	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) EXC. FLOOR CARPET<B30>,RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97157-033-1	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) EXC. FLOOR CARPET<B30>,RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97157-032-1	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) RR SEAT NON SPLIT BACK(S3B) EXC. FLOOR CARPET<B30>,CENTER CONSOLE<D63> DARK GRAY	8-97155-154-1	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X2 CREW CAB(TFBW) EXC. FLOOR CARPET<B30>,RR SEAT NON SPLIT BACK(S3B) DARK GRAY	8-97154-577-1	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X2 CREW CAB(TFBW) RR SEAT NON SPLIT BACK(S3B) EXC. FLOOR CARPET<B30>,CENTER CONSOLE<D63> DARK GRAY	8-97158-338-1	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X4 SPACE CAB(TFSC) EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY	8-97154-580-0	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X4 SINGLE CAB(TFSS) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-578-0	01	1	9611-
15	16.800 MAT; FLOOR REAR 4X4 CREW CAB(TFSW) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-579-1	01	1	9611-
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	9611-
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	9611-
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	9611-
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	03	1	9611-
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	9611-
33	16.550 CLIP; INSULATION 16.800 (C)	8-97046-468-0	01	1	9611-
36	16.550 INSULATION; PAD,DASH INNER	8-97112-108-1	01	1	9611-
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	9611-
112	16.575 INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30> BLACK	8-97124-459-0	01	1	9611-
112	16.575 INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30> BLACK	8-97124-456-0	01	1	9611-
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	9611-
