Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#3633) — 43 parça
◀
[632A] AUTO DOOR LOCK (4 parça)

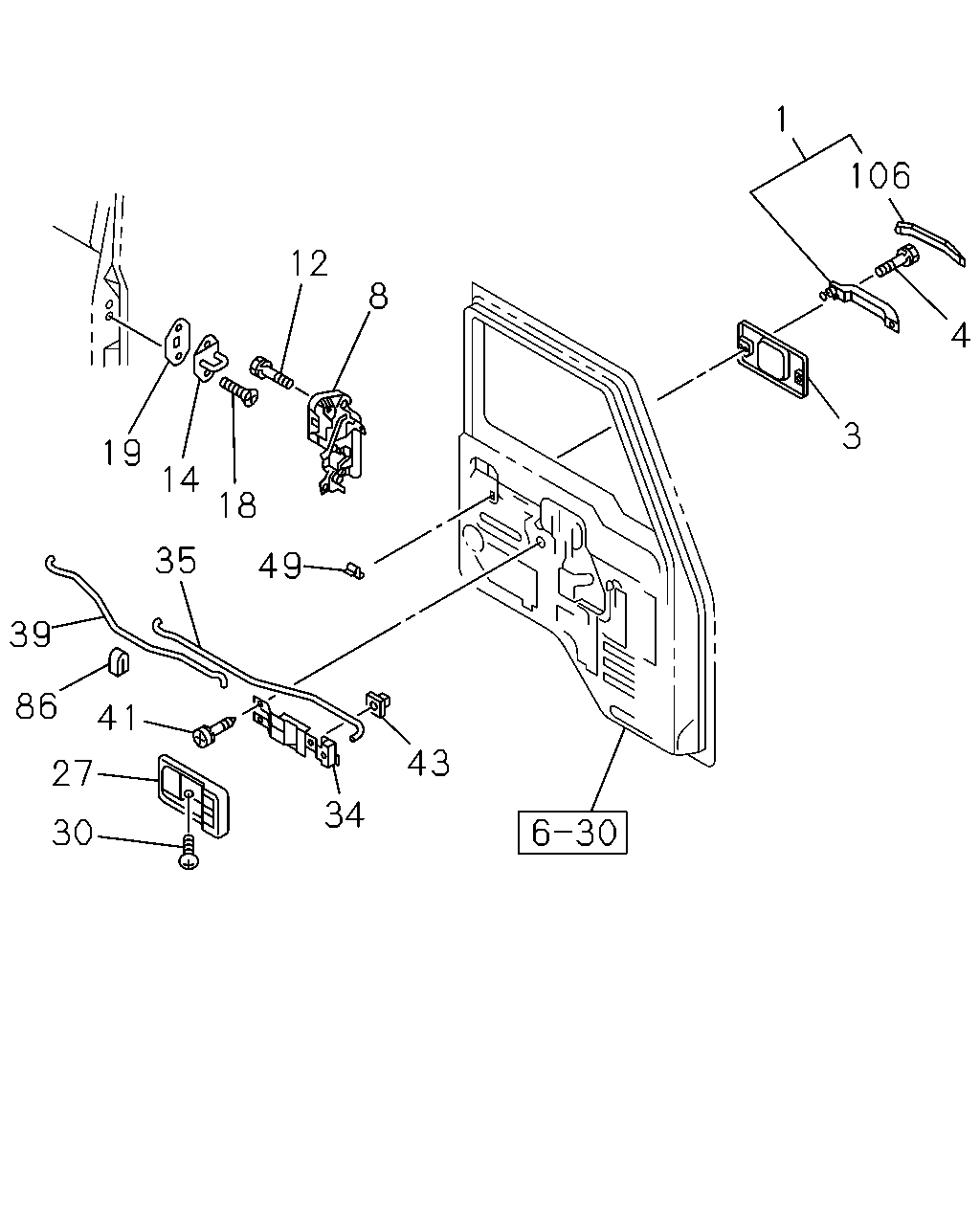

[632A] DOOR LOCK AND HANDLE (28 parça)

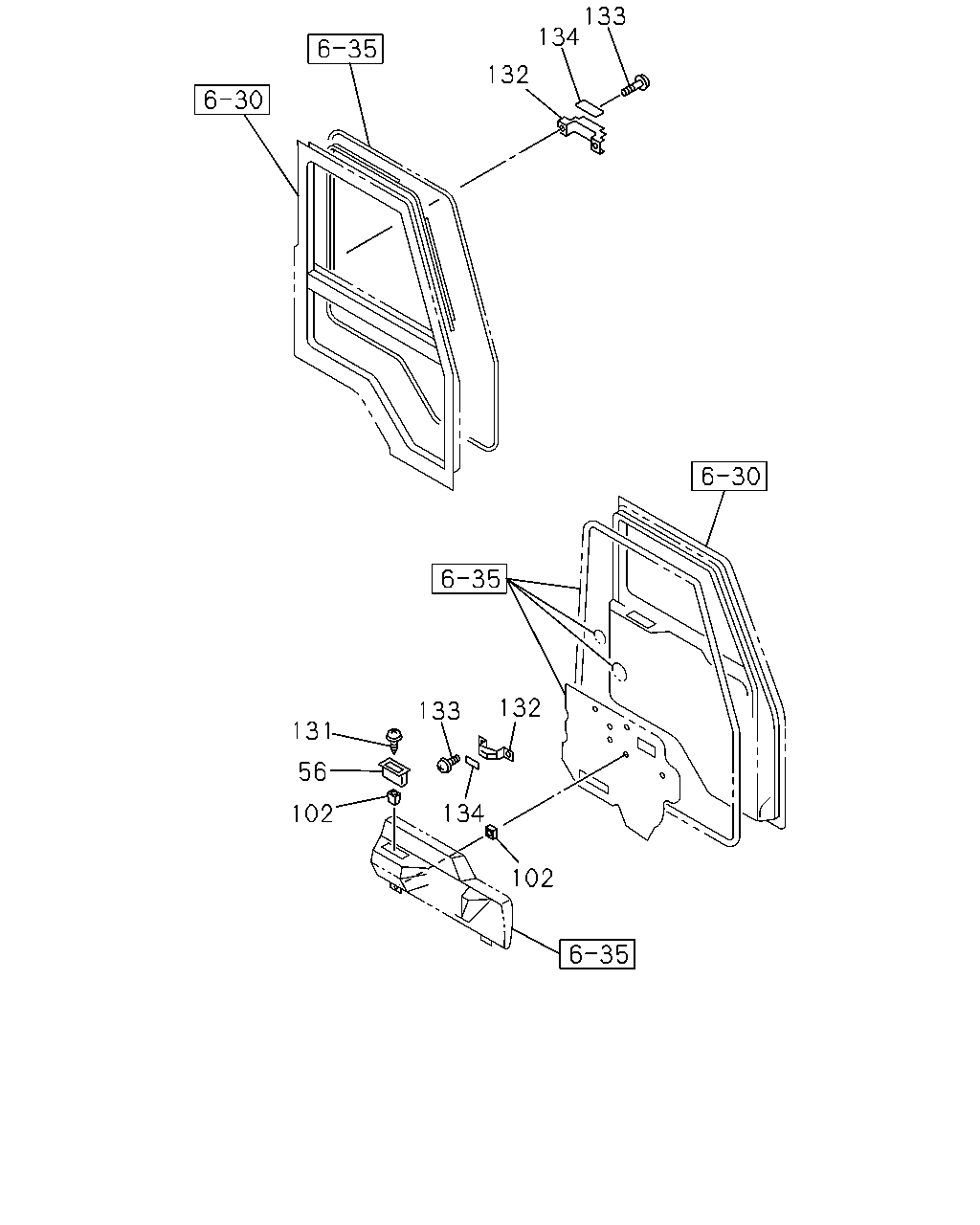

[632A] DOOR PULL STAY (11 parça)
▶
123
11
60
57
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4>
1-79997-247-1
01
1
9307-
57
SWITCH; DOOR LK
AUTO DOOR LOCK<AU4>
1-79998-712-1
01
1
9307-
60
SCREW; DOOR LK SW
AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER
9-03920-612-0
02
1
9307-
123
ROD; ACTUATOR,DOOR LOCK
POWER WINDOW<A30>
1-74518-089-0
01
1
9307-
1
106
12
8
4
3
19
14
18
35
49
39
86
41
43
27
34
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
1-74617-038-2
02
1
9002-
3
BASE; HANDLE,DOOR OUTSIDE
1-74617-024-5
02
1
9002-
4
SCREW; OUTSIDE HANDLE,DOOR
M6X16 W/LK&PL WASHER
1-09981-439-0
04
1
9002-
8
LOCK; DOOR,FRT DOOR
1-74517-155-0
01
1
9002-9110
8
LOCK; DOOR,FRT DOOR
1-74517-162-0
01
1
9111-
8
LOCK; DOOR,FRT DOOR
1-74517-154-0
01
1
9002-9005
8
LOCK; DOOR,FRT DOOR
1-74517-158-0
01
1
9006-
12
SCREW; DOOR LK
M6X12 W/LK&PL WASHER
1-09981-430-0
02
1
9002-
12
SCREW; DOOR LK
M6X16
1-09981-447-0
10
1
9002-9002
12
SCREW; DOOR LK
M6X16
1-09981-447-1
06
1
9003-
12
SCREW; DOOR LK
M6X14
1-09981-512-1
04
1
9003-
14
STRIKER; FRT DOOR
1-74527-001-1
02
1
9002-
18
SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9002-
19
SHEET; ADJ,DOOR STRIKER
T=1.4
8-94282-546-0
AR
1
9002-
27
ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK
8-94201-500-1
01
1
9002-
27
ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK
8-94201-499-1
01
1
9002-
30
SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD
0-70580-410-0
02
1
9002-
34
HANDLE; INSIDE,FRT DOOR
1-74717-019-4
01
1
9002-
34
HANDLE; INSIDE,FRT DOOR
1-74717-018-4
01
1
9002-
35
LINK; DOOR LOCK,INSIDE
1-74517-115-4
01
1
9002-
35
LINK; DOOR LOCK,INSIDE
1-74517-114-4
01
1
9002-
39
LINK; INSIDE HANDLE,FRT DOOR
1-74517-121-1
01
1
9002-
39
LINK; INSIDE HANDLE,FRT DOOR
1-74517-120-1
01
1
9002-
41
SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9002-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
1-09983-061-0
04
1
9002-
49
CLAMP; DOOR LOCK LINK ROD
1-74517-116-0
02
1
9002-
86
SEAL; DOOR LOCK LINK
1-76777-101-2
02
1
9307-
106
COVER; DOOR,OUTSIDE HANDLE
1-74617-033-1
02
1
9102-
133
134
132
132
133
131
56
134
102
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
ESCUTCHEON; LOCK KNOB
1-73337-195-2
02
1
9002-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
1-09983-061-0
04
1
9002-9306
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
POWER WINDOW<A30>
1-09983-061-0
04
1
9307-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
1-09983-061-0
04
1
9307-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. POWER WINDOW<A30>
1-09983-061-0
04
1
9307-
131
SCREW; ESCUTCHEON,DOOR PULL
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9002-
132
STAY; DOOR PULL
1-73337-196-5
02
1
9002-9306
132
STAY; DOOR PULL
EXC. POWER WINDOW<A30>
1-73337-196-6
02
1
9307-
132
STAY; DOOR PULL
POWER WINDOW<A30>
1-73337-321-0
02
1
9307-
133
SCREW; DOOR PULL STAY
M6X12 W/LK&PL WASHER
1-09981-430-0
04
1
9002-
134
RUBBER; CUSHION,DOOR PULL STAY
1-73337-197-2
02
1
9002-
