Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

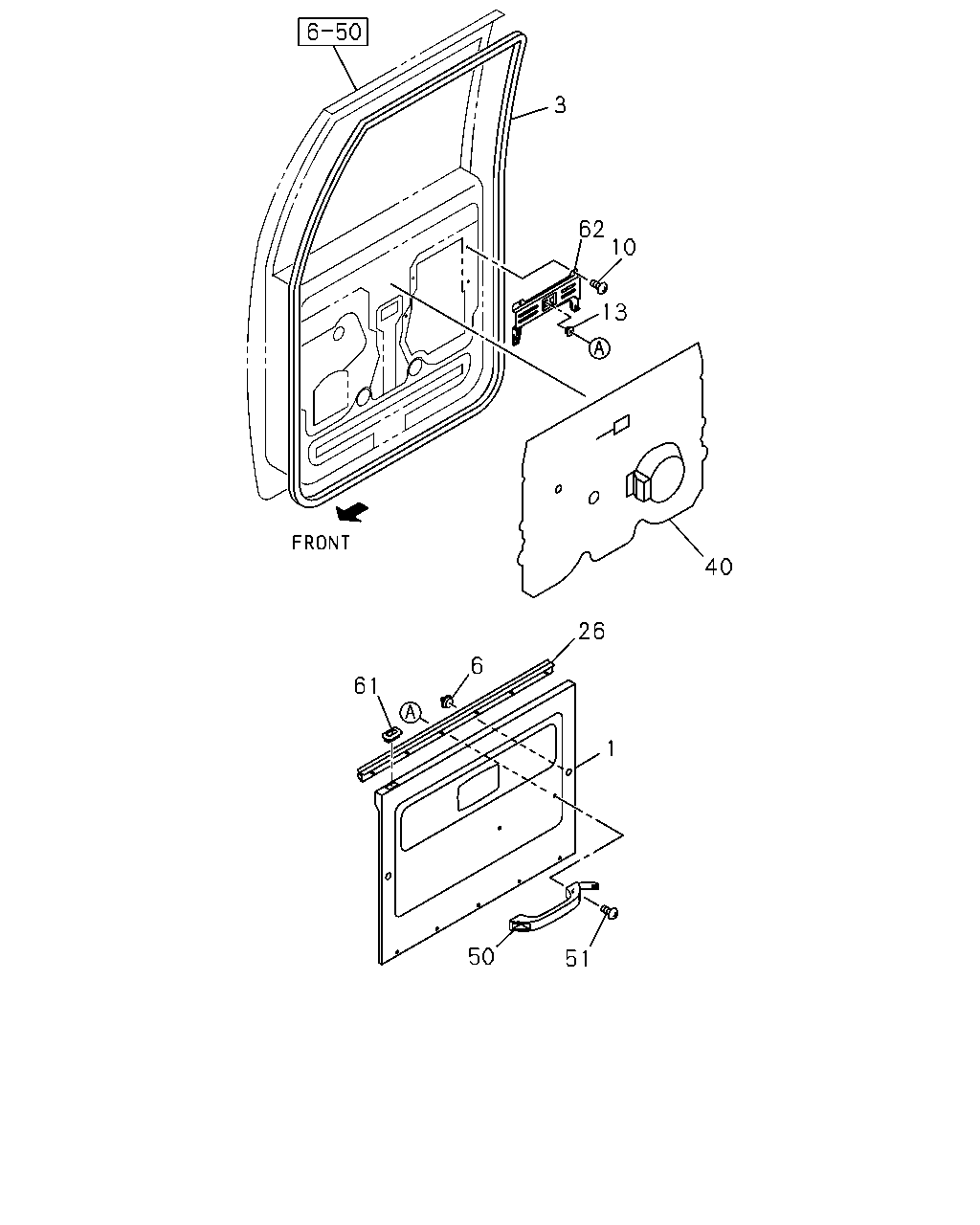

6-55 - REAR DOOR TRIM
▶
6-55 — REAR DOOR TRIM
(#36328) — 15 parça
◀
[655A] NO.2 (1 parça)
[655A] NO.1 (14 parça)
▶
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) GRAY
8-97153-685-0
02
1
9611-
3
62
10
13
40
26
6
61
1
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY
8-97155-089-0
01
1
9611-
1
16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY
8-97155-088-0
01
1
9611-
3
16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*)
8-94449-880-4
01
1
9611-
3
16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*)
8-94449-879-4
01
1
9611-
6
16.165 CLIP; DOOR PAD
CREW CAB(TF**W*) 14.683 H=16
8-94318-803-1
16
1
9611-
10
16.155 SCREW; ARM REST
CREW CAB(TF**W*) 08.913 M5X12
8-94120-094-0
08
1
9611-
13
16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 16.450
5-09470-001-0
04
1
9611-
26
16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*)
8-97160-986-1
02
1
9611-
40
16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*)
8-97118-492-0
02
1
9611-
50
16.450 GRIP; ASSIST,RR DOOR TRIM
CREW CAB(TF**W*) GRAY
8-97152-650-2
02
1
9611-
51
16.450 SCREW; ASSIST GRIP,RR DOOR TRIM
CREW CAB(TF**W*) M6X30
8-94361-891-0
04
1
9611-
61
16.165 GUIDE; HOLE
CREW CAB(TF**W*) GRAY
8-97152-748-3
02
1
9611-
62
16.165 BRACKET
CREW CAB(TF**W*)
8-97176-379-0
01
1
9611-
62
16.165 BRACKET
CREW CAB(TF**W*)
8-97176-378-0
01
1
9611-
