6-47 — MUD GUARD AND INSULATOR (#36324) — 29 parça

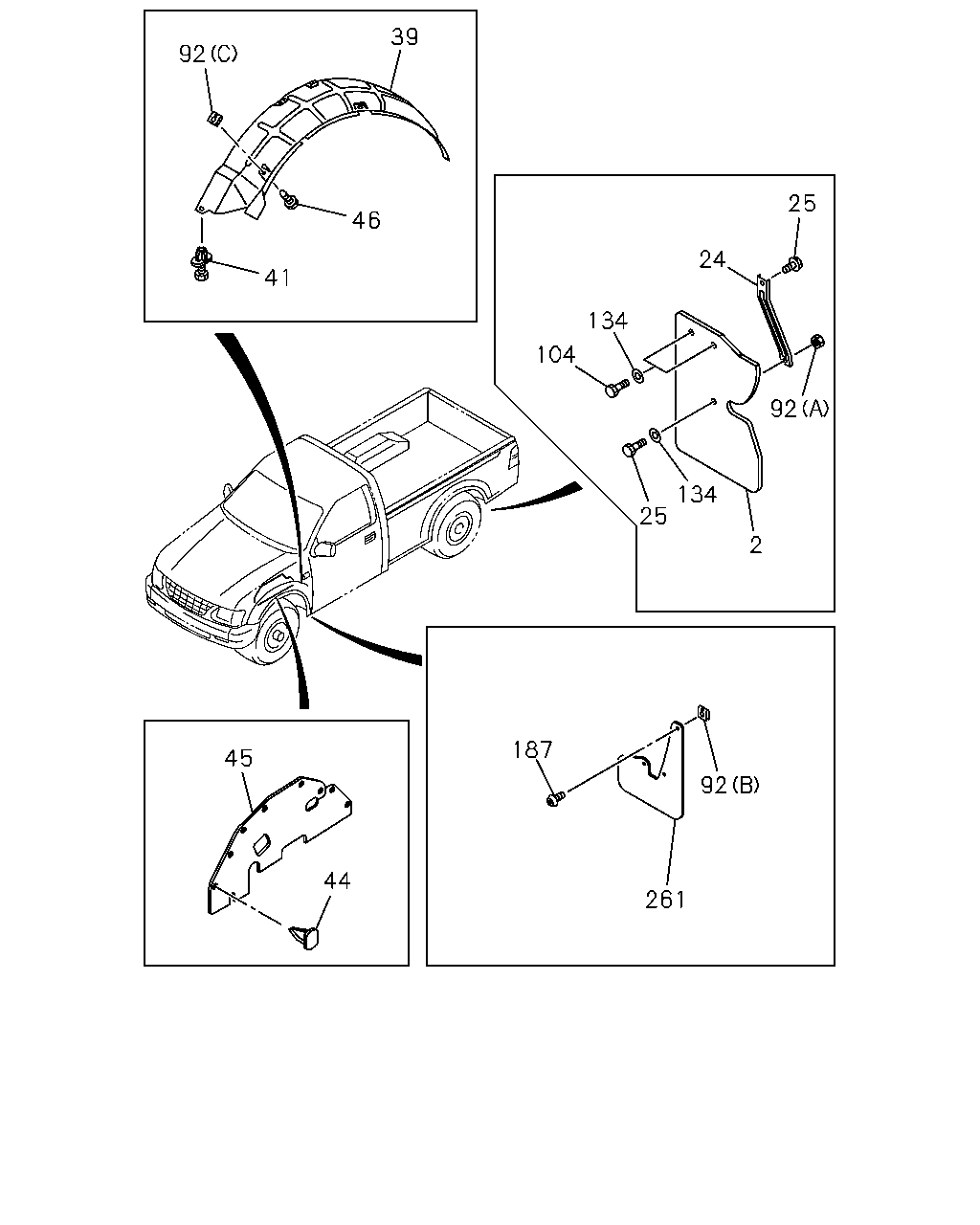

çizim 72076
39 92 25 46 24 41 134 104 92 134 25 2 187 45 92 44 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 08.154 COVER; MUD,TIRE RR
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) MUD FLAP<VH4> 		8-97142-514-1 01 1 9611- ● ● ●
2 08.154 COVER; MUD,TIRE RR
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) MUD FLAP<VH4> 		8-97142-513-1 01 1 9611- ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) 		8-97142-531-1 02 1 9611- ● ● ●
2 08.154 COVER; MUD,TIRE RR
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) MUD FLAP<VH4> 		8-97142-516-1 01 1 9611- ● ● ●
2 08.154 COVER; MUD,TIRE RR
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) MUD FLAP<VH4> 		8-97142-515-1 01 1 9611- ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) 		8-97142-530-1 02 1 9611- ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> 16.100 		8-94328-186-0 01 1 9611- ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> 		8-94328-185-0 01 1 9611- ● ● ● ● ● ●
25 08.155 BOLT; PLATE TO MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ●
39 08.131 LINER; FENDER 8-97111-843-2 01 1 9611- ● ● ● ● ● ●
39 08.131 LINER; FENDER 8-97111-842-2 01 1 9611- ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> 08.154 		8-94221-150-0 12 1 9611- ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9611- ● ● ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 16 1 9611- ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-997-2 01 1 9611- ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-996-2 01 1 9611- ● ● ● ● ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9611- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
(C) ID=5.2 H=10 		8-97032-135-0 04 1 9611- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> (B) ID=5.2 H=10 		8-97032-135-0 06 1 9611-9706 ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> EXC. HOLLAND EQUIPMENT(EY9),PORTUGAL EQUIPMENT(6JK) (B) ID=5.2 H=10 		8-97032-135-0 06 1 9707- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9611- ● ● ● ● ● ●
104 08.214 BOLT; BRKT
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ●
134 08.155 WASHER; PL
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) MUD FLAP<VH4> 07.633 ID=8.4 OD=22 		9-09164-708-0 06 1 9611- ● ● ● ● ● ●
187 08.155 SCREW; FENDER COVER
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9611-9706 ● ● ● ● ● ●
187 08.155 SCREW; FENDER COVER
MUD FLAP<VH4> EXC. HOLLAND EQUIPMENT(EY9),PORTUGAL EQUIPMENT(6JK) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9707- ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97166-253-1 02 1 9611-9706 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. HOLLAND EQUIPMENT(EY9),PORTUGAL EQUIPMENT(6JK) 		8-97166-253-1 02 1 9707- ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97166-252-1 02 1 9611-9706 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. HOLLAND EQUIPMENT(EY9),PORTUGAL EQUIPMENT(6JK) 		8-97166-252-1 02 1 9707- ● ● ●
