Sayfa 6-43 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶

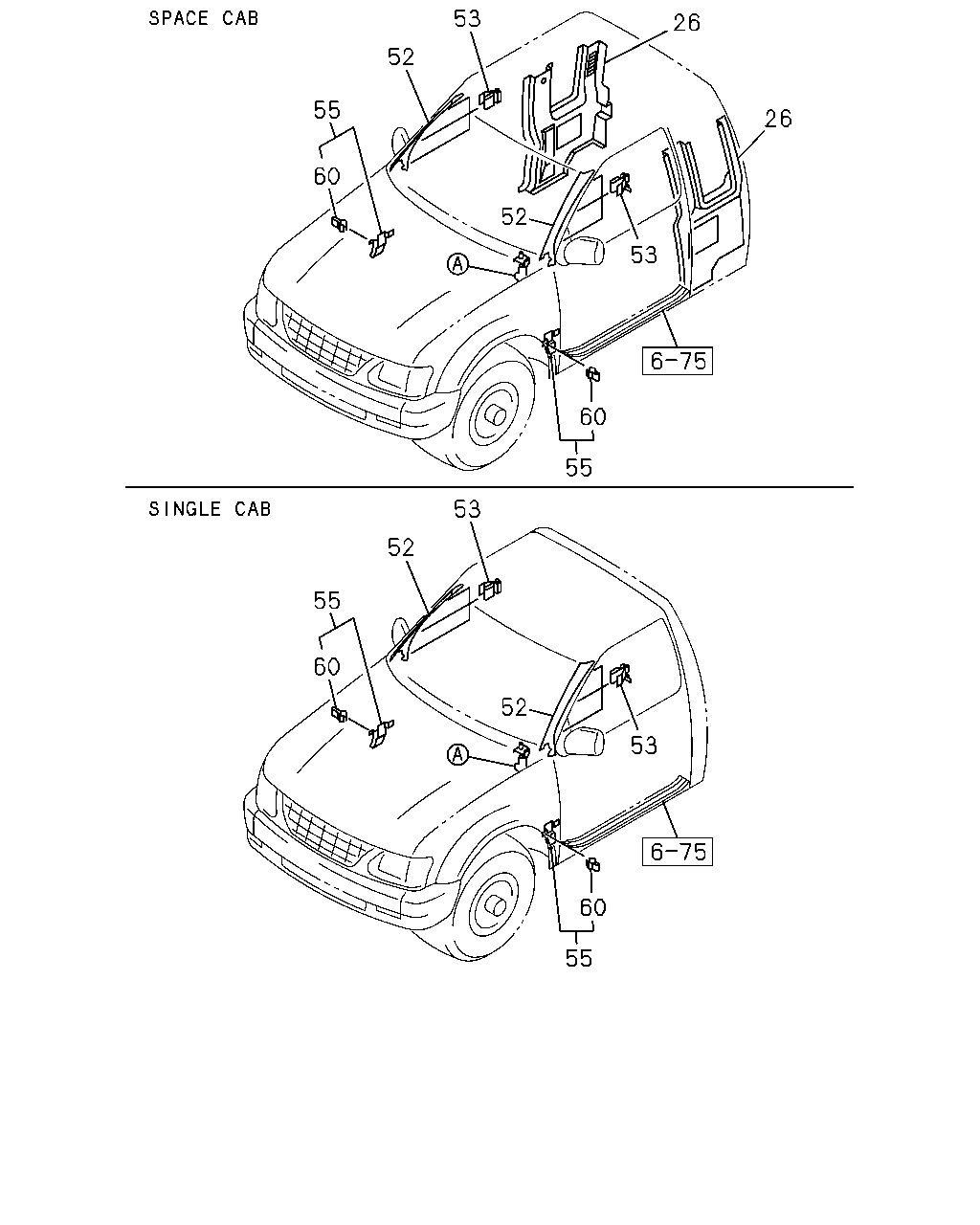

6-43 — SIDE TRIM (#36322) — 40 parça

53 26 52 55 26 60 52 53 60 55 53 52 55 60 52 53 60 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-053-0	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-052-1	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-057-0	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-056-1	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-652-0	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-654-1	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-651-3	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-650-4	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY	8-97154-649-3	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY	8-97154-648-4	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY	8-97156-055-0	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY	8-97156-054-1	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-653-0	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-655-1	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY	8-97156-059-0	01	1	9611-
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY	8-97156-058-1	01	1	9611-
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9611-
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9611-
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9611-
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-609-0	01	1	9611-
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-607-0	01	1	9611-
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9611-

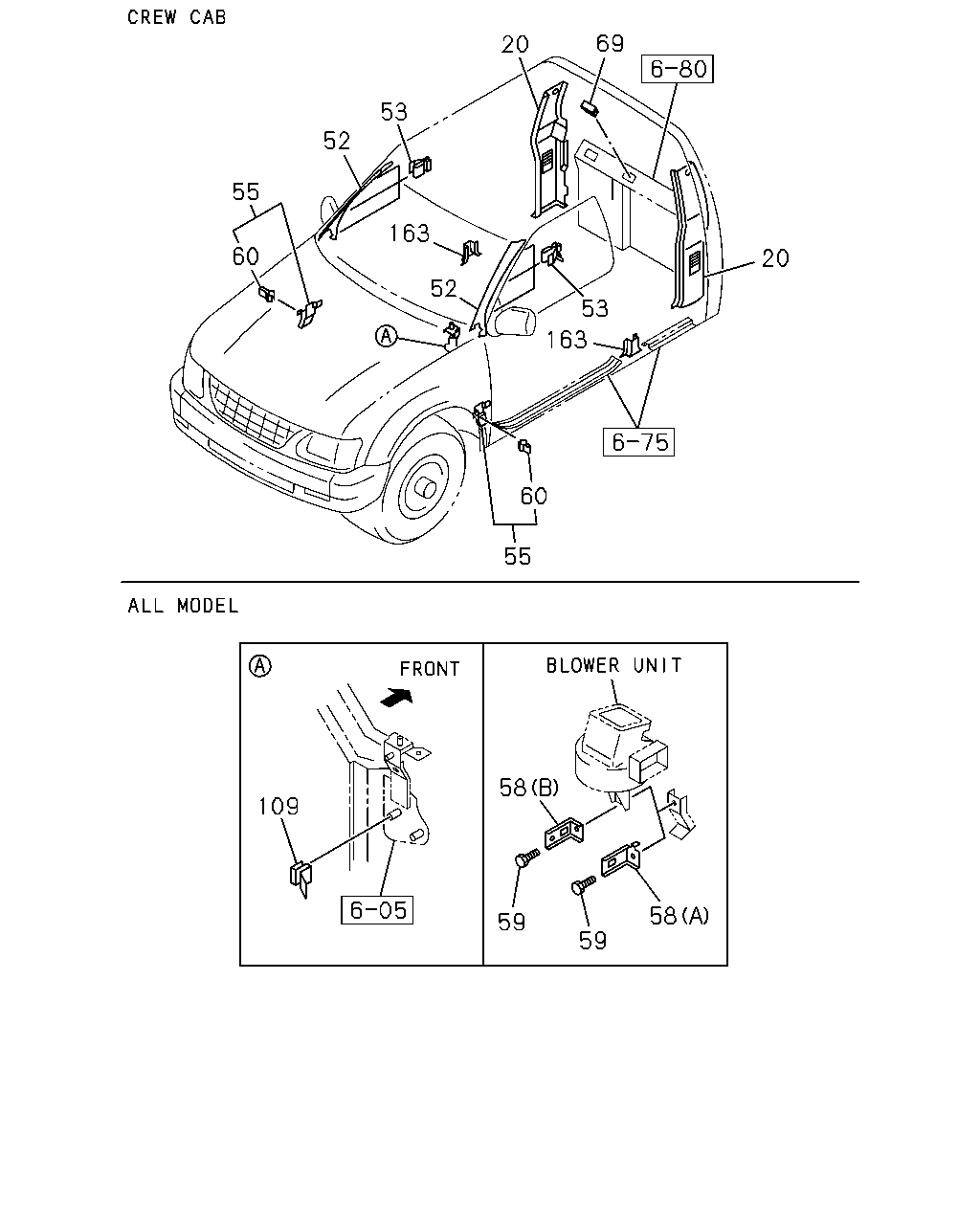

69 20 53 52 55 163 60 20 52 53 163 60 55 58 109 58 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> GRAY	8-97158-334-0	01	1	9611-
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> GRAY	8-97158-333-0	01	1	9611-
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49> GRAY	8-97158-330-0	01	1	9611-
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49> GRAY	8-97158-329-0	01	1	9611-
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9611-
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9611-
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9611-
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-609-0	01	1	9611-
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-607-0	01	1	9611-
58	16.551 BRACKET (A)	8-97132-073-0	01	1	9611-
58	16.551 BRACKET (B)	8-97132-075-0	01	1	9611-
59	16.560 BOLT; DASH SIDE TRIM BRKT 16.085 M6X16	8-94220-097-0	01	1	9611-
59	16.560 BOLT; DASH SIDE TRIM BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M6X16	8-94220-097-0	02	1	9611-
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9611-
69	16.585 PLUG; HOLE CREW CAB(TF*W)	8-97012-841-1	03	1	9611-
109	16.225 CLIP; DOOR FINISHER	8-97175-995-0	01	1	9611-
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) GRAY	8-97154-631-1	01	1	9611-
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) GRAY	8-97154-630-1	01	1	9611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
