Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

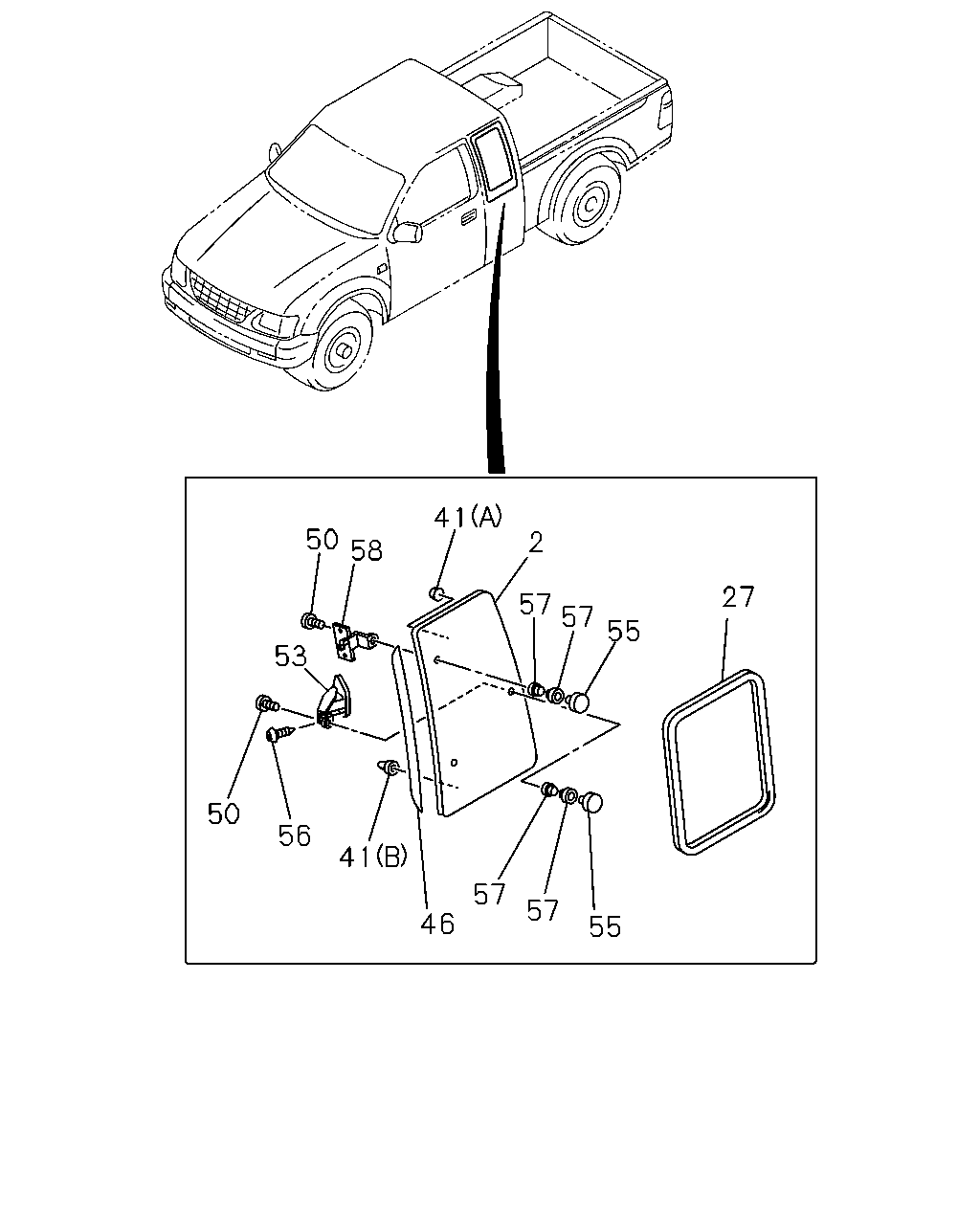

6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP
▶
6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP
(#36321) — 13 parça
Tümü
A - TFB6CF
B - TFS6CF
41
50
58
2
27
57
57
55
53
50
56
41
57
57
46
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.460 GLASS; RR QUARTER
8-97132-249-1
01
1
9611-
●
●
2
16.460 GLASS; RR QUARTER
8-97132-248-1
01
1
9611-
●
●
27
16.470 WEATHERSTRIP; RR QUARTER
8-94450-130-4
02
1
9611-
●
●
41
16.183 BUFFER; RR QUARTER GLASS
12.945 (A)
8-94203-098-1
02
1
9611-
●
●
41
16.183 BUFFER; RR QUARTER GLASS
(B)
8-94314-317-0
04
1
9611-
●
●
46
16.460 TAPE; RR QUARTER GLASS
8-94480-686-0
02
1
9611-
●
●
50
16.155 SCREW; HINGE
11.010 M5X10
9-03810-510-0
06
1
9611-
●
●
53
16.190 FASTENER; RR QUARTER
8-97061-616-0
02
1
9611-
●
●
55
16.152 NUT; SPECIAL,HINGE
11.010
8-94224-270-0
06
1
9611-
●
●
56
16.475 SCREW; BACKLIGHT GLASS
16.085 M5X16 TAPPING
9-09829-323-1
14
1
9611-
●
●
57
16.152 GROMMET; HINGE
8-94480-192-0
10
1
9611-
●
●
58
16.152 HINGE; RR QUARTER WINDOW
8-94427-003-0
04
1
9611-9708
●
●
58
16.152 HINGE; RR QUARTER WINDOW
8-97184-433-0
04
1
9709-
●
●
