Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

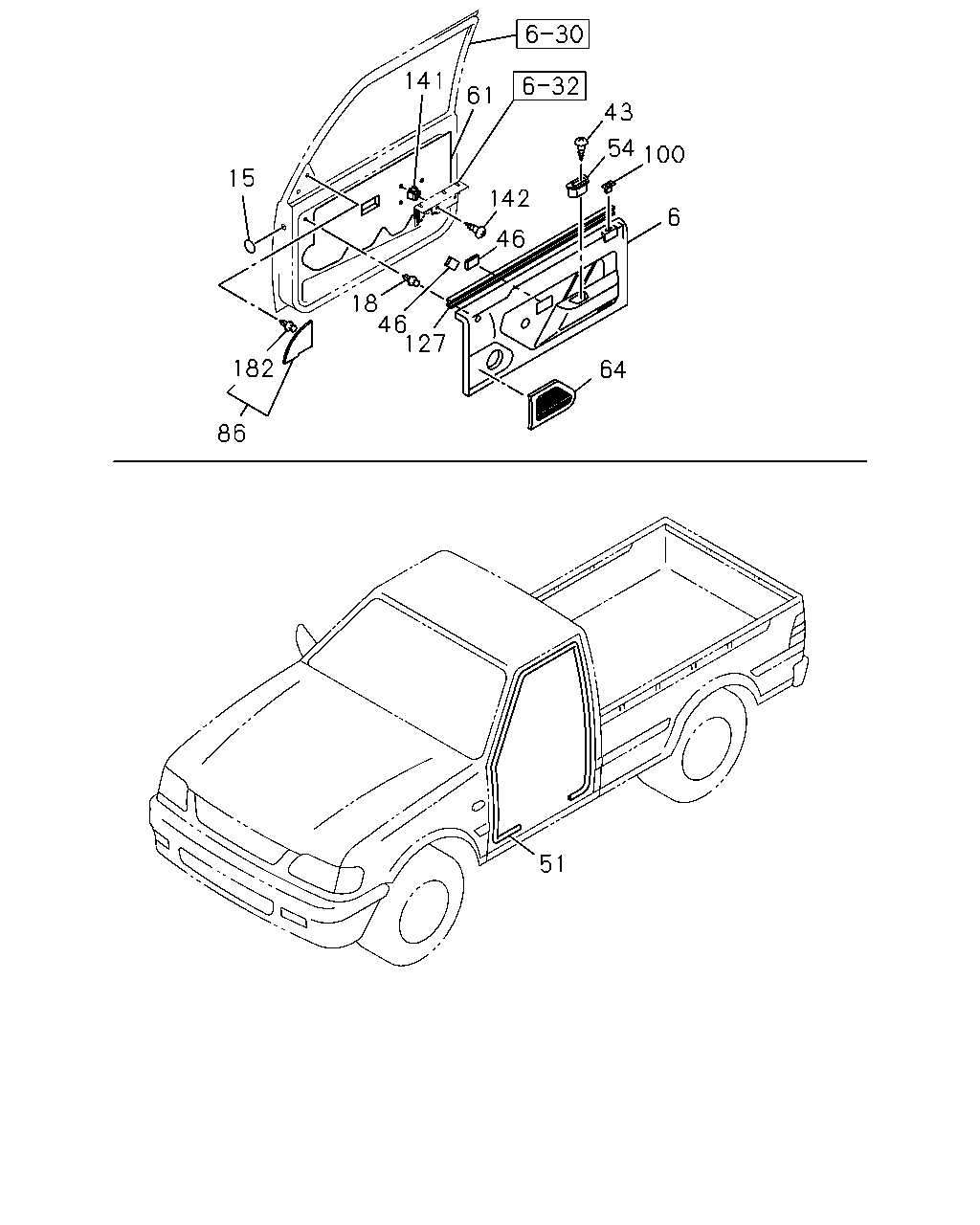

6-35 — FRONT DOOR TRIM
(#36320) — 23 parça
141
61
43
54
100
15
142
6
46
18
46
127
182
64
86
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
16.165 TRIM; DOOR,UPR
GRAY
8-97155-071-3
01
1
9611-
6
16.165 TRIM; DOOR,UPR
GRAY
8-97155-070-3
01
1
9611-
15
16.165 COVER; HOLE,DOOR TRIM
CREW CAB(TF**W*) OD=50 T=0.08 BLACK
8-94111-754-0
04
1
9611-9708
18
16.165 CLIP; DOOR PAD
8-97074-005-0
22
1
9611-
43
16.165 SCREW; DOOR POCKET
M6X14 SELF TAPPING
9-09629-040-0
04
1
9611-
46
16.165 CUSHION; TRIM PAD,FRT DOOR
8-97094-785-0
04
1
9712-
51
16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY
8-97152-747-6
01
1
9611-9705
51
16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY
8-97158-982-0
01
1
9706-
51
16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY
8-97152-746-6
01
1
9611-9705
51
16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY
8-97158-981-0
01
1
9706-
51
16.225 WEATHERSTRIP; FRONT DOOR
EXC. ANTI WIND NOISE<7MD> GRAY
8-97154-667-0
02
1
9611-
54
16.165 BOX; FRT DOOR
GRAY
8-97154-666-3
02
1
9611-
61
16.165 SEAL; WATER,DOOR PAD
8-97101-945-2
02
1
9611-
64
09.650 GRILLE
GRAY
8-97153-441-0
01
1
9611-
64
09.650 GRILLE
GRAY
8-97153-440-0
01
1
9611-
86
16.155 COVER ASM; DOOR POCKET
8-97093-746-1
01
1
9611-
86
16.155 COVER ASM; DOOR POCKET
8-97093-747-1
01
1
9611-
100
16.165 GUIDE; HOLE,DOOR LOCK KNOB
GRAY
8-97152-748-3
02
1
9611-
127
16.183 SEAL; DOOR INNER
8-97160-985-1
01
1
9611-
127
16.183 SEAL; DOOR INNER
8-97160-984-1
01
1
9611-
141
16.165 GROMMET; SCREW,LWR COVER
16.450
5-09470-001-0
06
1
9611-
142
16.165 SCREW; LWR COVER,DOOR TRIM
10.512 M6X16
9-09829-197-0
06
1
9611-
182
16.165 CLIP; COVER
16.166
8-97019-200-0
02
1
9611-
