6-31 — FRONT DOOR GLASS AND REGULATOR (#3632) — 127 parça

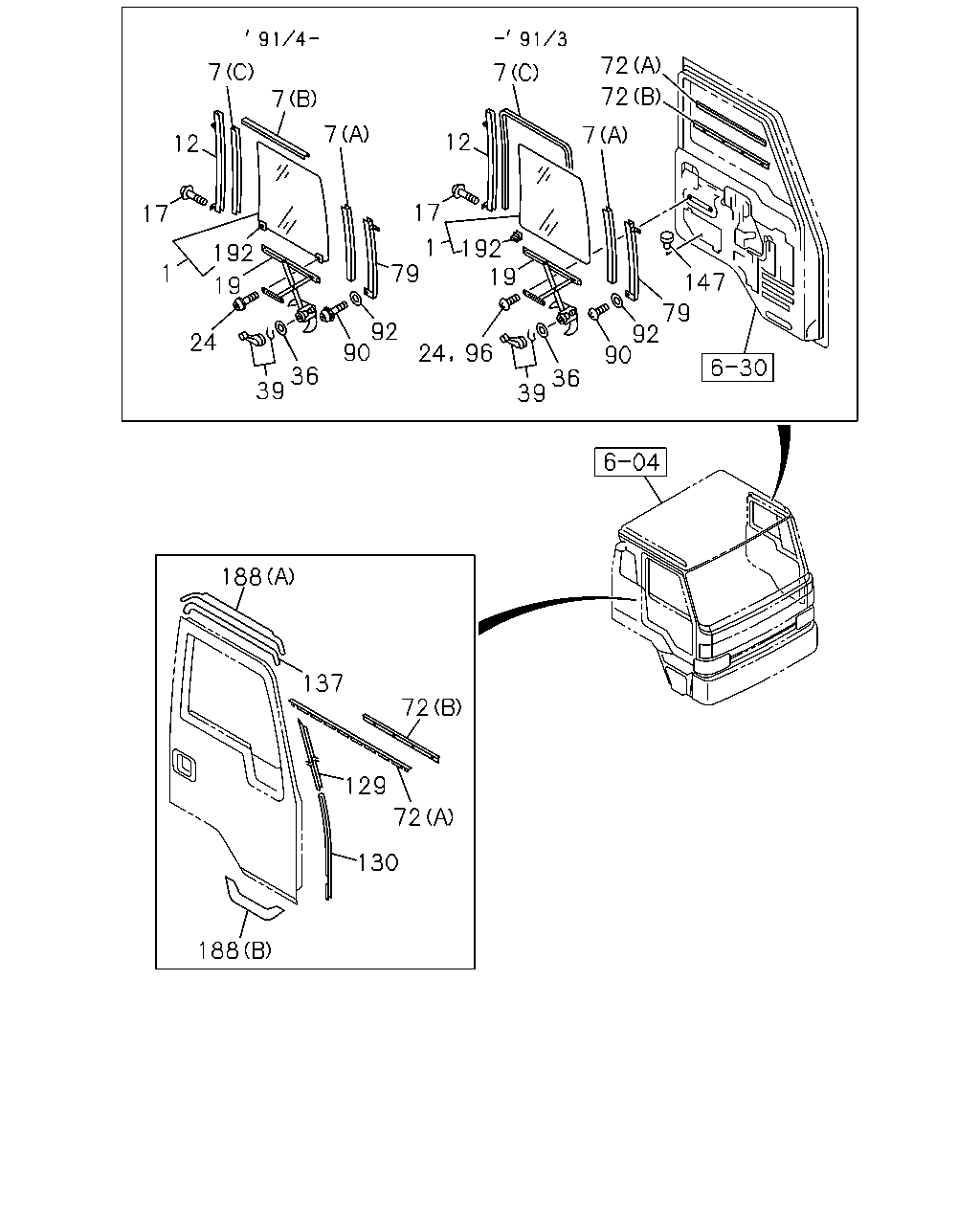

72 7 7 72 7 7 7 12 12 17 17 1 79 192 19 192 1 147 19 79 92 90 92 90 24 24 96 36 39 36 39 188 137 72 129 72 130 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-134-1	01	1	9009-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-186-1	01	1	9307-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-084-4	01	1	9002-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-080-4	01	1	9002-
7	GLASS RUN; FRT DOOR (C) L=2180	1-74317-034-0	02	1	9002-9009
7	GLASS RUN; FRT DOOR (C) L=2161	1-74317-040-0	02	1	9010-9103
7	GLASS RUN; FRT DOOR (B)	1-74317-044-0	02	1	9104-
7	GLASS RUN; FRT DOOR (A) L=635	1-74317-039-0	02	1	9002-9103
7	GLASS RUN; FRT DOOR (C) L=558	1-74317-042-0	02	1	9104-
7	GLASS RUN; FRT DOOR (A) L=620	1-74317-035-0	02	1	9104-
12	CHANNEL; GLASS RUN,FRT	1-74337-171-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT	1-74337-182-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT	1-74337-184-0	01	1	9104-
12	CHANNEL; GLASS RUN,FRT	1-74337-170-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT	1-74337-181-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT	1-74337-177-0	01	1	9104-
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	06	1	9002-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74417-063-0	01	1	9002-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74417-062-0	01	1	9002-
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9009-9204
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	07	1	9009-9306
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	14	1	9307-
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9307-
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	16	1	9002-9008
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9009-
36	ESCUTCHEON; HANDLE,WINDOW REG POWER WINDOW<A30>	1-74458-020-0	01	1	9009-9306
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30>	1-74458-020-0	02	1	9002-
39	HANDLE; WINDOW REG,FRT DOOR POWER WINDOW<A30>	5-74457-001-3	01	1	9009-9306
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30>	5-74457-001-3	02	1	9002-
72	SEAL; WAIST,FRT DOOR (B)	1-76737-094-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR (A)	1-76737-145-1	01	1	9002-
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-
79	CHANNEL; DOOR GLASS,FRT	1-74337-175-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT	1-74337-180-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT	1-74337-183-0	01	1	9104-
79	CHANNEL; DOOR GLASS,FRT	1-74337-174-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT	1-74337-179-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT	1-74337-176-0	01	1	9104-
90	SCREW; FRT CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9002-
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR ID=5.5	1-71997-525-1	02	1	9002-
96	SCREW; GLASS TO REG M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-
129	SEAL; DOOR,SUB UPR	1-76718-142-4	01	1	9002-9204
129	SEAL; DOOR,SUB UPR	1-76718-183-0	01	1	9205-
129	SEAL; DOOR,SUB UPR	1-76718-141-4	01	1	9002-9204
129	SEAL; DOOR,SUB UPR	1-76718-182-0	01	1	9205-
130	SEAL; DOOR,SUB LWR	1-76717-070-3	01	1	9002-
130	SEAL; DOOR,SUB LWR	1-76717-069-3	01	1	9002-
137	SEAL; DOOR SUB,UPR	1-76717-065-1	01	1	9002-9008
137	SEAL; DOOR SUB,UPR	1-76717-086-0	01	1	9009-
137	SEAL; DOOR SUB,UPR	1-76717-064-1	01	1	9002-9008
137	SEAL; DOOR SUB,UPR	1-76717-085-0	01	1	9009-
147	STOPPER; FRT DOOR GLASS	1-74907-022-0	02	1	9002-
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-579-0	01	1	9111-
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-577-0	01	1	9111-
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-320-1	01	1	9112-
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-319-1	01	1	9112-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-160-0	04	1	9009-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-160-0	04	1	9002-

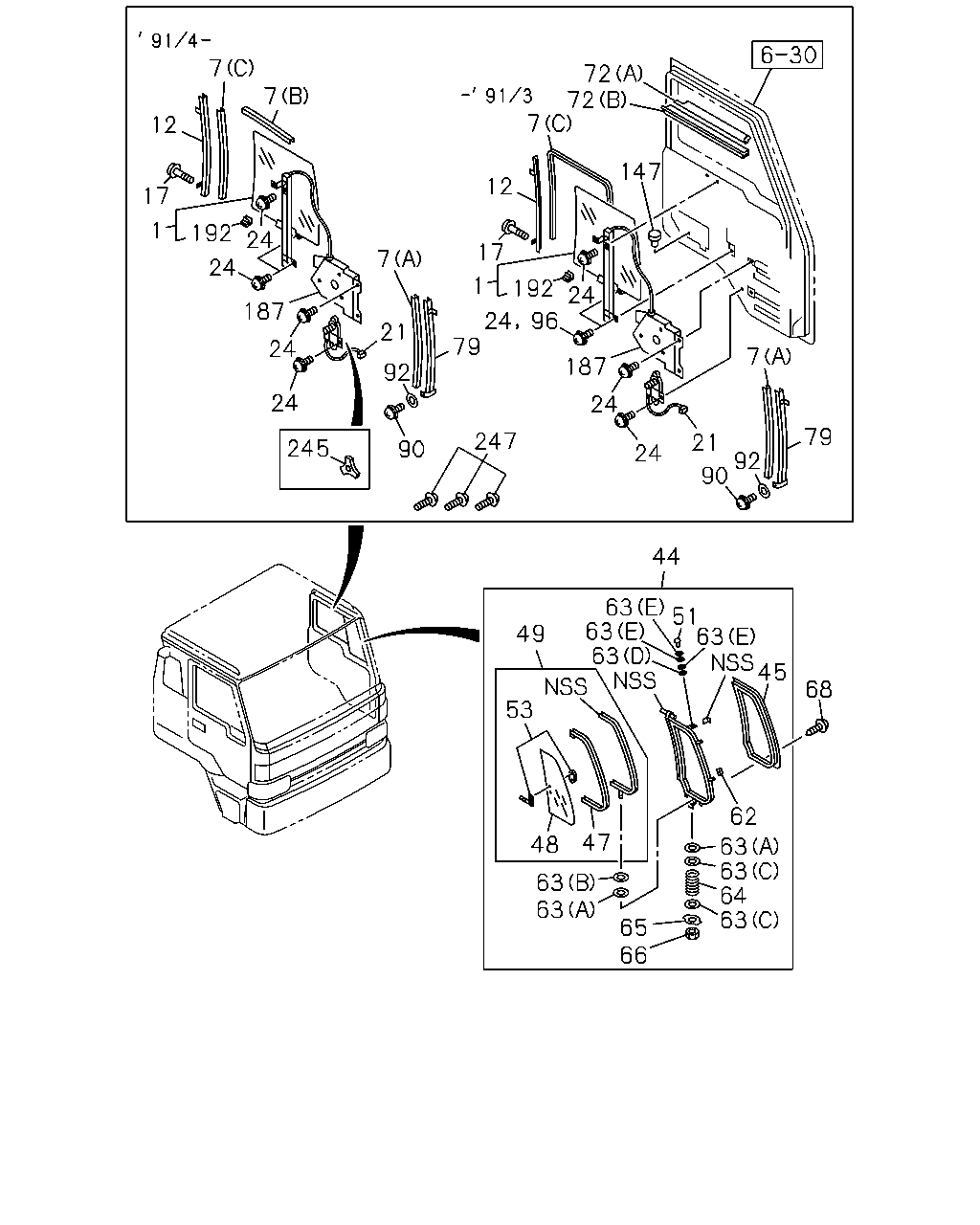

7 7 72 72 7 12 147 12 17 1 192 24 24 17 7 1 192 24 96 187 24 79 21 24 7 187 92 24 24 79 247 21 245 90 24 92 90 44 63 51 63 63 63 45 49 68 53 62 47 48 63 63 64 63 63 63 65 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-134-1	01	1	9009-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-186-1	01	1	9307-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-084-4	01	1	9002-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-080-4	01	1	9002-
7	GLASS RUN; FRT DOOR (C) L=2180	1-74317-034-0	02	1	9002-9009
7	GLASS RUN; FRT DOOR (C) L=2161	1-74317-040-0	02	1	9010-9103
7	GLASS RUN; FRT DOOR (B)	1-74317-044-0	02	1	9104-
7	GLASS RUN; FRT DOOR (A) L=635	1-74317-039-0	02	1	9002-9103
7	GLASS RUN; FRT DOOR (C) L=558	1-74317-042-0	02	1	9104-
7	GLASS RUN; FRT DOOR (A) L=620	1-74317-035-0	02	1	9104-
12	CHANNEL; GLASS RUN,FRT	1-74337-171-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT	1-74337-182-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT	1-74337-184-0	01	1	9104-
12	CHANNEL; GLASS RUN,FRT	1-74337-170-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT	1-74337-181-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT	1-74337-177-0	01	1	9104-
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	06	1	9002-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-069-2	01	1	9009-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-073-0	01	1	9307-
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9009-9204
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	07	1	9009-9306
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	14	1	9307-
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9307-
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	16	1	9002-9008
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9009-
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-023-5	01	1	9002-
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-022-5	01	1	9002-
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-050-7	01	1	9002-
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-049-7	01	1	9002-
47	PROTECTOR; DIVISION BAR	1-76147-126-0	02	1	9002-
48	GLASS; CROSS VENTILATOR	1-76147-089-2	01	1	9002-
48	GLASS; CROSS VENTILATOR	1-76147-069-2	01	1	9002-
49	FRAME; INNER,CROSS VENTILATOR	1-76148-034-0	01	1	9002-
49	FRAME; INNER,CROSS VENTILATOR	1-76148-032-0	01	1	9002-
51	RIVET; PIVOT,UPR	1-76347-048-0	02	1	9002-
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-026-0	01	1	9002-
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-025-0	01	1	9002-
62	SEAL; CROSS VENTILATOR	1-76147-127-0	02	1	9002-
63	WASHER; PL,VENTILATOR (E) ID=5.0 OD=10 T=0.5 NYLON	1-76147-113-0	06	1	9002-
63	WASHER; PL,VENTILATOR (A) OD=13 T=1.0	1-76347-046-0	04	1	9002-
63	WASHER; PL,VENTILATOR (D) ID=5.0 T=0.7	1-76347-047-0	02	1	9002-
63	WASHER; PL,VENTILATOR (B) ID=6.1 OD=14 T=2.4	8-94279-609-0	02	1	9002-
63	WASHER; PL,VENTILATOR (C) ID=6.1 OD=14 T=1	8-94279-619-0	04	1	9002-
64	SPRING; CROSS VENT	1-76347-045-2	02	1	9002-
65	WASHER; LK,VENTILATOR	8-94279-610-0	02	1	9002-
66	NUT; PIVOT,LWR M6	1-76147-112-0	02	1	9002-
68	SCREW; VENTILATOR M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-
68	SCREW; VENTILATOR M6X10	1-09981-511-0	02	1	9002-
72	SEAL; WAIST,FRT DOOR (B)	1-76737-094-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR (A)	1-76737-145-1	01	1	9002-
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-
79	CHANNEL; DOOR GLASS,FRT	1-74337-175-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT	1-74337-180-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT	1-74337-183-0	01	1	9104-
79	CHANNEL; DOOR GLASS,FRT	1-74337-174-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT	1-74337-179-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT	1-74337-176-0	01	1	9104-
90	SCREW; FRT CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9002-
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR ID=5.5	1-71997-525-1	02	1	9002-
96	SCREW; GLASS TO REG M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-
147	STOPPER; FRT DOOR GLASS	1-74907-022-0	02	1	9002-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-068-0	01	1	9009-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-072-0	01	1	9307-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-160-0	04	1	9009-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-160-0	04	1	9002-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74417-074-0	02	1	9307-
247	SCREW; SET POWER WINDOW<A30>	1-74417-075-0	06	1	9307-
