50727 - TFR/TFS(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

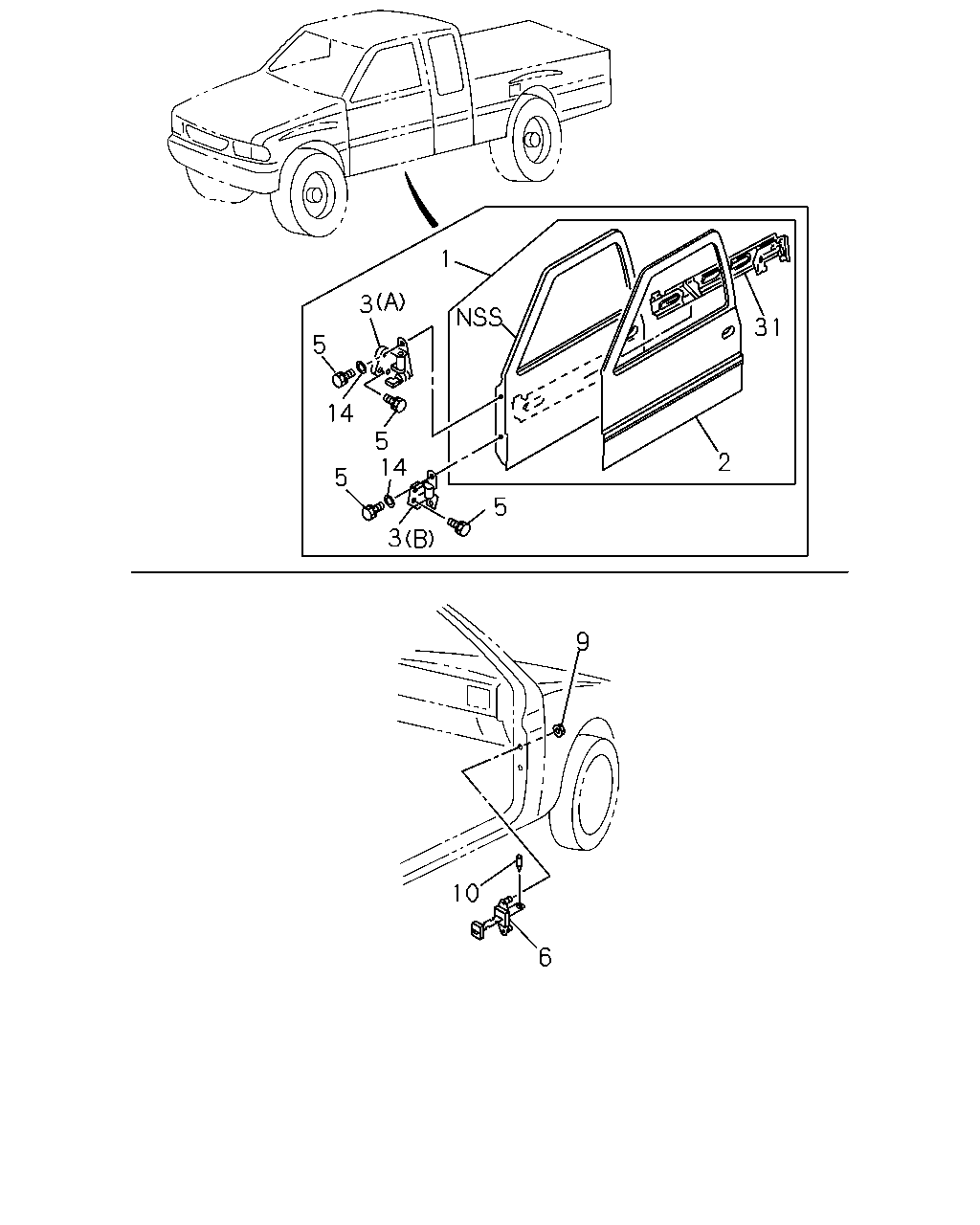

6-30 — FRONT DOOR AND HINGE
(#36317) — 17 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
1
31
5
14
5
14
2
5
5
9
10
6
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.150 DOOR ASM; FRT,WO/TRIM
KD PREPARATORY PACK<6HF>
8-97088-623-1
01
1
9611-
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
KD PREPARATORY PACK<6HF>
8-97088-622-1
01
1
9611-
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. KD PREPARATORY PACK<6HF>
8-97115-884-0
01
1
9611-
●
●
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
EXC. KD PREPARATORY PACK<6HF>
8-97115-883-0
01
1
9611-
●
●
●
●
●
●
2
16.152 PANEL; FRT DOOR OUTER
8-94449-356-5
01
1
9611-
●
●
●
●
●
●
2
16.152 PANEL; FRT DOOR OUTER
8-94449-355-5
01
1
9611-
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
10.454 (A)
8-94155-315-2
01
1
9611-
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
(B)
8-94230-392-4
01
1
9611-
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
10.454 (A)
8-94155-314-2
01
1
9611-
●
●
●
●
●
●
3
16.320 HINGE; DOOR FRT
(B)
8-94230-393-4
01
1
9611-
●
●
●
●
●
●
5
16.320 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
16
1
9611-
●
●
●
●
●
●
6
16.320 ARM; CHECK,FRT DOOR
8-94370-880-1
02
1
9611-
●
●
●
●
●
●
9
16.320 NUT; CHECK ARM
07.829 M6 FLANGE
5-09440-004-0
04
1
9611-
●
●
●
●
●
●
10
16.320 PIN; CHECK ARM
10.455
8-94111-468-0
02
1
9611-
●
●
●
●
●
●
14
16.320 WASHER; PL,HINGE
EXC. KD PREPARATORY PACK<6HF> W/PLAIN WASHER SEAL ID=8.1
8-97859-295-1
04
1
9612-9612
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
8-97112-918-0
01
1
9611-
●
●
●
●
●
●
31
16.152 REINFORCEMENT; FRT DOOR
8-97112-917-0
01
1
9611-
●
●
●
●
●
●
