6-10 — ENGINE HOOD AND LOCK (#36314) — 20 parça

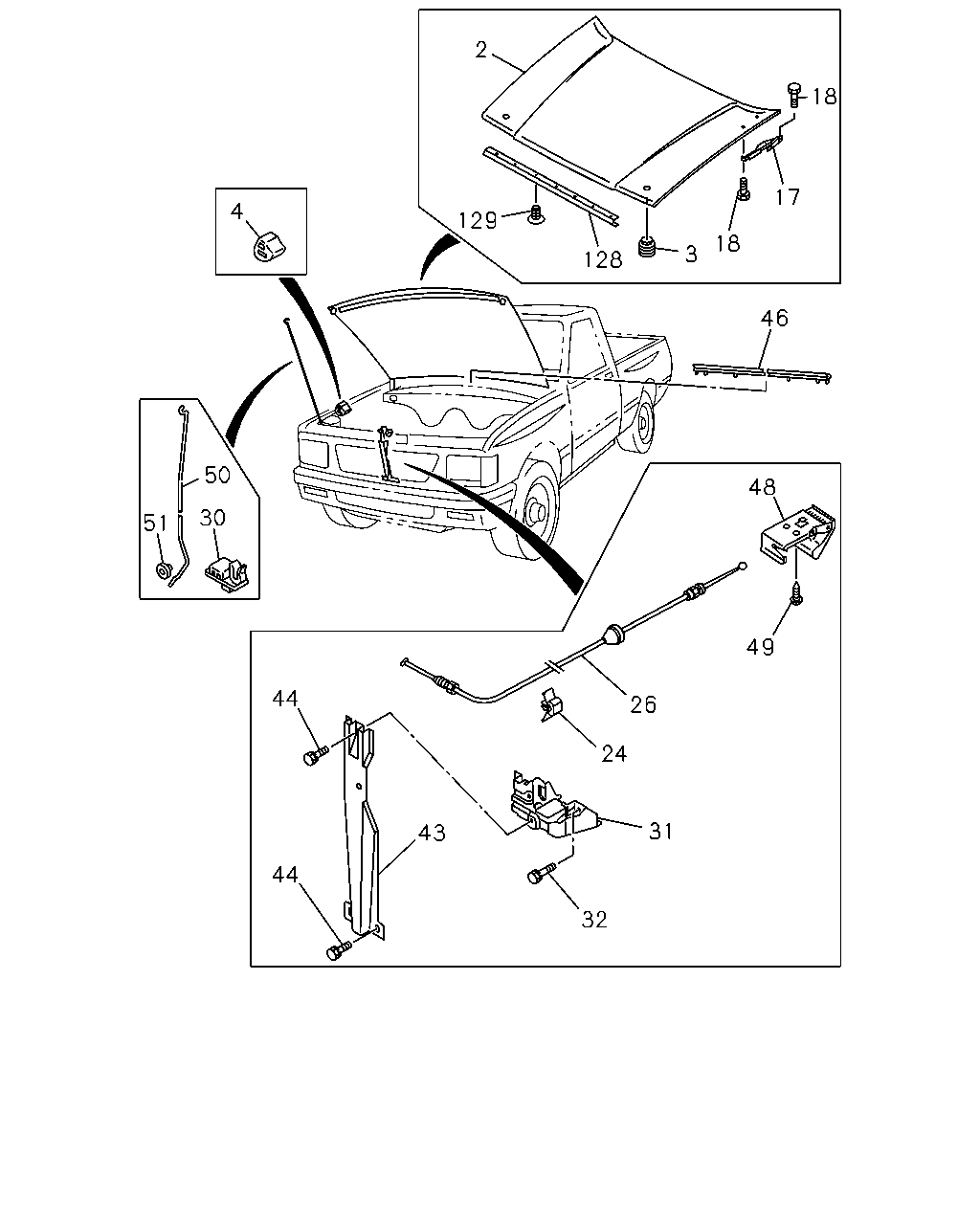

çizim 71633
2 18 17 4 129 18 3 128 46 50 48 30 51 49 44 26 24 31 43 44 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 08.000 PANEL; ENG HOOD 8-97111-807-4 01 1 9611- ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
08.024 		8-94237-385-0 02 1 9611- ● ● ● ● ● ●
4 08.024 REST; SIDE 8-94442-966-0 02 1 9611- ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-94388-235-4 01 1 9611- ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-94388-234-4 01 1 9611- ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 9611- ● ● ● ● ● ●
24 08.077 CLIP; CONT CABLE
09.647 ID=4.8 		8-94128-483-0 02 1 9611- ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-97106-131-0 01 1 9611- ● ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-97104-427-0 01 1 9611- ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-97112-040-0 01 1 9611- ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X18 		8-97071-681-0 02 1 9611- ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-94434-818-3 01 1 9611- ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X18 		8-97071-681-0 03 1 9611- ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD 8-97147-261-0 01 1 9611- ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
BLACK 		8-97150-583-0 01 1 9611- ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
08.077 M5X10 		9-09829-185-0 02 1 9611- ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-97073-612-1 01 1 9611- ● ● ● ● ● ●
51 08.080 GROMMET; SUPPORT ROD 8-94220-508-2 01 1 9611- ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) 		8-97139-188-0 01 1 9611- ● ● ● ● ● ●
129 08.010 CLIP; ENG HOOD SEAL
AIR CONDITIONER MANUAL CONT(C60) 15.100 BLACK 		8-94104-935-0 07 1 9611- ● ● ● ● ● ●
